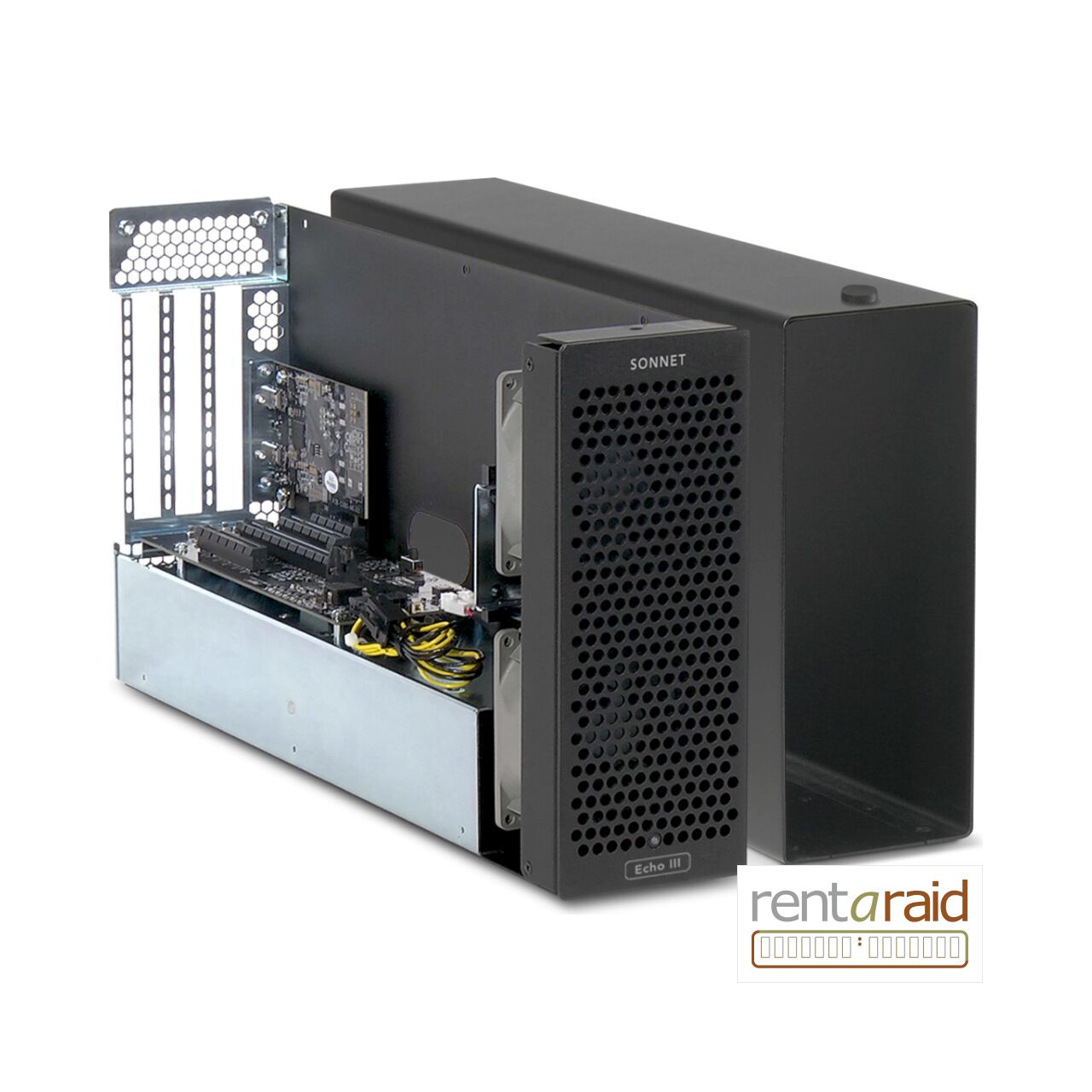

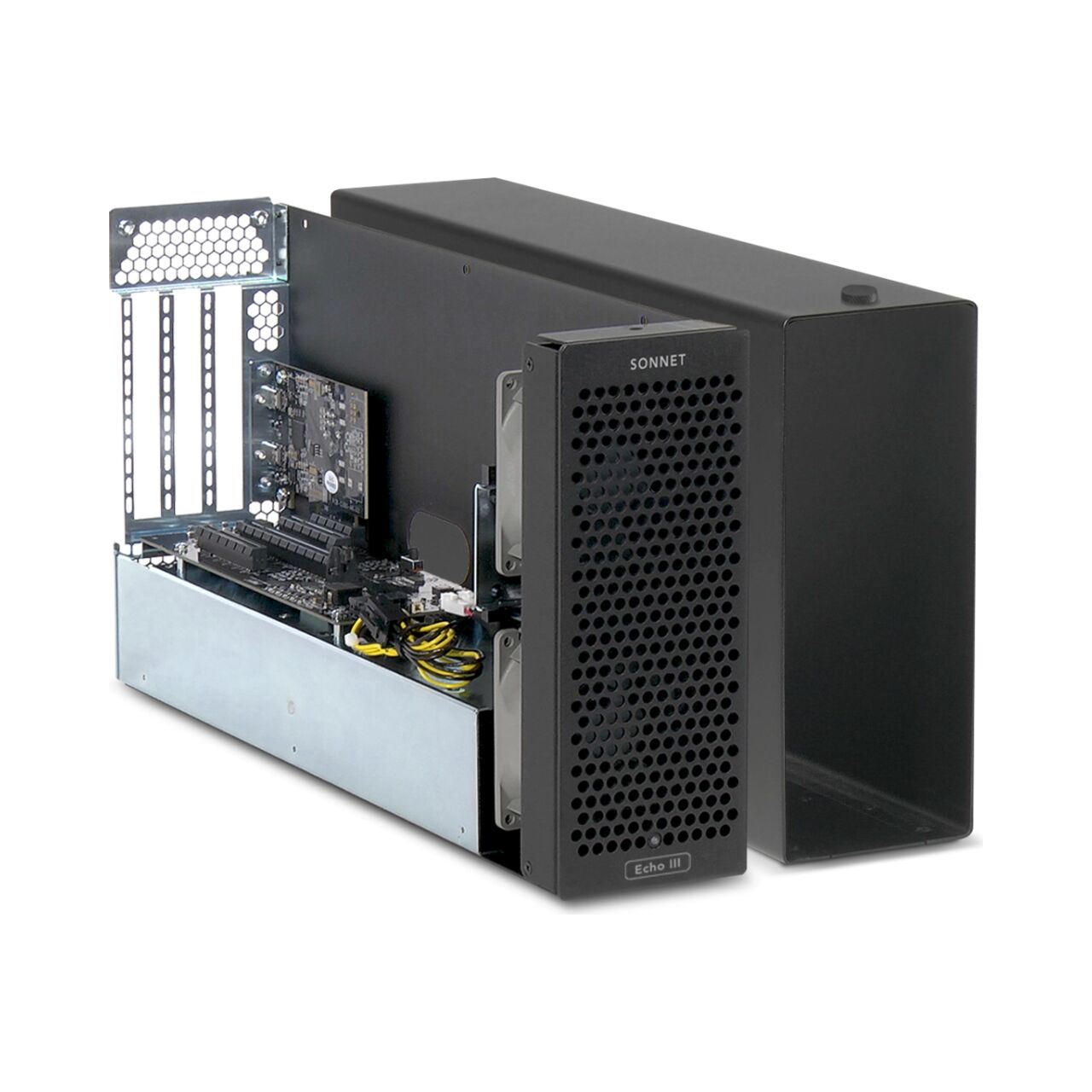

The Sonnet Echo III Desktop Thunderbolt Expansion System (ECHO-3D-TB3) is a professional three-slot desktop chassis for connecting full-length non-GPU PCIe cards to compatible Thunderbolt-equipped computers.
Its PCIe 3.1 architecture supports three single-width cards, or one double-width card plus one single-width card, with an integrated 400W power supply and quiet Noctua cooling.
Original price was: £ 1,262.00.£ 1,151.95Current price is: £ 1,151.95. | £ 1,382.34 inc VAT
In Stock
The Sonnet Echo III Desktop Thunderbolt Expansion System (ECHO-3D-TB3) is a professional three-slot desktop PCIe expansion chassis designed to bring full-length PCIe cards to Mac, Windows and Linux computers with compatible Thunderbolt or USB4 connectivity.
The chassis provides one x8 mechanical/x8 electrical PCIe 3.1 slot, one x16 mechanical/x8 electrical PCIe 3.1 slot and one x8 mechanical/x4 electrical PCIe 3.1 slot. It supports three full-length, full-height, single-width cards, or one double-width card plus one single-width card.
Echo III Desktop uses a Thunderbolt 3 controller with four PCIe lanes and provides two Thunderbolt ports. One connects to the host while the second supports compatible downstream Thunderbolt, USB and display devices.
A universal 400W internal power supply supports installed cards, while a 6-pin auxiliary connector can provide up to 75W of supplemental PCIe power where required.
Sonnet includes an HDX compatibility mode for professional Pro Tools workflows. When this mode is enabled, the PCIe slots operate in PCIe 2.0 mode and Sonnet specifies chassis bandwidth of 1750 MB/s.
Dual temperature-controlled variable-speed Noctua fans are rated at approximately 17dBA, making the enclosure suitable for audio, editing and other noise-sensitive professional environments.
Sonnet's current support material lists compatible Mac systems with Thunderbolt 3 and current Windows/Linux systems with suitable Thunderbolt 5, Thunderbolt 4 or USB4 connectivity, subject to Sonnet's platform requirements.
| Product | Sonnet Echo III Desktop Thunderbolt Expansion System |
| Manufacturer Part Number | ECHO-3D-TB3 |
| Product Type | Three-slot desktop Thunderbolt PCIe expansion system |
| PCIe Slot 1 | x8 mechanical, x8 electrical PCIe 3.1 |
| PCIe Slot 2 | x16 mechanical, x8 electrical PCIe 3.1 |
| PCIe Slot 3 | x8 mechanical, x4 electrical PCIe 3.1 |
| Card Configuration | Three full-length, full-height, single-width cards; or one double-width plus one single-width card |
| Thunderbolt Ports | 2 |
| Power Supply | Universal 400W, 115–230V AC, 50–60Hz |
| Auxiliary PCIe Power | 6-pin, up to 75W |
| HDX Compatibility Mode | Supported; slots operate in PCIe 2.0 mode and chassis bandwidth is limited to 1750 MB/s when enabled |
| Operating Temperature | 0–35°C / 32–95°F |
| Dimensions | 3.5 × 16.7 × 9 in / 8.9 × 42.4 × 22.9 cm |
| Weight | 9.7 lb / 4.40 kg |
| Compliance | RoHS 3; IEC 62368-1 and IEC 62368-2 |
| Included | Echo III Desktop system, region-specific power cable, 6-pin PCIe auxiliary power cable, 0.8m Thunderbolt cable, ThunderLok-A connector lock, documentation |
| Original Warranty | 2 years |
