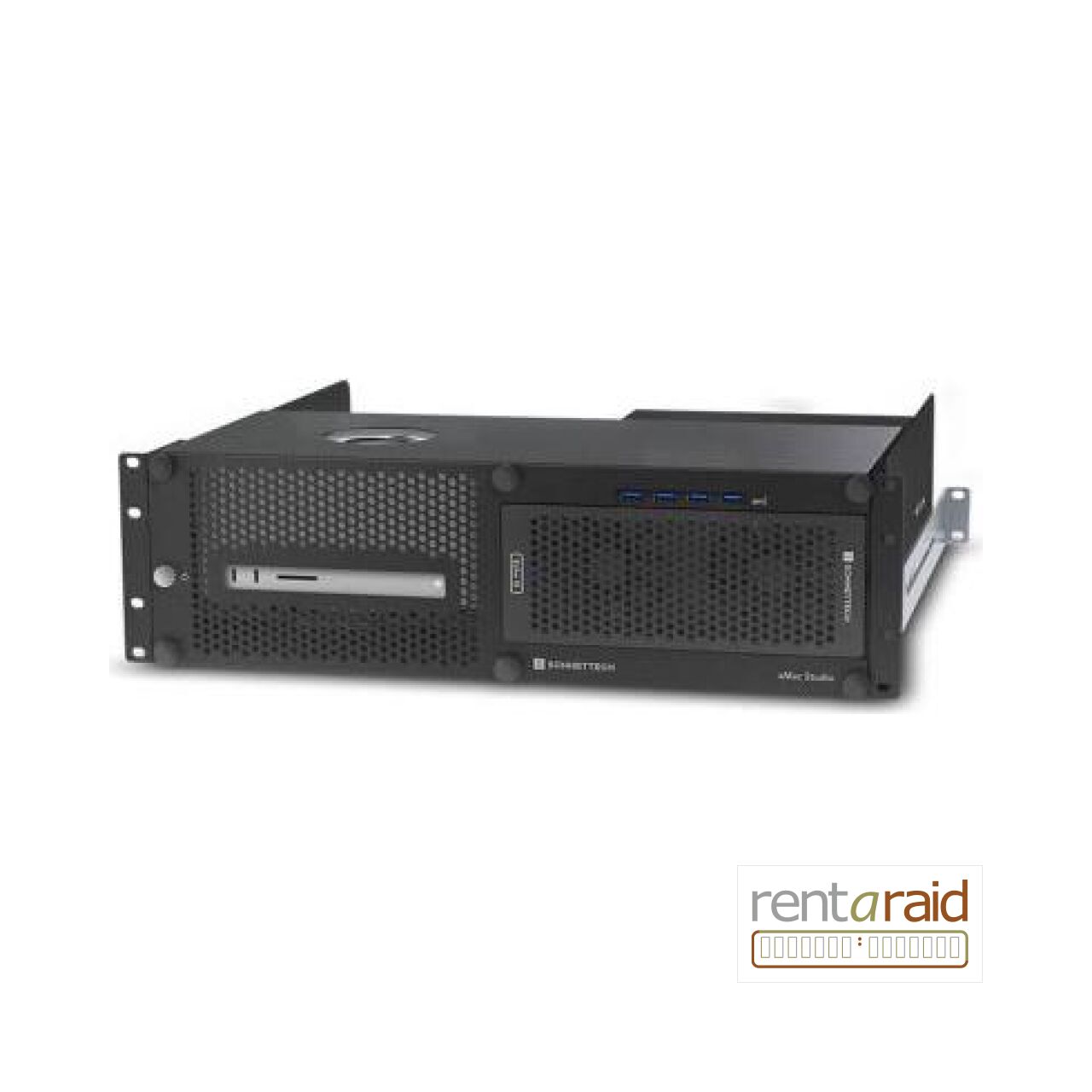

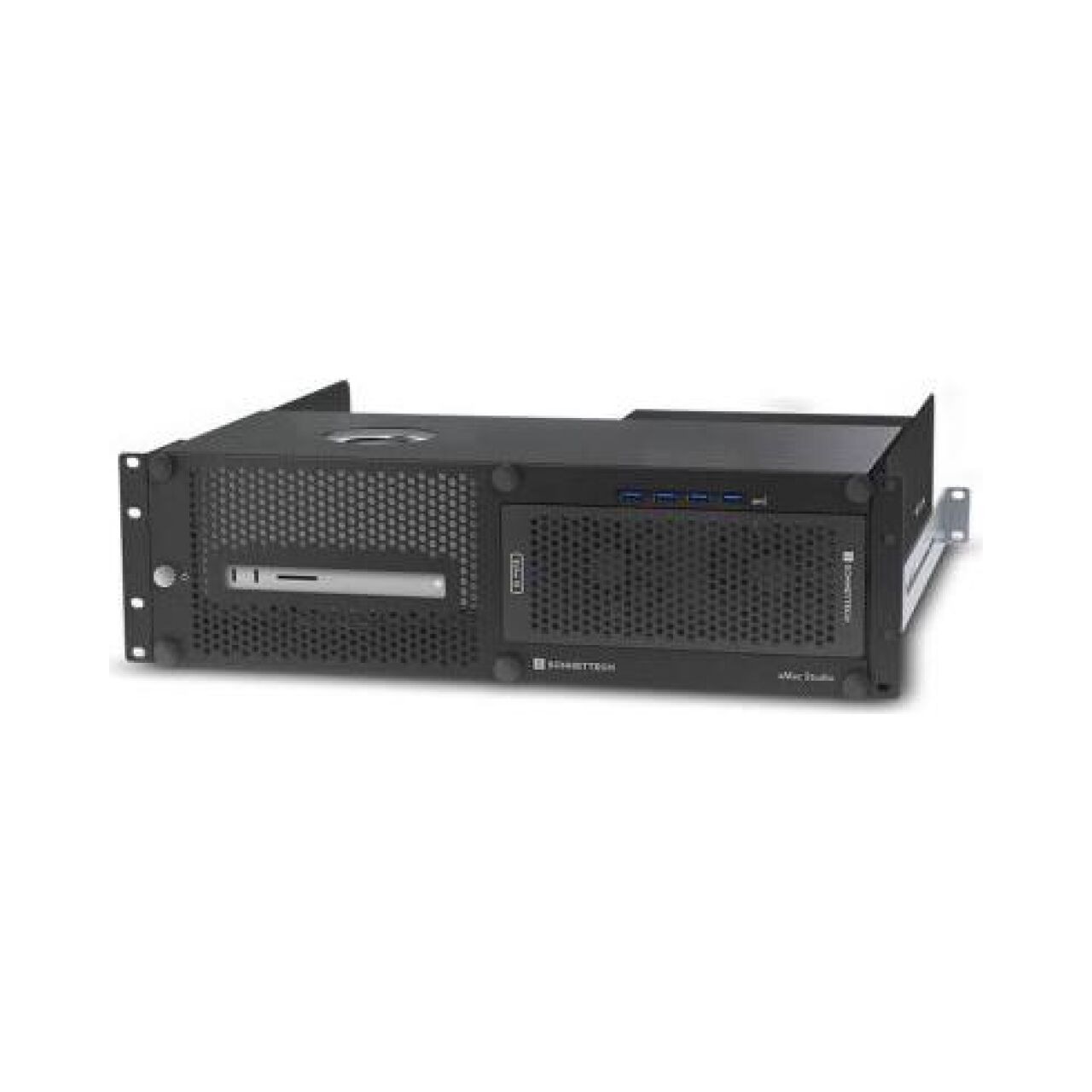

The Sonnet xMac Studio / Echo III T5 combines secure 3U rackmounting for one Mac Studio with a three-slot Thunderbolt 5 PCIe expansion module for professional audio, video, storage and networking workflows.
The current Echo III T5 architecture supports three full-length single-width PCIe cards, or one double-width card plus one single-width card, with up to 3500 MB/s aggregate PCIe bandwidth.
The system pairs Sonnet’s proven xMac Studio enclosure — with front power control, four USB-A ports and SSD storage space — with a 400W three-slot expansion module and auxiliary PCIe power.
Original price was: £ 1,882.00.£ 1,717.95Current price is: £ 1,717.95. | £ 2,061.54 inc VAT
Please Call Us For Availability Of This Item
The Sonnet xMac Studio / Echo III T5 (XMAC-STD-III-T5) is the current three-slot Thunderbolt 5 configuration of Sonnet's professional Mac Studio rackmount platform.
The Echo III T5 module supports three full-height, full-length, single-width PCIe cards, or one double-width card plus one single-width card. Its slot layout provides x8/x8, x16/x8 and x8/x4 mechanical/electrical PCIe 3.1 connectivity.
The module provides two Thunderbolt 5 ports and up to 3500 MB/s aggregate PCIe bandwidth. Installed cards share the available host bandwidth through the Echo III PCIe bridge.
The 3U xMac Studio enclosure secures one Mac Studio and provides a dedicated front power button, four-port USB-A hub, direct access to the computer's front ports and SD card slot, and open rear cable access.
A universal 400W power supply supports installed PCIe cards, with a 6-pin auxiliary connection providing up to 75W of supplemental power for compatible hardware.
Space beneath the Mac Studio accommodates two compact Thunderbolt or USB SSDs, while front-to-back airflow supports both the computer and expansion module thermal designs.
| Product | Sonnet xMac Studio / Echo III T5 |
| Manufacturer Part Number | XMAC-STD-III-T5 |
| Mac Compatibility | Apple Mac Studio |
| Computer Capacity | 1 Mac Studio |
| Rack Form Factor | 3U, standard 19-inch rack |
| Front USB | 4 × USB-A ports |
| PCIe Slots | 3 total: x8/x8, x16/x8 and x8/x4 mechanical/electrical PCIe 3.1 |
| Card Configuration | Three full-length single-width cards, or one double-width plus one single-width card |
| Thunderbolt Interface | Thunderbolt 5 |
| Thunderbolt Ports | 2 |
| Maximum Aggregate PCIe Bandwidth | Up to 3500 MB/s |
| Expansion Power Supply | Universal 400W |
| Auxiliary PCIe Power | 6-pin, up to 75W |
| SSD Space | Space beneath Mac Studio for two compact Thunderbolt or USB SSDs |
| Enclosure Dimensions | 48 × 41.9 × 13.3 cm / 19 × 16.5 × 5.2 in. |
| Warranty | 2 years |
