Sonnet xMac mini (2024+) System
Sonnet xMac mini (2024+) System
2U Rackmount System For One Or Two 2024+ Mac minis With Open Expansion Bay
The Sonnet xMac mini (2024+) System is a rugged 2U rackmount platform for one or two current Mac mini computers with an open modular bay for optional Thunderbolt-to-PCIe expansion.
The included xMac mini module provides front power controls, USB-C access to the rear-mounted computer, cable passthroughs, a shared power hub and storage space for two compact SSDs.
The unused expansion bay can later accept compatible Sonnet modules, making the system a flexible starting point for professional audio, video, broadcast and server-room workflows.
Category: All PCIe Expansion Chassis
Brand: Sonnet Technology
Original price was: £ 736.00.£ 648.95Current price is: £ 648.95. | £ 778.74 inc VAT
In Stock
Sonnet xMac mini (2024+) System – Product Overview

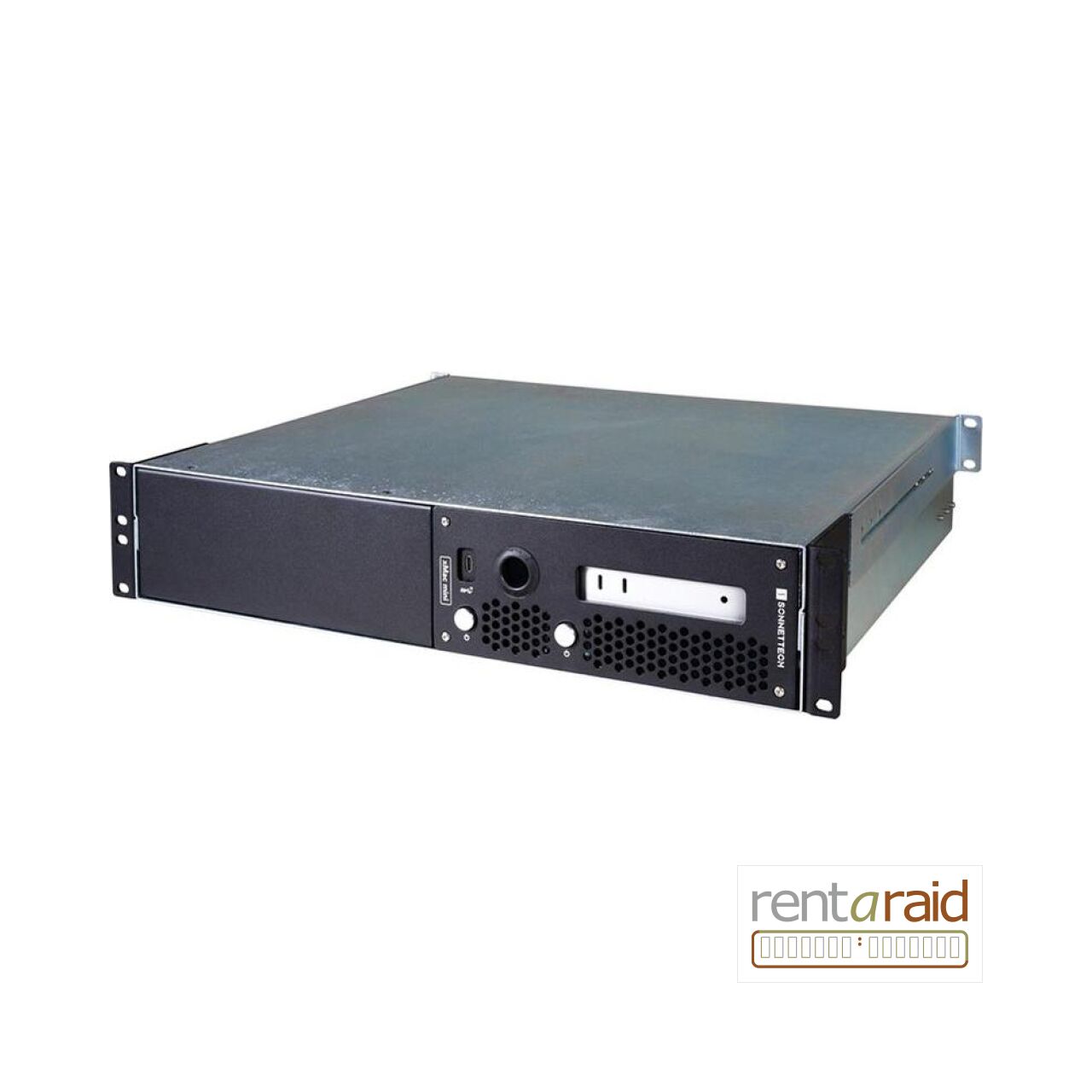

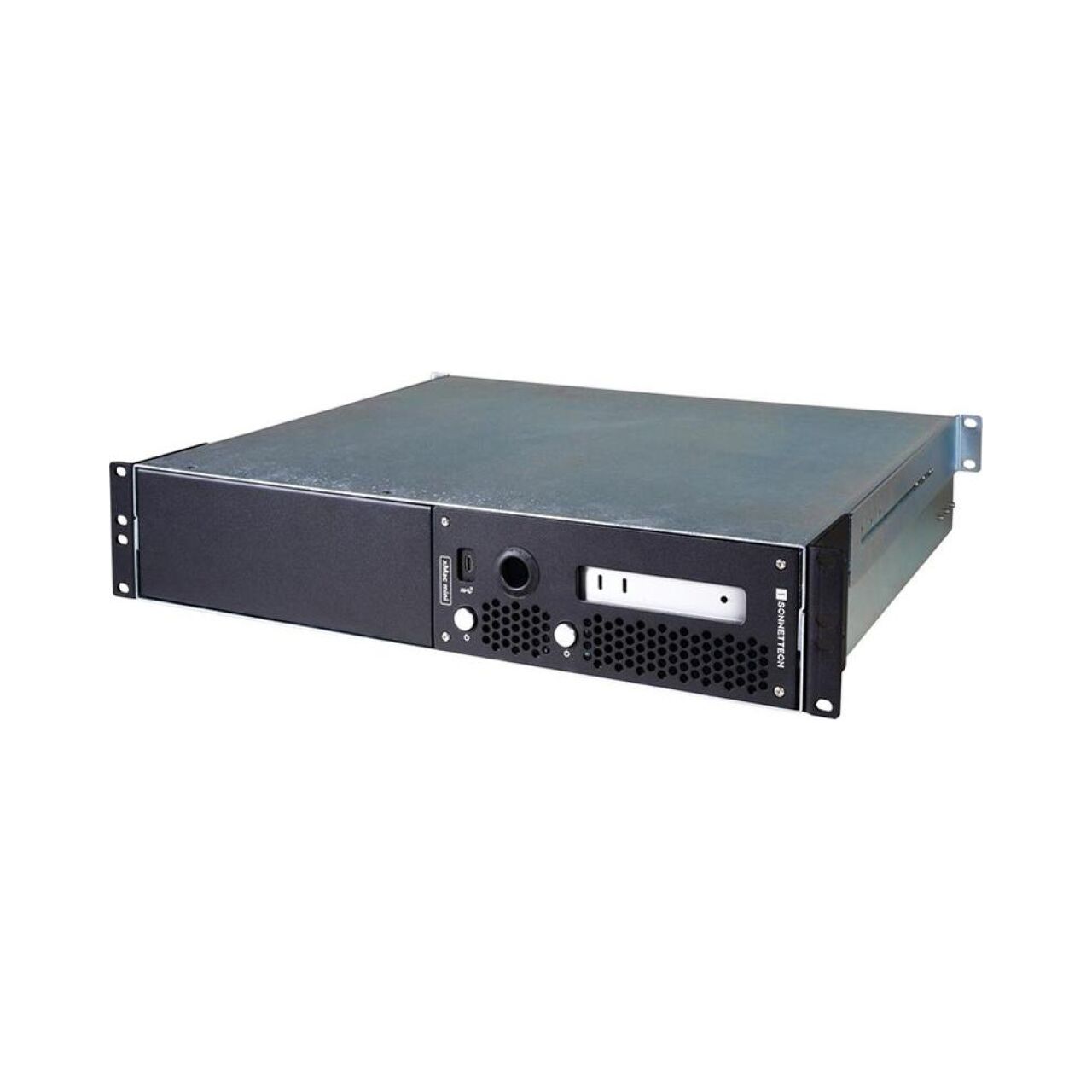

The Sonnet xMac mini (2024+) System (XMM-SYS-0) combines a rugged 2U steel rackmount enclosure with the current xMac mini computer module while leaving the second bay open for future expansion.
Rackmount One Or Two Mac minis
The included xMac mini module securely houses one or two 2024+ Mac mini computers and provides front power controls, USB-C access, cable passthroughs and open rear port access.
Open Modular Expansion Bay
The second half of the 2U chassis is left available for a compatible Sonnet expansion module, allowing PCIe capability to be added later without replacing the enclosure.
SSD Storage And Power Hub
Space beneath the computers supports two compact Thunderbolt or USB SSDs, while a shared power hub provides a single external power connection for both Mac minis.
Road-Ready Professional Chassis
The 19-inch 2U enclosure includes extension rails for 16–24-inch rack depths. Rubber-cushioned computer restraints and front-to-back airflow make it suitable for fixed or mobile installations.
Sonnet xMac mini (2024+) System – Key Features
- 2U rackmount enclosure for one or two Mac mini (2024+) computers.
- Includes xMac mini (2024+) computer module.
- Open second bay accepts compatible Sonnet expansion modules.
- Front-panel power control for each installed Mac mini.
- Front USB-C connection to the rear-mounted Mac mini.
- Front cable passthrough plus open rear port access.
- Power hub supplies both Mac minis from a single external power connection.
- Space for two compact Thunderbolt or USB SSDs.
- Rugged steel construction with transport-ready cushioned restraints.
- Includes extension rails for racks 16–24 inches deep.
- Two-year Sonnet warranty.
Sonnet xMac mini (2024+) System – Technical Specifications
| Product | Sonnet xMac mini (2024+) System |
| Manufacturer Part Number | XMM-SYS-0 |
| Product Type | Modular Mac mini rackmount enclosure system |
| Mac Compatibility | Mac mini (2024+) |
| Computer Capacity | One or two Mac mini computers |
| Rack Form Factor | 2U, standard 19-inch rack |
| Expansion Bay | One open bay for compatible Sonnet expansion module |
| External Module Connectors | USB-C; C14 power input |
| SSD Maximum Height | 18 mm / 0.7 in. |
| Dimensions (W × D × H) | 48.3 × 41.9 × 9.1 cm / 19 × 16.5 × 3.6 in. |
| Weight | 10.89 kg / 24 lb |
| Compliance | RoHS 3; IEC62368-1 / IEC62368-2 |
| Package Contents | 2U rackmount enclosure, xMac mini (2024+) Module, region-specific power cable, extension rails and documentation |
| Warranty | 2 years |
