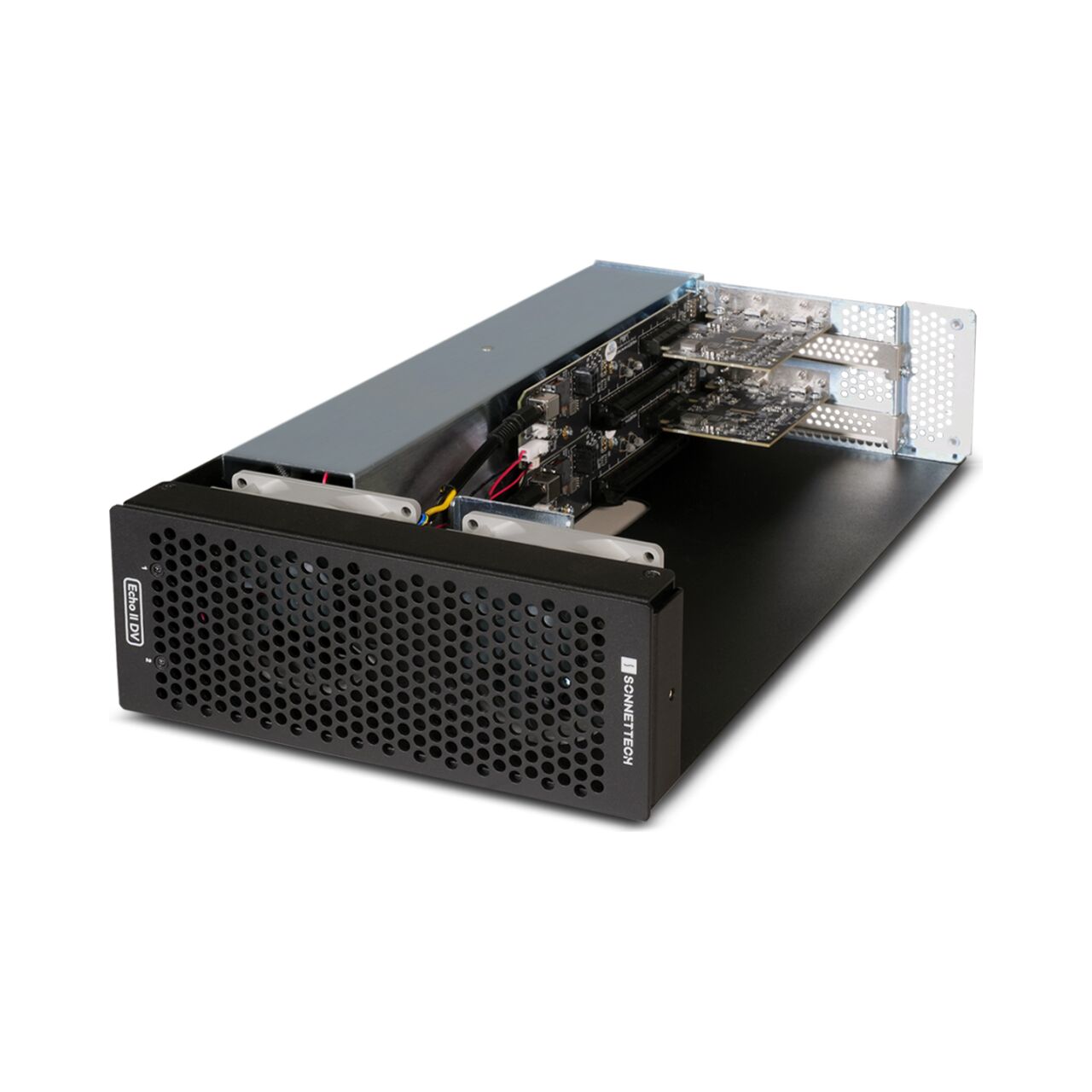

The Sonnet Echo II DV T5 Module is a professional two-slot PCIe expansion module with two independent Thunderbolt 5 interfaces, designed for installation in compatible Sonnet rackmount and modular expansion enclosures.
Each PCIe slot has its own Thunderbolt interface, allowing two bandwidth-intensive professional cards to operate independently when connected to suitable host ports.
Original price was: £ 1,261.00.£ 1,150.95Current price is: £ 1,150.95. | £ 1,381.14 inc VAT
Please Call Us For Availability Of This Item
The Sonnet Echo II DV T5 Module (DM-MOD-E2DV5) is the two-slot Thunderbolt 5 PCIe expansion module used in Sonnet's Echo II DV T5 systems and compatible modular rackmount platforms.
The module provides two x16 mechanical, x4 electrical PCIe 4.0 slots. Each slot is paired with its own Thunderbolt 5 interface, enabling two demanding PCIe cards to operate through separate host connections rather than sharing a single Thunderbolt PCIe path.
There are two Thunderbolt ports per interface. One port on each interface can connect to the host for maximum independent performance, while the secondary ports support compatible downstream Thunderbolt, USB and display devices.
A universal 400W power supply supports installed cards, while two 6-pin auxiliary PCIe power connections can provide up to 75W each for compatible cards requiring supplemental power.
The module is intended for Thunderbolt-compatible, non-GPU professional PCIe cards including video I/O and transcoding, audio DSP, SSD storage, SAS/SATA host adapters and high-speed networking cards.
DM-MOD-E2DV5 is the same core expansion module used in Sonnet Echo II DV T5 systems and is designed for compatible Sonnet modular rackmount and xMac configurations.
| Product | Sonnet Echo II DV T5 Module |
| Manufacturer Part Number | DM-MOD-E2DV5 |
| Product Type | Dual-interface Thunderbolt 5 PCIe expansion module |
| PCIe Slots | 2 × x16 mechanical, x4 electrical PCIe 4.0 |
| Supported Card Format | Two full-length, full-height, single-width compatible PCIe cards |
| Thunderbolt Interfaces | 2 independent Thunderbolt 5 interfaces |
| Thunderbolt Ports | 4 total, 2 per interface |
| Host Interface | Thunderbolt 5; backward compatibility depends on host/platform support |
| Power Supply | Universal 400W |
| Auxiliary PCIe Power | 2 × 6-pin, up to 75W each |
| GPU Support | Designed for Thunderbolt-compatible non-GPU PCIe cards |
| Warranty | 2 years |
