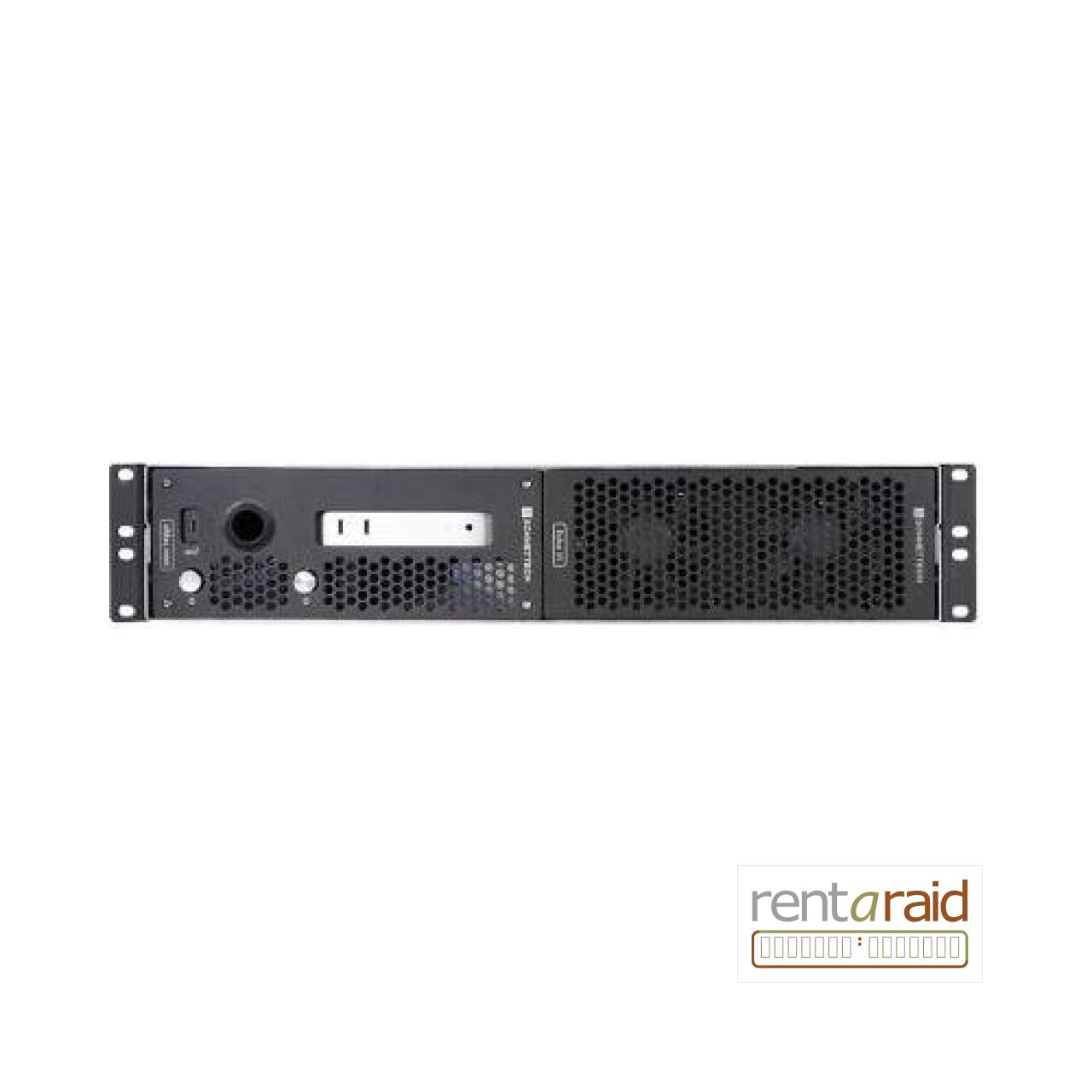

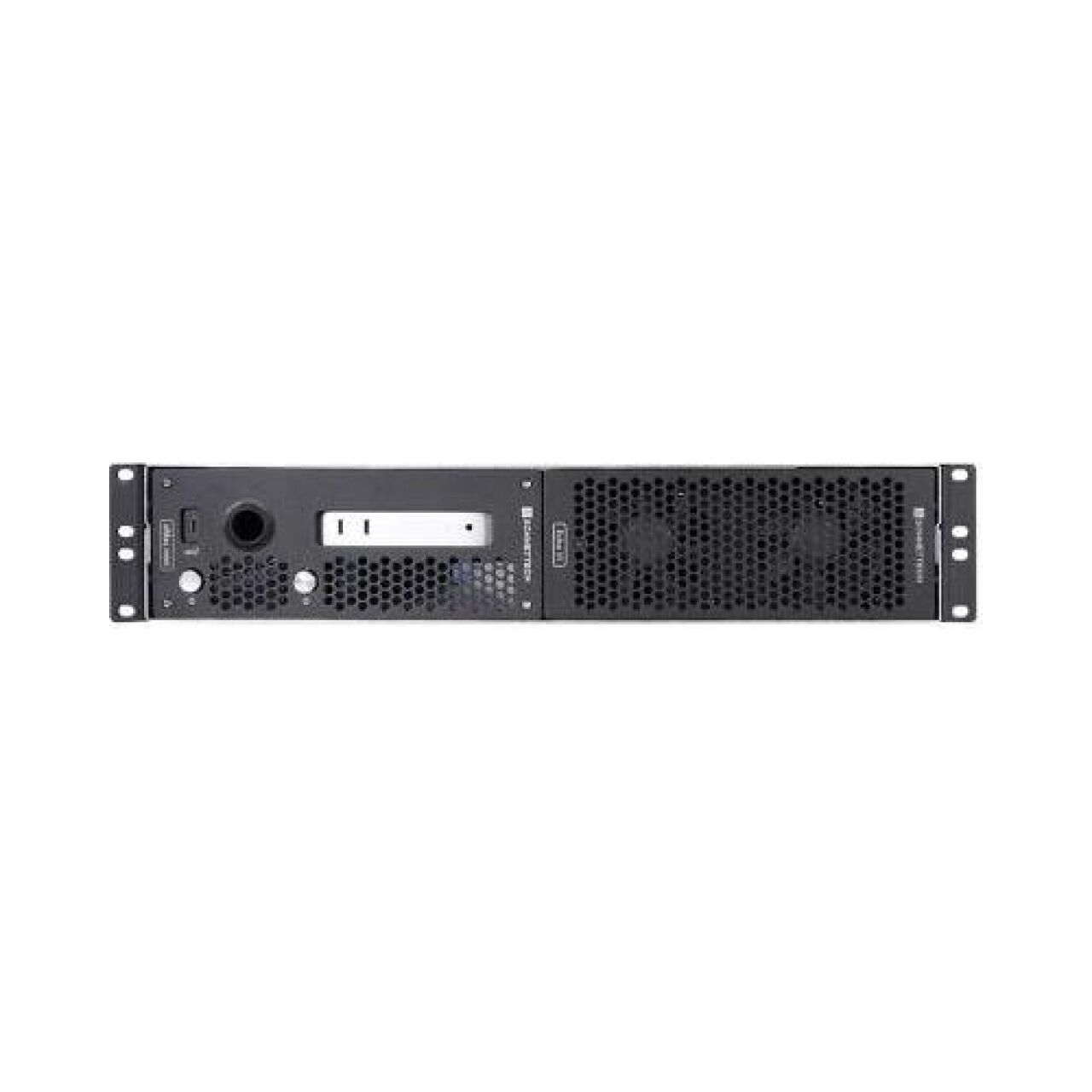

The Sonnet xMac mini (2024+) / Echo III T5 System combines secure rackmounting for one or two current Mac minis with a three-slot Thunderbolt 5 PCIe expansion module in a rugged 2U chassis.
The Echo III T5 module supports three full-length professional PCIe cards, delivers up to 3500 MB/s aggregate PCIe bandwidth and includes a 400W power supply with auxiliary PCIe power.
This configuration is suited to audio, video, broadcast, storage and networking workflows that need more PCIe slots from a Mac mini while keeping the complete system compact and road-ready.
Original price was: £ 1,882.00.£ 1,717.95Current price is: £ 1,717.95. | £ 2,061.54 inc VAT
Please Call Us For Availability Of This Item
The Sonnet xMac mini (2024+) / Echo III T5 System (XMM-SYS-III-T5) combines the current xMac mini computer module with Sonnet's three-slot Echo III Thunderbolt 5 expansion architecture in a 2U rackmount enclosure.
The Echo III T5 module supports three full-height, full-length, single-width cards, or one double-width card plus one single-width card. Its slot layout provides x8/x8, x16/x8 and x8/x4 mechanical/electrical PCIe 3.1 connectivity.
The module provides two Thunderbolt 5 ports and up to 3500 MB/s aggregate PCIe bandwidth. Installed cards share the available host bandwidth through the Echo III PCIe bridge.
The xMac mini module houses one or two 2024+ Mac minis with front power controls, front USB-C access, cable passthroughs, a shared power hub and space for two compact external SSDs.
A universal 400W power supply supports installed PCIe cards, with a 6-pin auxiliary connection providing up to 75W of supplemental power for compatible hardware.
Sonnet lists XMM-SYS-III-T5 as the current Thunderbolt 5 three-slot xMac mini configuration, succeeding the earlier XMM-SYS-III system that used the previous-generation Echo III module.
| Product | Sonnet xMac mini (2024+) 2U Rackmount System With Echo III T5 |
| Manufacturer Part Number | XMM-SYS-III-T5 |
| Mac Compatibility | Mac mini (2024+) |
| Computer Capacity | One or two Mac mini computers |
| Rack Form Factor | 2U, standard 19-inch rack |
| PCIe Slots | 3 total: x8/x8, x16/x8 and x8/x4 mechanical/electrical PCIe 3.1 |
| Card Configuration | Three full-length single-width cards, or one double-width plus one single-width card |
| Thunderbolt Interface | Thunderbolt 5 |
| Thunderbolt Ports | 2 |
| Maximum Aggregate PCIe Bandwidth | Up to 3500 MB/s |
| Expansion Power Supply | Universal 400W |
| Auxiliary PCIe Power | 6-pin, up to 75W |
| Module SSD Space | Space beneath Mac minis for two compact external SSDs |
| Warranty | 2 years |
