OWC Mercury Helios 5S
OWC Mercury Helios 5S
Thunderbolt 5 PCIe 4.0 x4 External Expansion Enclosure
OWC Mercury Helios 5S enables single-slot PCIe expansion for laptops and compact desktops via Thunderbolt or USB4.
The enclosure supplies a PCIe 4.0 x4 (x16 mechanical) slot with tool-free installation and up to 6000MB/s bandwidth available for simultaneous read/write.
It also adds three Thunderbolt 5 (USB-C) ports, each 80Gb/s and 15W, while including a certified 0.7M OWC Thunderbolt 5 (USB-C) Cable.
- Single PCIe 4.0 x4 (x16 mechanical) slot for pro cards.
- Up to 6000MB/s bandwidth available for simultaneous read/write.
- Three Thunderbolt 5 (USB-C) ports—80Gb/s and 15W each.
Category: All PCIe Expansion Chassis
Brand: OWC
£ 286.95 | £ 344.34 inc VAT
Please Call Us For Availability Of This Item
OWC Mercury Helios 5S Product Overview
OWC Mercury Helios 5S is an external Thunderbolt expansion enclosure designed to bring a full-size PCIe 4.0 x4 slot to laptops and small form factor desktops via a single Thunderbolt or USB4 connection.
The enclosure combines high bandwidth, tool-free card installation and a compact aircraft-grade aluminium chassis with additional Thunderbolt 5 ports to extend connectivity for professional workflows.
Performance
Mercury Helios 5S provides up to 6000MB/s bandwidth available for simultaneous read/write, enabling modern PCIe 4.0 cards to operate at full speed for demanding tasks such as 8K video capture and high-speed networking.
PCIe Slot
The unit features (1) PCIe 4.0 x4 (x16 mechanical slot) that accepts half-length, full-height, single or double-width cards, including those with daughter boards.
Card Compatibility
The enclosure supports pro-level cards from brands commonly used in audio, video and networking workflows and accepts a broad range of card types; cards that require a minimum of x8 PCIe lanes or more than 75W are not supported, and GPUs are not supported.
Connectivity

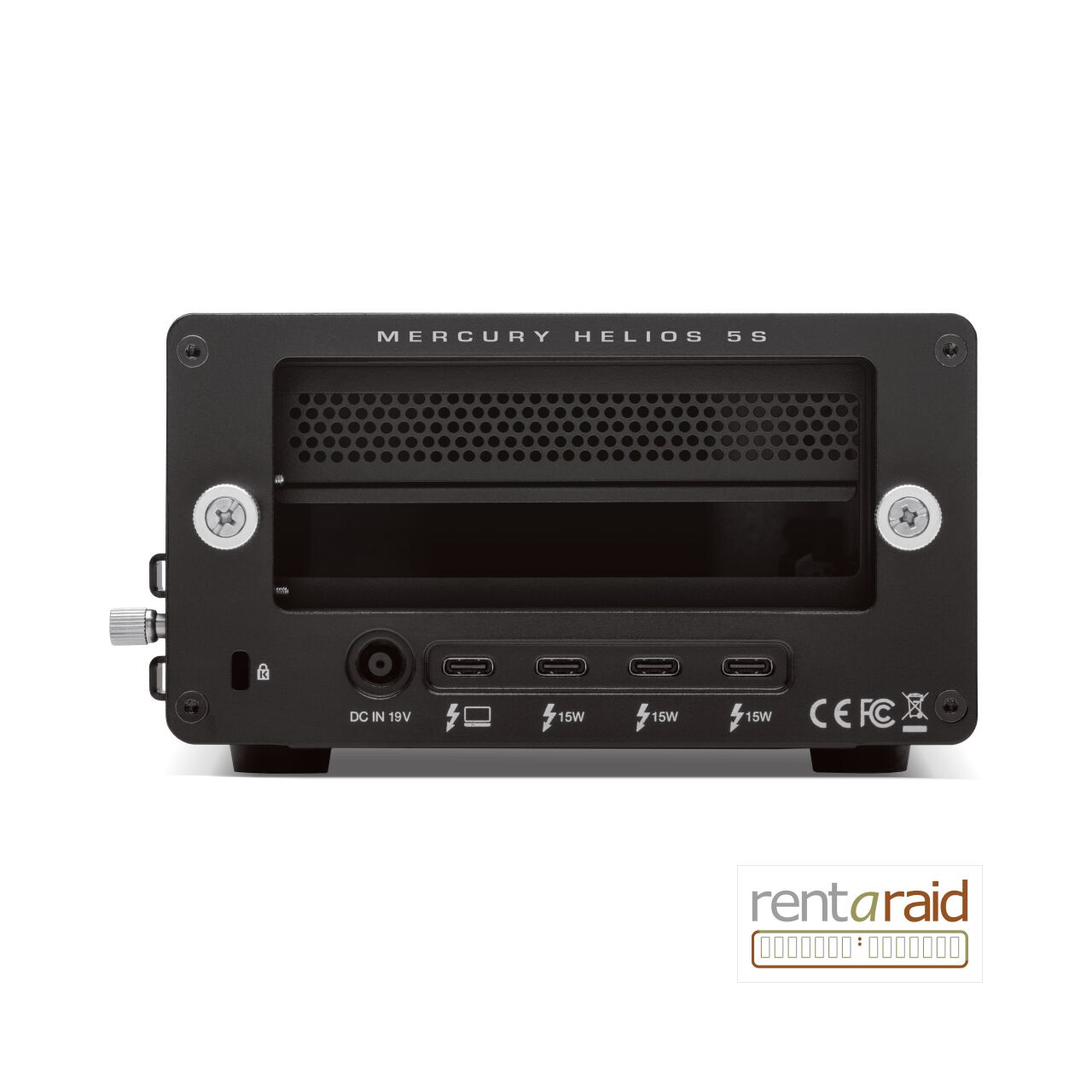

Three Thunderbolt 5 (USB-C) ports provide 80Gb/s throughput each and 15W power delivery each, allowing daisy-chaining of high-performance drives and displays while the single host connection provides PCIe access to the fitted card.
Installation And Serviceability
Captive thumb screws enable tool-free card installs and swaps, and the mesh panel is removable to accommodate double-width cards or cards with daughter boards.
Cooling And Chassis
OWC Mercury Helios 5S uses an aircraft grade aluminum housing and a high-efficiency, adjustable speed cooling fan to keep the enclosure cool with nearly silent operation.
Included Items
The product includes a certified 0.7M OWC Thunderbolt 5 (USB-C) Cable, a power cord retainer, and features auto power on/off with the computer.
Compatibility With Hosts
Use with Thunderbolt 5/4, USB4 Macs and PCs, and Thunderbolt 3 Macs for broad generational compatibility across current and recent host systems.
OWC Mercury Helios 5S Key Features
- Provides a single PCIe 4.0 x4 expansion slot in an x16 mechanical slot for pro cards and adapters.
- Delivers up to 6000MB/s bandwidth available for simultaneous read/write to support high-throughput PCIe cards.
- Three Thunderbolt 5 (USB-C) ports expand connectivity, each capable of 80Gb/s and offering 15W power delivery.
- Compatible with Thunderbolt 5/4, USB4 Macs and PCs, and Thunderbolt 3 Macs for broad host support.
- Accepts half-length, full-height, single or double-width cards, including those with daughter boards; the mesh panel is removable for larger cards.
- Tool-free installation with captive thumb screws for fast card swaps and easy servicing.
- Aircraft grade aluminum housing with a high-efficiency, adjustable speed cooling fan for cool, nearly silent operation.
- Includes a certified 0.7M OWC Thunderbolt 5 (USB-C) Cable, power cord retainer, and auto power on/off with the host computer.
- Supports a wide range of pro-level PCIe cards from leading manufacturers for video, audio, networking and storage workflows.
- Devices that require a minimum of x8 PCIe lanes or draw more than 75W are not supported, and GPUs are not supported by this unit.
OWC Mercury Helios 5S Technical Specifications
| Model | OWC Mercury Helios 5S |
| Internal Class Speed | Up to 6000MB/s bandwidth available for simultaneous read/write |
| PCIe Slot | (1) PCIe 4.0 x4 (x16 mechanical slot) |
| Supported Card Sizes | Half-length, full-height, single or double-width (including those with daughter board) |
| Host Compatibility | Thunderbolt 5, Thunderbolt 4, USB4 Macs and PCs, and Thunderbolt 3 Macs |
| Thunderbolt Ports | Three Thunderbolt 5 (USB-C) ports — 80Gb/s each; 15W power delivery each |
| Included Cable | Certified 0.7M OWC Thunderbolt 5 (USB-C) Cable |
| Included Accessories | Power cord retainer; auto power on/off with your computer |
| Chassis | Aircraft grade aluminum housing |
| Cooling | High-efficiency, adjustable speed cooling fan |
| Installation | Captive thumb screws for tool-free card installs; removable mesh panel for double-width/daughterboard cards |
| Limitations | Cards that require a minimum of x8 or more PCIe lanes or more than 75W are not supported. GPUs not supported. |
