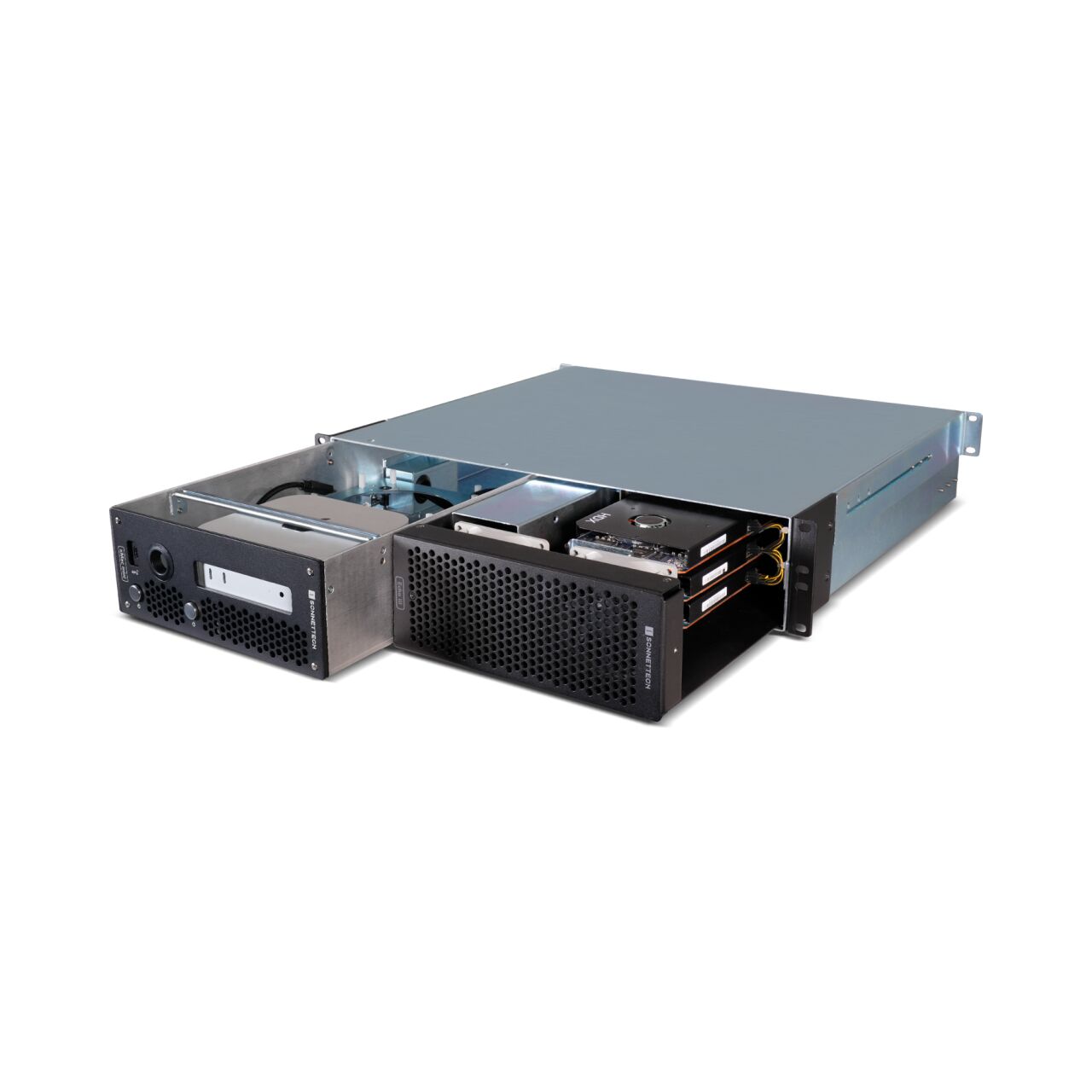

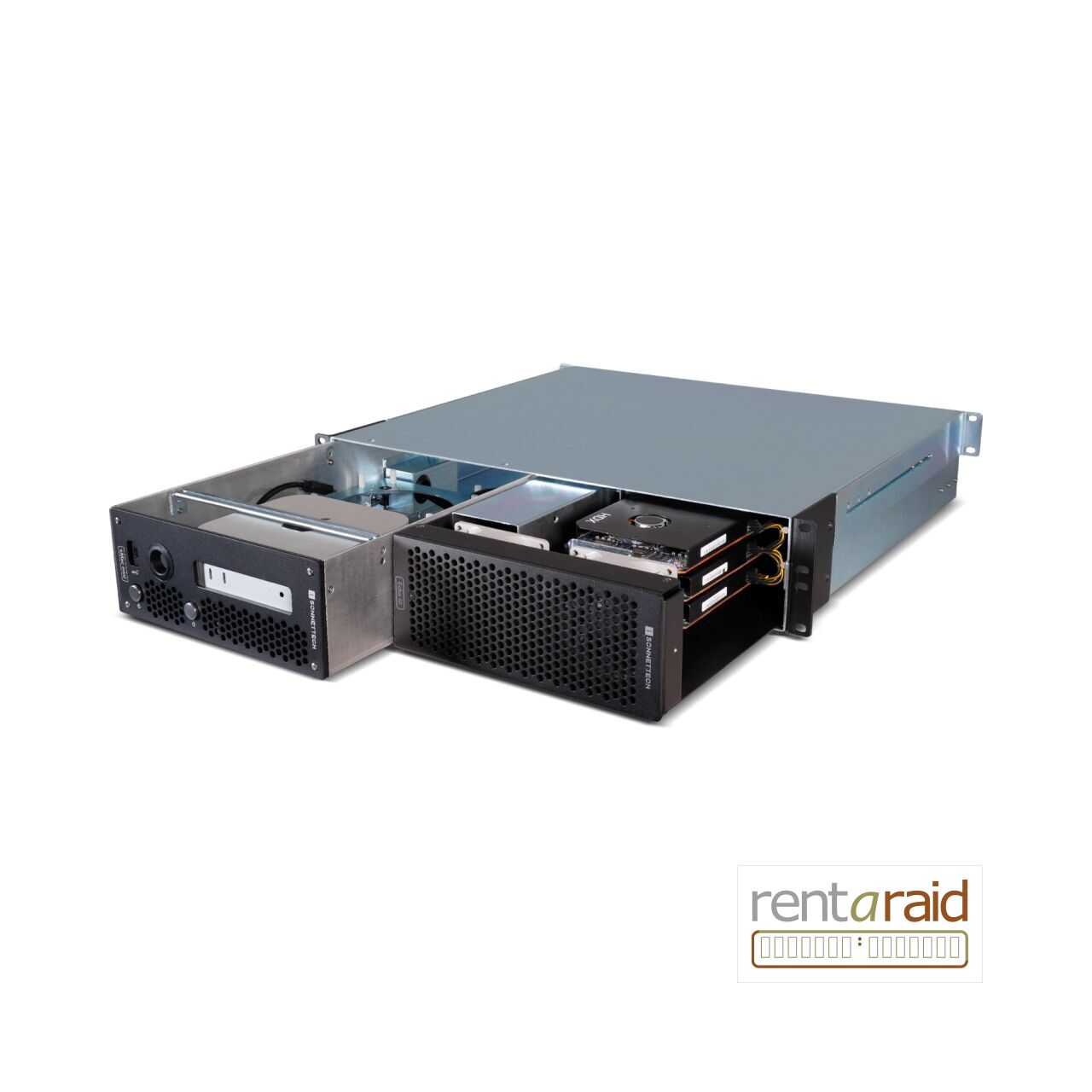

The Sonnet xMac mini (2024+) / Echo III System (XMM-SYS-III) combines a 2U rackmount enclosure for 2024-and-later Mac mini systems with a three-slot Thunderbolt PCIe expansion module.
The Echo III module supports up to three full-length professional PCIe cards and includes a 400W internal power supply.
Original price was: £ 1,892.00.£ 1,726.95Current price is: £ 1,726.95. | £ 2,072.34 inc VAT
In Stock
The Sonnet xMac mini (2024+) / Echo III System (XMM-SYS-III) brings rackmounting and professional PCIe expansion to Apple's compact 2024-and-later Mac mini platform.
The system fits a standard 19-inch rack and combines Sonnet's xMac mini (2024+) mounting module with the Echo III three-slot expansion module in one 2U enclosure.
The Echo III module provides one x8 mechanical/x8 electrical, one x16 mechanical/x8 electrical and one x8 mechanical/x4 electrical PCIe 3.1 slot. It supports three full-length, full-height, single-width cards, or one double-width card plus one single-width card.
The Echo III module connects to the Mac mini over a 40Gbps Thunderbolt interface and provides two Thunderbolt ports for host and compatible downstream connectivity.
A universal 400W power supply is integrated into the expansion module, with a 6-pin auxiliary power connector providing up to 75W for supported cards requiring supplemental power.
Sonnet specifies the system for Mac mini models introduced in 2024 and later.
| Product | Sonnet xMac mini (2024+) / Echo III System |
| Manufacturer Part Number | XMM-SYS-III |
| Form Factor | 2U rackmount enclosure |
| Computer Compatibility | Mac mini (2024+) |
| PCIe Slot 1 | x8 mechanical, x8 electrical PCIe 3.1 |
| PCIe Slot 2 | x16 mechanical, x8 electrical PCIe 3.1 |
| PCIe Slot 3 | x8 mechanical, x4 electrical PCIe 3.1 |
| Thunderbolt Ports | 2 |
| Power Supply | Universal 400W, 115–230V AC, 50–60Hz |
| Auxiliary PCIe Power | 6-pin, up to 75W |
| Dimensions | 19 × 16.5 × 3.6 in / 48.3 × 41.9 × 9.1 cm |
| Weight | 29 lb / 13.15 kg |
| Warranty | 2 years |
