Sonnet xMac Studio / Echo II DV T5
Sonnet xMac Studio / Echo II DV T5
3U Mac Studio Rackmount System With Dual-Interface Thunderbolt 5 PCIe Expansion

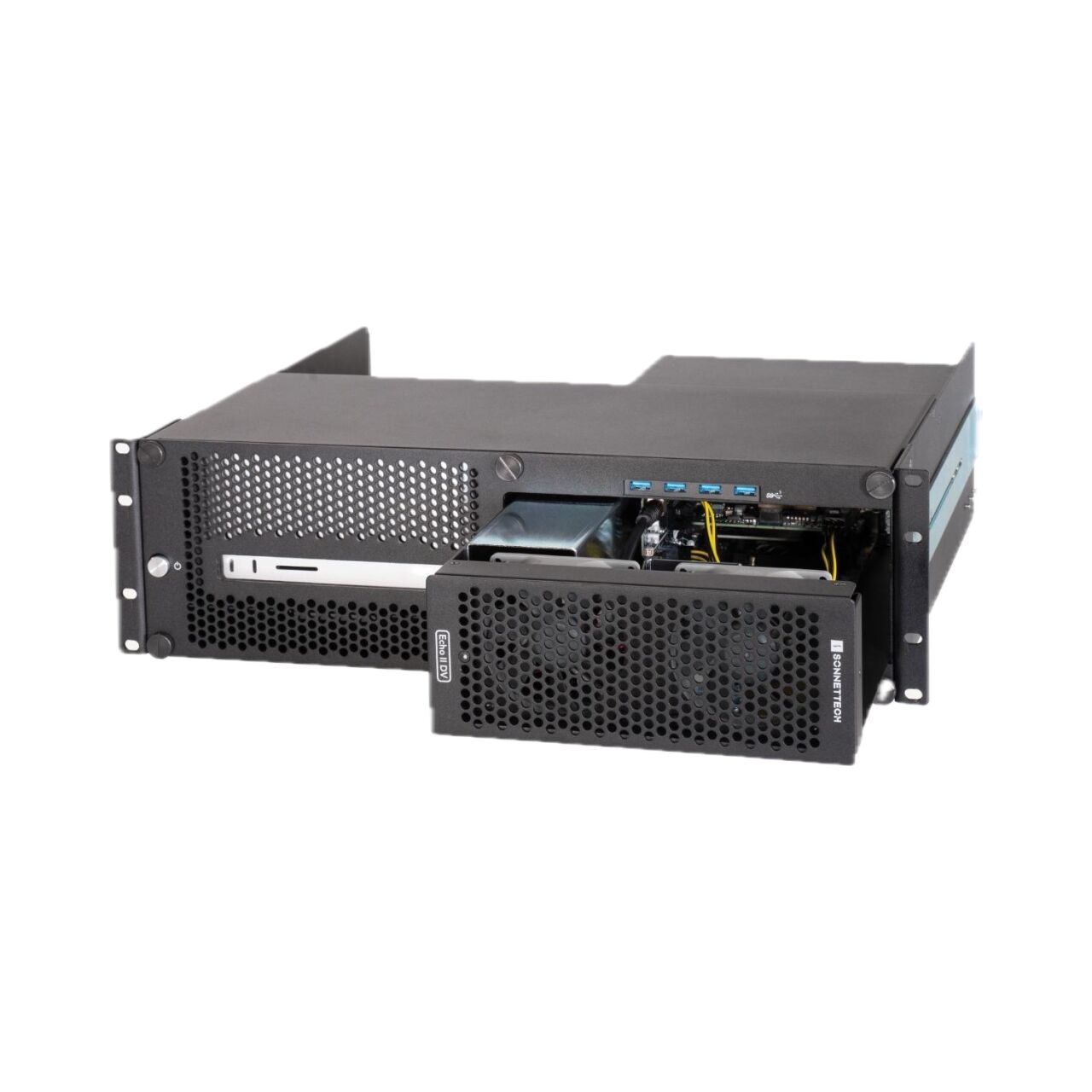

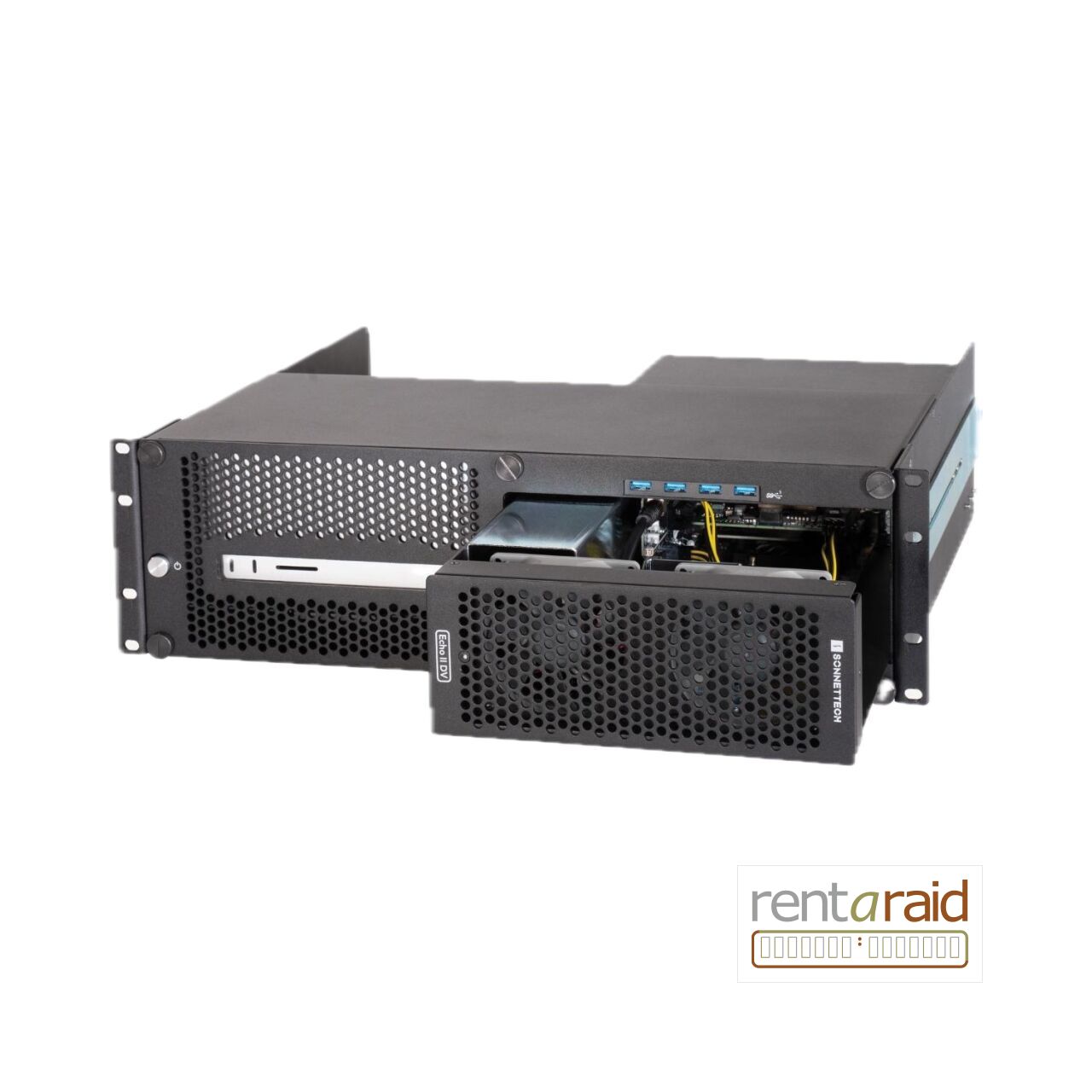

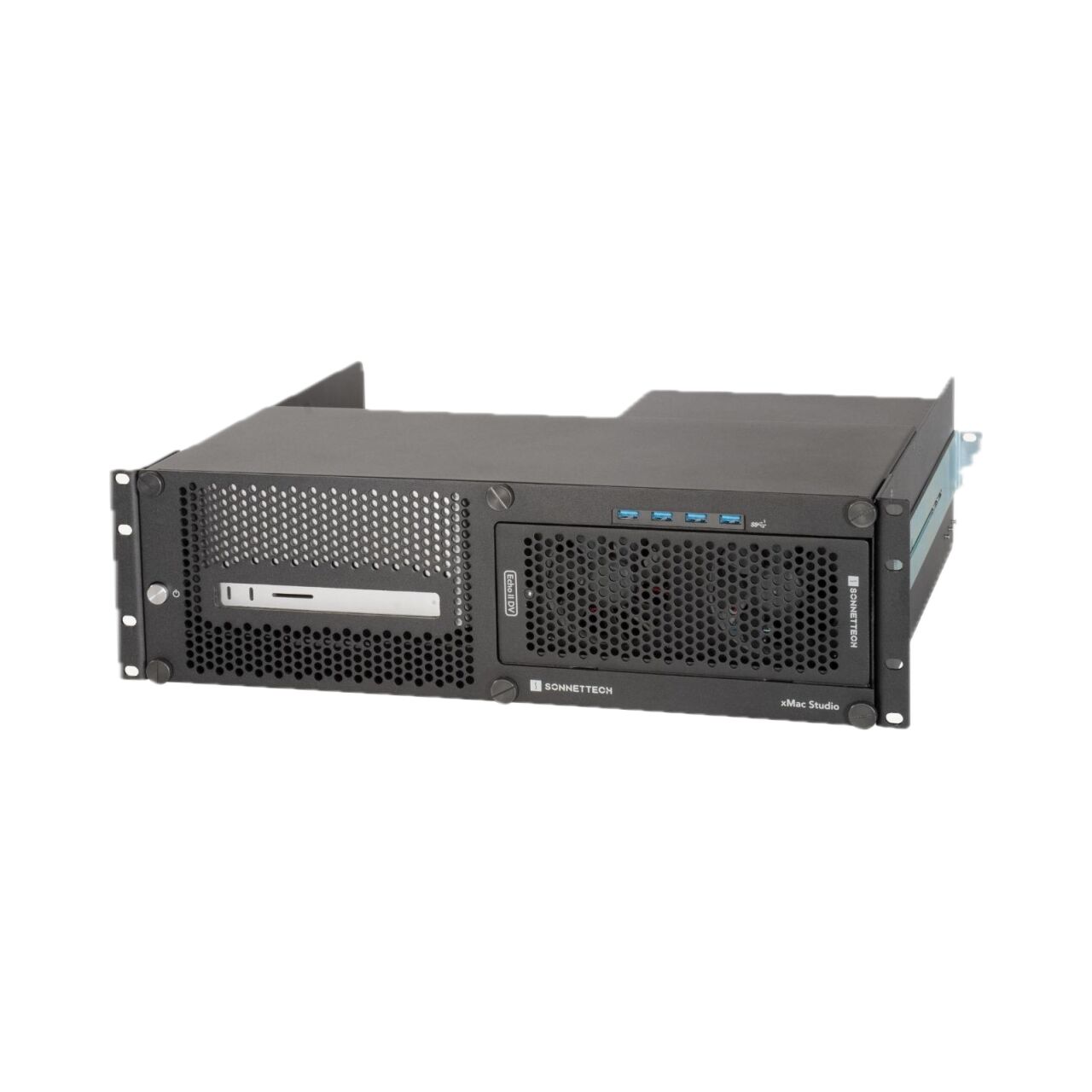

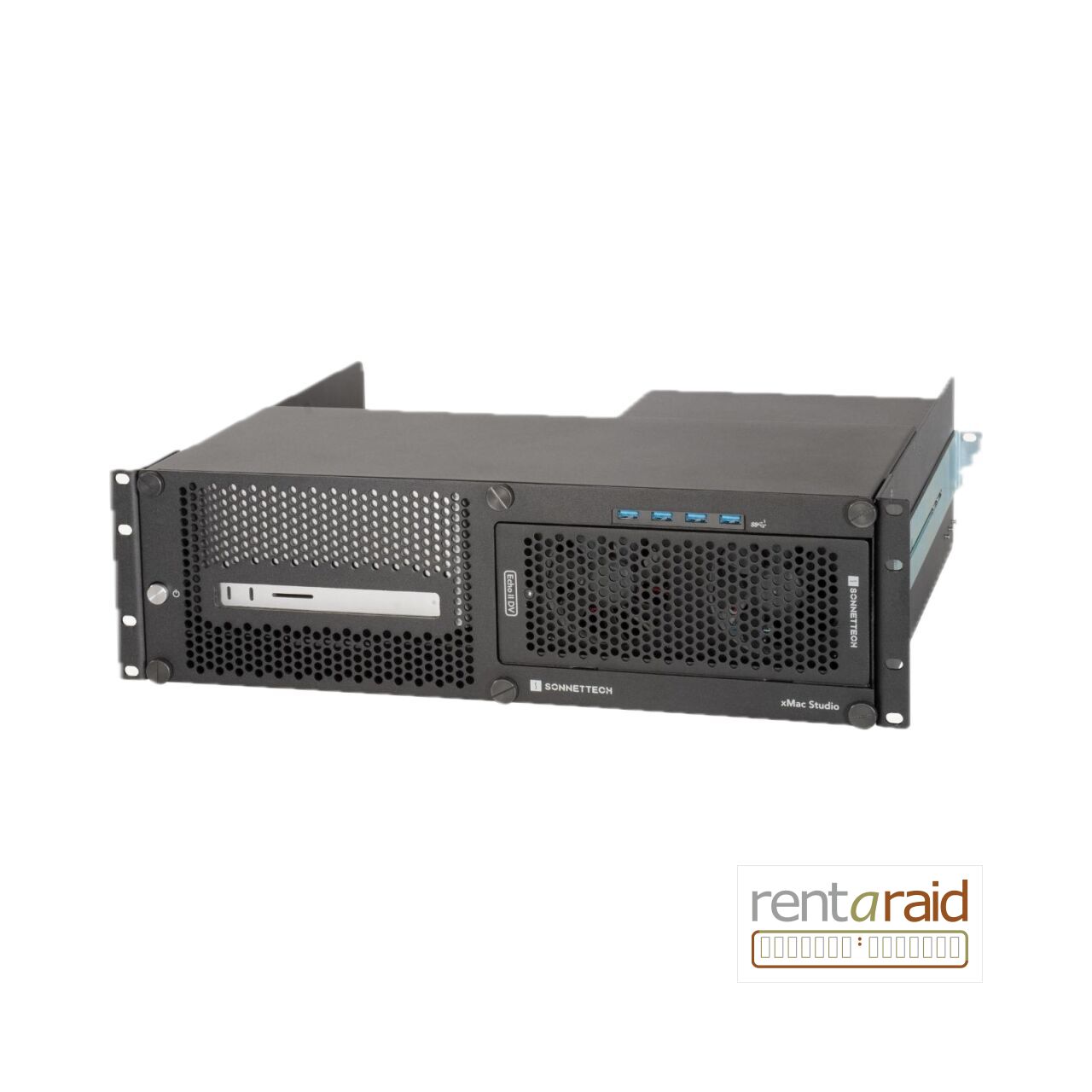

The Sonnet xMac Studio / Echo II DV T5 combines secure 3U rackmounting for one Mac Studio with two full-length PCIe 4.0 expansion slots, each driven by its own Thunderbolt 5 interface.
Designed especially for M4 Max and M3 Ultra Mac Studio systems, Sonnet specifies up to 6000 MB/s PCIe bandwidth to each slot simultaneously when both independent Thunderbolt 5 host connections are used.
The system adds four Thunderbolt 5 ports, a 400W expansion-module power supply, dual auxiliary PCIe power, quiet Noctua cooling and the xMac Studio’s front USB-A hub, power control and SSD storage space.
Category: All PCIe Expansion Chassis
Brand: Sonnet Technology
£ please call for the price
Sonnet xMac Studio / Echo II DV T5 – Product Overview
The Sonnet xMac Studio / Echo II DV T5 (XMAC-STD-IIDVT5) is a professional 3U rackmount system that combines one Mac Studio with two independent high-bandwidth Thunderbolt 5 PCIe expansion paths.
Two Independent PCIe 4.0 Slots
The Echo II DV T5 module provides two x16 mechanical, x4 electrical PCIe 4.0 slots. Each slot has its own Thunderbolt 5 interface, allowing two bandwidth-intensive cards to operate without sharing a single Thunderbolt PCIe path.
Up To 6000 MB/s Per Slot
When connected to two independent Thunderbolt 5 ports on a suitable M4 Max or M3 Ultra Mac Studio, Sonnet specifies up to 6000 MB/s PCIe bandwidth to each slot simultaneously.
Mac Studio Control And Connectivity
The xMac Studio enclosure provides a front power button, four-port USB-A hub and direct access to the computer's front ports and SD card slot. The open rear keeps cable connections accessible.
400W Expansion Power
The Echo II DV T5 module includes a universal 400W power supply and two 6-pin auxiliary PCIe power connections providing up to 75W each for compatible cards.
Quiet Rackmount Cooling
Dual temperature-controlled Noctua fans in the expansion module are rated around 17 dBA, while the enclosure guides cool air through the Mac Studio and module from front to rear.
Integrated SSD Space
Space beneath the Mac Studio accommodates two compact Thunderbolt or USB SSDs, secured using the supplied adhesive-backed magnets.
Sonnet xMac Studio / Echo II DV T5 – Key Features
- 3U rackmount system for one Apple Mac Studio.
- Two x16 mechanical, x4 electrical PCIe 4.0 expansion slots.
- Independent Thunderbolt 5 interface dedicated to each PCIe slot.
- Up to 6000 MB/s PCIe bandwidth per slot simultaneously with suitable M4 Max or M3 Ultra Mac Studio connections.
- Four Thunderbolt 5 ports in total.
- Supports two full-length, full-height, single-width professional PCIe cards.
- Universal 400W expansion-module power supply.
- Two 75W auxiliary PCIe power connections.
- Dual quiet Noctua fans rated around 17 dBA.
- Front Mac Studio power control and integrated four-port USB-A hub.
- Direct access to Mac Studio front ports and SD card slot.
- Space for two compact Thunderbolt or USB SSDs.
- Includes rack extension rails, two Thunderbolt 5 cables and ThunderLok-A connector locks.
- Two-year Sonnet warranty.
Sonnet xMac Studio / Echo II DV T5 – Technical Specifications
| Product | Sonnet xMac Studio / Echo II DV T5 |
| Manufacturer Part Number | XMAC-STD-IIDVT5 |
| Mac Compatibility | Apple Mac Studio; maximum dual-interface performance requires suitable M4 Max or M3 Ultra Thunderbolt 5 connections |
| Computer Capacity | 1 Mac Studio |
| Rack Form Factor | 3U, standard 19-inch rack |
| Front USB | 4 × USB-A ports |
| PCIe Slots | 2 × x16 mechanical, x4 electrical PCIe 4.0 |
| Supported Cards | Two full-length, full-height, single-width compatible PCIe cards |
| Thunderbolt Interfaces | 2 independent Thunderbolt 5 interfaces |
| Thunderbolt Ports | 4 total |
| Maximum PCIe Bandwidth | Up to 6000 MB/s per slot simultaneously with suitable independent Thunderbolt 5 host connections |
| Expansion Power Supply | Universal 400W, 115–230V AC, 50–60Hz |
| Auxiliary PCIe Power | 2 × 6-pin, up to 75W each |
| SSD Space | Space for 2 compact Thunderbolt or USB SSDs |
| Dimensions (W × D × H) | 48 × 41.9 × 13.3 cm / 19 × 16.5 × 5.2 in. |
| Weight | 9.53 kg / 21 lb |
| Compliance | RoHS 3; IEC62368-1 / IEC62368-2 |
| Warranty | 2 years |
