Sonnet xMac mini Server – Thunderbolt 3 Edition

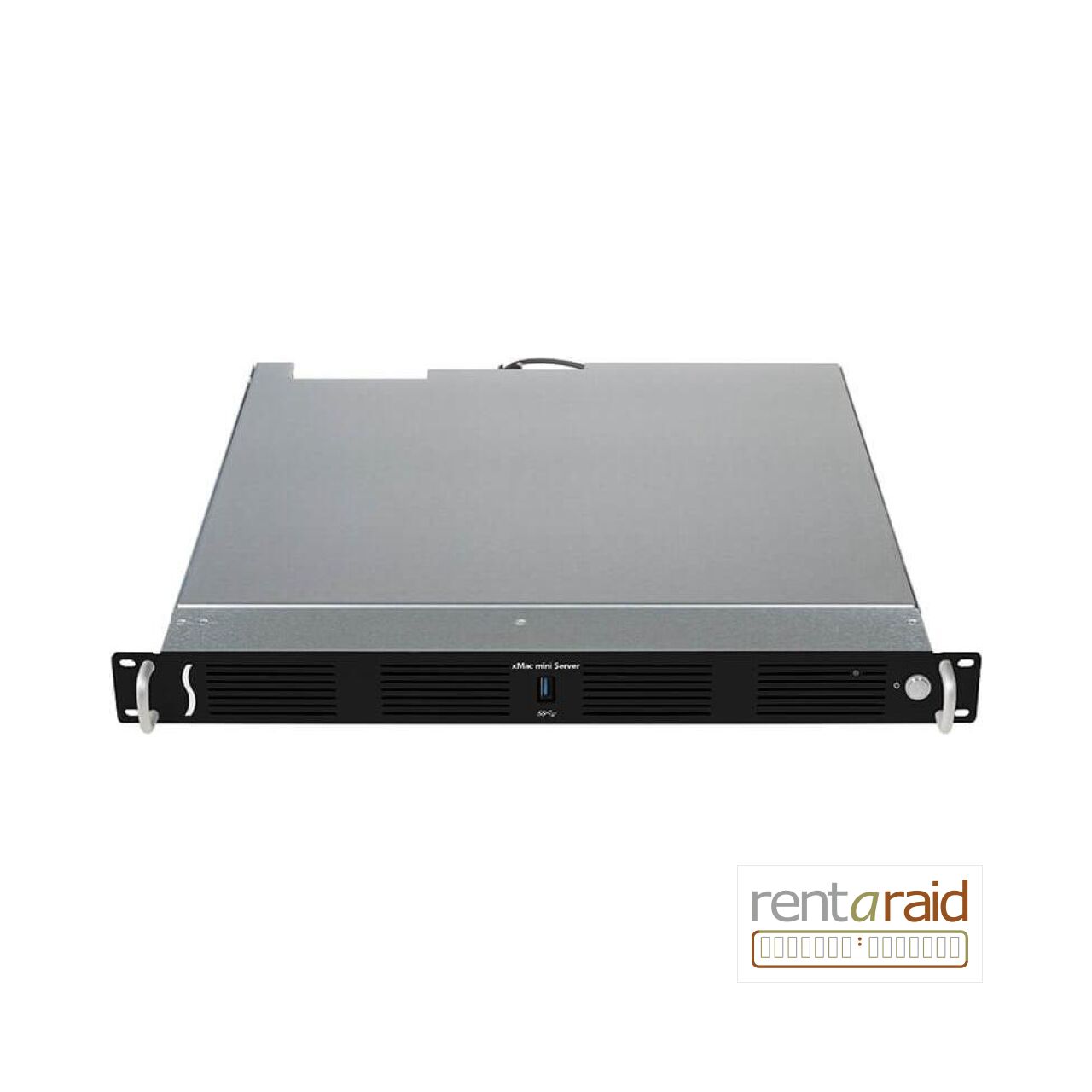

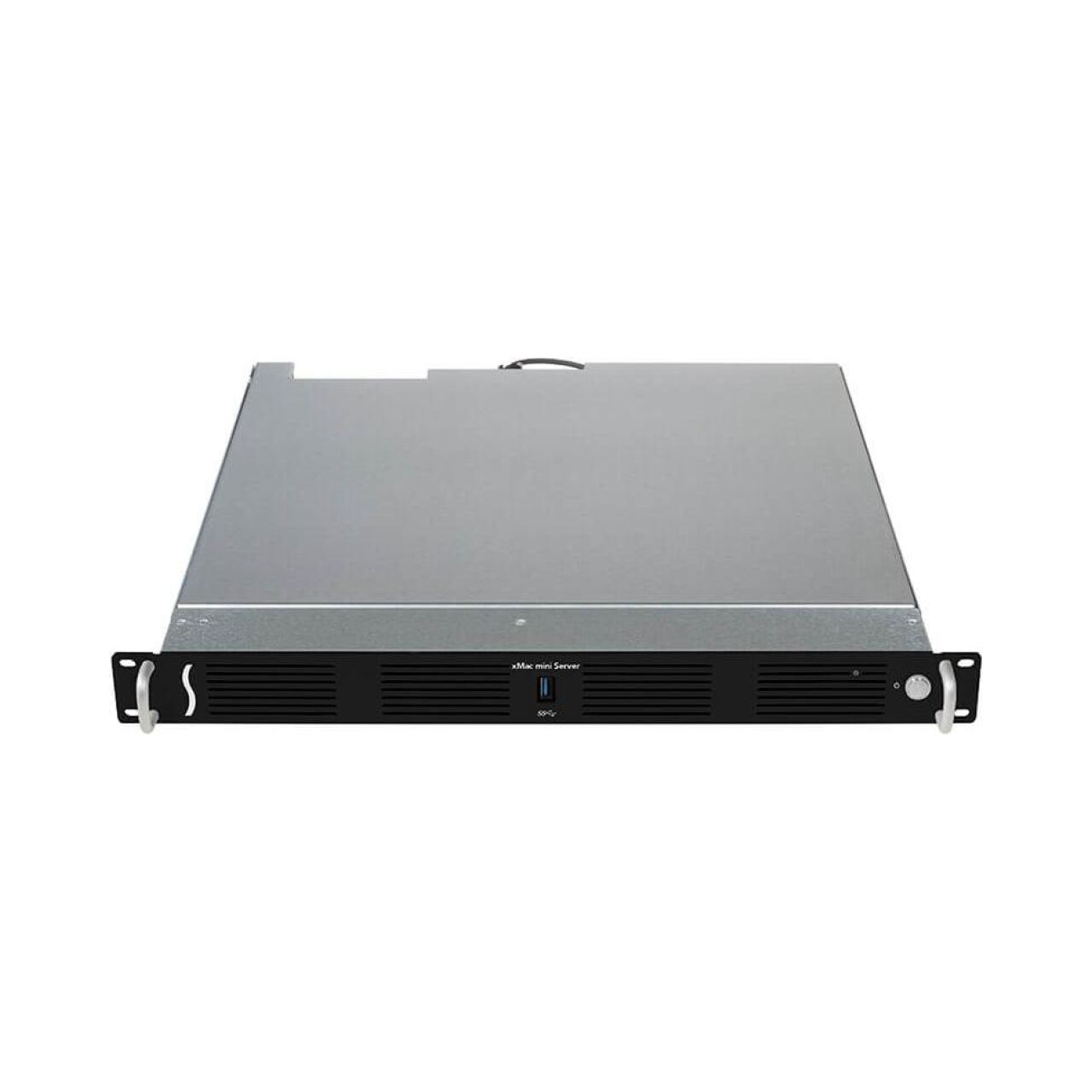

Sonnet xMac mini Server - Thunderbolt 3 Edition

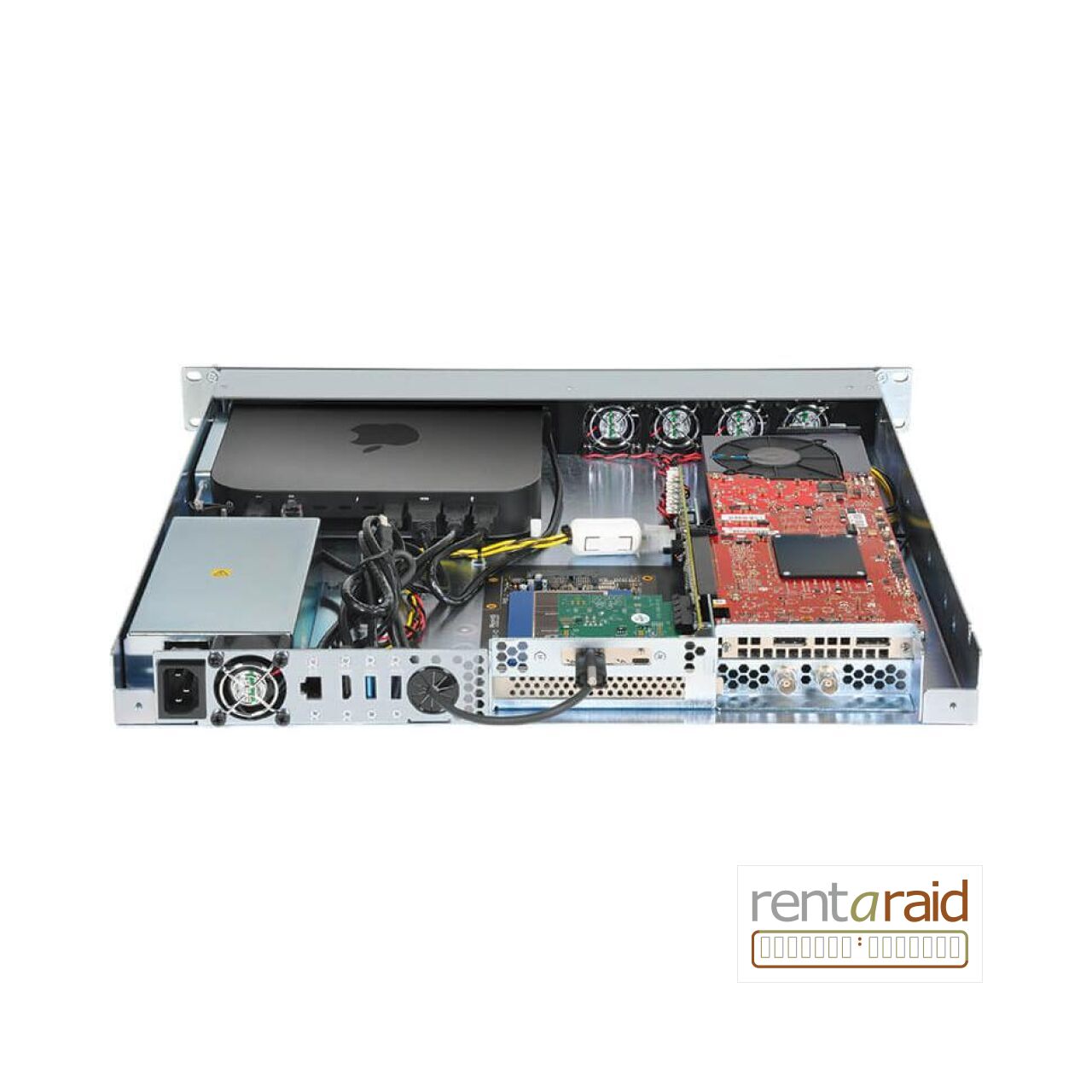

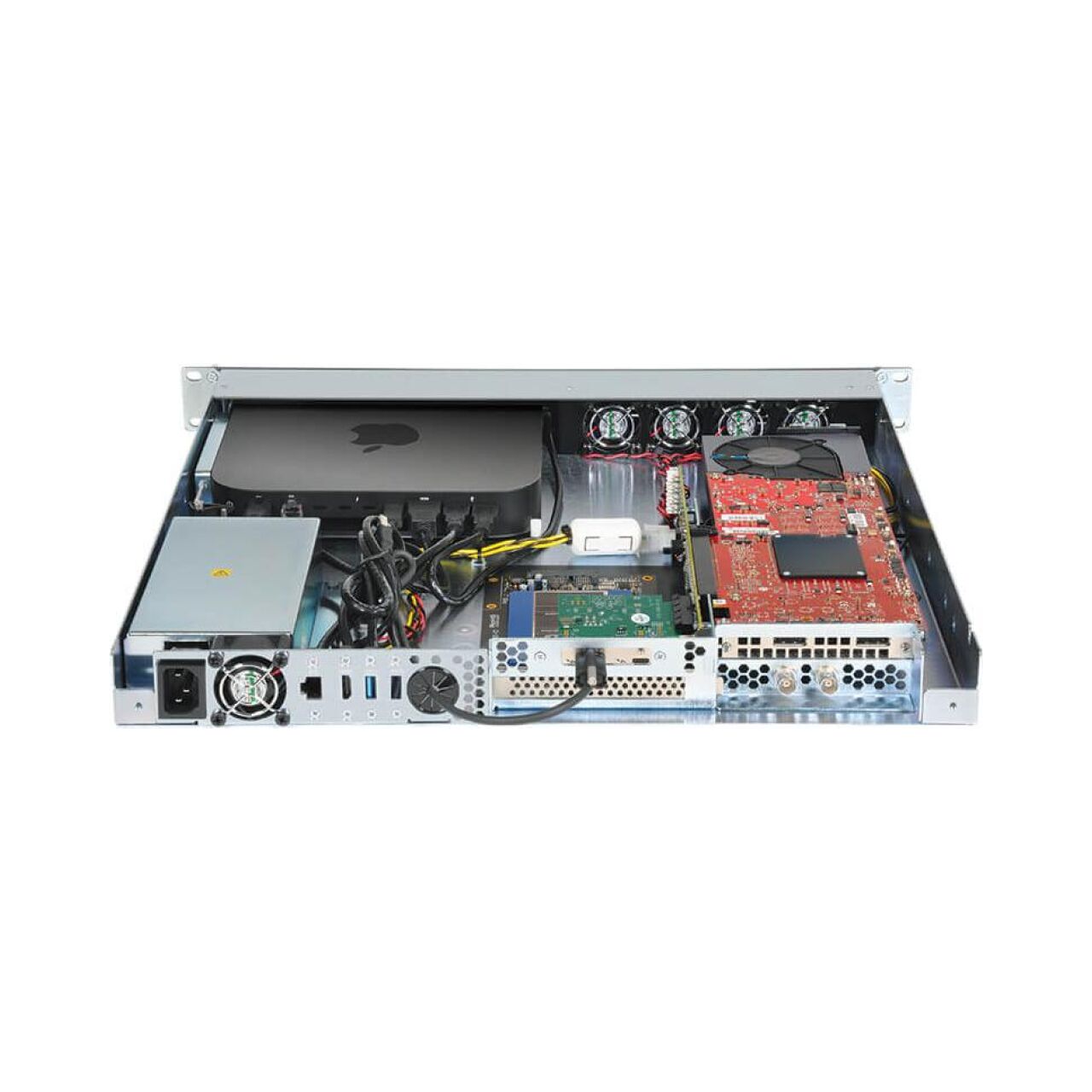

Sonnet xMac mini Server - Thunderbolt 3 Edition - Image 2
Sonnet Technology Logo
Sonnet xMac mini Server – Thunderbolt 3 Edition

1U Rackmount Mac mini Enclosure With Dual-Slot Thunderbolt 3 PCIe Expansion

The Sonnet xMac mini Server Thunderbolt 3 Edition (XMAC-MS-A-TB3) combines secure 1U rackmount installation for a compatible Mac mini with two PCIe expansion slots connected over Thunderbolt 3.

It provides one full-length and one half-length PCIe slot, an integrated 150W power supply, front-access controls and pass-through connections, creating a compact rackmount workstation or server platform.

  • 1U rackmount enclosure for compatible Mac mini computers.
  • Two PCIe expansion slots over Thunderbolt 3.
  • Integrated universal 150W power supply.
  • Rugged steel construction for rack and production environments.
Category: All PCIe Expansion Chassis
SKU: SONXMACMSATB3
Brand: Sonnet Technology

Original price was: £ 523.00.Current price is: £ 460.95. | £ 553.14 inc VAT

Please Call Us For Availability Of This Item

Sonnet xMac mini Server – Thunderbolt 3 Edition – Product Overview

The Sonnet xMac mini Server Thunderbolt 3 Edition combines a Mac mini rackmount enclosure and Thunderbolt-to-PCIe expansion system in a single 1U chassis, allowing a compatible Mac mini and two PCIe cards to be integrated into a compact professional rack installation.

Two PCIe Expansion Slots

The system provides one x16 mechanical slot and one x8 mechanical slot, each connected electrically at PCIe 2.0 x4. This enables compatible full-length and half-length PCIe cards to connect to the Mac mini through Thunderbolt.

Thunderbolt 3 Connection

Two Thunderbolt 3 ports are provided on the expansion hardware, with one used for the Mac mini connection and the other available for supported Thunderbolt connectivity.

Integrated 150W Power Supply

A universal 150W internal power supply powers the PCIe expansion hardware and installed compatible cards, eliminating the need for a separate external power brick.

Rack-Friendly Mac mini Access

The 1U steel chassis secures the Mac mini while providing convenient access to power controls and pass-through connections. Rear pass-throughs maintain useful access to Ethernet, USB and HDMI connections from the installed computer.

Professional Rackmount Construction

At 19 inches wide and 1U high, the xMac mini Server is designed for fixed installations, studios, mobile racks and machine-room environments where compact Mac mini integration and PCIe expansion are required.

Sonnet xMac mini Server – Thunderbolt 3 Edition – Key Features

  • 1U rackmount enclosure with integrated Thunderbolt 3 to PCIe expansion.
  • Supports compatible 2018–2023 Mac mini computers with Thunderbolt ports.
  • Two PCIe slots: one full-length x16 mechanical and one half-length x8 mechanical.
  • Each PCIe slot connected electrically at PCIe 2.0 x4.
  • Supports compatible PCIe 1.1, 2.0 and 3.0 cards.
  • Two Thunderbolt 3 ports.
  • Integrated universal 150W power supply.
  • Rear RJ45, USB and HDMI pass-through connectivity.
  • Rugged 1U steel rackmount construction.
  • Thunderbolt cable and ThunderLok-A connector retainer included.
  • Mac mini and PCIe cards are sold separately.
  • 2-year Sonnet warranty.

Sonnet xMac mini Server – Thunderbolt 3 Edition – Technical Specifications

ManufacturerSonnet Technologies
Manufacturer Part NumberXMAC-MS-A-TB3
Product Type1U Mac mini rackmount enclosure / Thunderbolt 3 PCIe expansion system
Computer SupportCompatible 2018–2023 Mac mini models with Thunderbolt ports
Form Factor1U, 19-inch rackmount
Thunderbolt Ports2 × Thunderbolt 3
PCIe Slot 1x16 mechanical, x4 electrical, PCIe 2.0; full-length
PCIe Slot 2x8 mechanical, x4 electrical, PCIe 2.0; half-length
PCIe Card CompatibilityCompatible PCIe 1.1, 2.0 and 3.0 cards
Pass-Through ConnectionsRJ45 Ethernet, USB-A and HDMI extension/pass-through connections
Power Supply150W universal internal PSU, 90–260V AC, 50–60Hz
Dimensions19 × 17.75 × 1.72 in / 48.3 × 45.1 × 4.4 cm
Weight16 lb / 7.26 kg
IncludedAssembled xMac mini Server, daughter-card mounting bracket, 0.5m Thunderbolt cable, ThunderLok-A, power cord and documentation
Warranty2 years

Sonnet xMac mini Server – Thunderbolt 3 Edition Product Downloads

Sonnet xMac mini Server – Thunderbolt 3 Edition Product Manual >>
