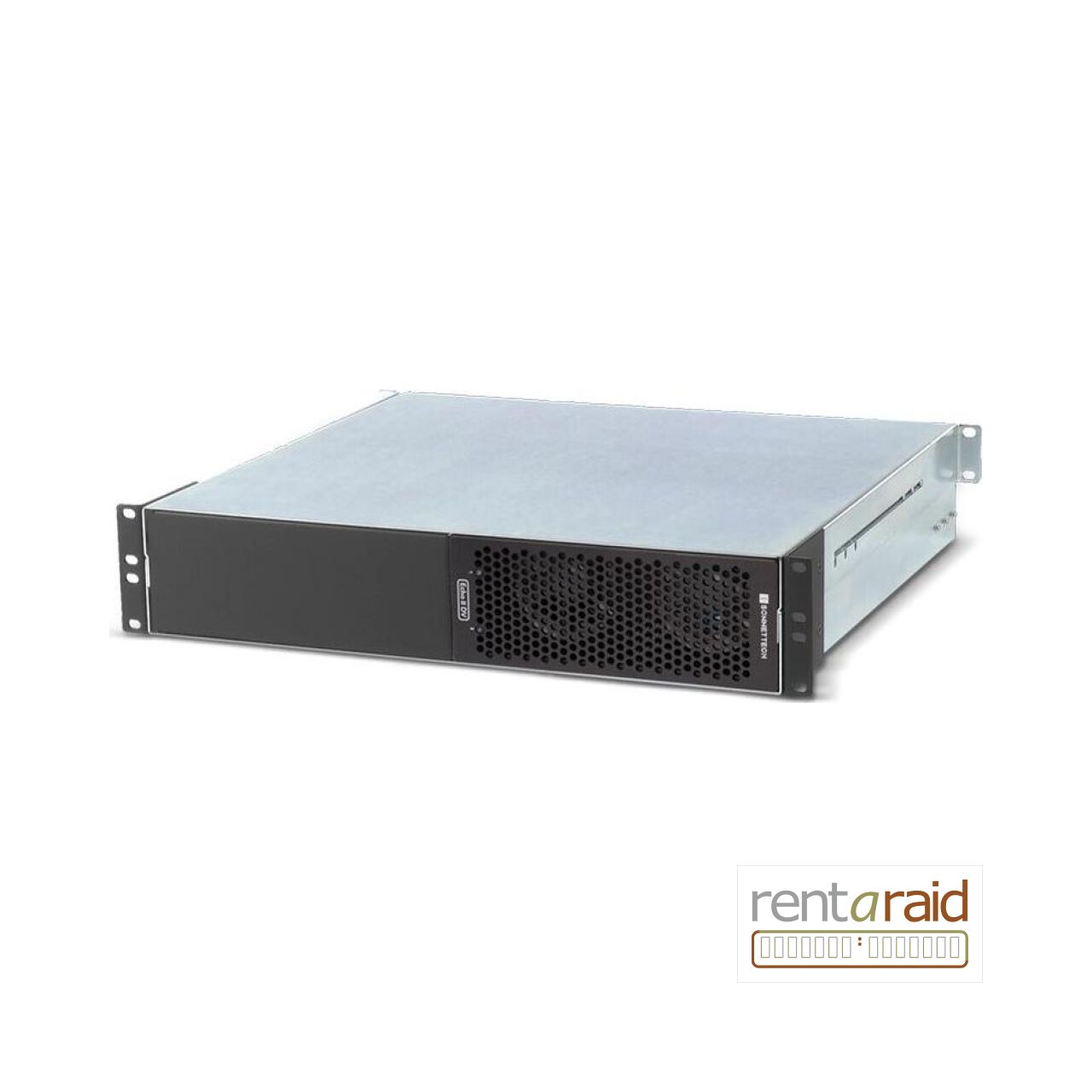

The Sonnet Echo II DV T5 Rackmount Thunderbolt 5 Expansion System connects two full-length professional PCIe cards to compatible computers from a rugged 2U rackmount chassis.
Each PCIe slot has its own Thunderbolt 5 interface, allowing two bandwidth-intensive cards to operate independently when connected to host ports with separate PCIe bandwidth.
Original price was: £ 1,492.00.£ 1,361.95Current price is: £ 1,361.95. | £ 1,634.34 inc VAT
Please Call Us For Availability Of This Item
The Sonnet Echo II DV T5 Rackmount Thunderbolt 5 Expansion System (ECHO-2RDV-T5) is a two-slot, dual-interface PCIe expansion platform for professional video, audio, storage and networking workflows that need high bandwidth from two cards simultaneously.
The system provides two x16 mechanical, x4 electrical PCIe 4.0 slots for full-length, full-height, single-width cards. Each slot is connected to its own Thunderbolt 5 interface.
Four Thunderbolt ports are provided in total — two per interface. With two host connections that provide independent Thunderbolt 5 PCIe bandwidth, Sonnet specifies up to 6800 MB/s of PCIe bandwidth to each slot simultaneously. Each secondary port can also connect compatible downstream Thunderbolt, USB and display devices and provide up to 15W bus power.
A universal 400W power supply supports installed cards. Two internal 6-pin auxiliary PCIe power connections can each provide up to 75W for compatible cards requiring supplemental power.
Dual temperature-controlled Noctua fans are rated at approximately 17dBA, helping the system remain suitable for recording, broadcast and other noise-sensitive environments.
The steel rackmount enclosure is 19 inches wide, 2U high and 16.5 inches deep. Extension rails for 16–24-inch rack depths are included, making the system suitable for studio racks, production carts and machine rooms.
Sonnet supports current Mac, Windows and Linux systems with suitable Thunderbolt 5, Thunderbolt 4 or USB4 connectivity, with maximum dual-interface performance dependent on the host architecture and independent PCIe bandwidth.
| Product | Sonnet Echo II DV T5 Rackmount Thunderbolt 5 Expansion System |
| Manufacturer Part Number | ECHO-2RDV-T5 |
| Form Factor | 2U rackmount Thunderbolt expansion system |
| PCIe Slots | 2 × x16 mechanical, x4 electrical PCIe 4.0 |
| Supported Card Format | Two full-length, full-height, single-width PCIe cards |
| Thunderbolt Interfaces | 2 independent Thunderbolt 5 interfaces |
| Thunderbolt Ports | 4 total |
| Maximum PCIe Bandwidth | Up to 6800 MB/s per slot simultaneously with suitable independent Thunderbolt 5 host connections |
| Downstream Port Power | Up to 15W per peripheral port |
| Power Supply | Universal 400W, 115–230V AC, 50–60Hz |
| Auxiliary PCIe Power | 2 × 6-pin, up to 75W each |
| Cooling | Dual temperature-controlled Noctua fans, approximately 17dBA |
| Operating Temperature | 0–35°C / 32–95°F |
| Dimensions | 48.3 × 41.9 × 9.1 cm / 19 × 16.5 × 3.6 in |
| Weight | 10.50 kg / 23.15 lb |
| Included | Rackmount system, region-specific power cable, two installed auxiliary PCIe power cables, two 0.8m Thunderbolt 5 cables, three ThunderLok-A locks, extension rails, documentation |
| Warranty | 2 years |
