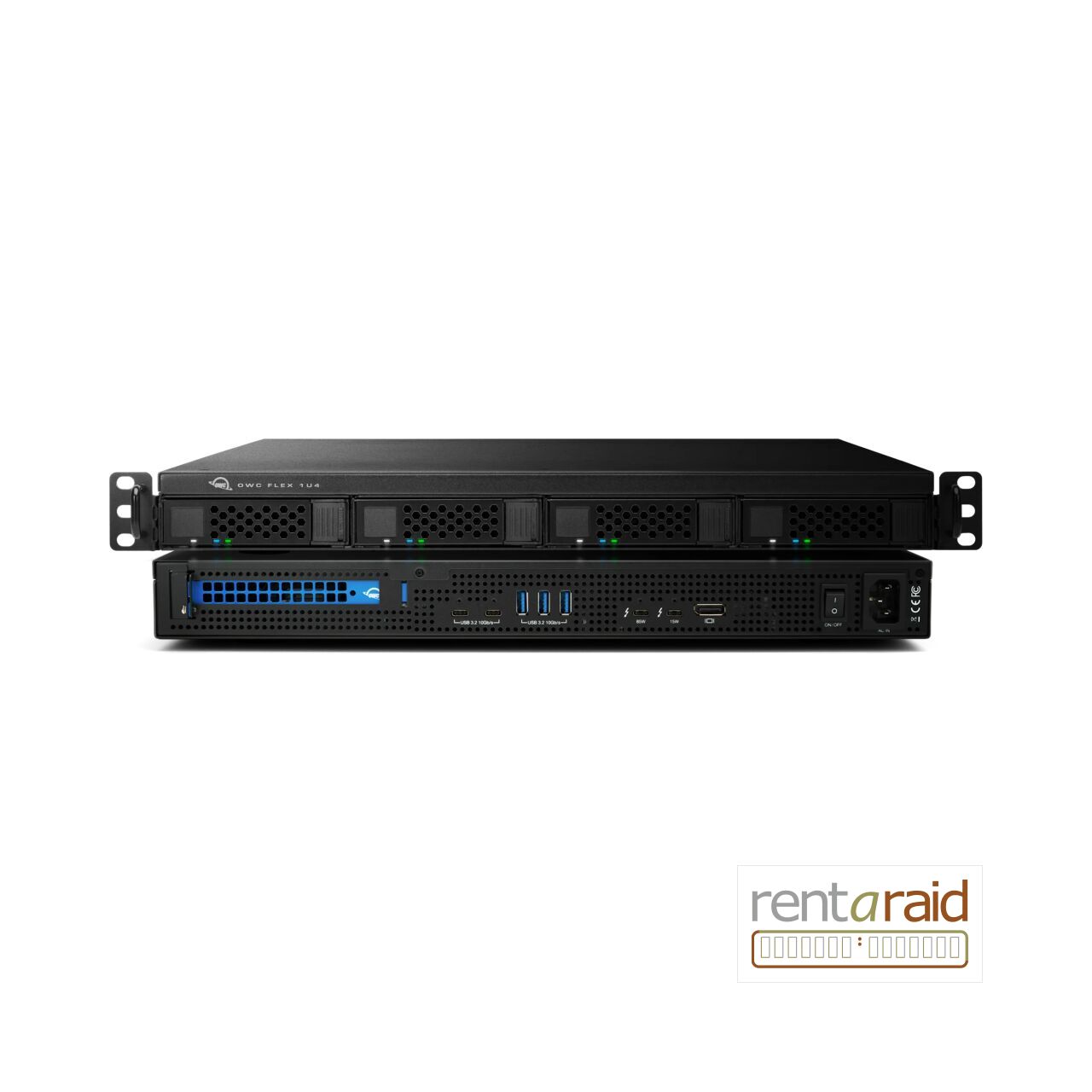

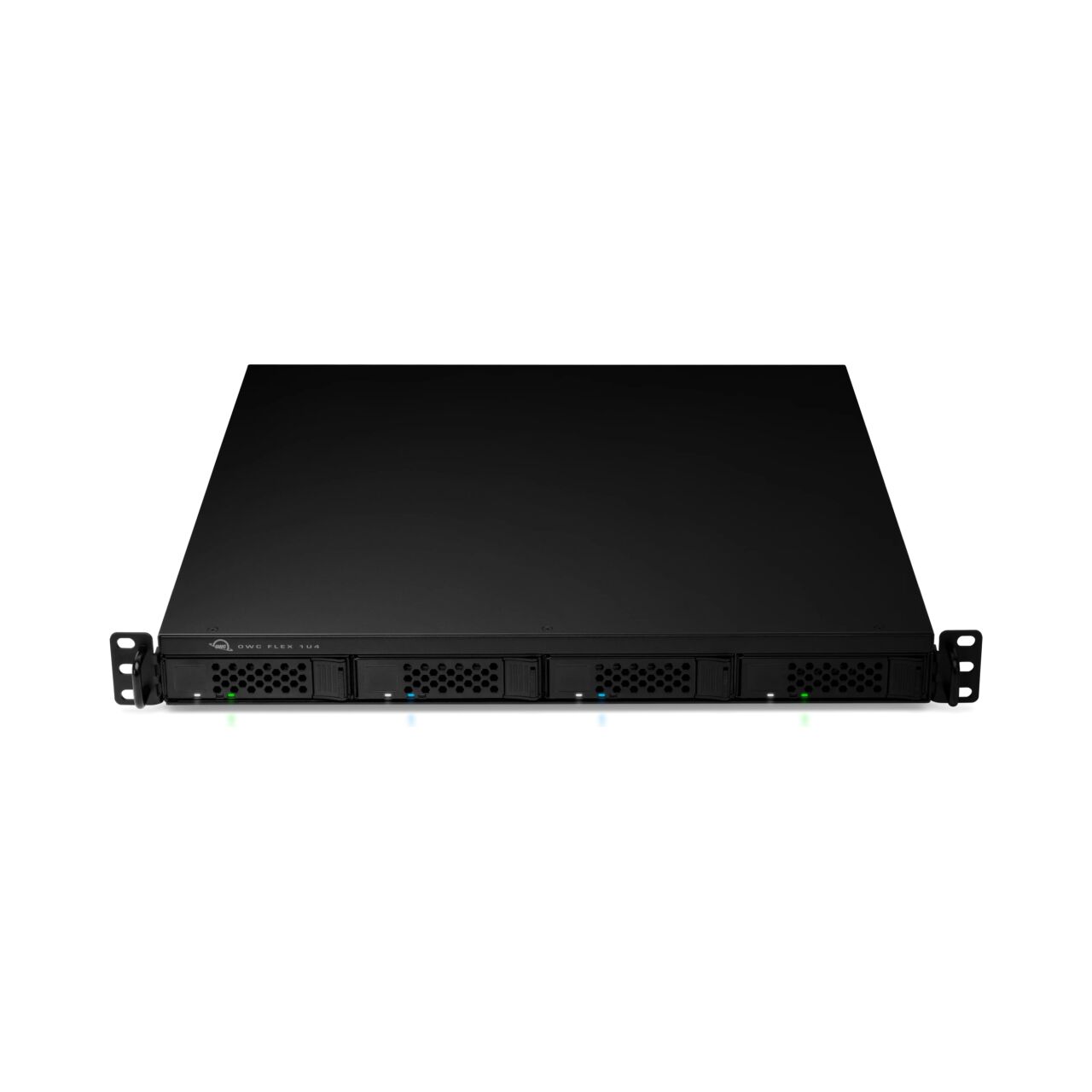

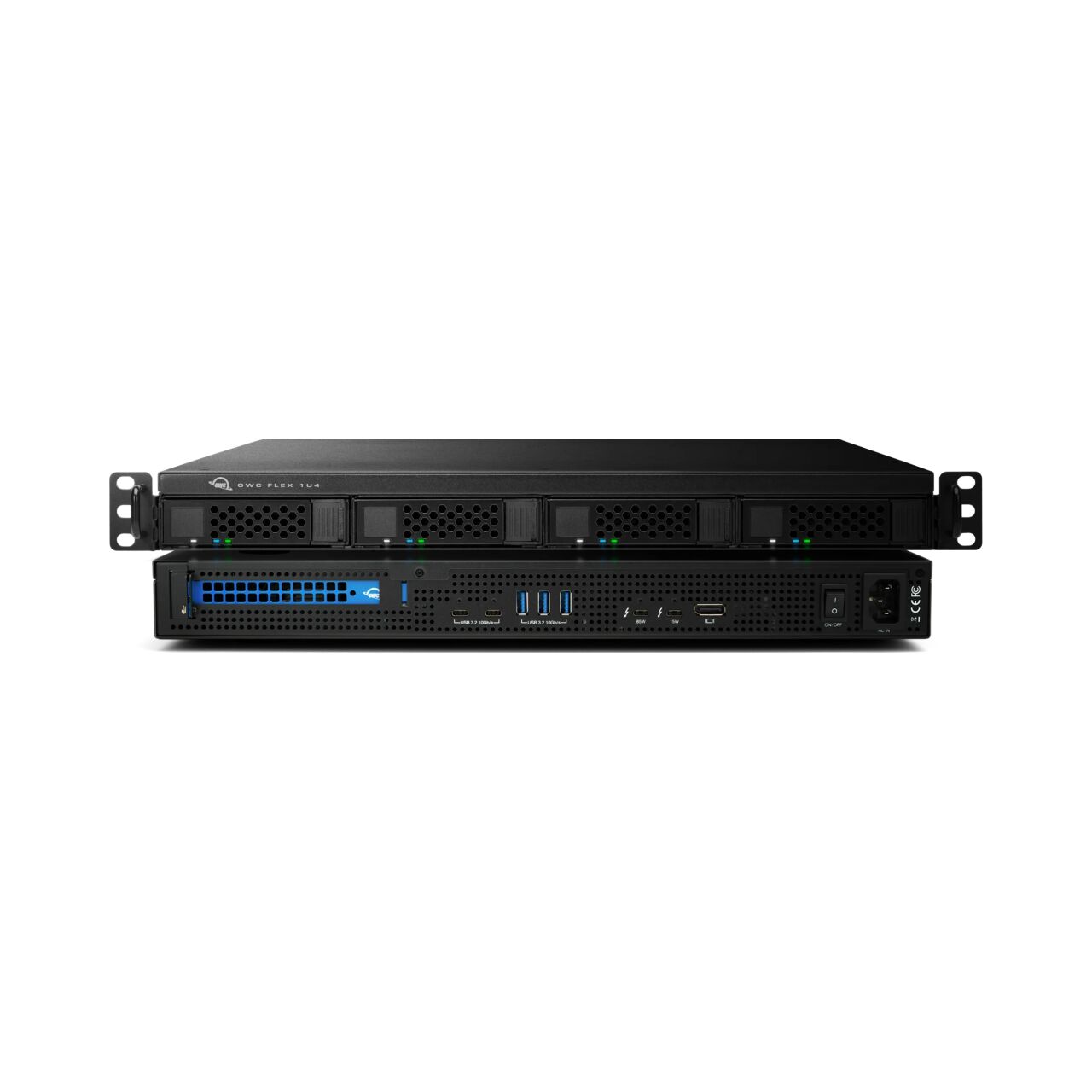

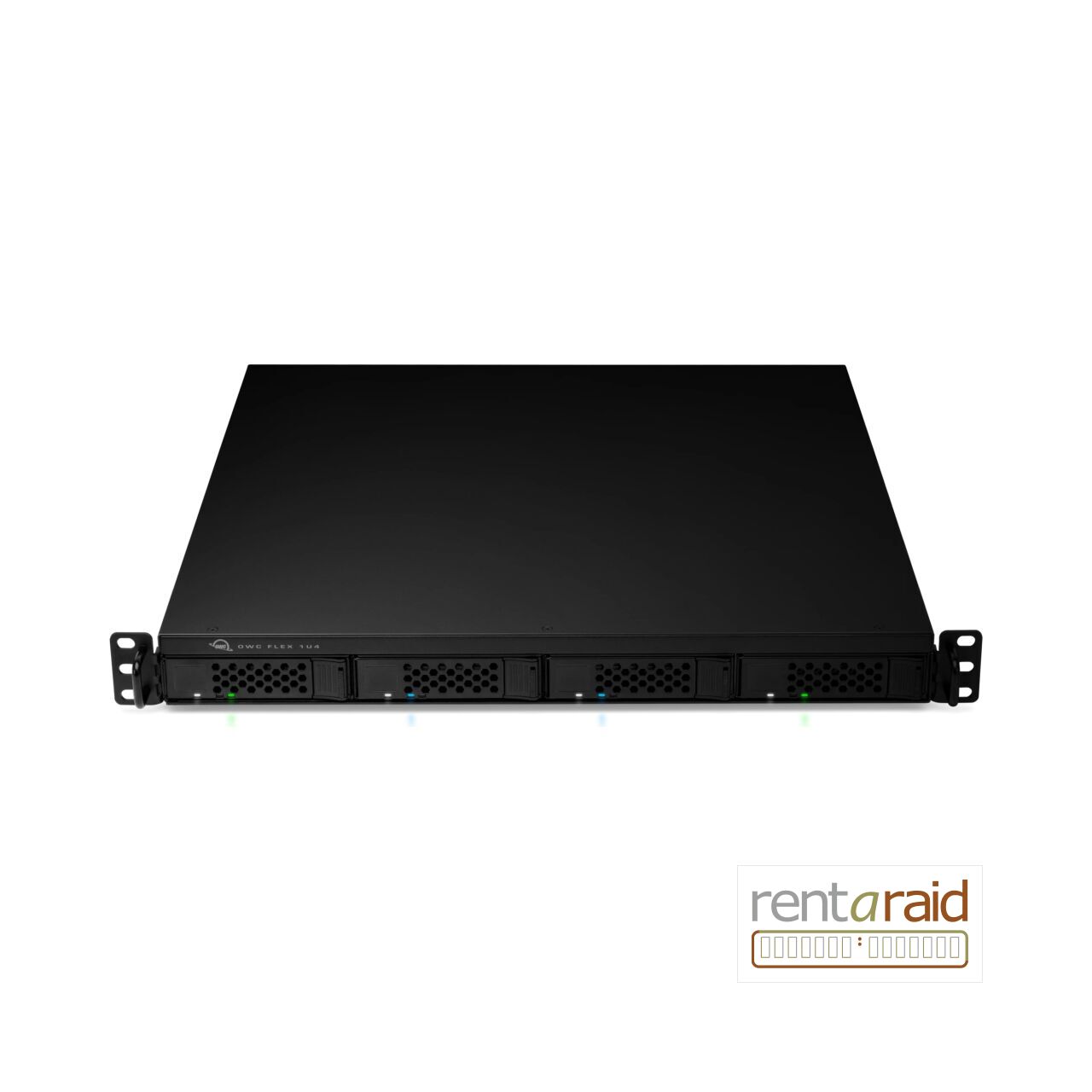

The OWC Flex 1U4 0TB is a four-bay 1U rackmount Thunderbolt storage, docking and PCIe expansion platform supplied without drives for a fully custom professional workflow.
£ please call for the price
The OWC Flex 1U4 is a rackmount workflow platform that combines flexible high-speed storage, a seven-port Thunderbolt dock and PCIe expansion in a compact 1U chassis. This 0TB enclosure is supplied without drives, ready for a custom mix of compatible SATA, SAS or U.2/NVMe storage.
Four quick-access bays support 2.5-inch or 3.5-inch SATA drives and U.2 NVMe storage. SAS drives can also be used when a compatible PCIe SAS controller is installed. The two left bays provide x4 PCIe lanes while the remaining two provide x1 lane each.
Dual Thunderbolt 3 ports provide 40Gb/s host connectivity and daisy-chaining. The rear panel also provides two USB-C 10Gb/s ports, three USB-A 10Gb/s ports and DisplayPort 1.4, with up to 85W host charging from the upstream Thunderbolt port.
A PCIe x16 mechanical slot operating at PCIe 3.0 x4 supports compatible half-length, full-height, single-width capture, audio, networking, storage and I/O cards. GPUs are not supported.
OWC SoftRAID supports RAID 0, 1, 4, 5 and 1+0 (10), plus JBOD workflows, allowing the storage layout to be tuned for speed, resilience or capacity.
Flex 1U4 includes rack hardware for 19-inch to 26-inch racks and a certified Thunderbolt cable. OWC quotes real-world storage performance up to 2,750MB/s with suitable configurations.
| Product | OWC Flex 1U4 |
| Manufacturer Part Number | TB3F1U00000 |
| Total Capacity | 0TB - No Drives Fitted |
| Form Factor | 1U rackmount |
| Drive Bays | 4 x hot-swappable U.2/SATA bays |
| Supported Drives | 2.5-inch / 3.5-inch SATA; U.2 NVMe; SAS with compatible PCIe SAS controller |
| Host Interface | 2 x Thunderbolt 3 (USB-C), 40Gb/s |
| USB | 2 x USB 3.2 Gen 2 Type-C 10Gb/s; 3 x USB 3.2 Gen 2 Type-A 10Gb/s |
| Display | DisplayPort 1.4; up to 8K subject to host support |
| PCIe Expansion | 1 x PCIe x16 mechanical slot, PCIe 3.0 x4 electrical; half-length, full-height, single-width cards |
| RAID Support | RAID 0, 1, 4, 5, 1+0 (10) and JBOD with SoftRAID |
| Maximum Quoted Performance | Up to 2,750MB/s |
| Host Charging | Up to 85W |
| Rack Compatibility | 19-inch to 26-inch rack with available 1U slot |
| Included Cable | Thunderbolt cable |
| Warranty | 1-year OWC limited warranty for enclosure-only configuration |
