Sonnet Echo III Rackmount Thunderbolt 5 Expansion System
Sonnet Echo III Rackmount Thunderbolt 5 Expansion System
2U Three-Slot Thunderbolt 5 PCIe Expansion System With 400W Power Supply
The Sonnet Echo III Rackmount Thunderbolt 5 Expansion System provides three full-length PCIe slots in a rugged 2U chassis for professional video, audio, storage and networking workflows.
The Thunderbolt 5 interface increases available PCIe bandwidth while retaining the proven Echo III slot architecture, 400W power supply, Avid Pro Tools HDX support and quiet Noctua cooling.
- 3 × full-length PCIe expansion slots.
- Thunderbolt 5 interface with dual Thunderbolt ports.
- Up to 3500 MB/s aggregate PCIe bandwidth.
- 2U rackmount chassis with 400W power supply.
Category: All PCIe Expansion Chassis
Brand: Sonnet Technology
Original price was: £ 1,381.00.£ 1,260.95Current price is: £ 1,260.95. | £ 1,513.14 inc VAT
Please Call Us For Availability Of This Item
Sonnet Echo III Rackmount Thunderbolt 5 Expansion System – Product Overview

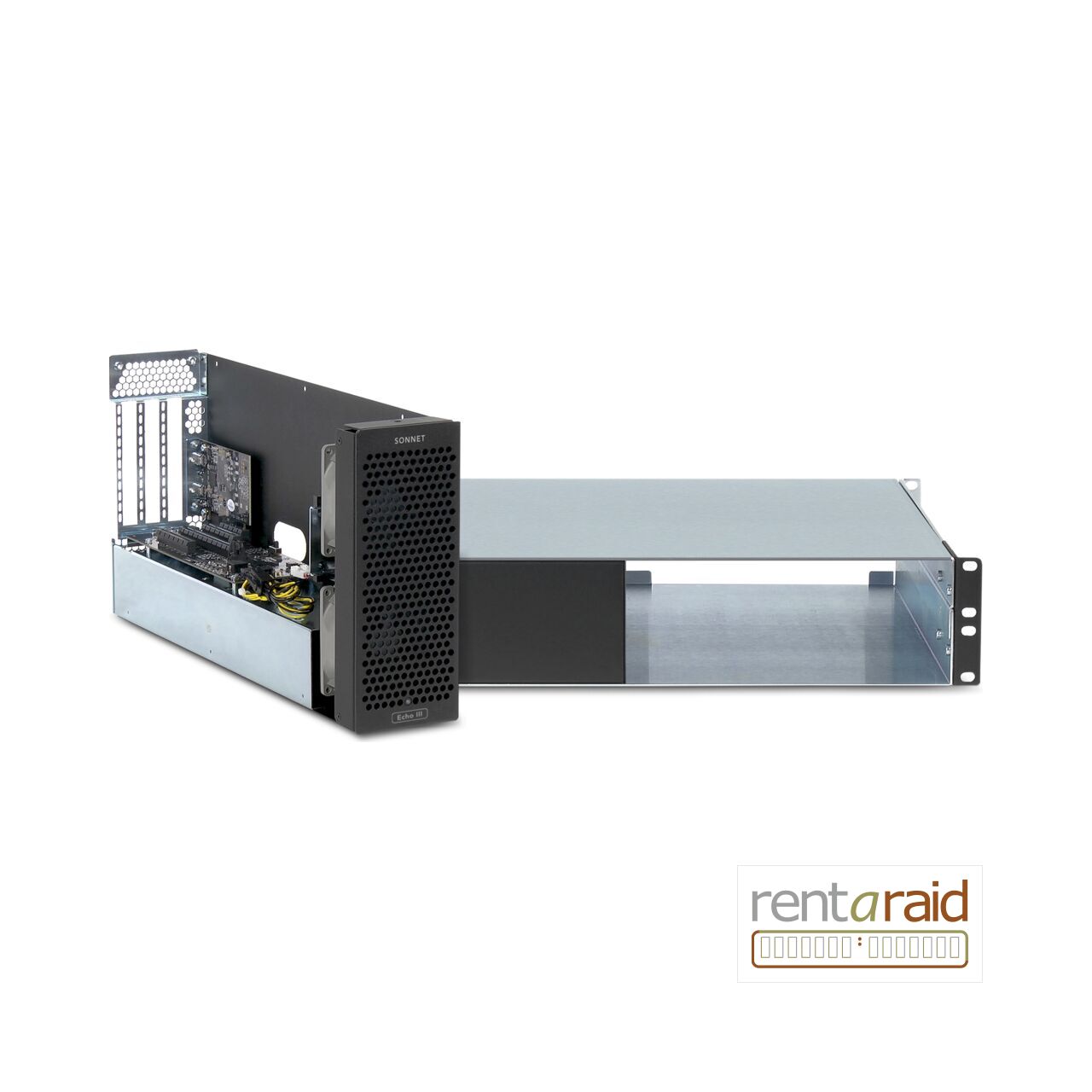

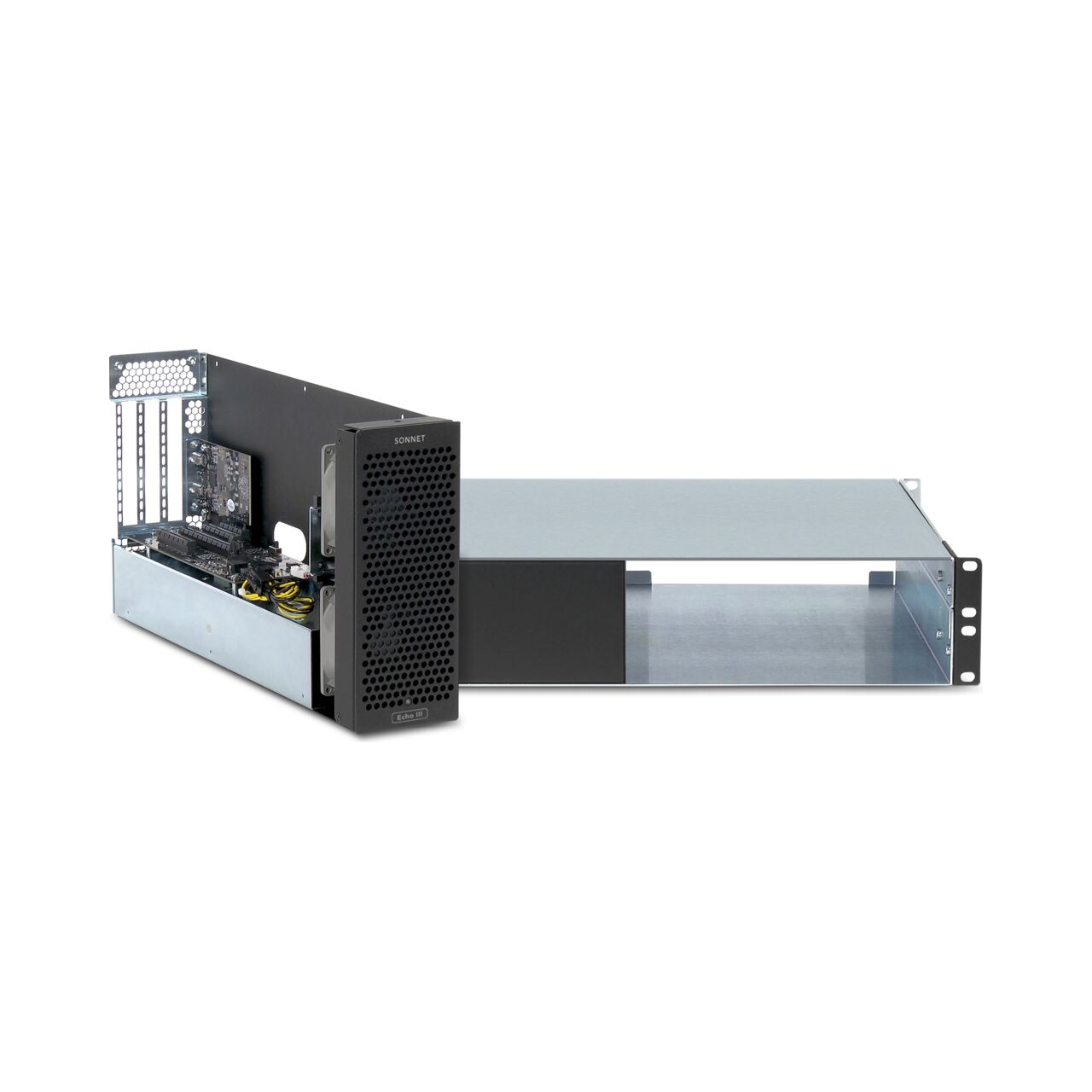

The Sonnet Echo III Rackmount Thunderbolt 5 Expansion System (ECHO-3R-T5) is a three-slot professional PCIe expansion chassis for Thunderbolt-equipped Mac, Windows and Linux computers.
Three Full-Length PCIe Slots
The Echo III architecture supports three full-height, full-length, single-width cards, or one double-width card plus one single-width card. The slot layout provides x8/x8, x16/x8 and x8/x4 mechanical/electrical PCIe 3.1 connectivity.
Thunderbolt 5 Interface
The Thunderbolt 5 configuration provides two Thunderbolt ports and up to 3500 MB/s aggregate PCIe bandwidth. Because the three slots use a PCIe bridge, installed cards share the available host bandwidth.
400W Power And Auxiliary PCIe Power
A universal 400W internal power supply supports installed cards, while a 6-pin auxiliary connection can provide up to 75W of supplemental PCIe power for compatible hardware.
Avid Pro Tools HDX Support
Echo III includes an HDX compatibility mode for professional Pro Tools workflows. When HDX compatibility mode is selected, the PCIe slots operate in PCIe 2.0 mode.
Quiet 2U Rackmount Cooling
Dual temperature-controlled Noctua fans are designed for quiet operation at approximately 17 dBA, making the chassis suitable for recording, broadcast and other noise-sensitive environments.
Professional Rack Integration
The 19-inch 2U steel chassis is 16.5 inches deep and includes rack extension rails, making it appropriate for mobile racks, machine rooms, studio installations and production carts.
Sonnet Echo III Rackmount Thunderbolt 5 Expansion System – Key Features
- Three-slot professional Thunderbolt 5 PCIe expansion system.
- Supports three full-length single-width cards or one double-width plus one single-width card.
- PCIe 3.1 slot layout: x8/x8, x16/x8 and x8/x4 mechanical/electrical.
- Up to 3500 MB/s aggregate PCIe bandwidth.
- Two Thunderbolt ports for host and downstream connectivity.
- Universal 400W internal power supply.
- 75W auxiliary PCIe power connection.
- Avid Pro Tools HDX compatibility mode.
- Dual temperature-controlled Noctua fans rated around 17 dBA.
- 2U rackmount chassis with extension rails.
- Two-year Sonnet warranty.
Sonnet Echo III Rackmount Thunderbolt 5 Expansion System – Technical Specifications
| Product | Sonnet Echo III Rackmount Thunderbolt 5 Expansion System |
| Manufacturer Part Number | ECHO-3R-T5 |
| Form Factor | 2U rackmount Thunderbolt PCIe expansion system |
| PCIe Slot 1 | x8 mechanical, x8 electrical PCIe 3.1 |
| PCIe Slot 2 | x16 mechanical, x8 electrical PCIe 3.1 |
| PCIe Slot 3 | x8 mechanical, x4 electrical PCIe 3.1 |
| Card Configuration | Three full-length single-width cards, or one double-width plus one single-width card |
| Thunderbolt Interface | Thunderbolt 5 |
| Thunderbolt Ports | 2 |
| Maximum Aggregate PCIe Bandwidth | Up to 3500 MB/s |
| Power Supply | Universal 400W, 115–230V AC, 50–60Hz |
| Auxiliary PCIe Power | 6-pin, up to 75W |
| Cooling | Dual temperature-controlled Noctua fans, approximately 17 dBA |
| HDX Compatibility Mode | Supported; PCIe slots operate in PCIe 2.0 mode when enabled |
| Dimensions | 48.3 × 41.9 × 9.1 cm / 19 × 16.5 × 3.6 in |
| Weight | 10.50 kg / 23.15 lb |
| Warranty | 2 years |
Sonnet Echo III Rackmount Thunderbolt 5 Expansion System Product Downloads
