The Sonnet DuoModo Echo III Module is a three-slot Thunderbolt PCIe expansion module for compatible Sonnet modular enclosures.
It supports up to three full-length professional PCIe cards, provides a 40Gbps Thunderbolt interface and integrates a 400W power supply with auxiliary PCIe power for demanding non-GPU cards.
Original price was: £ 1,157.00.£ 1,055.95Current price is: £ 1,055.95. | £ 1,267.14 inc VAT
In Stock

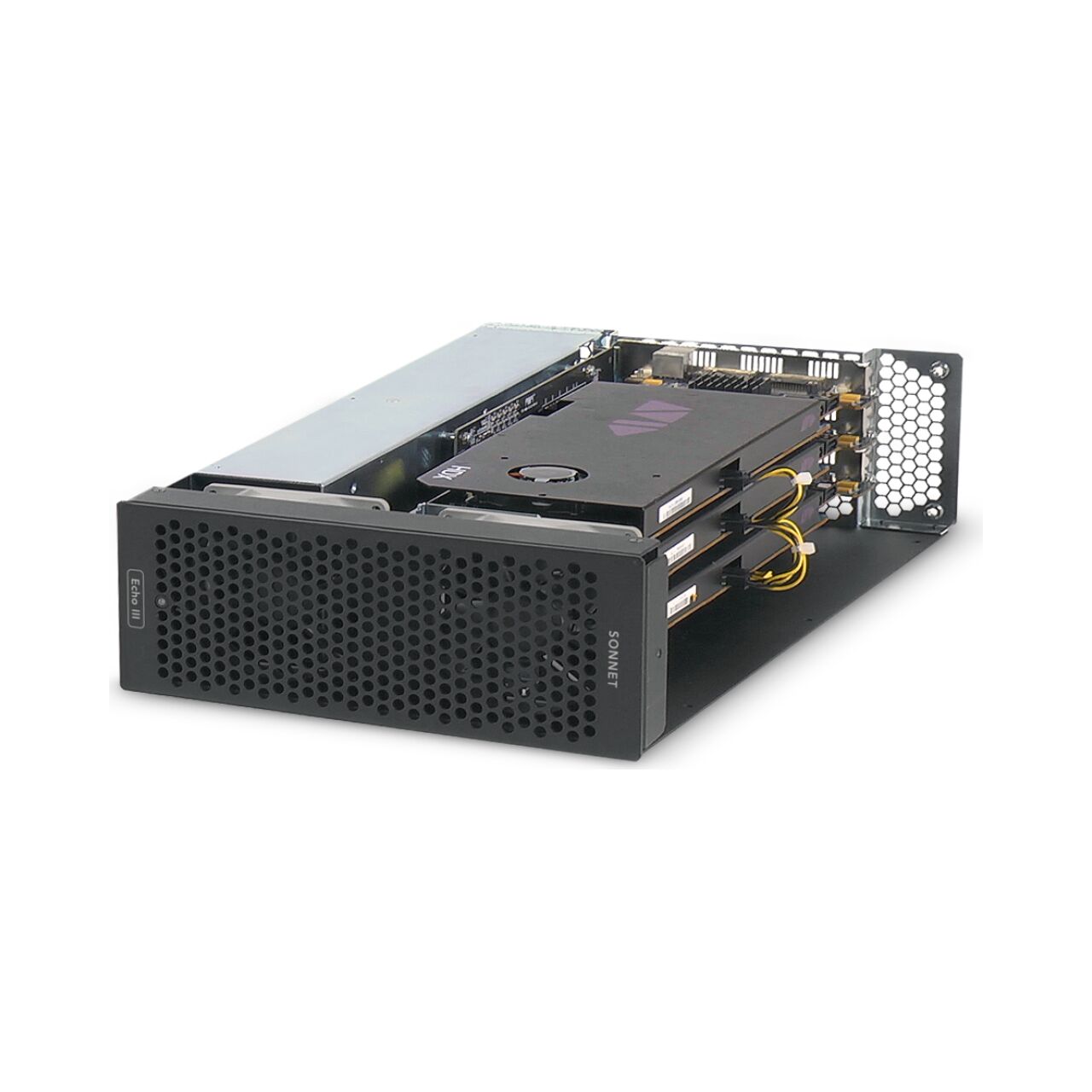

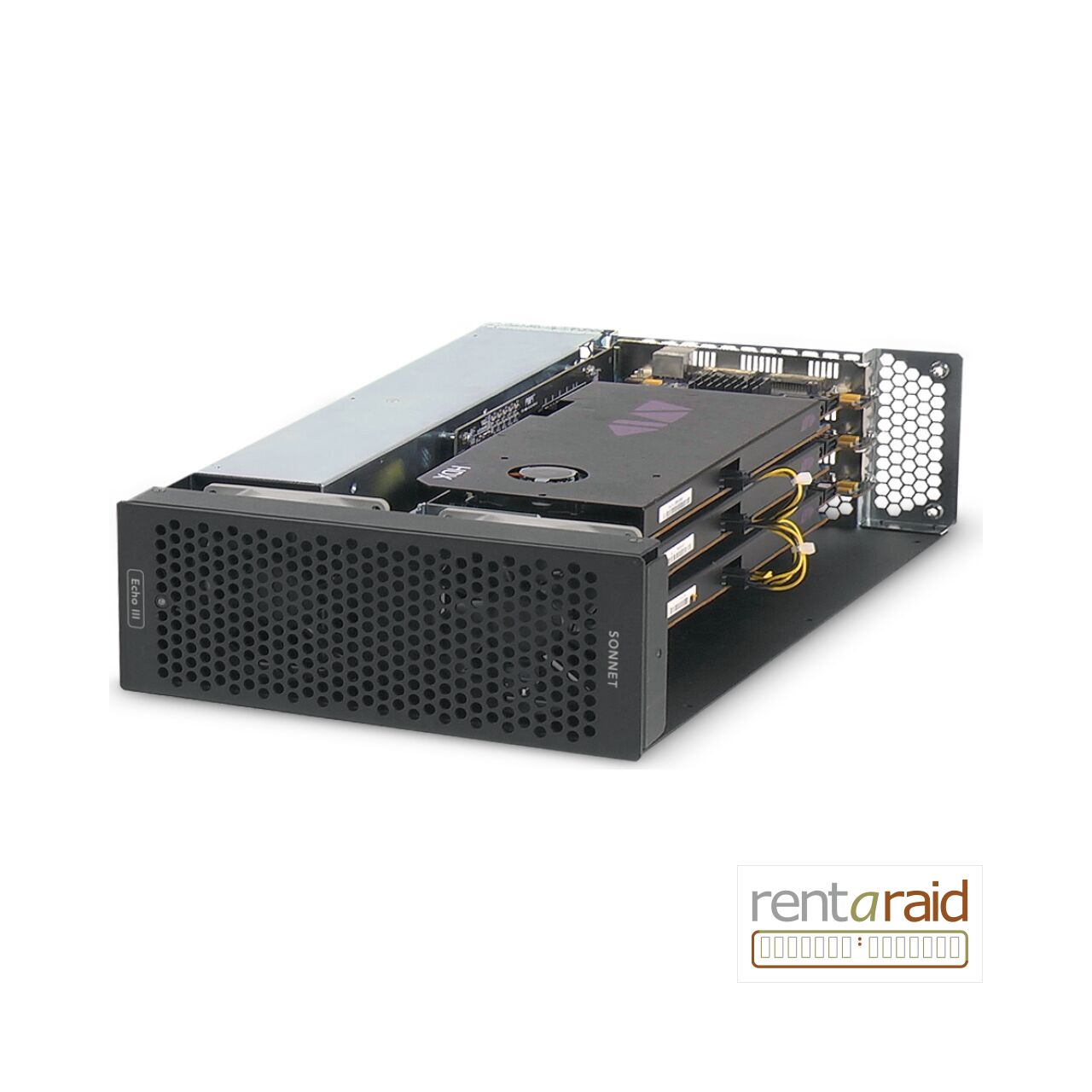

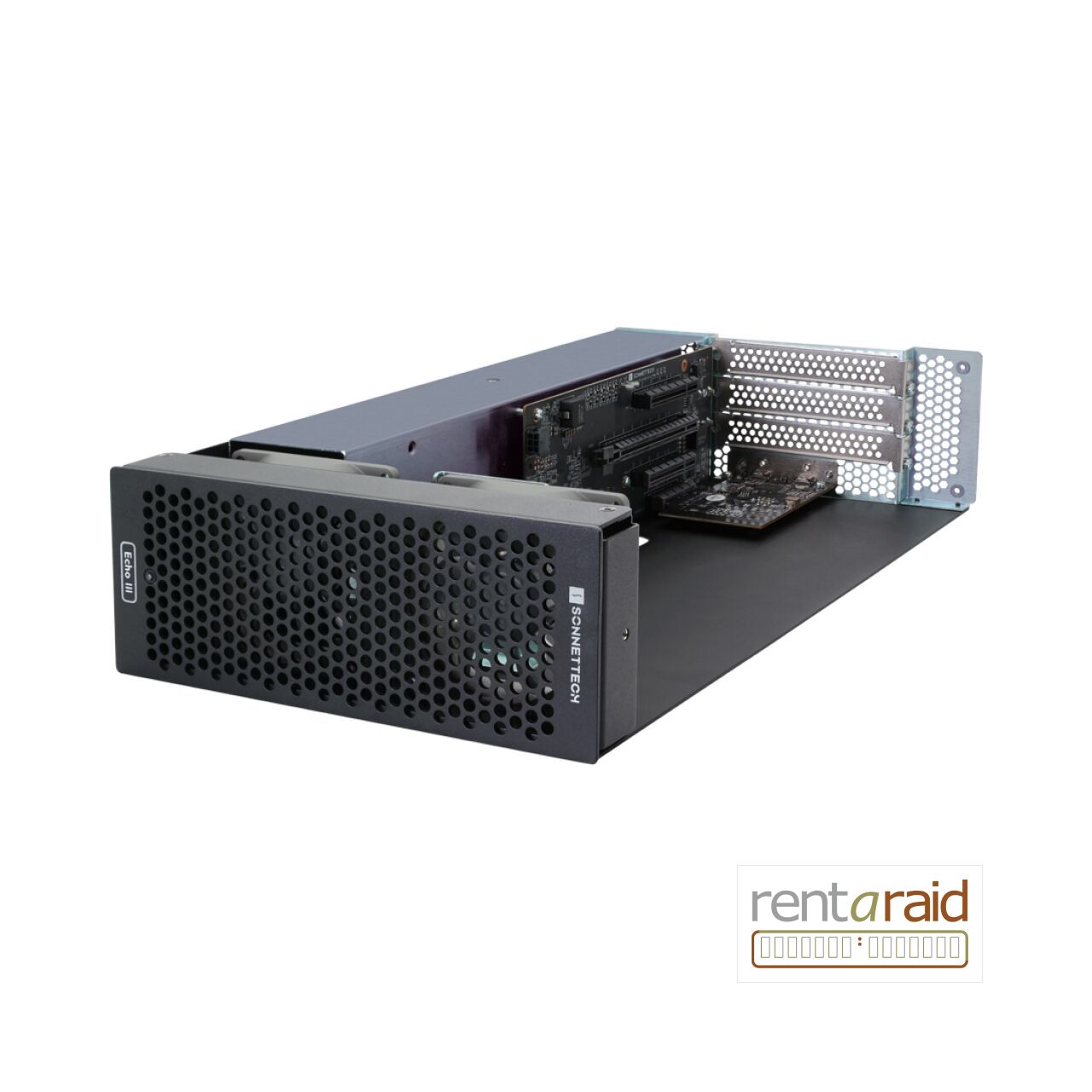

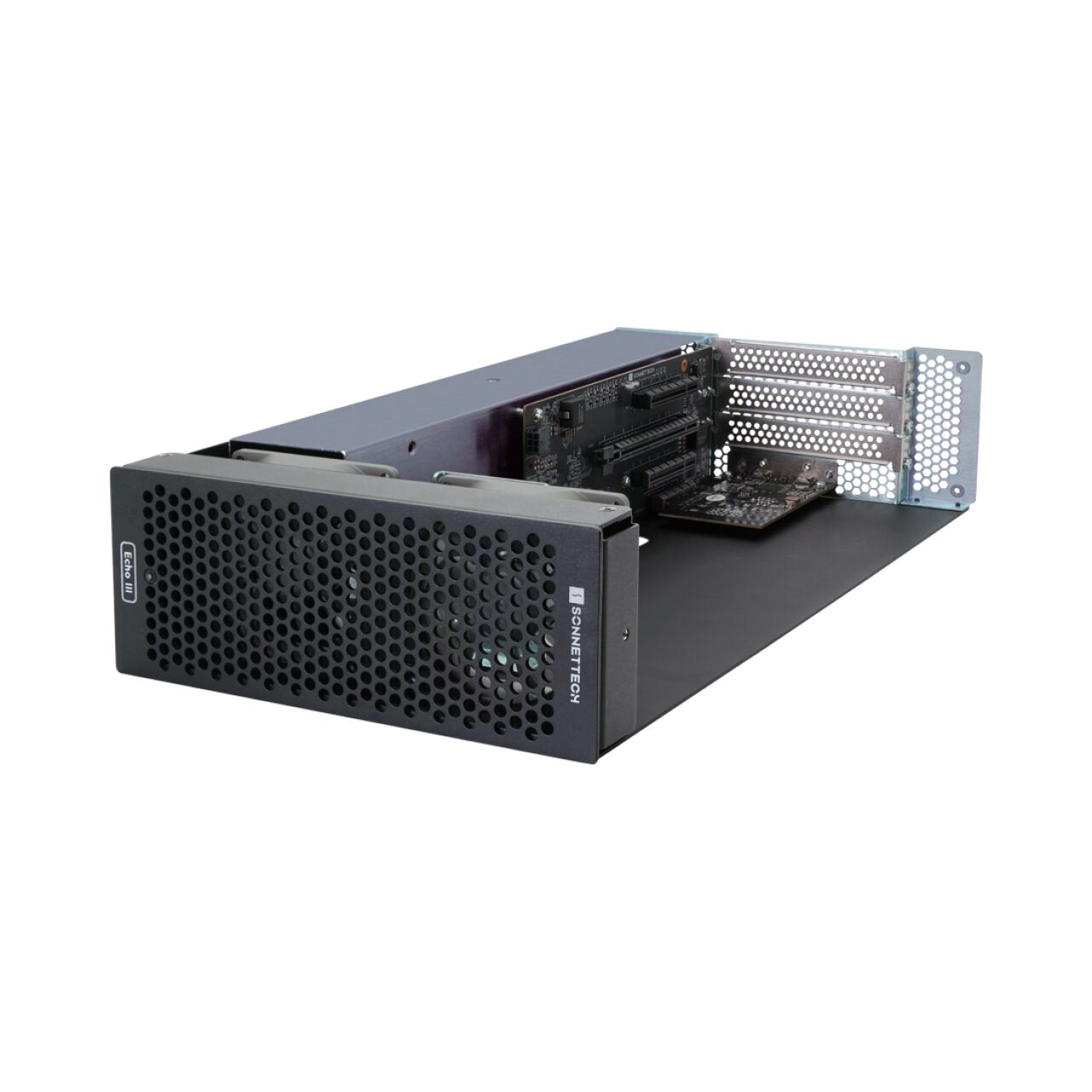

The Sonnet DuoModo Echo III Module (DM-MOD-E3) is the three-slot PCIe expansion module used in Sonnet's Echo III desktop and rackmount systems and compatible DuoModo/xMac modular enclosures.
The module supports three full-height, full-length, single-width PCIe cards, or one double-width card plus one single-width card. Its slot layout comprises one x8 mechanical/x8 electrical slot, one x16 mechanical/x8 electrical slot and one x8 mechanical/x4 electrical slot.
Two Thunderbolt ports provide host and downstream connectivity, with Sonnet specifying up to 2800 MB/s aggregate PCIe bandwidth for the installed cards.
The module integrates a universal 400W power supply and includes a 6-pin auxiliary PCIe power connection capable of providing up to 75W for compatible cards that require supplemental power.
Dual temperature-controlled Noctua fans are designed for low-noise operation around 17 dBA, making the module suitable for audio, broadcast and post-production environments.
The Echo III platform includes an Avid Pro Tools HDX compatibility mode. When enabled, the PCIe slots operate in PCIe 2.0 mode.
| Product | Sonnet DuoModo Echo III Module |
| Manufacturer Part Number | DM-MOD-E3 |
| Product Type | Three-slot Thunderbolt PCIe expansion module |
| PCIe Slot 1 | x8 mechanical, x8 electrical PCIe 3.1 |
| PCIe Slot 2 | x16 mechanical, x8 electrical PCIe 3.1 |
| PCIe Slot 3 | x8 mechanical, x4 electrical PCIe 3.1 |
| Thunderbolt Interface | 40Gbps Thunderbolt |
| Thunderbolt Ports | 2 |
| Maximum Aggregate PCIe Bandwidth | Up to 2800 MB/s |
| Power Supply | Universal 400W, 115–230V AC, 50–60Hz |
| Auxiliary PCIe Power | 6-pin, up to 75W |
| Dimensions | 8.4 × 42.2 × 21.7 cm / 3.3 × 16.6 × 8.5 in |
| Weight | 2.25 kg / 4.95 lb |
| Warranty | 2 years |
