The Sonnet Echo II DV Desktop Thunderbolt 3 Expansion System connects two full-length professional PCIe cards to compatible computers using two independent 40Gbps Thunderbolt interfaces.
Each card has its own Thunderbolt path, enabling up to 2880 MB/s PCIe bandwidth per card when connected to host ports with independent PCIe bandwidth.
Original price was: £ 1,262.00.£ 1,151.95Current price is: £ 1,151.95. | £ 1,382.34 inc VAT
In Stock
The Sonnet Echo II DV Desktop Thunderbolt 3 Expansion System (ECHO-2DDV-TB3) is a two-slot professional PCIe expansion chassis designed for workflows that need two high-bandwidth cards operating independently.

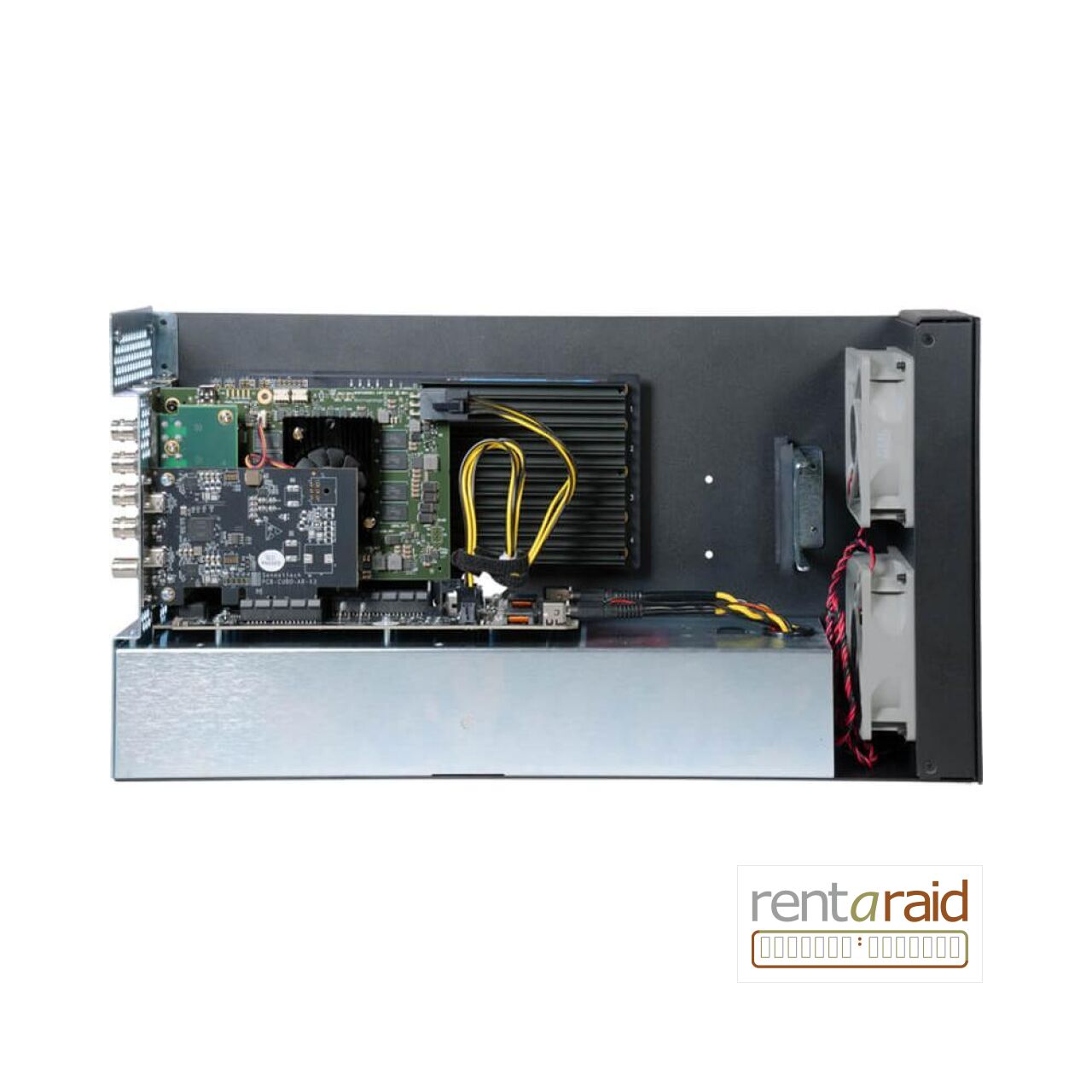

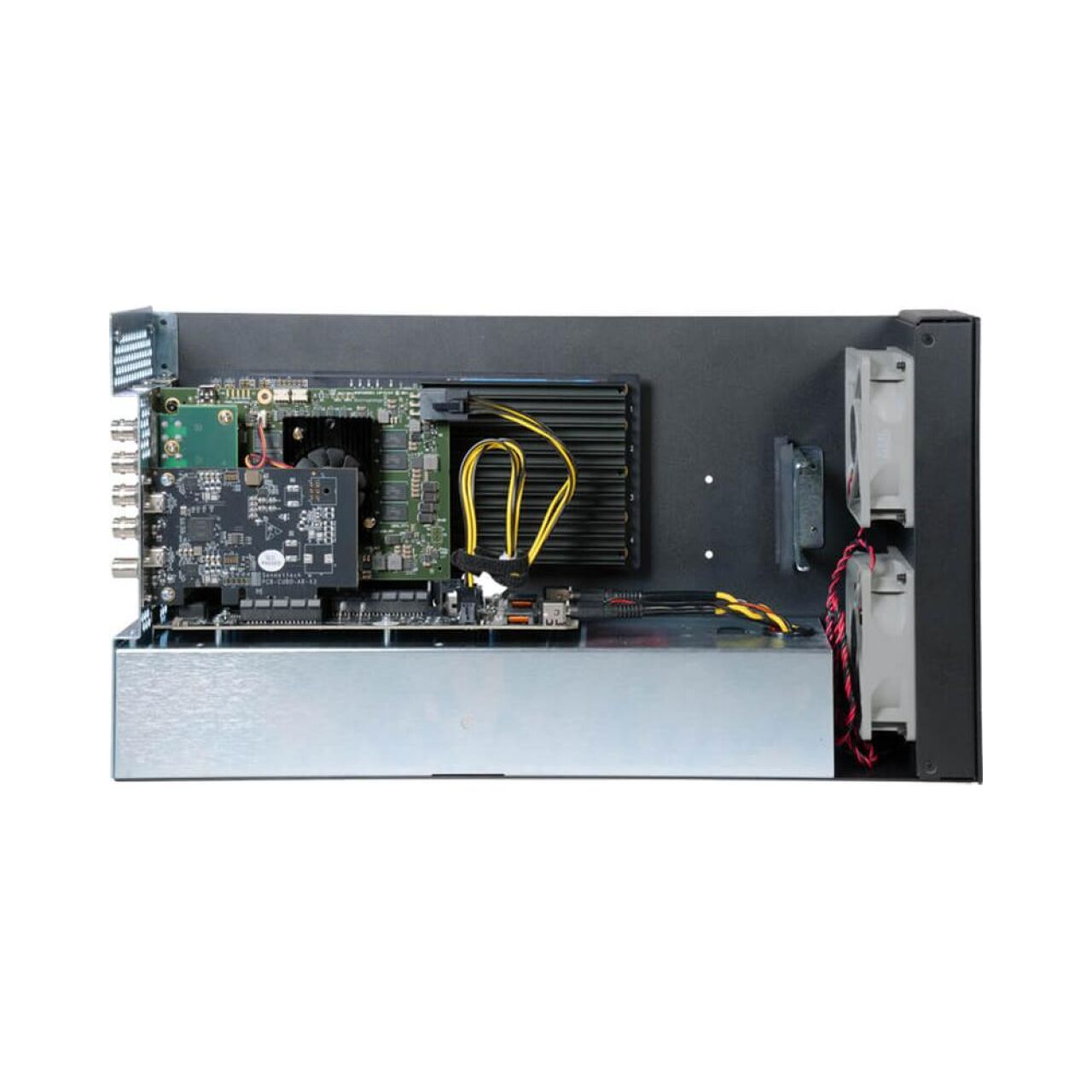

The chassis provides two x16 mechanical, x4 electrical PCIe 3.1 slots for full-height, full-length, single-width compatible PCIe cards.
Each PCIe slot is paired with its own Thunderbolt interface. When connected to two host ports with independent PCIe bandwidth, Sonnet specifies up to 2880 MB/s PCIe bandwidth for each installed card.
Two ports are provided per interface, supporting host connections and compatible downstream Thunderbolt devices.

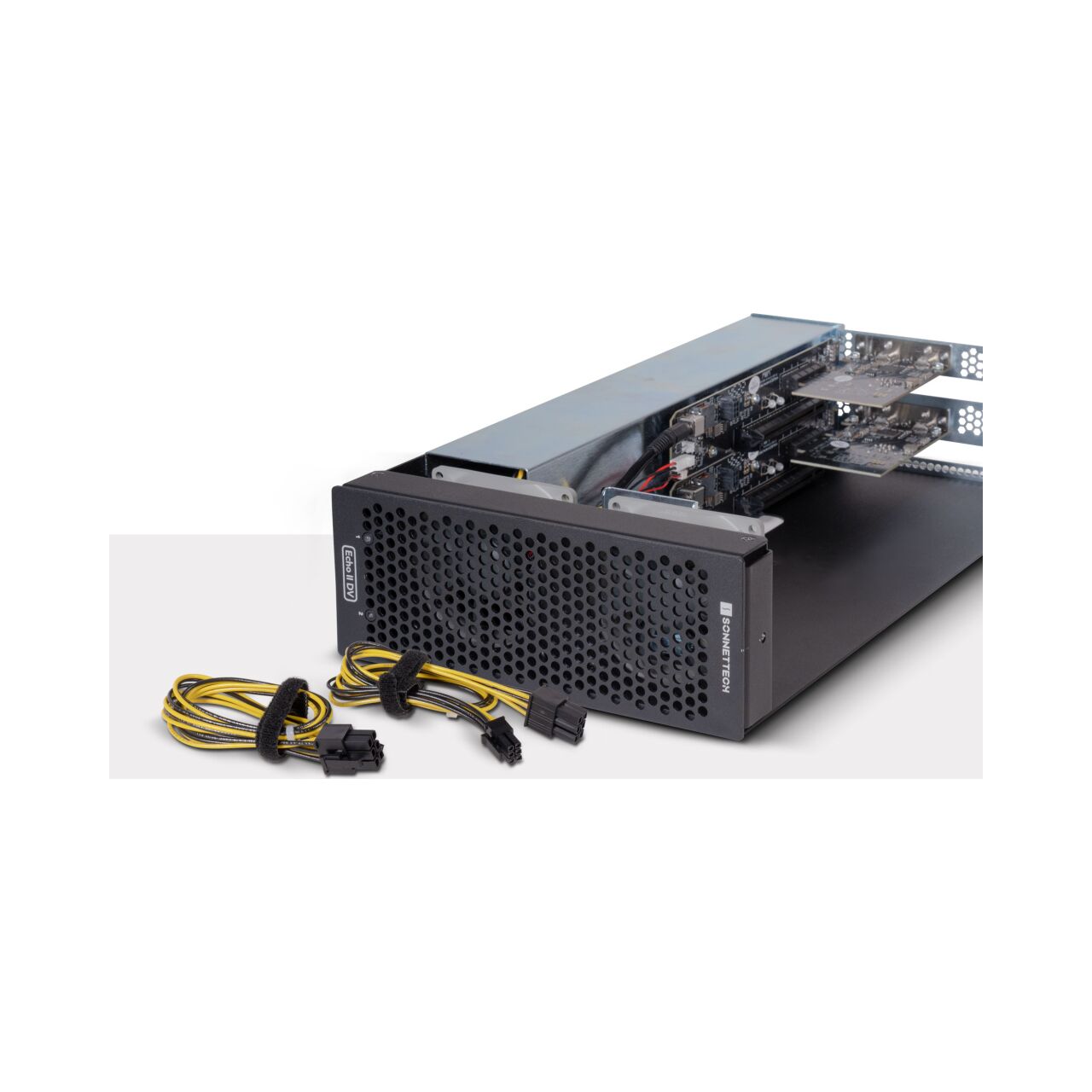

The integrated universal 400W power supply supports demanding professional cards, with two 6-pin auxiliary power cables for cards requiring supplemental power.
Although the chassis uses 40Gbps Thunderbolt interfaces, Sonnet's current compatibility documentation supports appropriate Thunderbolt 5, Thunderbolt 4, USB4 and Thunderbolt 3 hosts.
| Product | Sonnet Echo II DV Desktop Thunderbolt 3 Expansion System |
| Manufacturer Part Number | ECHO-2DDV-TB3 |
| Form Factor | Desktop Thunderbolt PCIe expansion system |
| PCIe Slots | 2 × x16 mechanical, x4 electrical PCIe 3.1 |
| Supported Cards | Two full-length, full-height, single-width PCIe cards |
| Thunderbolt Interfaces | 2 independent 40Gbps interfaces |
| Thunderbolt Ports | 4 total |
| Maximum PCIe Bandwidth | Up to 2880 MB/s per card with suitable independent host paths |
| Power Supply | Universal 400W, 115–230V AC, 50–60Hz |
| Dimensions | 8.9 × 42.4 × 22.9 cm / 3.5 × 16.7 × 9 in |
| Weight | 4.40 kg / 9.7 lb |
| Warranty | 2 years |
