Original price was: £ 841.00.£ 733.95Current price is: £ 733.95. | £ 880.74 inc VAT

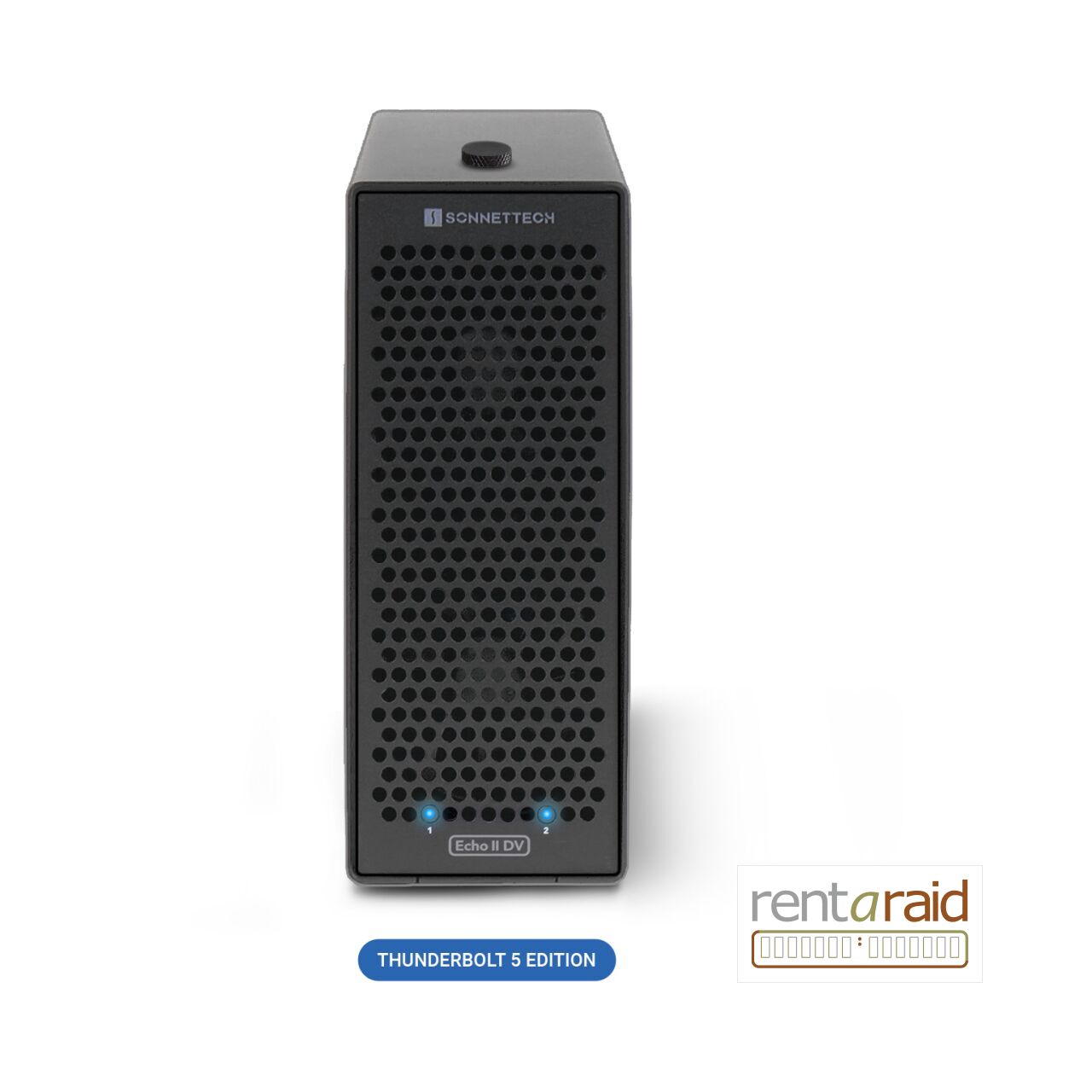

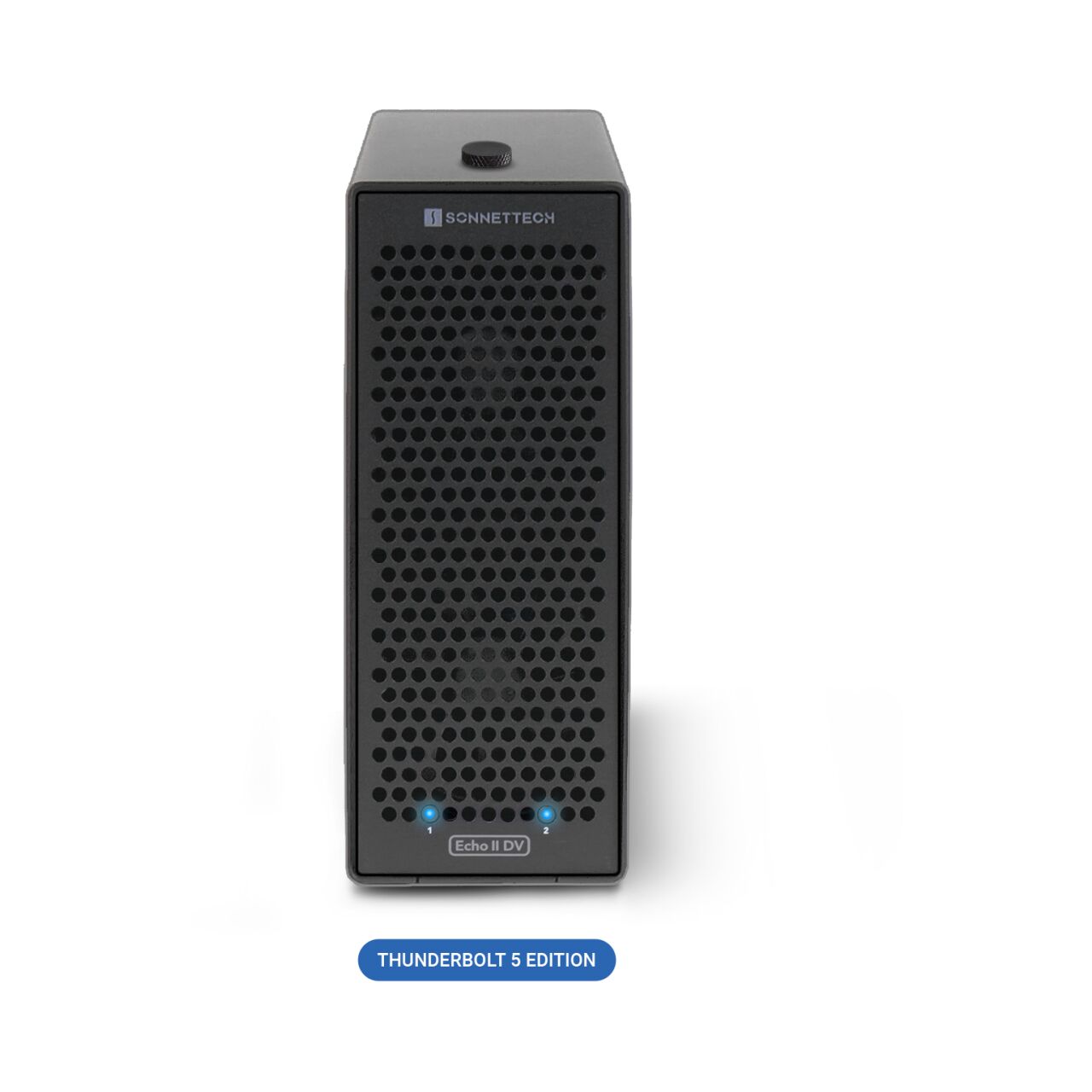

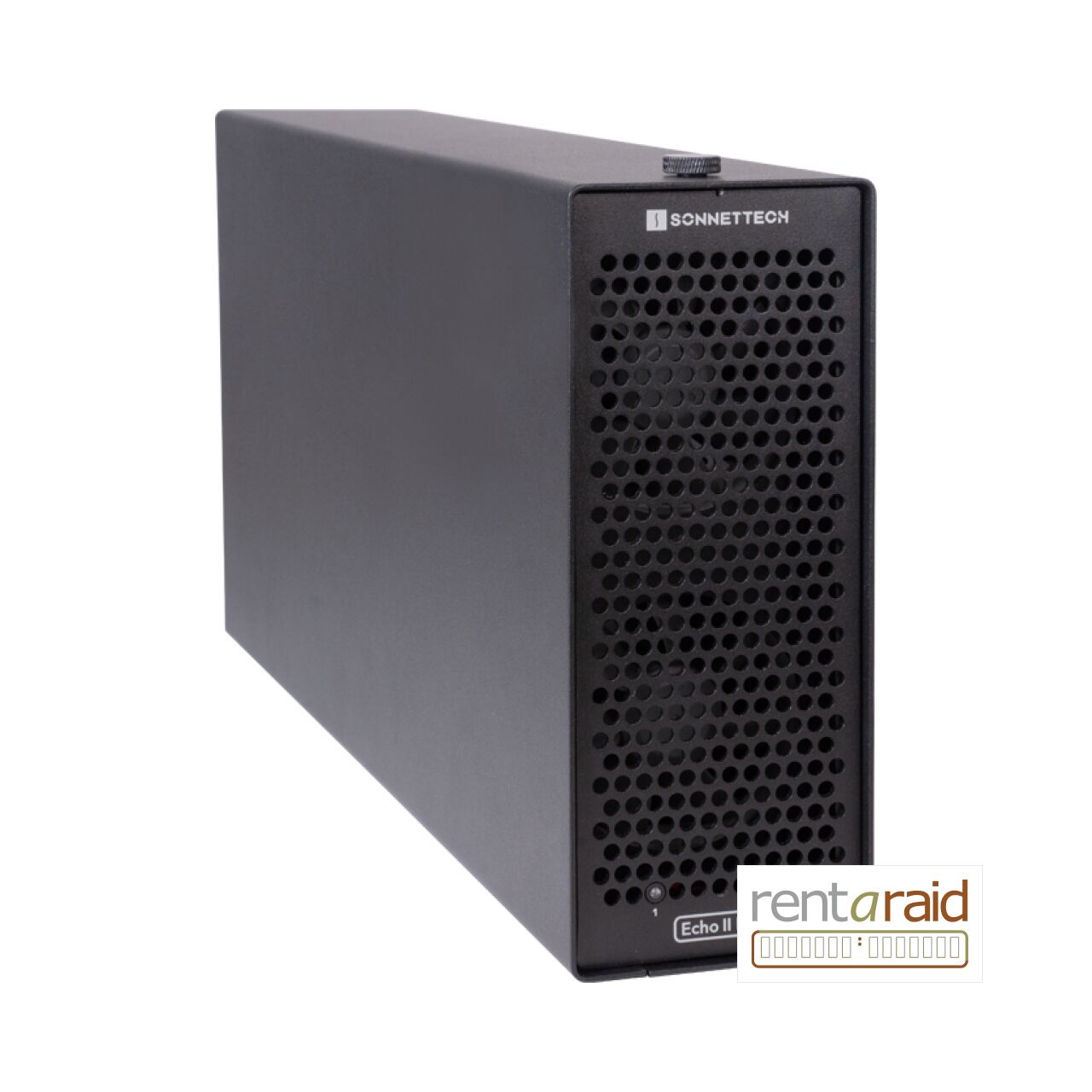

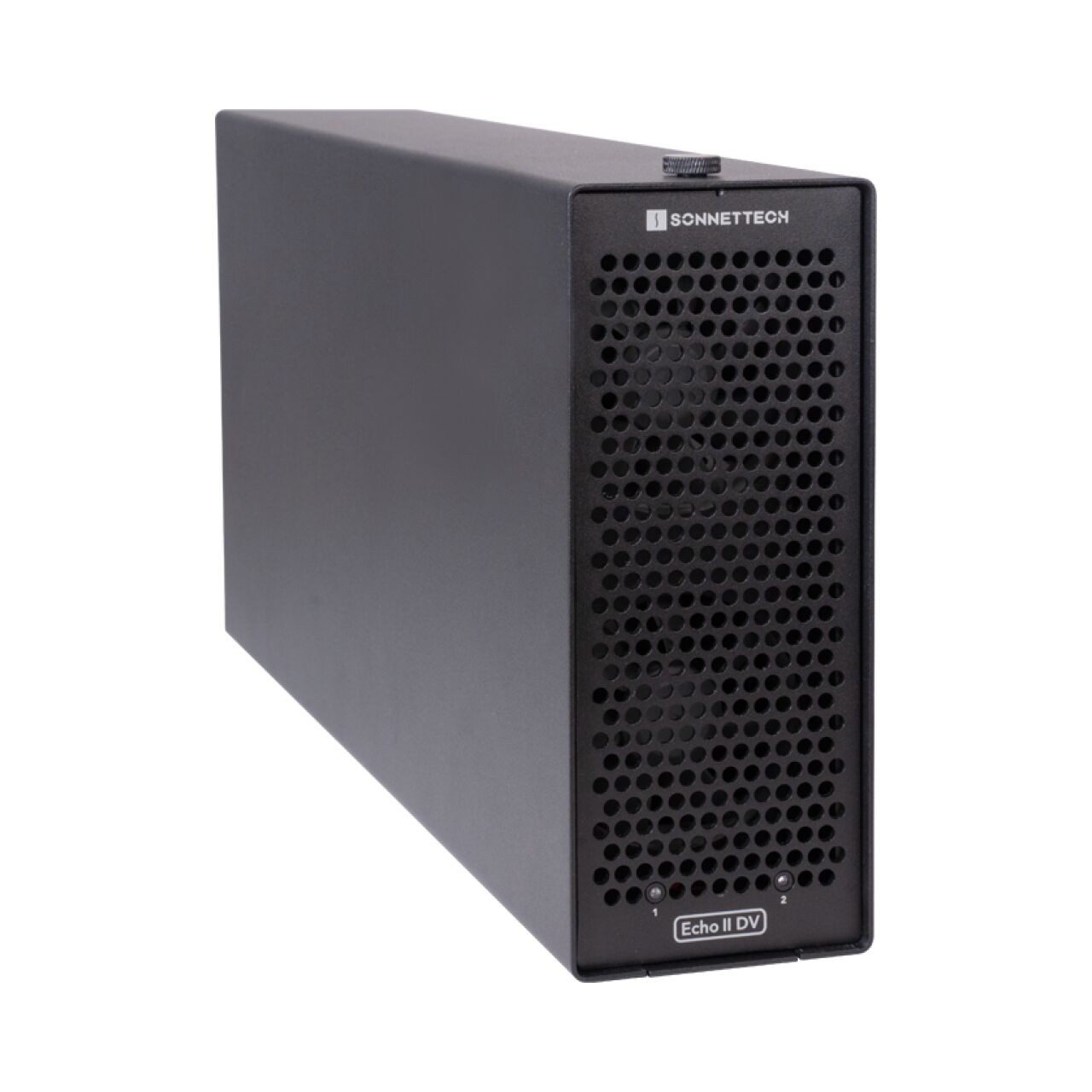

Sonnet Echo II DV T5 Desktop
Sonnet Echo II DV T5 Desktop
Two-Slot Thunderbolt 5 To PCIe Expansion System With Dual X16 PCIe 4.0 Slots
Sonnet Echo II DV T5 Desktop connects two full‑length, single‑width PCIe cards to computers with Thunderbolt or USB4 ports.
Each PCIe slot is paired with a dual‑port Thunderbolt 5 interface so two high‑bandwidth cards can run at full performance simultaneously on appropriately equipped hosts.
The unit includes a universal 400W power supply, dual 75W auxiliary PCIe power connectors, dual Noctua fans rated at 17 dBA, two Thunderbolt 5 cables and three ThunderLok connector locks.
- Two x16 PCIe 4.0 slots for single‑width non‑GPU cards.
- Delivers 6800 MB/s PCIe bandwidth per card with Thunderbolt 5 hosts.
- Four Thunderbolt 5 ports (two per interface) and support for daisy‑chaining.
Category: PCIe Expansion Chassis
Brand: Sonnet Technology
Original price was: £ 1,366.00.£ 1,280.95Current price is: £ 1,280.95. | £ 1,537.14 inc VAT
In Stock
Sonnet Echo II DV T5 Desktop – Product Overview
The Sonnet Echo II DV T5 Desktop is a two‑slot Thunderbolt 5 to PCIe card expansion system designed to add professional I/O and processing capabilities to laptops and mini desktops that lack internal PCIe slots.
Each PCIe slot is paired with its own Thunderbolt 5 interface so two high‑bandwidth cards can run at full performance simultaneously when the host computer supplies independent Thunderbolt PCIe lanes.
Dual PCIe Slots
Echo II DV T5 Desktop features two x16 PCIe 4.0 slots that support Thunderbolt‑compatible, single‑width, non‑GPU PCIe 4.0, 3.1, 2.0, and 1.1 cards including video capture, streaming and transcoding cards; SSD storage; audio DSP; and multi‑port 10Gb and 25Gb Ethernet cards.
Dual Thunderbolt 5 Interfaces
The unit contains two dual‑port Thunderbolt 5 interfaces (four Thunderbolt 5 ports total), with one interface dedicated to each PCIe slot; each interface includes two Thunderbolt ports to enable daisy‑chaining and single‑cable connection options.
PCIe Bandwidth
When connected to two Thunderbolt 5 computer ports that provide independent PCIe lanes, each installed card can receive 6800 MB/s of PCIe bandwidth; with Thunderbolt 4, 3, or USB4 hosts the available bandwidth is 2880 MB/s per card.
Power And Power Delivery
Echo II DV T5 integrates a universal 400W power supply and provides two 75W auxiliary PCIe power connectors (one for each card slot) for power‑hungry cards; the secondary Thunderbolt ports provide 15 watts to bus‑powered peripherals.
Cooling And Acoustic Performance
Cooling is handled by dual Noctua fans rated at 17 dBA, with temperature‑controlled operation to balance airflow and noise for use in recording and broadcast studio environments.
Connectivity And Peripherals
Secondary Thunderbolt ports support Thunderbolt 5, 4, and 3 peripherals and can connect up to four additional Thunderbolt devices; the Thunderbolt 5 interface supports 80 Gbps bi‑directional data speed and up to 120 Gbps for higher display bandwidth.
Included Accessories And Security
The product includes two Thunderbolt 5 cables engineered to deliver Thunderbolt 5 bandwidth and three Sonnet ThunderLok connector locks to help prevent accidental cable disconnection.
Sonnet Echo II DV T5 Desktop – Key Features
- Connects two full-length, single-width PCIe cards via Thunderbolt 5 to a computer, enabling high-bandwidth expansion for laptops and mini desktops.
- Two x16 PCIe 4.0 slots give support for a wide variety of non‑GPU cards including video I/O, SSD storage, audio DSP and multi‑port networking cards.
- Dual Thunderbolt 5 interfaces provide a dedicated interface per slot so each card can receive full PCIe bandwidth when connected to two Thunderbolt ports on the host computer.
- Delivers 6800 MB/s PCIe bandwidth to each installed card when connected to Thunderbolt 5 computers, and 2880 MB/s with Thunderbolt 4, 3, and USB4 computers.
- Includes a universal 400W power supply plus two 75W auxiliary PCIe power connectors (one per slot) for power‑hungry cards.
- Secondary Thunderbolt ports supply 15 watts to bus‑powered peripherals and support daisy‑chaining to enable single‑cable connection to the computer.
- Equipped with dual Noctua fans rated at 17 dBA for quiet cooling suitable for noise‑sensitive environments.
- Four Thunderbolt 5 ports (two per interface) allow connecting two host ports for maximum performance and up to four additional Thunderbolt devices via the secondary ports.
- Powers on and off automatically with the connected computer; no power switch is fitted to the enclosure.
- Each PCIe slot operates independently, enabling the two slots to be connected to separate computers if required.
- Includes two Thunderbolt 5 cables engineered for full Thunderbolt 5 bandwidth and three Sonnet ThunderLok connector locks to secure Thunderbolt cables.
- Supports all M series Macs and Intel Macs with Thunderbolt 3, and Windows and Linux computers with Thunderbolt 5, 4, or USB4 ports.
- Thunderbolt 5 support provides 80 Gbps bi‑directional data speed and up to 120 Gbps for higher display bandwidth.
Sonnet Echo II DV T5 Desktop – Technical Specifications
| Product | Sonnet Echo II DV T5 Desktop |
| SKU | SONECHO2DDVTB5 |
| Manufacturer | Sonnet Technology |
| PCIe Slots | Two x16 PCIe 4.0 slots |
| PCIe Card Compatibility | Thunderbolt‑compatible, single‑width, non‑GPU PCIe 4.0, 3.1, 2.0, and 1.1 cards (video capture, streaming and transcoding; SSD storage; audio DSP; multi‑port 10Gb and 25Gb Ethernet; SAS host bus adapter; other specialty types) |
| Thunderbolt Interfaces | Dual Thunderbolt 5 interfaces (two dual‑port interfaces) |
| Thunderbolt Ports | Four Thunderbolt 5 ports (two ports connect to the computer for maximum performance; secondary ports support daisy‑chaining) |
| PCIe Bandwidth (Thunderbolt 5 hosts) | 6800 MB/s per installed card |
| PCIe Bandwidth (Thunderbolt 4, 3, USB4 hosts) | 2880 MB/s per installed card |
| Thunderbolt 5 Data/Display Bandwidth | 80 Gbps bi‑directional; up to 120 Gbps for higher display bandwidth |
| Power Supply | Universal 400W power supply |
| Auxiliary PCIe Power | Two 75W auxiliary PCIe power connectors (one per card slot) |
| Secondary Port Power | 15 watts provided to bus‑powered devices through each secondary Thunderbolt port |
| Cooling | Dual Noctua fans rated at 17 dBA |
| Included Cables & Locks | Two Thunderbolt 5 cables and three Sonnet ThunderLok connector locks |
| Automatic Power Control | Powers on and off automatically with the connected computer (no power switch) |
| Multi‑Host Capability | Each PCIe slot operates independently; slots can be connected to separate computers |
| Operating System Support | Supports all M series Macs and Intel Macs with Thunderbolt 3; supports Windows computers with Thunderbolt 5, 4, or USB4; supports Linux computers with Thunderbolt 5, 4, or USB4 |
| Example Compatible Cards | Deltacast DELTA-12G-elp-h 4c; BlackMagic Design DeckLink 8K Pro G2 (with main board [SDI ports] only); AJA KONA 5; Sonnet M.2 8x4 Silent Gen4 PCIe Card; Sonnet M.2 4x4 PCIe Card (Silent); Sonnet Twin25G PCIe Card; Macnica 100Gbps MEP100 SmartNIC |
