SymplyPRO XTL 40 – LTO-9
SymplyPRO XTL 40 – LTO-9
3U 40-Slot LTO-9 Tape Library With 12Gb SAS, 8Gb Fibre Channel Or Dual 10GbE iSCSI

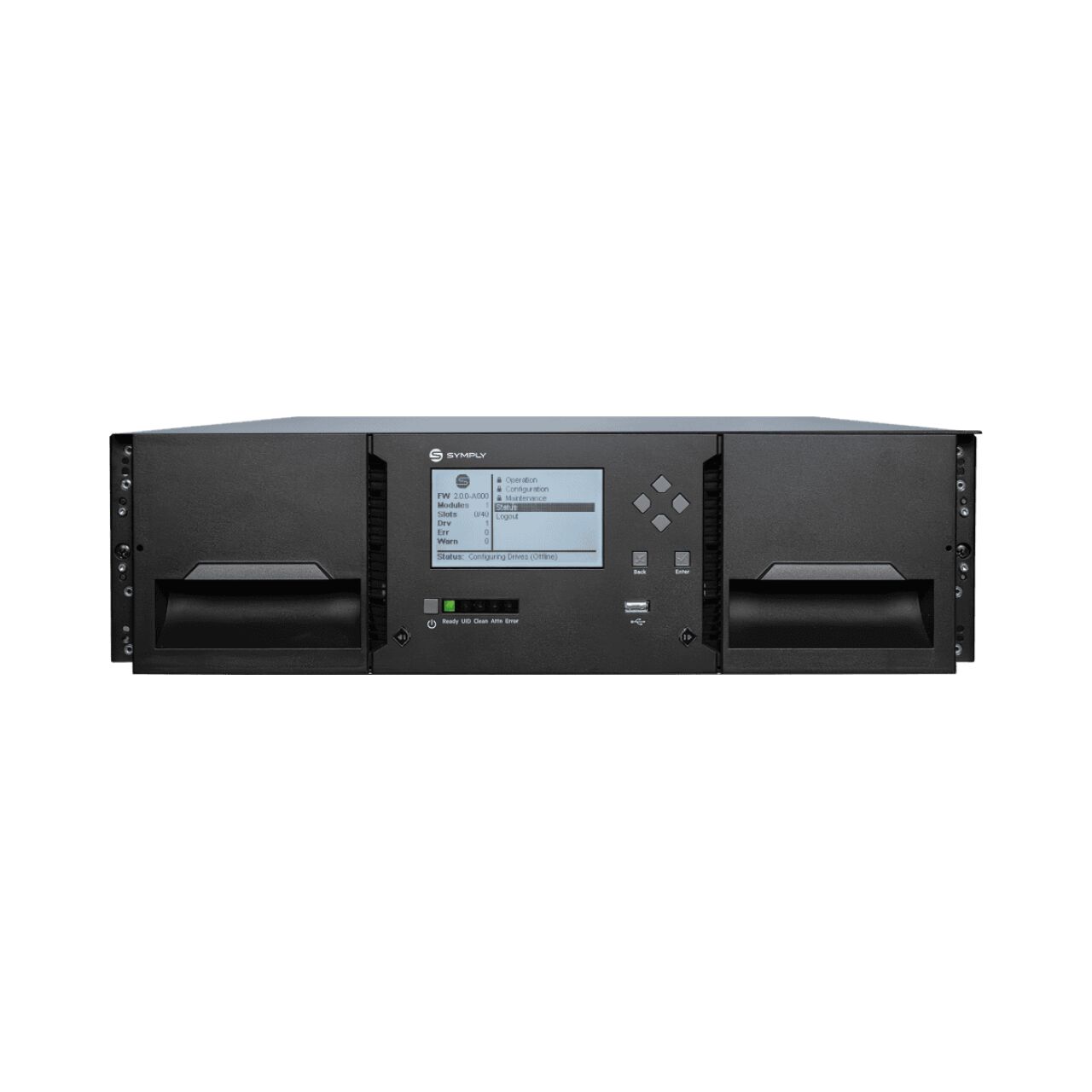

The SymplyPRO XTL 40 LTO-9 is a 3U, 40-slot automated tape library built for unattended backup, archive and offline-retention workflows. The LTO-9 family offers both Half-Height and Full-Height drive choices, plus one- or two-drive iSCSI configurations.
A fully populated base module provides 720TB Native / 1.8PB Compressed. The modular XTL 40 platform combines removable magazines, barcode automation, secure browser management, AES-256 hardware encryption and WORM support, with expansion to 640 cartridge slots.
Guide Price – Please Call to Discuss & Order
Category: LTO Tape Libraries
Brand: Symply
SymplyPRO XTL 40 – LTO-9 – Product Overview
The SymplyPRO XTL 40 LTO-9 combines 40 active cartridge slots in a 3U base module with 1 × Half-Height, 2 × Half-Height or 1 × Full-Height LTO-9, depending on selected configuration. The LTO-9 family offers both Half-Height and Full-Height drive choices, plus one- or two-drive iSCSI configurations. It is aimed at organisations that need genuine tape automation today but also want room to increase media capacity and drive throughput without replacing the library platform.
Each LTO-9 cartridge provides 18TB Native / 45TB Compressed; across the base module this gives 720TB Native / 1.8PB Compressed. Drive performance is Up to 300MB/s native (HH) or 400MB/s native (FH). The XTL 40 architecture can expand using Base Module + up to 15 Expansion Modules, taking the system to 640 slots. 11.52PB native at 640 slots is available when fully populated with the stated generation/media type.
LTO-9 is unusual in this range because drive form factor materially affects performance: Half-Height mechanisms provide up to 300MB/s native, while Full-Height mechanisms provide up to 400MB/s native. Select the configuration that matches the required host interface and throughput rather than treating all LTO-9 variants as equivalent.
Operations are designed around unattended use and serviceability. 2 removable magazines per module, 5 per module import/export mail slots per module, integrated barcode reading, 4-inch front-panel display, password-protected browser management, email/SNMP alerts, event logs, inventory/health reporting and remote or USB firmware updates are all part of the platform. The library and each tape drive are presented through separate LUNs, so the host HBA/initiator must support multiple-LUN discovery.
AES-256 hardware encryption, LTO WORM and removable magazines support regulated retention and physically offline copies. LTFS is supported with compatible host software, while Symply lists compatibility with leading LTO applications including Veeam Backup & Replication, Veritas NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, Archiware P5, Hedge Canister, Tiger Bridge, YoYotta and XenData. Choose XTL 40 when you need a modular library that starts at 40 slots but can scale deeply within the rack without moving to the larger 6U XTL 80 chassis.
SymplyPRO XTL 40 – LTO-9 – Key Features
- 3U modular automated LTO-9 tape library with 40 slots in the base module.
- Installed drive configuration: 1 × Half-Height, 2 × Half-Height or 1 × Full-Height LTO-9, depending on selected configuration.
- Current host-interface choices: 12Gb SAS (SFF-8644), 8Gb Fibre Channel or Dual 10GbE iSCSI.
- Per-cartridge capacity: 18TB Native / 45TB Compressed.
- Base-module media capacity: 720TB Native / 1.8PB Compressed.
- Drive performance: Up to 300MB/s native (HH) or 400MB/s native (FH).
- Up to 3 × Half-Height or 1 × Full-Height drive per 3U module.
- Scales via Base Module + up to 15 Expansion Modules to 640 total cartridge slots.
- Maximum generation-specific native media capacity: 11.52PB native at 640 slots.
- 2 removable magazines per module; 5 per module import/export mail slots per module.
- Integrated barcode reader for automated cartridge identification.
- 4-inch front-panel display plus secure, mobile-friendly browser management.
- Email/SNMP alerts, event logs and exportable inventory/health reporting.
- Remote and USB firmware updates for library and tape drives.
- Up to 20 dynamically configurable logical partitions.
- AES-256 hardware encryption and LTO WORM media support.
- LTFS support with compatible software for open tape interchange.
- Compatible with leading backup/archive software including Veeam, Veritas NetBackup, Commvault, Archiware P5, Hedge Canister, YoYotta and XenData.
- Robotic reliability: 2,000,000 MSBF picks.
- Front-to-back airflow and rack slides for datacentre installation/service access.
- 3-year manufacturer warranty.
SymplyPRO XTL 40 – LTO-9 – Technical Specifications
| Product Family | SymplyPRO XTL 40 |
| LTO Generation | LTO-9 |
| Rack Height | 3U per module |
| Base Cartridge Slots | 40 |
| Installed Tape Drive Configuration | 1 × Half-Height, 2 × Half-Height or 1 × Full-Height LTO-9, depending on selected configuration |
| Chassis Drive Capacity | Up to 3 × Half-Height or 1 × Full-Height drive per 3U module |
| Current Host Interface Options | 12Gb SAS (SFF-8644), 8Gb Fibre Channel or Dual 10GbE iSCSI |
| Media Capacity Per Cartridge | 18TB Native / 45TB Compressed |
| Base Library Media Capacity | 720TB Native / 1.8PB Compressed |
| Drive Performance | Up to 300MB/s native (HH) or 400MB/s native (FH) |
| Expansion Architecture | Base Module + up to 15 Expansion Modules |
| Maximum Cartridge Slots | 640 |
| Maximum Generation-Specific Native Capacity | 11.52PB native at 640 slots |
| Magazines | 2 removable magazines per module |
| Import / Export Mail Slots | 5 per module |
| Maximum Logical Partitions | Up to 20 dynamically configurable |
| Barcode Reader | Included |
| Host Presentation | Tape drive(s) and robotics presented via separate LUNs; multiple-LUN discovery required |
| Local Management | 4-inch front-panel display |
| Remote Management | Password-protected browser UI; monitoring, media movement, diagnostics, reports and firmware management |
| Alerts | Email / SNMP |
| Security | AES-256 hardware encryption; LTO WORM support |
| LTFS | Supported with compatible host software |
| Robotic Reliability | 2,000,000 MSBF picks |
| Power | Single PSU standard; redundant PSU option available; 100–240VAC |
| Dimensions (H × W × D) | 133 × 482 × 873mm |
| Weight | Approx. 25.1kg without tape drives/media |
| Recommended Operating Temperature | 15–25°C recommended |
| Recommended Relative Humidity | 20–50% non-condensing |
| Maximum Operating Altitude | 3,048m / 10,000ft |
| Warranty | 3 Years |
