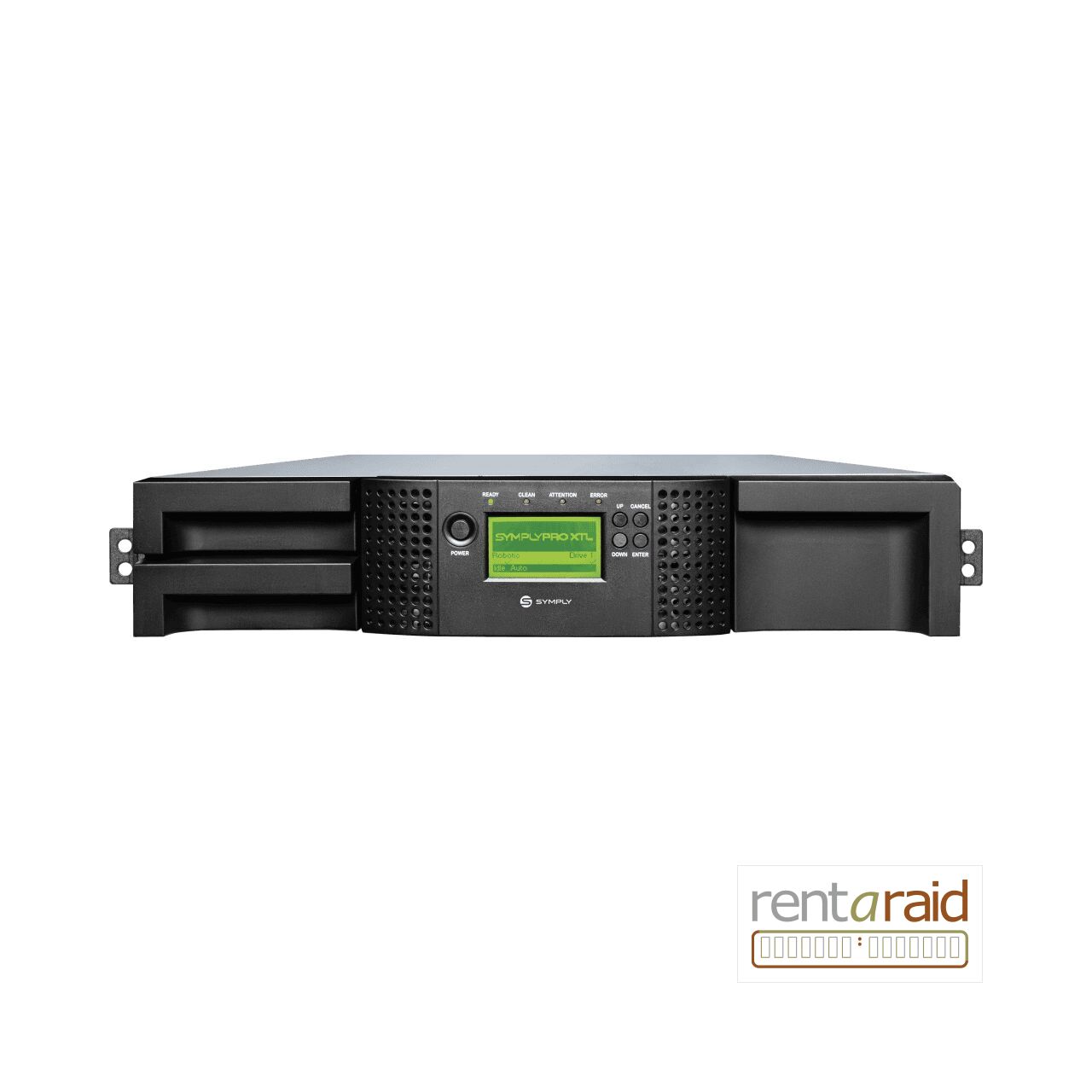

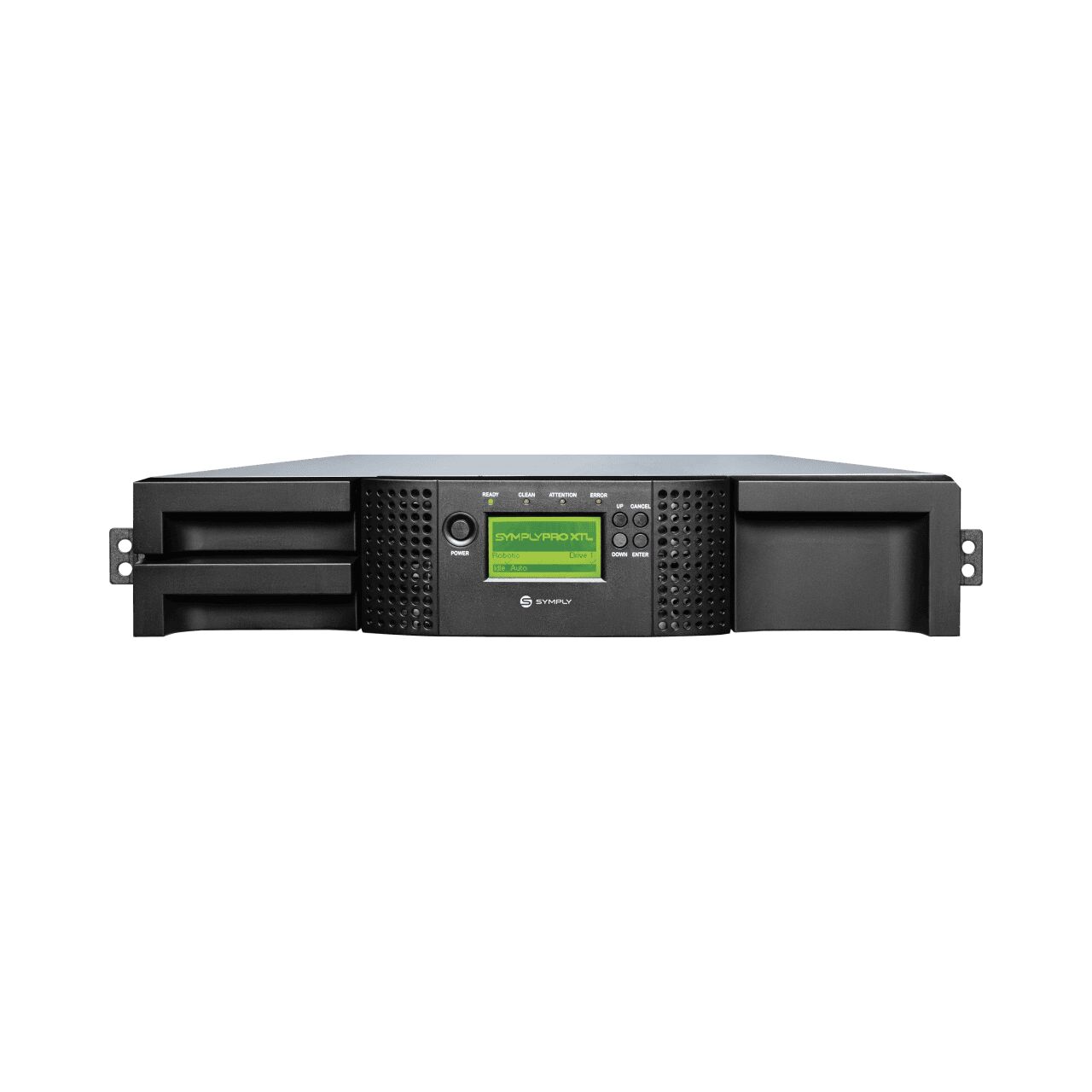

SymplyPRO XTL 24 – LTO-8
SymplyPRO XTL 24 – LTO-8
2U 24-Slot LTO-8 Tape Library With SAS, Fibre Channel Or Dual 10GbE iSCSI
The SymplyPRO XTL 24 LTO-8 is a compact 2U automated library with 24 cartridge slots and one half-height LTO-8 drive in the configurations offered here. Choose native 6Gb SAS, 8Gb Fibre Channel or dual 10GbE iSCSI connectivity to match your host environment.
A fully populated library provides up to 288TB native / 720TB compressed capacity. Two removable 12-cartridge magazines, a mail slot, browser management, barcode automation, partition support, AES-256 encryption and WORM capability make it well suited to unattended backup and archive operations.
Guide Pricing –
Please Call to Discuss Pricing & To Order
Category: LTO Tape Libraries / Autoloaders
Brand: Symply
SymplyPRO XTL 24 – LTO-8 – Product Overview
The SymplyPRO XTL 24 LTO-8 is the step up from XTL 8 for users who need substantially more media capacity and a more flexible 2U platform without moving to a modular expansion chassis. It provides 24 active tape slots in two front-removable 12-cartridge magazines and supports one or two half-height drives at chassis level.
The current LTO-8 configurations offered here use one half-height LTO-8 drive with a choice of 6Gb SAS, 8Gb Fibre Channel or a Symply XTL Ethernet Module providing dual 10GbE iSCSI host connectivity. When an integrated Ethernet or Thunderbolt bridge is fitted, it occupies the upper drive bay, so the library is limited to one tape drive. Native SAS/FC configurations retain the chassis capability for a second half-height drive.
LTO-8 provides 12TB native / 30TB compressed per cartridge and up to 300MB/s native performance per half-height drive. Across 24 slots that equates to 288TB native / 720TB compressed media capacity. The library supports two logical libraries when two drives are installed, and presents its tape drive(s) and robotics through separate LUNs for host discovery.
Operational features include a front-panel interface, secure browser management, event logging, email/SNMP alerts, inventory/health reporting, remote firmware updates, barcode automation and removable magazines for fast media rotation. AES-256 hardware encryption, LTO WORM and LTFS support make the XTL 24 equally useful for conventional backup, long-term archive and offline cyber-resilience workflows. Choose XTL 24 over XTL 8 when 24 slots or future dual-drive capability matter; choose XTL 40 when modular expansion beyond the base chassis is required.
SymplyPRO XTL 24 – LTO-8 – Key Features
- 2U automated tape library with 24 active cartridge slots.
- Current configurations supplied with 1 × half-height LTO-8 drive.
- Native 6Gb SAS (SFF-8088), 8Gb Fibre Channel or dual 10GbE iSCSI configuration options.
- Chassis supports up to 2 half-height tape drives with native SAS/FC connectivity.
- Integrated Ethernet/Thunderbolt bridge occupies the upper drive bay and limits the chassis to one tape drive.
- 12TB native / 30TB compressed per LTO-8 cartridge.
- Up to 288TB native / 720TB compressed across 24 slots.
- Up to 300MB/s native throughput per LTO-8 half-height drive.
- Two removable 12-cartridge magazines.
- Front import/export mail slot for controlled media exchange.
- Integrated barcode reader and support for up to two logical library partitions.
- Secure browser management with email/SNMP alerts and event logging.
- Exportable inventory/health reports and remote/USB firmware updates.
- AES-256 hardware encryption and LTO WORM media support.
- LTFS support with compatible software.
- Compatible with Veeam, Veritas NetBackup, Commvault, Archiware P5, Hedge Canister, YoYotta, XenData and other LTO-aware applications.
- 1,000,000 MSBF robotic reliability rating.
- Ball-bearing rack slides included.
- 3-year manufacturer warranty.
SymplyPRO XTL 24 – LTO-8 – Technical Specifications
| Product Family | SymplyPRO XTL 24 |
| LTO Generation | LTO-8 |
| Rack Height | 2U |
| Cartridge Slots | 24 |
| Installed Tape Drive | 1 × Half-Height LTO-8 in current configurations |
| Chassis Drive Capacity | Up to 2 × Half-Height drives with native SAS/FC |
| Host Interface Options | 6Gb SAS (SFF-8088), 8Gb Fibre Channel or dual 10GbE iSCSI |
| iSCSI Configuration | Integrated XTL Ethernet Module; occupies upper drive bay |
| Media Capacity Per Cartridge | 12TB Native / 30TB Compressed |
| Maximum Base Library Media Capacity | 288TB Native / 720TB Compressed |
| Native Drive Performance | Up to 300MB/s per half-height drive |
| Magazines | 2 × removable 12-cartridge magazines |
| Import / Export Mail Slots | 1 |
| Maximum Logical Partitions | 2 |
| Barcode Reader | Included |
| Host Presentation | Drive(s) and robotics presented via separate LUNs |
| Management | Front-panel control plus secure browser management |
| Alerts / Reporting | Email/SNMP alerts; inventory, health and event reporting |
| Security | AES-256 hardware encryption; LTO WORM support |
| LTFS | Supported with compatible host software |
| Robotic Reliability | 1,000,000 MSBF picks |
| Power | Single non-redundant PSU, 100–240VAC, 50–60Hz |
| Dimensions (H × W × D) | 87 × 482 × 806mm |
| Weight | Approx. 15kg without tape drives/media |
| Recommended Operating Temperature | 16–25°C for LTO-8 |
| Recommended Relative Humidity | 20–50% non-condensing |
| Maximum Operating Altitude | 3,048m / 10,000ft |
| Expansion | Fixed 24-slot library; no expansion modules |
| Warranty | 3 Years |
SymplyPRO XTL 24 – LTO-8 Product Downloads
Symply Delivery Information
Generally, next working day delivery services (UK Mainland) are available on standard Symply Delivery orders placed before 2 pm (subject to stock availability).
Non-timed deliveries should be delivered between 9 am and 6 pm.
Orders placed after 2 pm on Fridays and weekends will be processed as normal the following Monday.
Orders placed on Bank Holidays will be processed the next working day.
If urgent, please call one of our helpful account managers so they may double check everything for you, enabling you to place your order with confidence.
• Please note: these product details are for guide purposes only, and may contain errors.
•• We always recommend double-checking the product specs and features on the manufacturer website, and/or contacting us if unsure before ordering.
Similar Products
Added to your Favourites
(see top Menubar)
(see top Menubar)
Price range: £ 27,198.95 through £ 29,598.95
Select options
This product has multiple variants. The options may be chosen on the product page
Added to your Favourites
(see top Menubar)
(see top Menubar)
SymplyPRO XTL 80 – LTO-7 Fibre Channel
6U Enterprise 80-Slot LTO-7 Tape Library With Native 8Gb Fibre Channel, Redundant Power And 560-Slot Scalability
£ please call for the price
Added to your Favourites
(see top Menubar)
(see top Menubar)
Original price was: £ 15,199.00.£ 14,283.95Current price is: £ 14,283.95. | £ 17,140.74 inc VAT
Added to your Favourites
(see top Menubar)
(see top Menubar)
Price range: £ 13,998.95 through £ 16,498.95
Select options
This product has multiple variants. The options may be chosen on the product page
Added to your Favourites
(see top Menubar)
(see top Menubar)

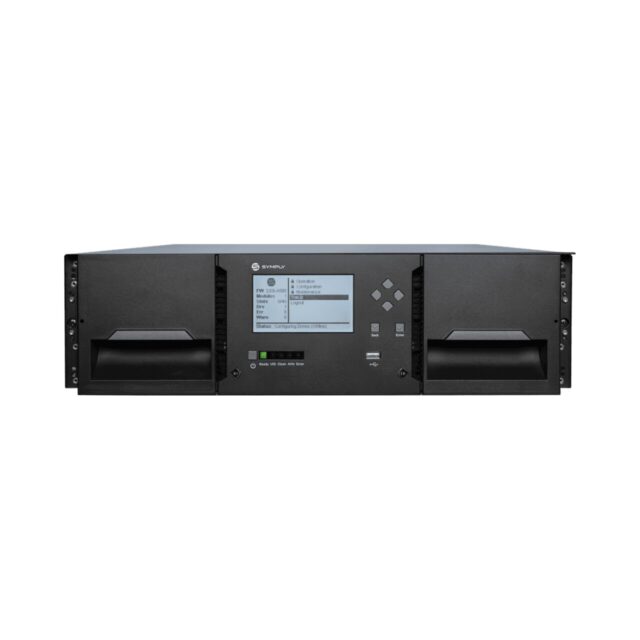

SymplyPRO XTL 40 – LTO-9
