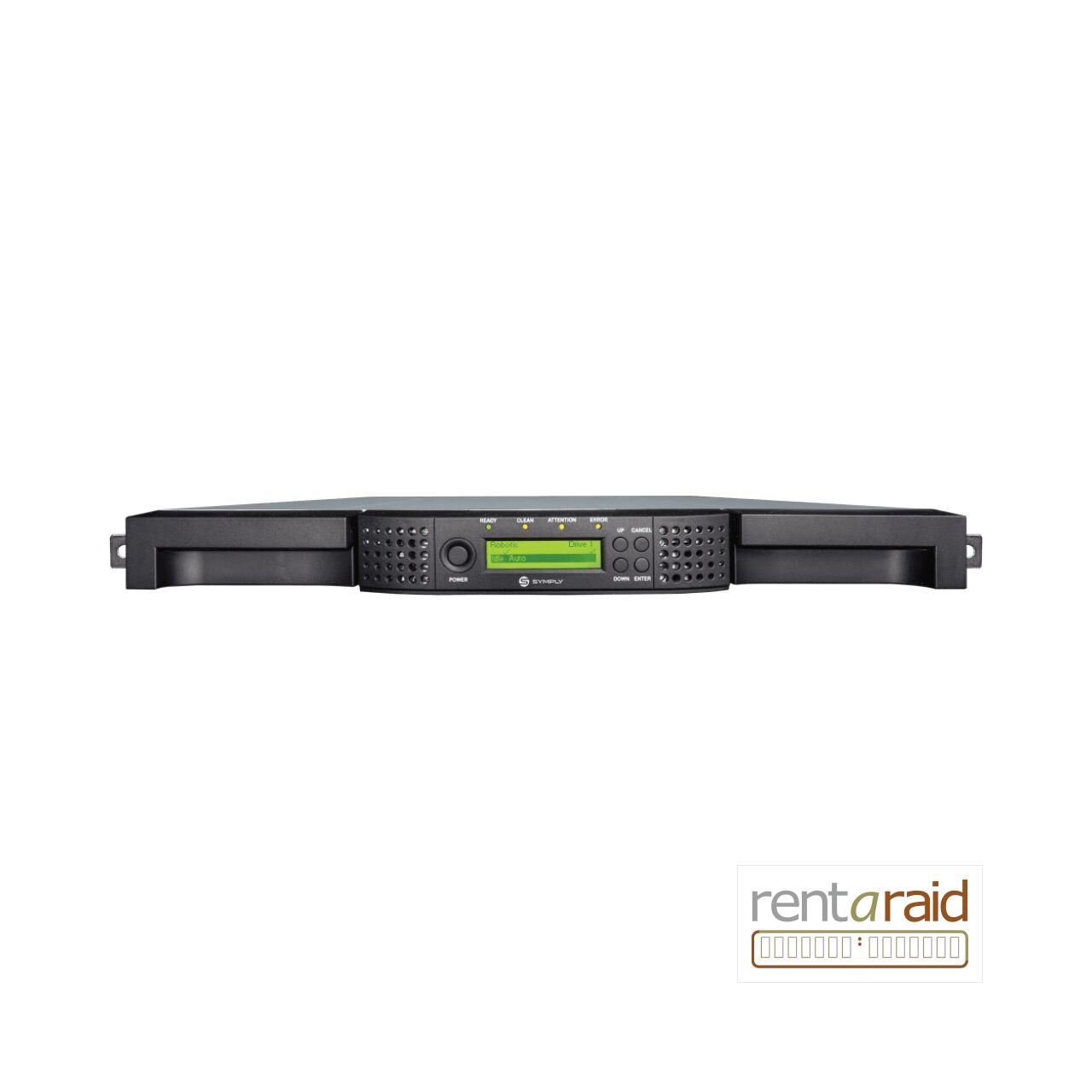

SymplyPRO XTL 8 – LTO-9

SymplyPRO XTL 8 – LTO-9
SymplyPRO XTL 8 – LTO-9 - Image 2
SymplyPRO XTL 8 – LTO-9

1U 8-Slot LTO-9 Tape Library With 12Gb SAS Or 8Gb Fibre Channel

The SymplyPRO XTL 8 LTO-9 combines eight automated tape slots and one half-height LTO-9 drive in a compact 1U chassis, making it a strong fit for unattended backup, archive and offline-retention workflows where rack space is limited.

Select native 12Gb SAS or 8Gb Fibre Channel. Eight LTO-9 cartridges provide up to 144TB native / 360TB compressed capacity, with 300MB/s native half-height drive performance, removable magazines, barcode automation, browser management, AES-256 encryption and WORM support.

Guide Pricing –

Please Select An Option

Please Call to Discuss Pricing & To Order

0800 652 0080OUR CONTACT PAGE
Category: LTO Tape Libraries / Autoloaders
SKU: N/A
Brand: Symply

SymplyPRO XTL 8 – LTO-9 – Product Overview

The SymplyPRO XTL 8 LTO-9 delivers current-generation LTO-9 automation in the smallest chassis in the XTL range. It is intended for users who want higher cartridge capacity than LTO-8 without moving to a larger 2U, 3U or 6U tape library.

The 1U library contains eight tape slots, one half-height LTO-9 drive, two removable magazines and a dedicated import/export mail slot. LTO-9 stores 18TB native / 45TB compressed per cartridge, providing up to 144TB native / 360TB compressed across a fully populated XTL 8. The half-height LTO-9 drive operates at up to 300MB/s native throughput.

This generation uses 12Gb SAS via SFF-8644 or 8Gb Fibre Channel. The library exposes the drive and robotic medium changer through separate LUNs, so multiple-LUN discovery must be enabled on the host HBA/initiator. Day-to-day control is available from the front panel and secure browser interface, including media movement, inventory and health reporting, diagnostics, event logs, remote firmware updates and email/SNMP alerting.

AES-256 hardware encryption, LTO WORM media, LTFS support and removable magazines make the XTL 8 useful for both operational backup and offline/archive workflows. Choose XTL 8 LTO-9 when you want the highest-capacity half-height XTL 8 configuration; choose XTL 24 when you need 24 slots, room for a second half-height drive or integrated bridge options.

SymplyPRO XTL 8 – LTO-9 – Key Features

  • 1U automated LTO-9 library with 8 active cartridge slots.
  • 1 × half-height LTO-9 drive.
  • Choice of 12Gb SAS (SFF-8644) or 8Gb Fibre Channel.
  • 18TB native / 45TB compressed per LTO-9 cartridge.
  • Up to 144TB native / 360TB compressed total media capacity.
  • Up to 300MB/s native LTO-9 half-height throughput.
  • Two removable magazines and one import/export mail slot.
  • Integrated barcode reader for automated cartridge identification.
  • Password-protected browser-based administration plus local front-panel control.
  • Email/SNMP alerts, event logs and exportable inventory/health information.
  • Remote and USB-based library/drive firmware management.
  • AES-256 hardware encryption and LTO WORM media support.
  • LTFS support with compatible software.
  • Compatible with leading backup/archive applications including Veeam, Veritas NetBackup, Commvault, Archiware P5, Hedge Canister, YoYotta and XenData.
  • 1,000,000 MSBF robotic reliability rating.
  • Ball-bearing rack slides included.
  • 3-year manufacturer warranty.

SymplyPRO XTL 8 – LTO-9 – Technical Specifications

Product FamilySymplyPRO XTL 8
LTO GenerationLTO-9
Rack Height1U
Cartridge Slots8
Installed Tape Drive1 × Half-Height LTO-9
Native Host Interface Options12Gb SAS (SFF-8644) or 8Gb Fibre Channel
Media Capacity Per Cartridge18TB Native / 45TB Compressed
Maximum Library Media Capacity144TB Native / 360TB Compressed
Native Drive PerformanceUp to 300MB/s
Magazines2 removable magazines
Import / Export Mail Slots1
Barcode ReaderIncluded
Library / Drive Host PresentationDual LUN presentation; host must support multiple-LUN discovery
ManagementFront-panel control plus password-protected browser management
Remote FunctionsMedia movement, monitoring, reports, diagnostics, event logs and firmware management
AlertsEmail / SNMP
SecurityAES-256 hardware encryption; LTO WORM support
LTFSSupported with compatible host software
Robotic Reliability1,000,000 MSBF picks
PowerSingle PSU, 100–240VAC
Dimensions (H × W × D)44 × 482 × 806mm
WeightApprox. 11kg without tape drive/media
Recommended Operating Temperature15–25°C for LTO-9
Recommended Relative Humidity20–50% non-condensing
Maximum Operating Altitude3,048m / 10,000ft
ExpansionFixed 8-slot library; no expansion modules
Warranty3 Years
