Sonnet DuoModo Dual-Module Desktop Enclosure
Dual-Module Desktop Enclosure For Two Sonnet DuoModo Expansion Modules
£ 167.95 | £ 201.54 inc VAT
Sonnet Echo Express SEL Thunderbolt 5 Expansion System
Sonnet Echo Express SEL Thunderbolt 5 Expansion System
Compact Thunderbolt 5 Expansion Chassis For One Low-Profile PCIe Card
The Sonnet Echo Express SEL Thunderbolt 5 Expansion System is a compact single-slot chassis that connects one compatible low-profile PCIe card to a Thunderbolt-equipped computer.
The Thunderbolt 5 interface substantially increases available PCIe bandwidth over the earlier Thunderbolt 3 model while retaining the SEL’s small desktop footprint and support for professional video, audio, storage and networking cards.
- 1 × low-profile PCIe expansion slot.
- Thunderbolt 5 interface with dual Thunderbolt ports.
- Up to 6800 MB/s PCIe bandwidth on compatible Thunderbolt 5 hosts.
- Compact aluminium desktop chassis with 60W power adapter.
Category: All PCIe Expansion Chassis
Brand: Sonnet Technology
Original price was: £ 403.00.£ 372.95Current price is: £ 372.95. | £ 447.54 inc VAT
Please Call Us For Availability Of This Item
Sonnet Echo Express SEL Thunderbolt 5 Expansion System – Product Overview

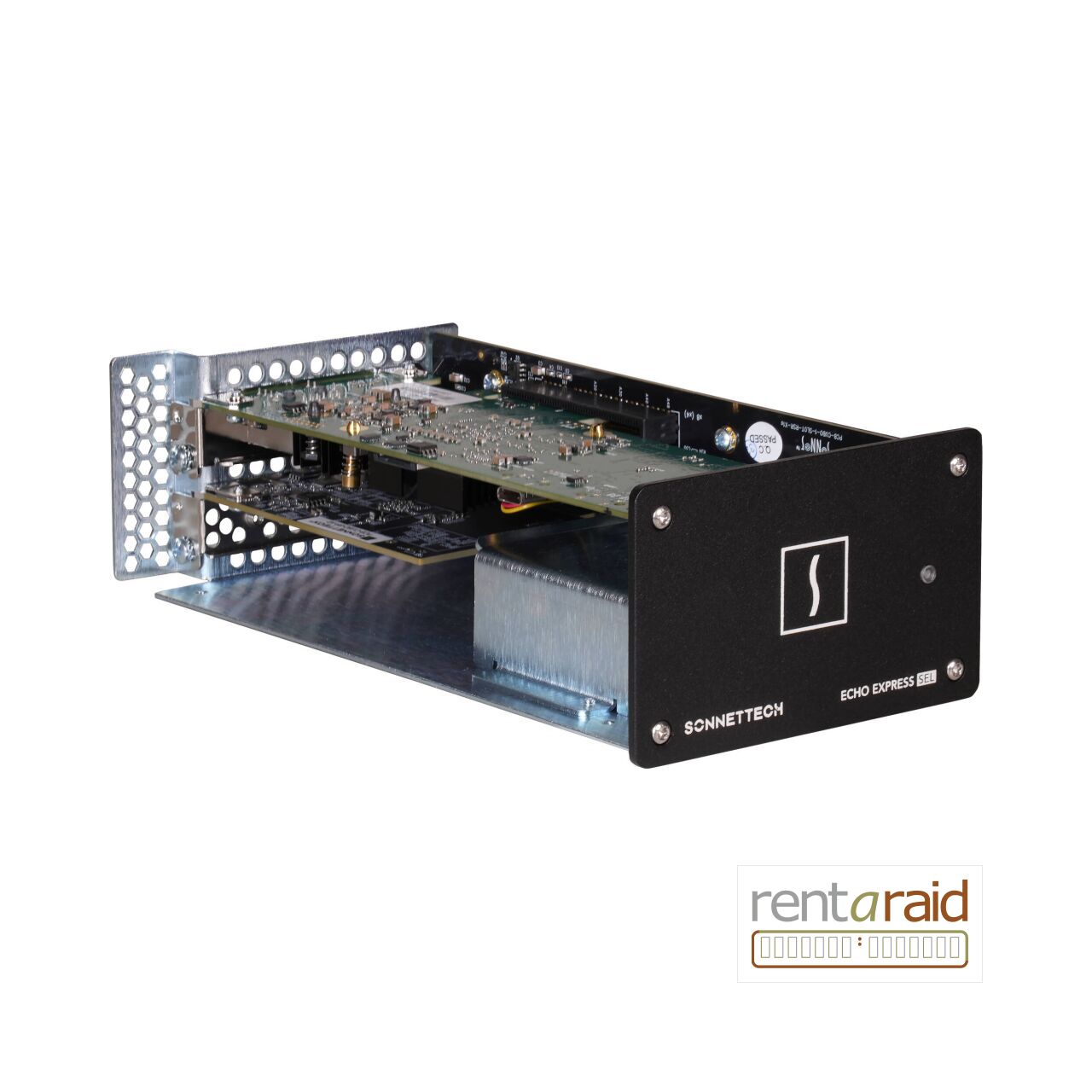

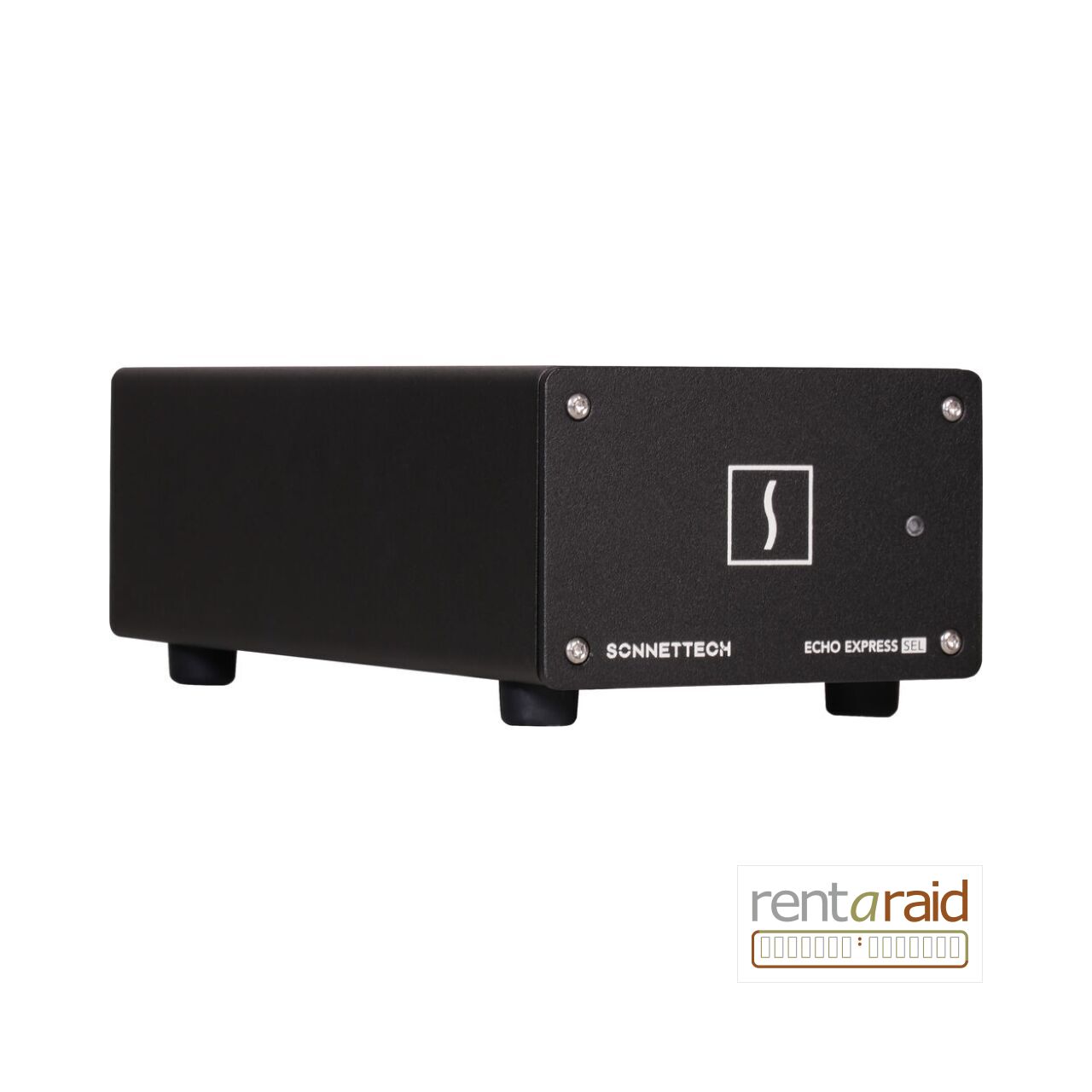

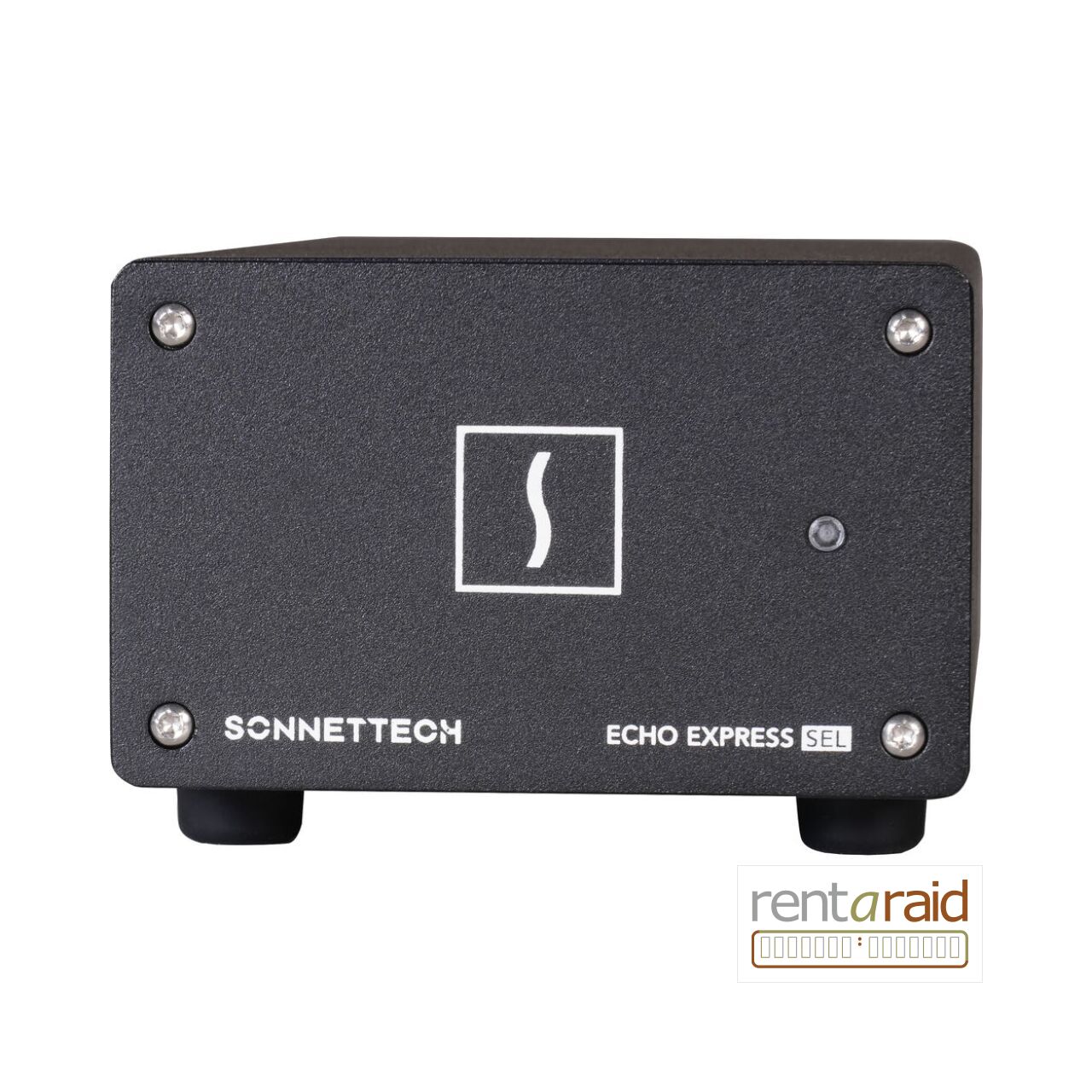

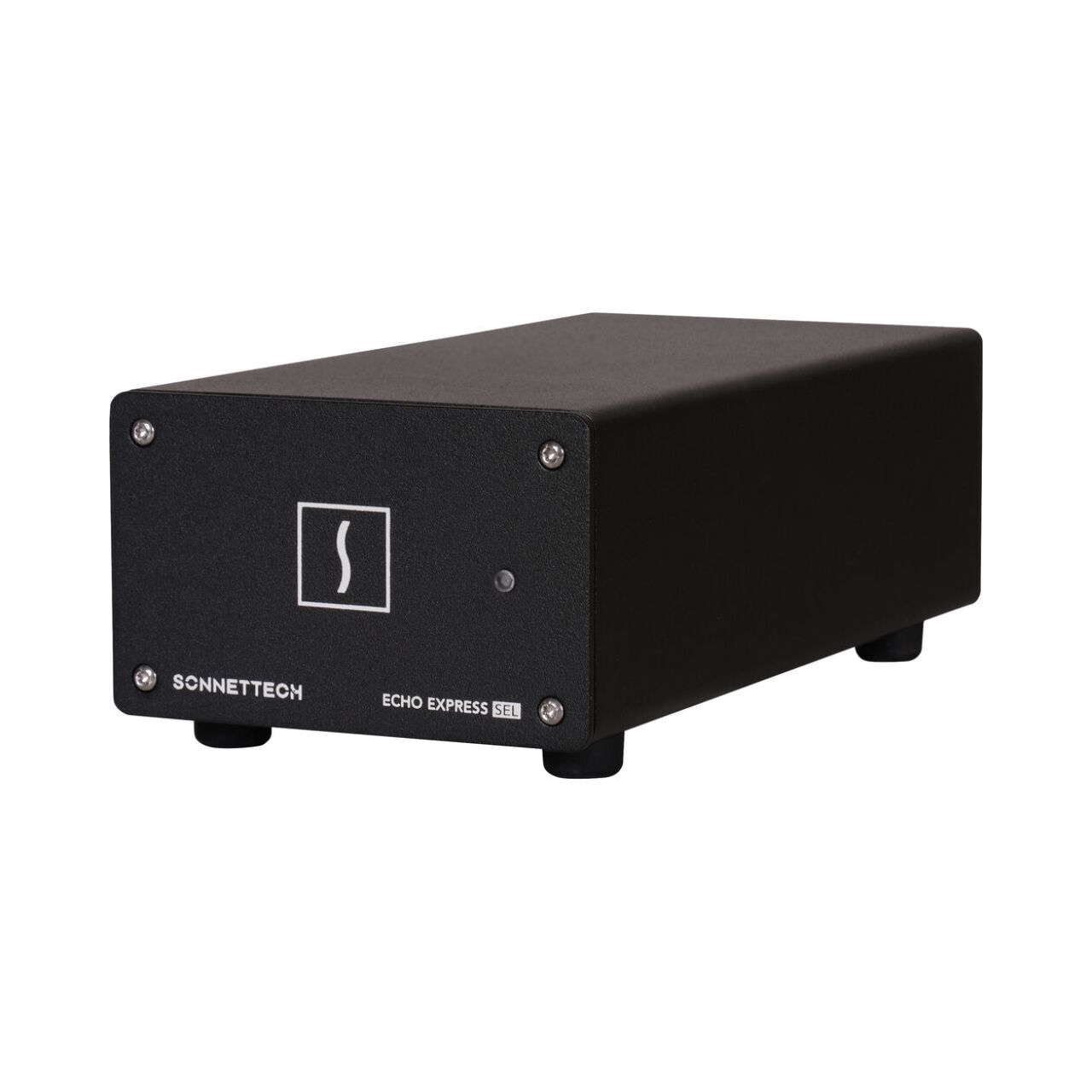

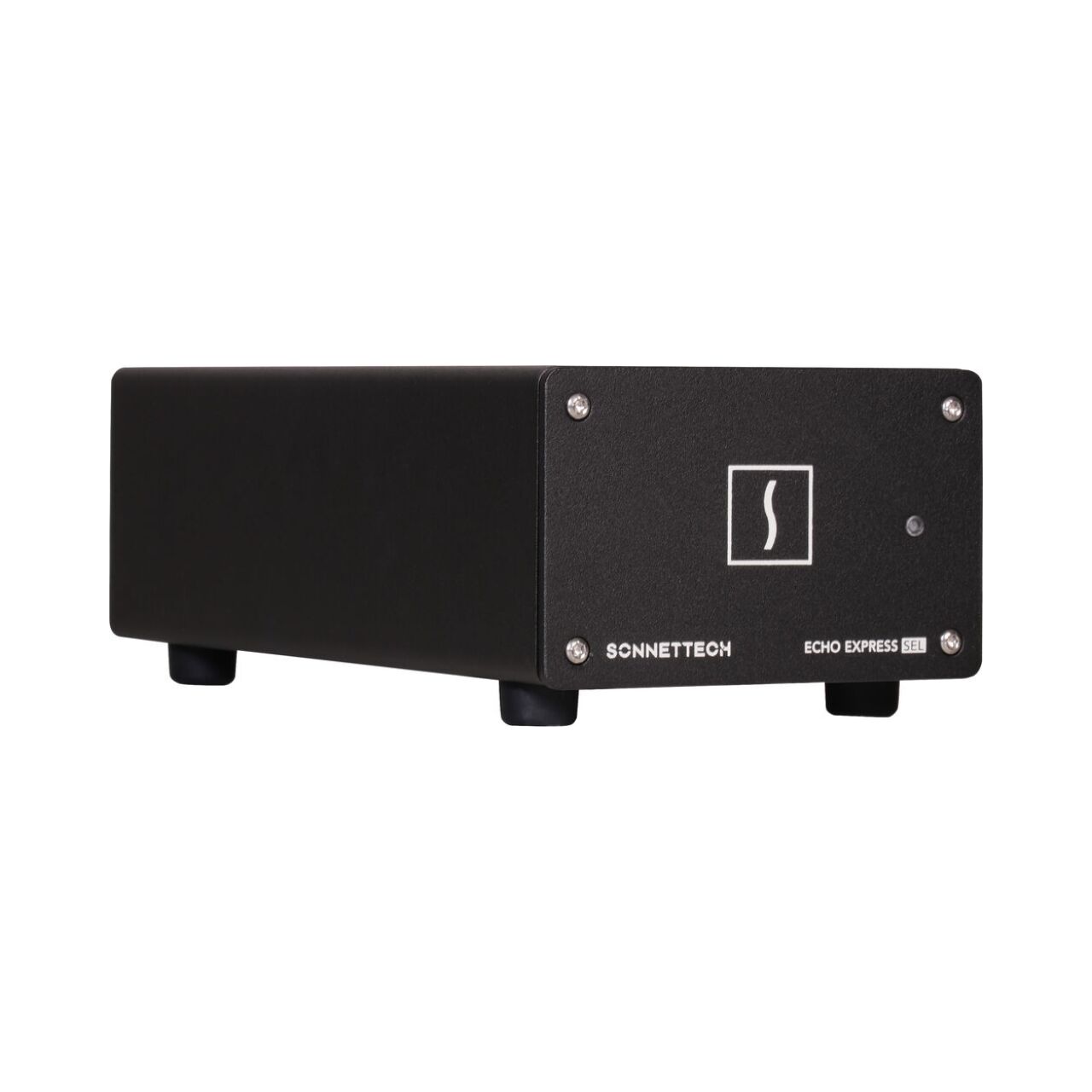

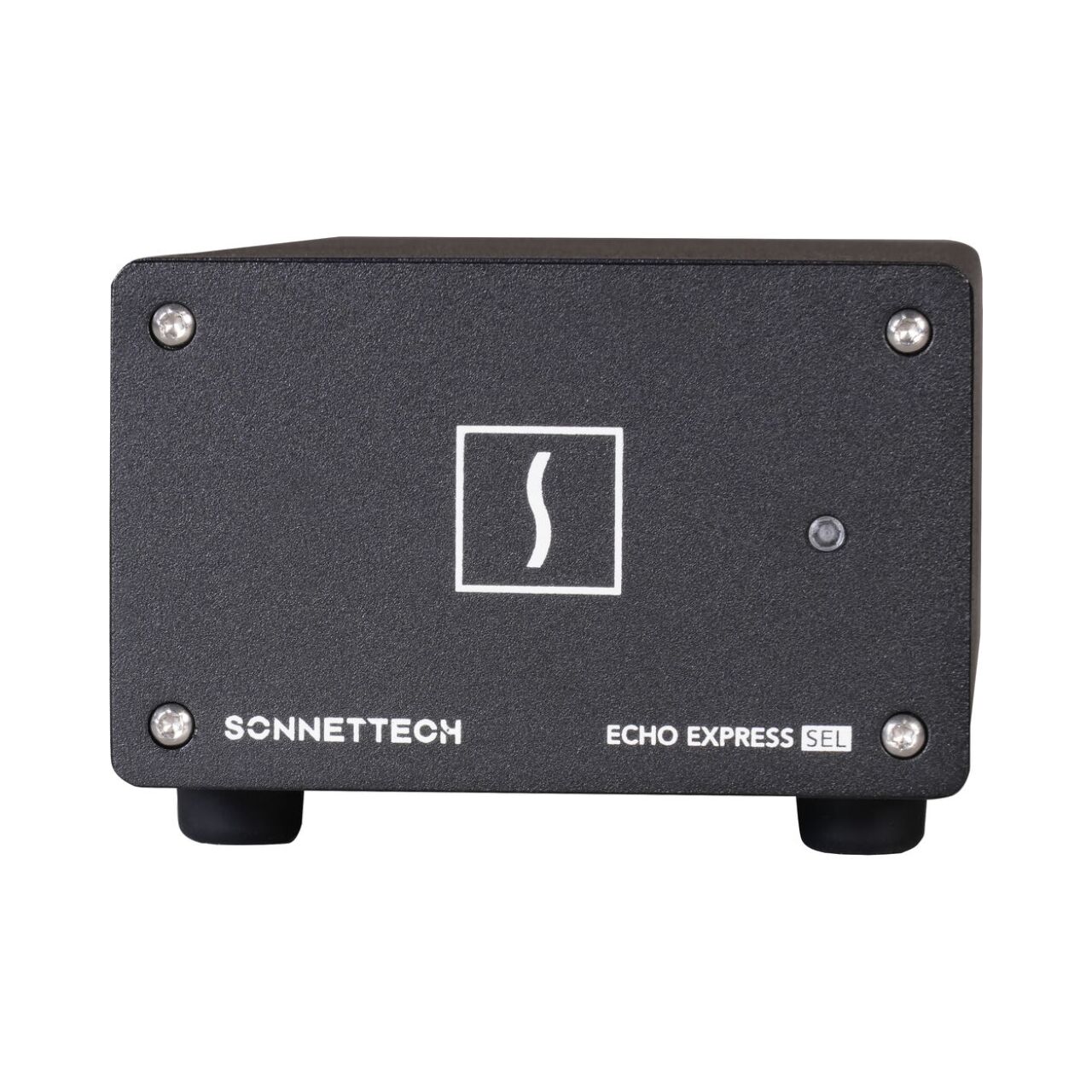

The Sonnet Echo Express SEL Thunderbolt 5 Expansion System (ECHO-EXP-SEL-T5) is the Thunderbolt 5 version of Sonnet's compact single-slot Echo Express SEL chassis, designed for professional workflows that need one low-profile PCIe card without the size of a multi-slot expansion enclosure.
Single-Slot Professional Expansion
The chassis accepts one compatible low-profile, half-length PCIe card, making it suitable for compact video I/O, audio, storage and networking adapters.
Thunderbolt 5 Performance
The Thunderbolt 5 interface increases the PCIe bandwidth available to the installed card. Sonnet specifies up to 6800 MB/s PCIe bandwidth for its Thunderbolt 5 SEL interface on suitably capable hosts.
Two Thunderbolt Ports
One Thunderbolt port connects to the host computer and the second supports compatible downstream Thunderbolt, USB and display devices, helping the system remain useful in compact single-cable workstation setups.
Compact Desktop Design
The SEL chassis measures approximately 10.3 × 21 × 7.3 cm and weighs around 0.84 kg, making it well suited to desks, mobile workstations and production kits where space is limited.
Quiet, Automatic Operation
A variable-speed cooling fan manages airflow around the installed card, while the chassis powers on and off with the connected computer during normal use.
Sonnet Echo Express SEL Thunderbolt 5 Expansion System – Key Features
- Compact Thunderbolt 5 to PCIe expansion system for one low-profile card.
- Supports one compatible low-profile, half-length PCIe card.
- Thunderbolt 5 interface operating at up to 80Gbps with two Thunderbolt ports.
- Up to 6800 MB/s PCIe bandwidth on compatible Thunderbolt 5 systems.
- Supports professional video, audio, storage and networking PCIe cards.
- Second Thunderbolt port supports compatible downstream peripherals and provides up to 15W bus power.
- Compact aluminium desktop enclosure.
- Universal 60W external power adapter.
- Variable-speed cooling fan.
- Automatic power-on/off with the host computer.
- Includes 0.8m Thunderbolt 5 cable and ThunderLok-A connector lock.
- Two-year Sonnet warranty.
Sonnet Echo Express SEL Thunderbolt 5 Expansion System – Technical Specifications
| Product | Sonnet Echo Express SEL Thunderbolt 5 Expansion System |
| Manufacturer Part Number | ECHO-EXP-SEL-T5 |
| Product Type | Single-slot Thunderbolt 5 PCIe expansion chassis |
| PCIe Slots | 1 low-profile expansion slot |
| Card Length | Half-length, up to approximately 16.8 cm / 6.6 in |
| Thunderbolt Interface | Thunderbolt 5, up to 80Gbps |
| Thunderbolt Ports | 2 |
| Maximum PCIe Bandwidth | Up to 6800 MB/s on compatible Thunderbolt 5 hosts |
| Downstream Thunderbolt Power | Up to 15W |
| Power | Universal 60W external power adapter |
| Cooling | Variable-speed fan |
| Dimensions | Approx. 10.3 × 21 × 7.3 cm |
| Weight | Approx. 0.84 kg |
| GPU Support | Designed for Thunderbolt-compatible non-GPU PCIe cards |
| Included | Expansion system, 60W power adapter and power cable, 0.8m Thunderbolt 5 cable, ThunderLok-A connector lock, documentation |
| Warranty | 2 years |
