SymplyPRO Rackmount 2U – LTO-10

SymplyPRO Rackmount 2U – LTO-10
SymplyPRO Rackmount 2U – LTO-10 - Image 2
SymplyPRO Rackmount 2U – LTO-10 - Image 3
SymplyPRO Rackmount 2U – LTO-10 - Image 4
SymplyPRO Rackmount 2U – LTO-10 - Image 5

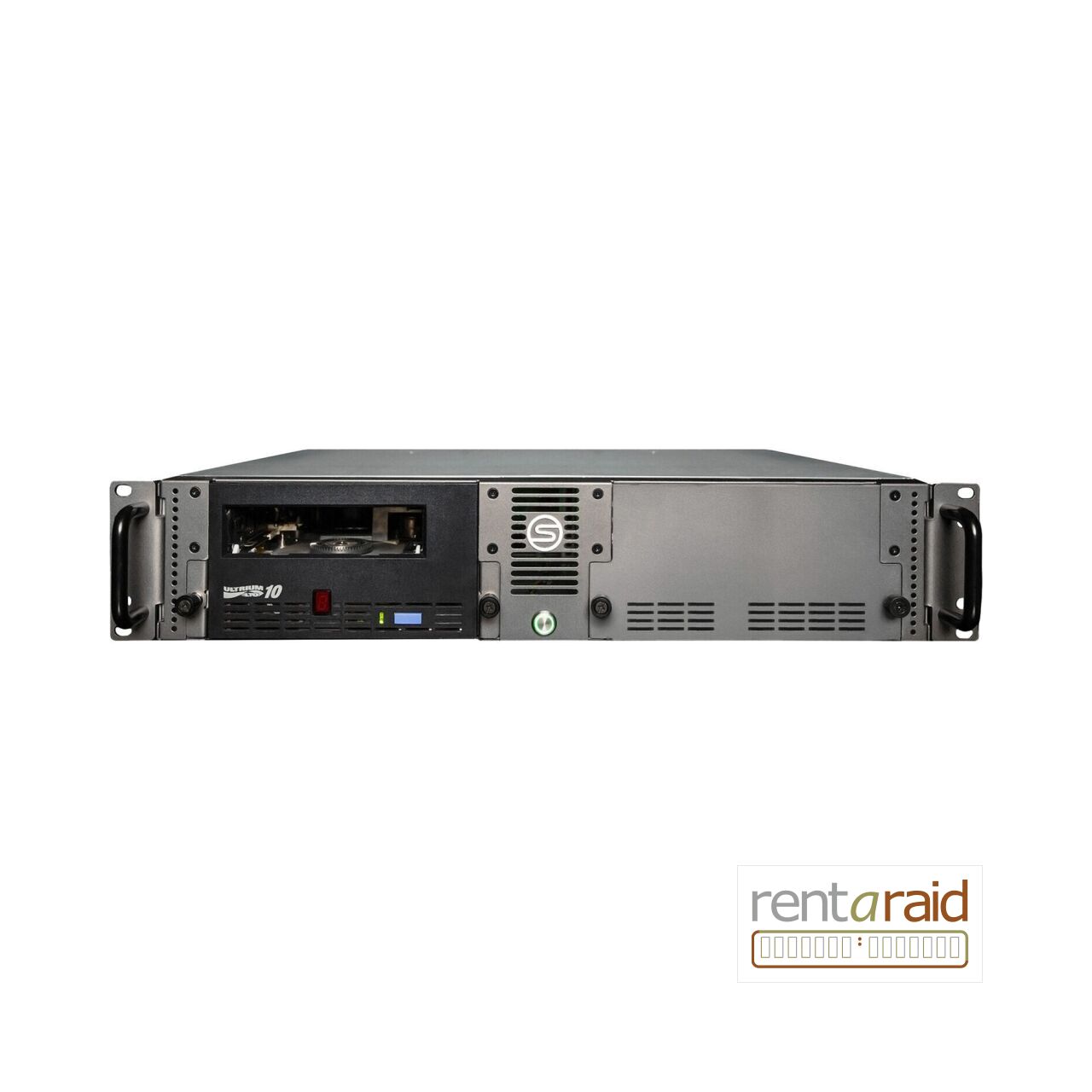

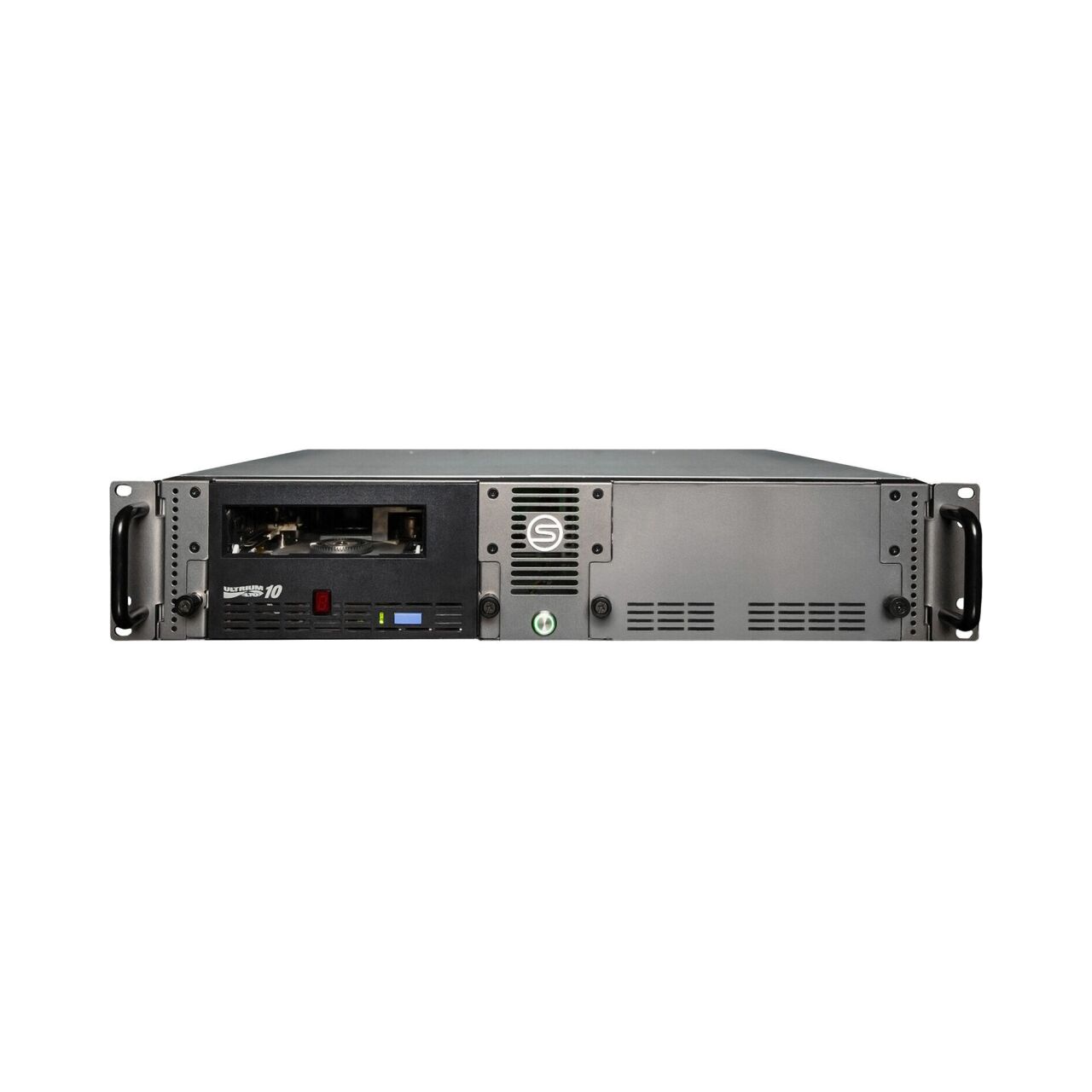

SymplyPRO Rackmount 2U – LTO-10

2U Gen2 Rackmount LTO-10 Tape System With Selectable 12Gb SAS, Thunderbolt 3 / SAS Or Dual 10GbE iSCSI, Up To 40TB Native Capacity And Dual-Drive Expansion

The SymplyPRO Rackmount 2U – LTO-10 is a Gen2 professional rackmount tape system supplied with one full-height LTO-10 drive and designed for expansion to a second compatible full-height mechanism. Choose 12Gb SAS, Thunderbolt 3 / SAS or dual 10GbE iSCSI connectivity.

LTO-10 supports 30TB native / 75TB compressed standard media and the newer 40TB native / 100TB compressed Enterprise (Aramid) media. The full-height drive delivers up to 400MB/s native throughput, with LTFS, WORM and AES-256 hardware encryption for high-capacity archive and offline data protection.

  • 1 × full-height LTO-10 drive fitted in an expandable 2U Gen2 chassis.
  • 12Gb SAS, Thunderbolt 3 / SAS or dual 10GbE iSCSI configurations.
  • 30TB standard or up to 40TB Enterprise native capacity per cartridge.
  • Up to 400MB/s native transfer performance per drive.
  • Second compatible full-height drive can be added later.

Please Select An Option

Please Call To Order

0800 652 0080OUR CONTACT PAGE
Category: LTO Tape Drives
SKU: N/A
Brand: Symply

SymplyPRO Rackmount 2U – LTO-10 – Product Overview

The SymplyPRO Rackmount 2U - LTO-10 brings current-generation LTO-10 capacity to Symply's professional 2RU rackmount platform. One full-height LTO-10 mechanism is installed as standard and the Gen2 chassis supports expansion to a second compatible full-height drive, allowing archive throughput to grow without replacing the enclosure.

SAS, Thunderbolt and Ethernet versions cover direct-attached workstations and servers as well as shared network tape workflows.

Choose The Interface For Your Workflow

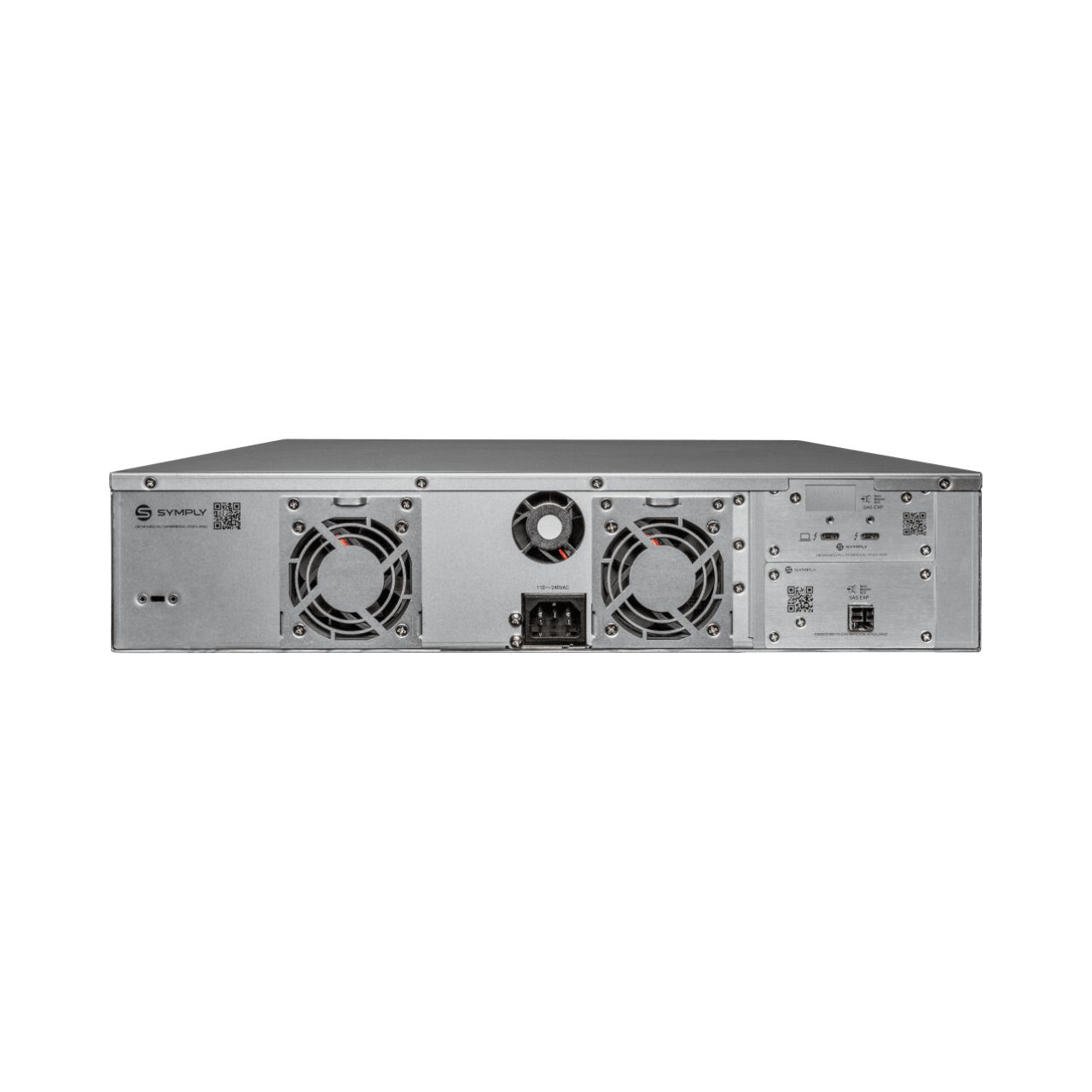

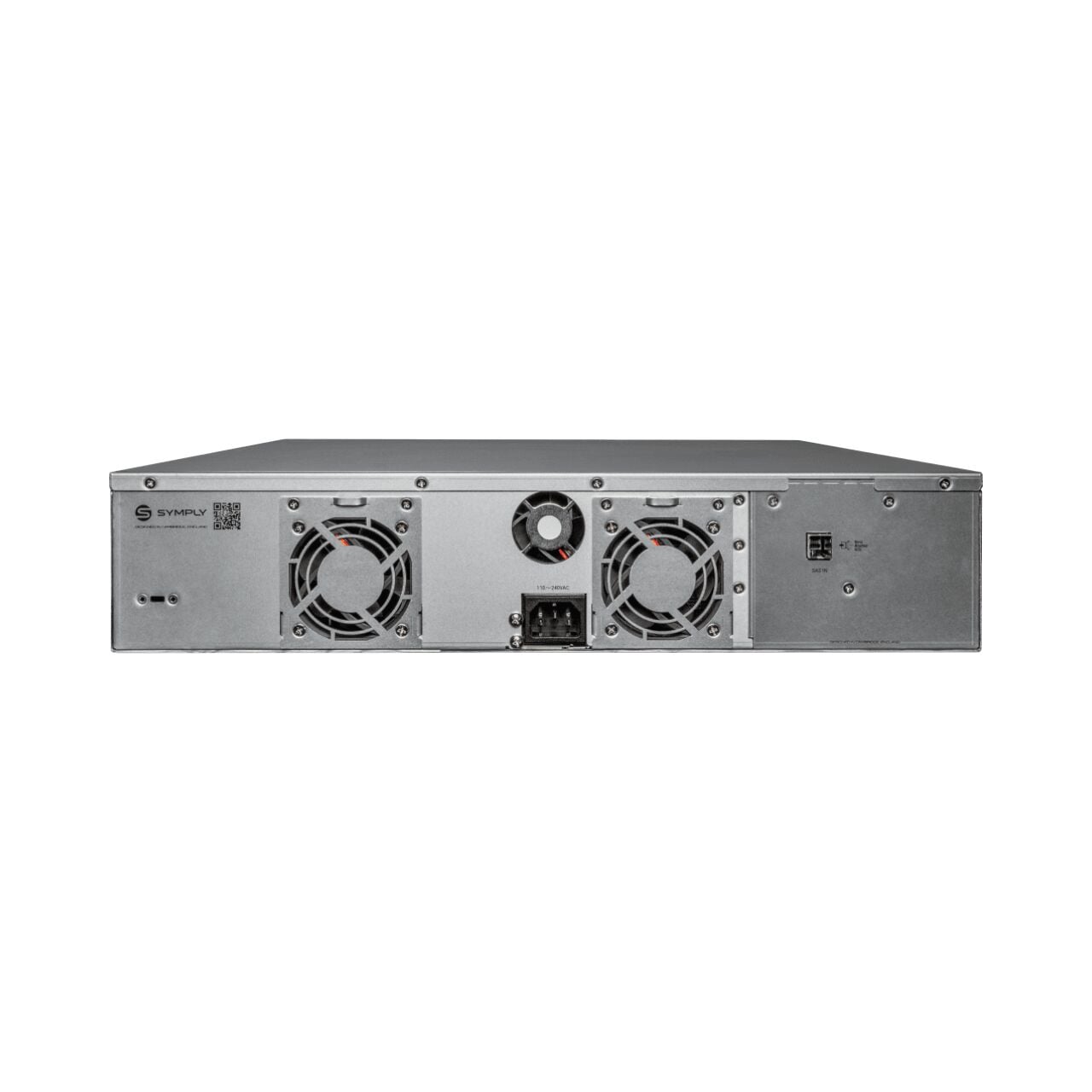

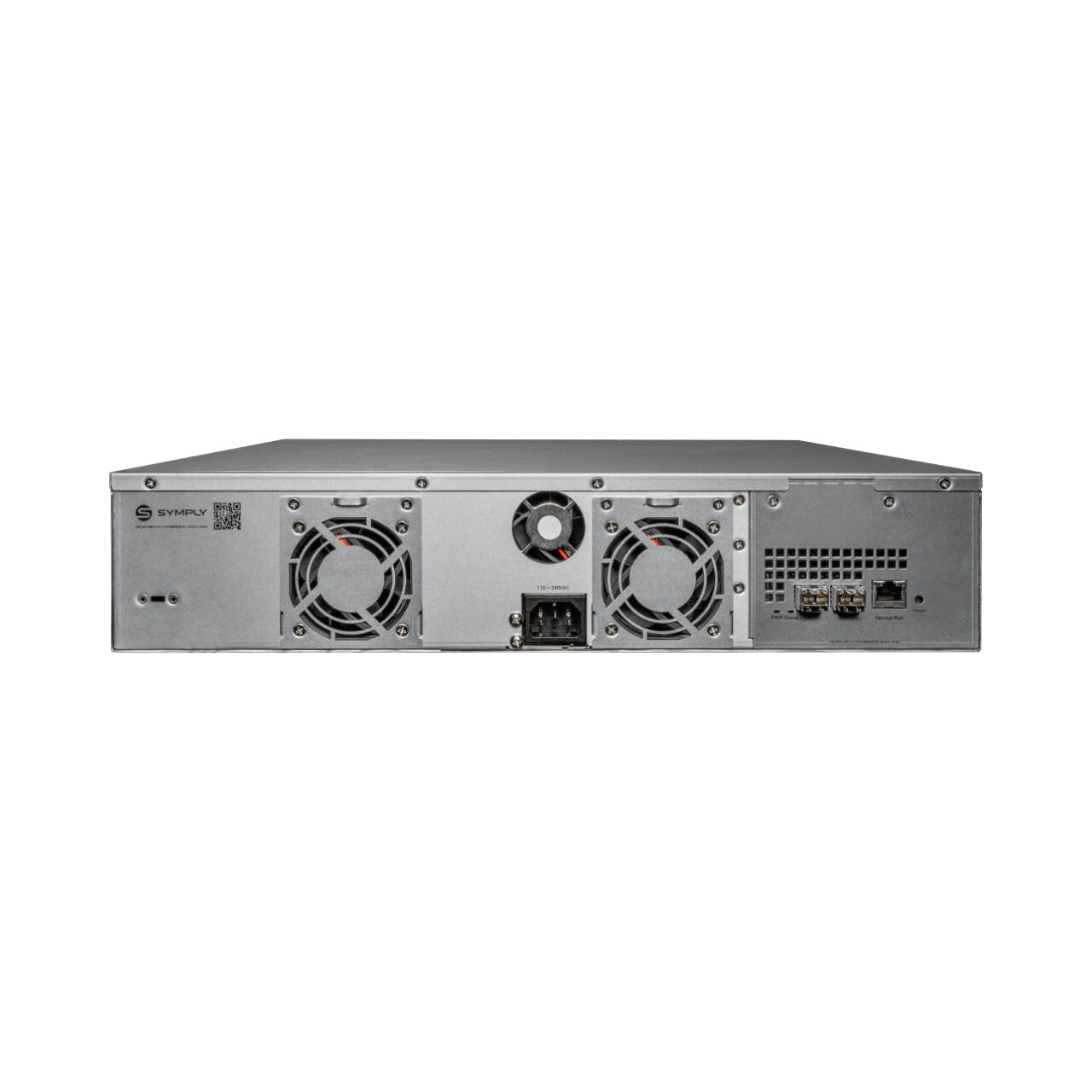

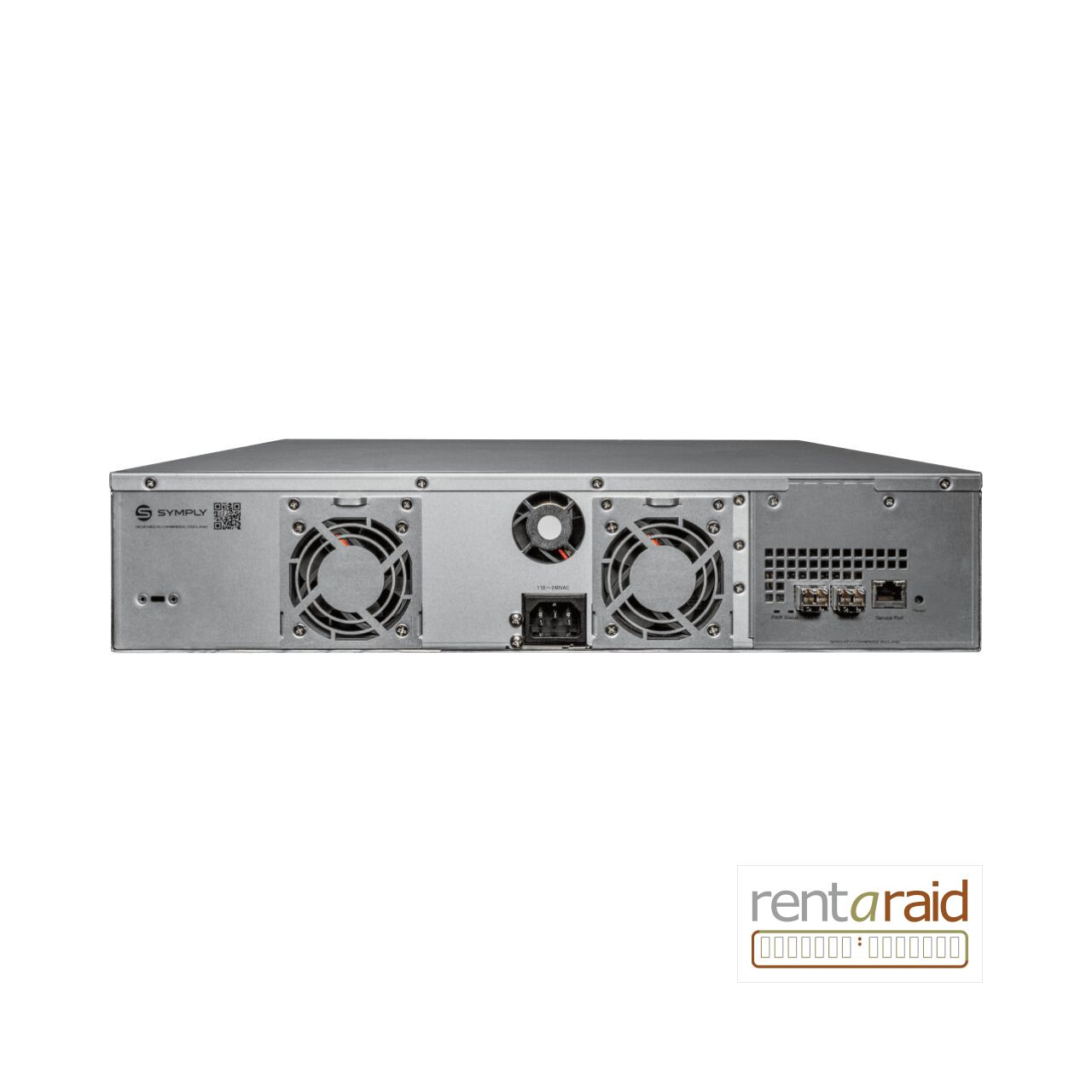

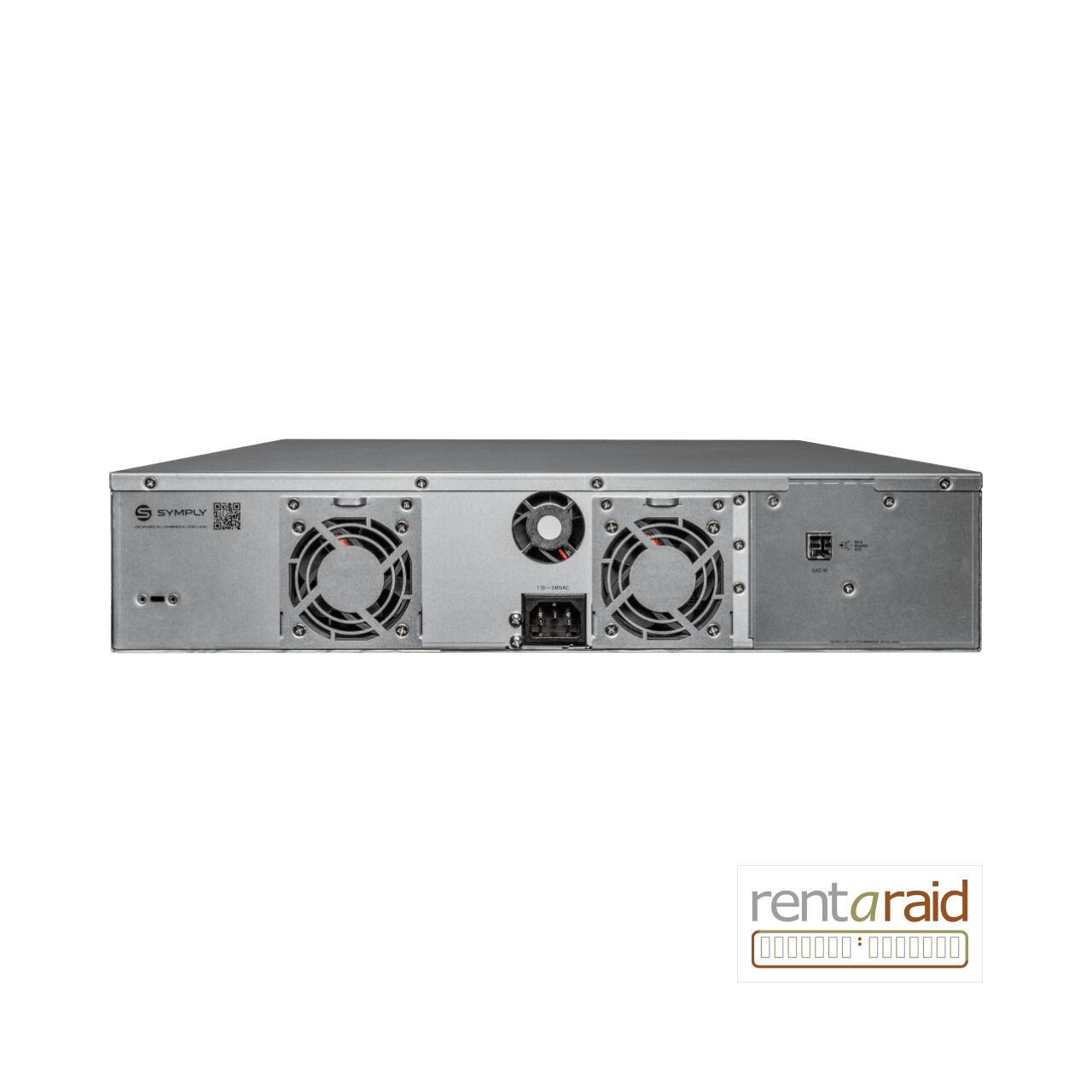

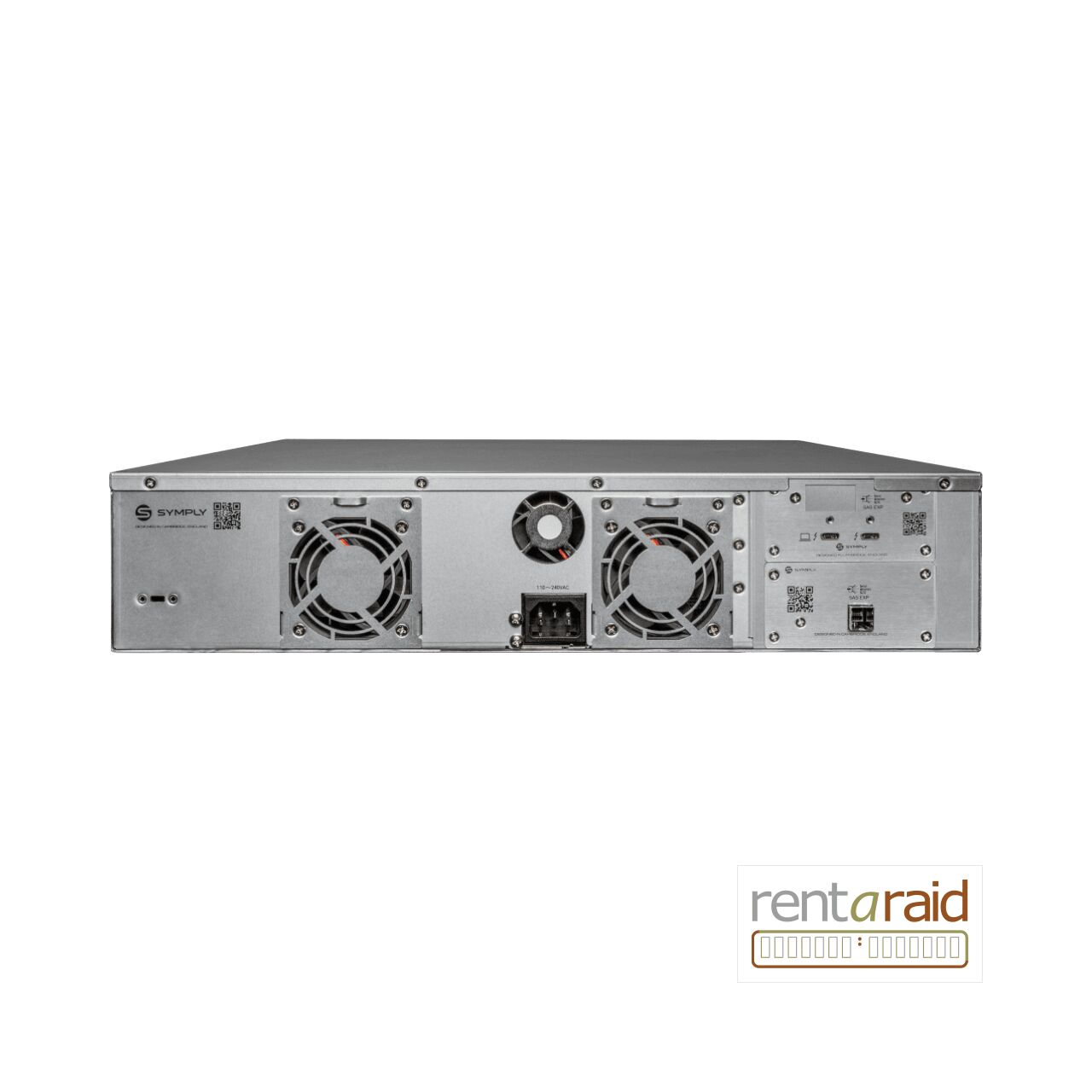

The SAS configuration provides 12Gb SAS through SFF-8644. The Thunderbolt configuration provides dual Thunderbolt 3 ports together with SFF-8644 SAS connectivity. The Ethernet configuration presents tape resources over dual 10GbE SFP+ iSCSI and provides SFF-8644 SAS expansion connectivity.

Standard Or Enterprise LTO-10 Media

Standard LTO-10 media provides 30TB native / 75TB compressed capacity. LTO-10 Enterprise (Aramid) media increases this to 40TB native / 100TB compressed without changing the drive, while native transfer performance remains up to 400MB/s. LTO-10 is not backwards compatible with LTO-9 cartridges.

Expandable Full-Height Architecture

The 2U Gen2 enclosure supports one or two full-height mechanisms, allowing a second compatible LTO-10 drive to be added as requirements grow.

LTFS, WORM And AES-256 Encryption

LTFS provides file-based access to tape media, while WORM compatibility and AES-256 hardware encryption support compliance, immutable retention and offline cyber-resilient data protection.

Professional Rack Integration

The 2RU metal enclosure measures approximately 43.5 × 48.2 × 8.8cm and uses an internal auto-ranging power supply with professional cooling. A rack kit, data cartridge, cleaning cartridge, power cable and configuration-specific host cabling are supplied.

Support And Warranty

SymplyPRO rackmount systems support professional macOS, Windows and Linux archive environments and integrate with LTFS and established backup / archive applications. The system is covered by a 3-year manufacturer warranty.

SymplyPRO Rackmount 2U – LTO-10 – Key Features

  • Professional 2RU Gen2 rackmount LTO-10 tape system.
  • 1 × LTO-10 full-height drive in an expandable dual-drive enclosure.
  • 30TB native / 75TB compressed with standard LTO-10 media.
  • Up to 40TB native / 100TB compressed with LTO-10 Enterprise (Aramid) media.
  • Up to 400MB/s native transfer performance per drive.
  • Selectable 12Gb SAS, Thunderbolt 3 / SAS or dual 10GbE iSCSI configuration.
  • Thunderbolt configuration provides dual Thunderbolt 3 plus SAS connectivity.
  • Ethernet configuration provides dual 10GbE SFP+ iSCSI connectivity with SAS expansion capability.
  • Second compatible full-height drive can be added later.
  • LTFS support for file-based tape workflows.
  • WORM media and AES-256 hardware encryption support.
  • LTO-10 is not backwards compatible with LTO-9 media.
  • Internal auto-ranging PSU and professional cooling.
  • Data cartridge, cleaning cartridge, rack kit and configuration-specific cabling included.
  • 3-year manufacturer warranty.

SymplyPRO Rackmount 2U – LTO-10 – Technical Specifications

Product TypeVariable 2U Gen2 Rackmount LTO Tape System
LTO GenerationLTO-10
Installed Drive1 × LTO-10 Full-Height Drive
Drive CapacitySupports 1 Or 2 Internal Full-Height Drives
Standard LTO-10 Capacity30TB Native / 75TB Compressed Per Cartridge
Enterprise LTO-10 Capacity40TB Native / 100TB Compressed Per Aramid Cartridge
Native Transfer RateUp To 400MB/s Per Drive
Previous-Generation CompatibilityNot Backwards Compatible With LTO-9 Media
SAS Configuration12Gb SAS Via SFF-8644
Thunderbolt Configuration2 × Thunderbolt 3 With SFF-8644 SAS Connectivity
Ethernet Configuration2 × 10GbE SFP+ iSCSI; SFF-8644 SAS Expansion
LTFSSupported
WORMSupported
Hardware EncryptionAES-256
DimensionsApprox. 43.5 × 48.2 × 8.8cm
WeightApprox. 10.9kg, Configuration Dependent
Power SupplyInternal Auto-Ranging AC Power Supply
Included MediaData Cartridge + Cleaning Cartridge
Rack KitIncluded
Warranty3 Years

Symply Delivery Information

Generally, next working day delivery services (UK Mainland) are available on standard Symply Delivery orders placed before 2 pm (subject to stock availability).

Non-timed deliveries should be delivered between 9 am and 6 pm.

Orders placed after 2 pm on Fridays and weekends will be processed as normal the following Monday.

Orders placed on Bank Holidays will be processed the next working day.

If urgent, please call one of our helpful account managers so they may double check everything for you, enabling you to place your order with confidence.

• Please note: these product details are for guide purposes only, and may contain errors.

•• We always recommend double-checking the product specs and features on the manufacturer website, and/or contacting us if unsure before ordering.
