SymplyPRO Rackmount 1U – LTO-7

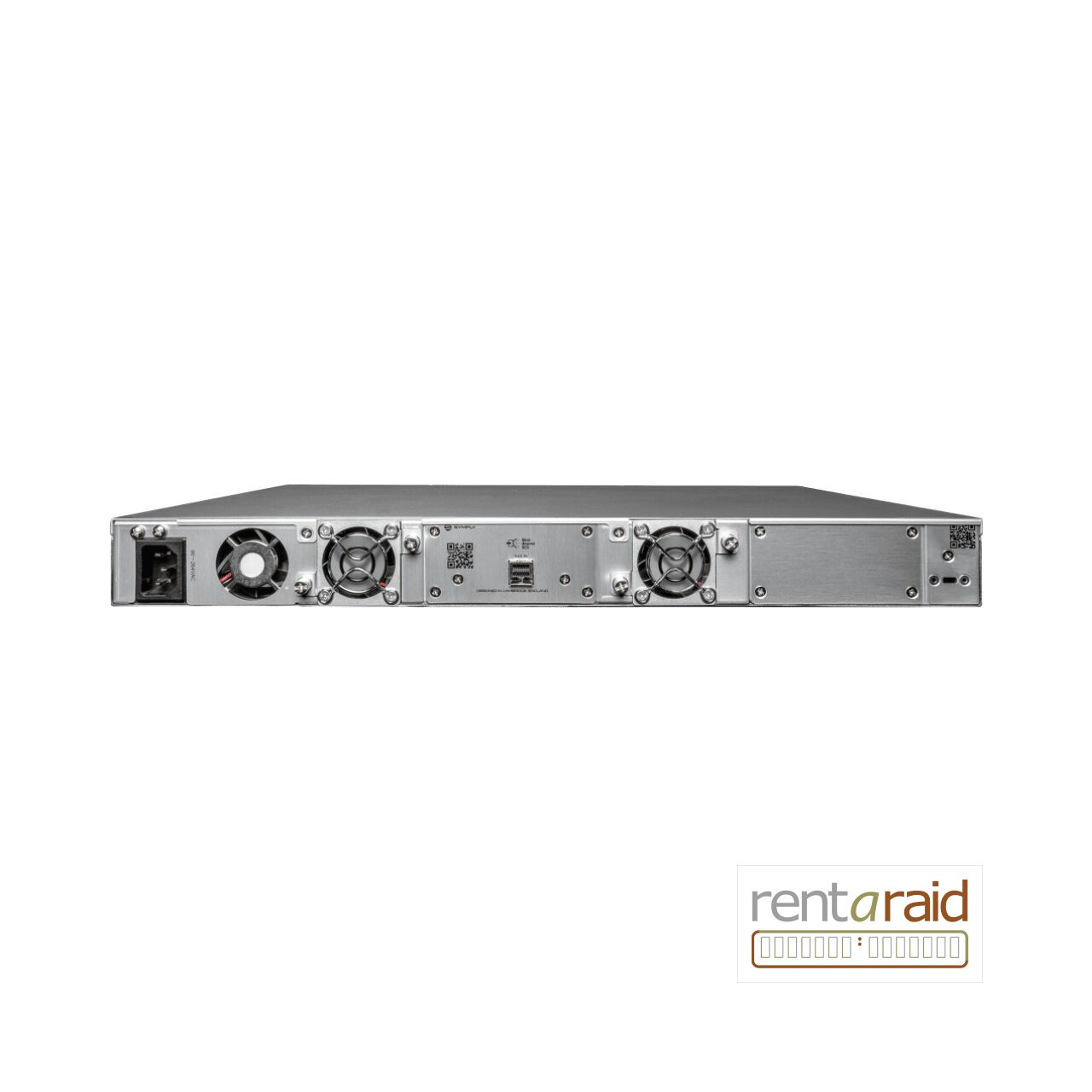

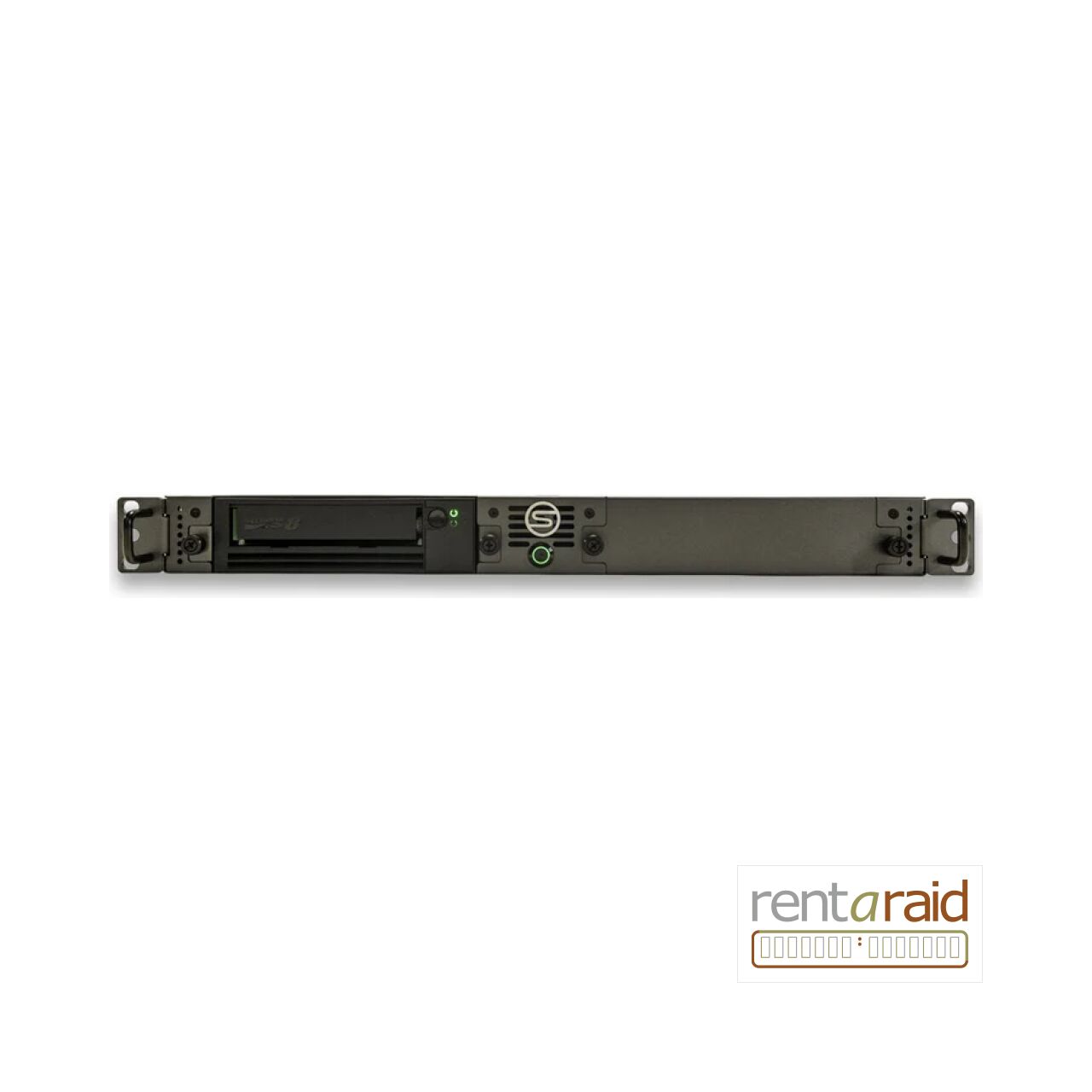

SymplyPRO Rackmount 1U – LTO-7

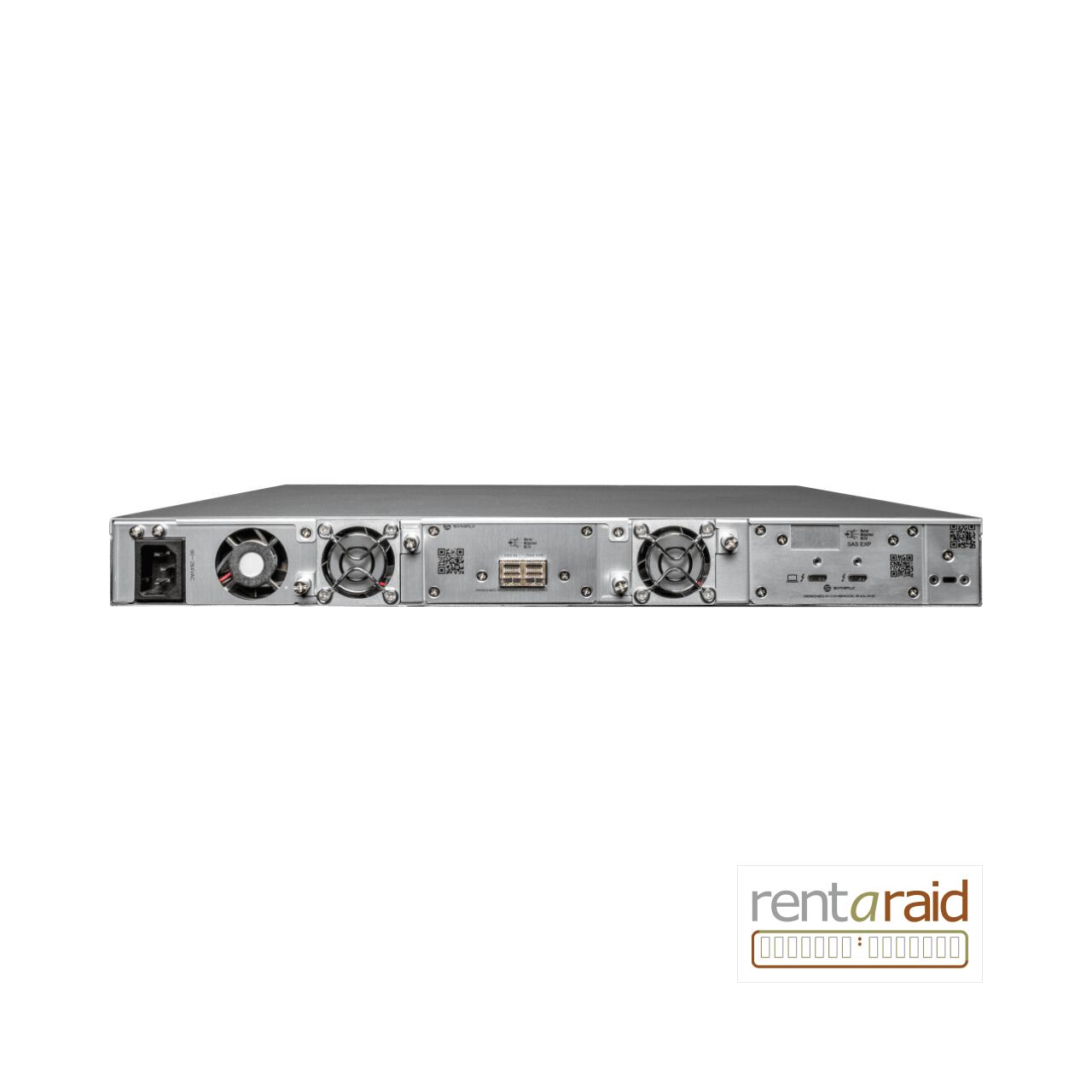

SymplyPRO Rackmount 1U – LTO-7 - Image 2

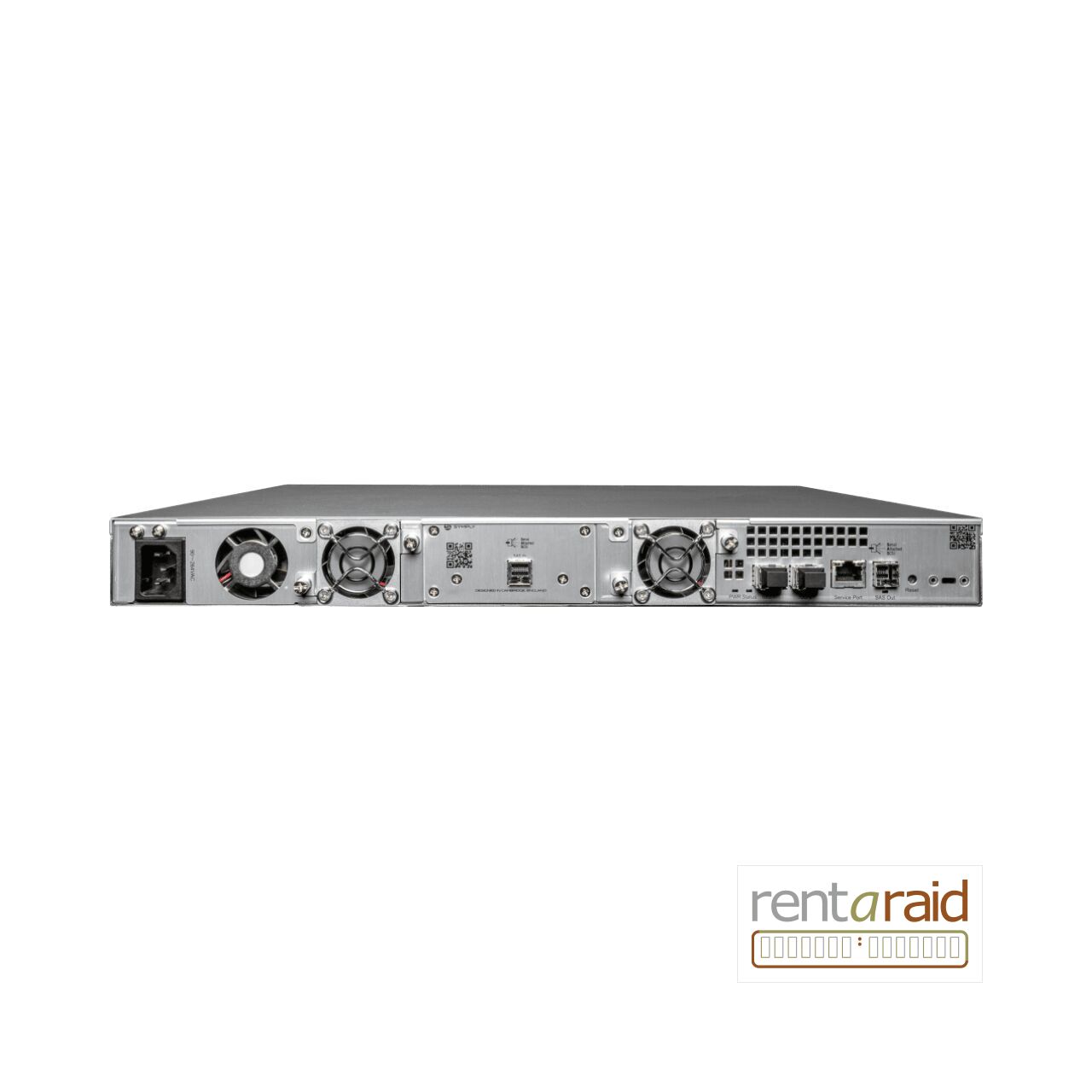

SymplyPRO Rackmount 1U – LTO-7 - Image 3
SymplyPRO Rackmount 1U – LTO-7 - Image 4
SymplyPRO Rackmount 1U – LTO-7 - Image 5
SymplyPRO Rackmount 1U – LTO-7

1U Rackmount LTO-7 Tape System With Selectable SAS, Thunderbolt 3 / SAS Or Dual 10GbE iSCSI Connectivity, 6TB Native Capacity And Dual-Drive Upgrade Capability.

The SymplyPRO 1U – LTO-7 is a professional dual-bay rackmount tape system supplied with one half-height LTO-7 drive and a choice of SAS, Thunderbolt 3 / SAS or dual 10GbE iSCSI connectivity. The rugged 1RU all-metal chassis is designed for long-term backup and archive workflows, with SymplyCABLELESS™ technology making drive servicing and future expansion straightforward.

Each LTO-7 drive provides 6TB native / 15TB compressed capacity per cartridge with native transfer performance up to 300MB/s. LTFS support, WORM media compatibility and AES-256 hardware encryption support secure, standards-based archive workflows across macOS, Windows and Linux environments.

  • One LTO-7 half-height drive fitted in a dual-bay 1U chassis.
  • Choose 6Gb SAS, Thunderbolt 3 / SAS or dual 10GbE iSCSI connectivity.
  • 6TB native / 15TB compressed capacity per LTO-7 cartridge.
  • Up to 300MB/s native transfer performance per drive.
  • Second drive can be added using a compatible Symply drive upgrade module.

Guide Pricing –

Please Select An Option

Please Call to Discuss Pricing & To Order

0800 652 0080OUR CONTACT PAGE
Category: LTO Tape Drives
SKU: N/A
Brand: Symply

SymplyPRO Rackmount 1U – LTO-7 – Product Overview

The SymplyPRO 1U – LTO-7 combines a rack-efficient 1RU enclosure with a single half-height LTO-7 tape drive and three selectable host-interface options. It is designed for professional backup, archive and media workflows that need removable offline storage without committing to a single connectivity platform.

The chassis provides two internal drive positions and uses SymplyCABLELESS™ technology, allowing the supplied drive to be serviced quickly and a second compatible LTO drive to be added later without replacing the complete system.

Choose The Interface For Your Workflow

The 6Gb SAS configuration connects through SFF-8088. The Thunderbolt configuration provides dual Thunderbolt 3 ports together with 12Gb SAS host and expansion connectivity through SFF-8644. The Ethernet configuration presents the tape system over dual 10GbE SFP+ iSCSI and also provides SFF-8644 SAS expansion connectivity. This single parent product therefore covers workstation, direct-attached and network-attached archive workflows.

LTO-7 Capacity And Performance

Each fitted LTO-7 half-height mechanism supports 6TB native capacity per cartridge, or 15TB compressed using the standard 2.5:1 assumption, with native transfer performance up to 300MB/s. Real-world compression depends on the data being written, so native figures are the appropriate basis for archive planning.

Dual-Bay SymplyCABLELESS™ Architecture

The 1U enclosure is supplied with one LTO-7 drive but contains two internal drive positions. SymplyCABLELESS™ removes conventional internal drive cabling, simplifying maintenance and allowing a compatible second drive to be fitted using a dedicated Symply drive upgrade module.

LTFS, WORM And AES-256 Encryption

LTFS support allows tape media to be accessed through familiar file-based workflows. WORM support provides write-once retention where required, while AES-256 hardware encryption supports secure offline backup and archive strategies.

Built For Professional Rack Environments

The metal-alloy 1RU chassis measures approximately 43.5 × 48.2 × 4.4cm and uses an internal 350W auto-ranging power supply with front-to-back cooling. A rack kit, data cartridge, cleaning cartridge, appropriate interface cabling and power cable are supplied according to the selected configuration.

Support And Warranty

SymplyPRO rackmount systems are designed for mixed macOS, Windows and Linux environments and are compatible with LTFS and established backup/archive software. The system carries a 3-year manufacturer warranty.

SymplyPRO Rackmount 1U – LTO-7 – Key Features

  • Professional 1RU rackmount LTO-7 tape system.
  • Supplied with one LTO-7 half-height drive in a dual-bay enclosure.
  • 6TB native / 15TB compressed capacity per cartridge.
  • Native transfer performance up to 300MB/s per drive.
  • Selectable 6Gb SAS, Thunderbolt 3 / SAS or dual 10GbE iSCSI configuration.
  • Thunderbolt configuration includes dual Thunderbolt 3 ports plus SFF-8644 SAS host and expansion connectivity.
  • Ethernet configuration provides dual 10GbE SFP+ iSCSI connectivity with SAS expansion capability.
  • SymplyCABLELESS™ architecture for straightforward drive servicing and upgrades.
  • Second compatible half-height drive can be added later.
  • LTFS support for file-based tape workflows.
  • WORM media and AES-256 hardware encryption support.
  • Internal 350W auto-ranging PSU and front-to-back cooling.
  • Data cartridge, cleaning cartridge, rack kit and configuration-specific cabling included.
  • 3-year manufacturer warranty.

SymplyPRO Rackmount 1U – LTO-7 – Technical Specifications

Product TypeVariable 1U Rackmount LTO Tape System
LTO GenerationLTO-7
Installed Drive1 × LTO-7 Half-Height Drive
Drive Bays2 Internal Half-Height Drive Positions
Native Capacity6TB Per Cartridge
Compressed Capacity15TB Per Cartridge (2.5:1 Assumption)
Native Transfer RateUp To 300MB/s Per Drive
SAS Configuration6Gb SAS Via SFF-8088
Thunderbolt Configuration2 × Thunderbolt 3; 1 × SFF-8644 SAS Host; 1 × SFF-8644 SAS Expansion
Ethernet Configuration2 × 10GbE SFP+ iSCSI; SFF-8644 SAS Host / Expansion Connectivity
LTFS SupportYes
WORM SupportYes
Hardware EncryptionAES-256
Upgrade ArchitectureSymplyCABLELESS™; Second Compatible Half-Height Drive Supported
Dimensions43.5 × 48.2 × 4.4cm
WeightApprox. 5.0kg (Thunderbolt); 6.1kg (SAS / Ethernet)
Power SupplyInternal 350W, 110–240V AC
Typical Power DrawApprox. 90W (SAS); 166W (Thunderbolt / Ethernet)
Included Media1 × LTO-7 Data Cartridge And 1 × Cleaning Cartridge
Rack KitIncluded
Warranty3 Years

Symply Delivery Information

Generally, next working day delivery services (UK Mainland) are available on standard Symply Delivery orders placed before 2 pm (subject to stock availability).

Non-timed deliveries should be delivered between 9 am and 6 pm.

Orders placed after 2 pm on Fridays and weekends will be processed as normal the following Monday.

Orders placed on Bank Holidays will be processed the next working day.

If urgent, please call one of our helpful account managers so they may double check everything for you, enabling you to place your order with confidence.

• Please note: these product details are for guide purposes only, and may contain errors.

•• We always recommend double-checking the product specs and features on the manufacturer website, and/or contacting us if unsure before ordering.
