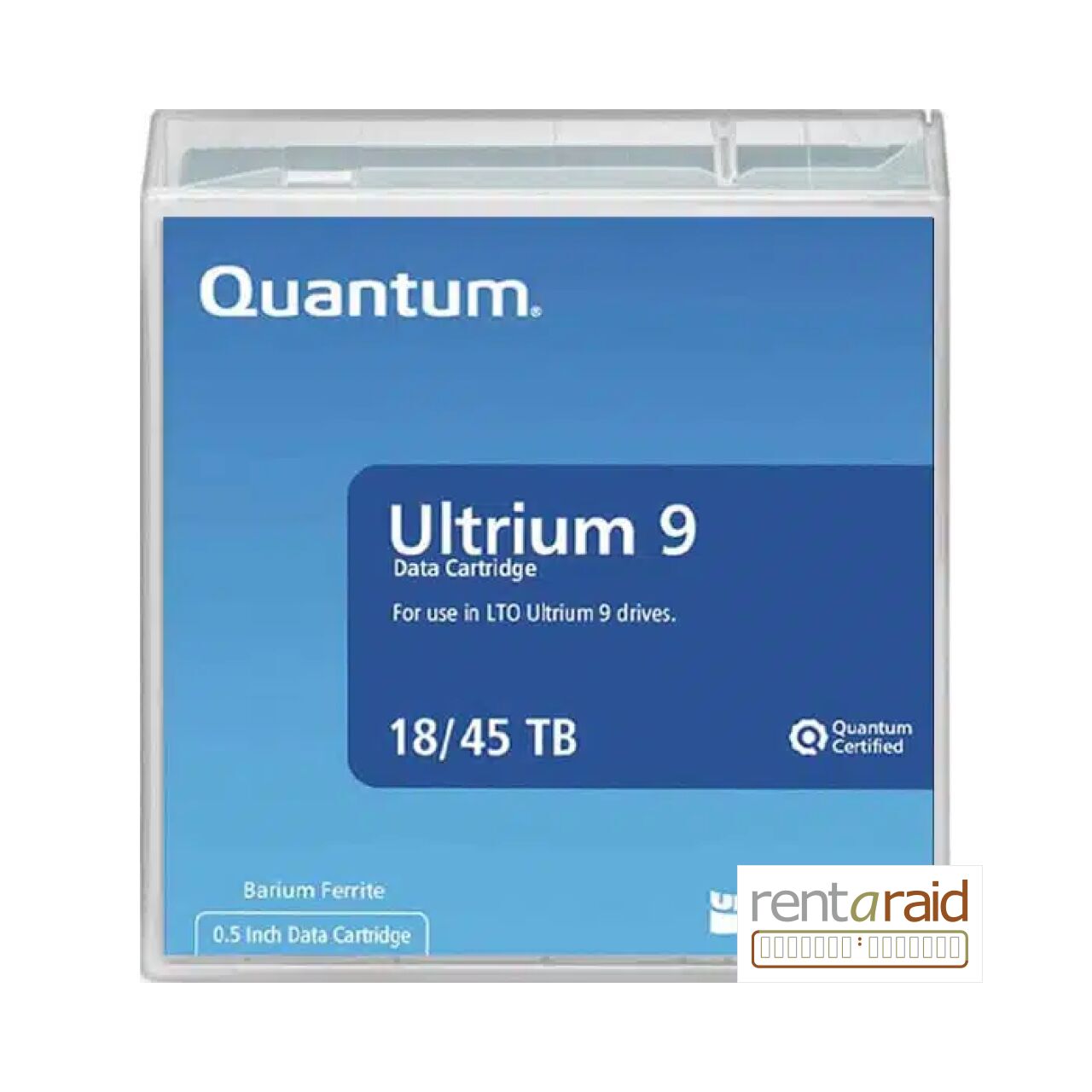

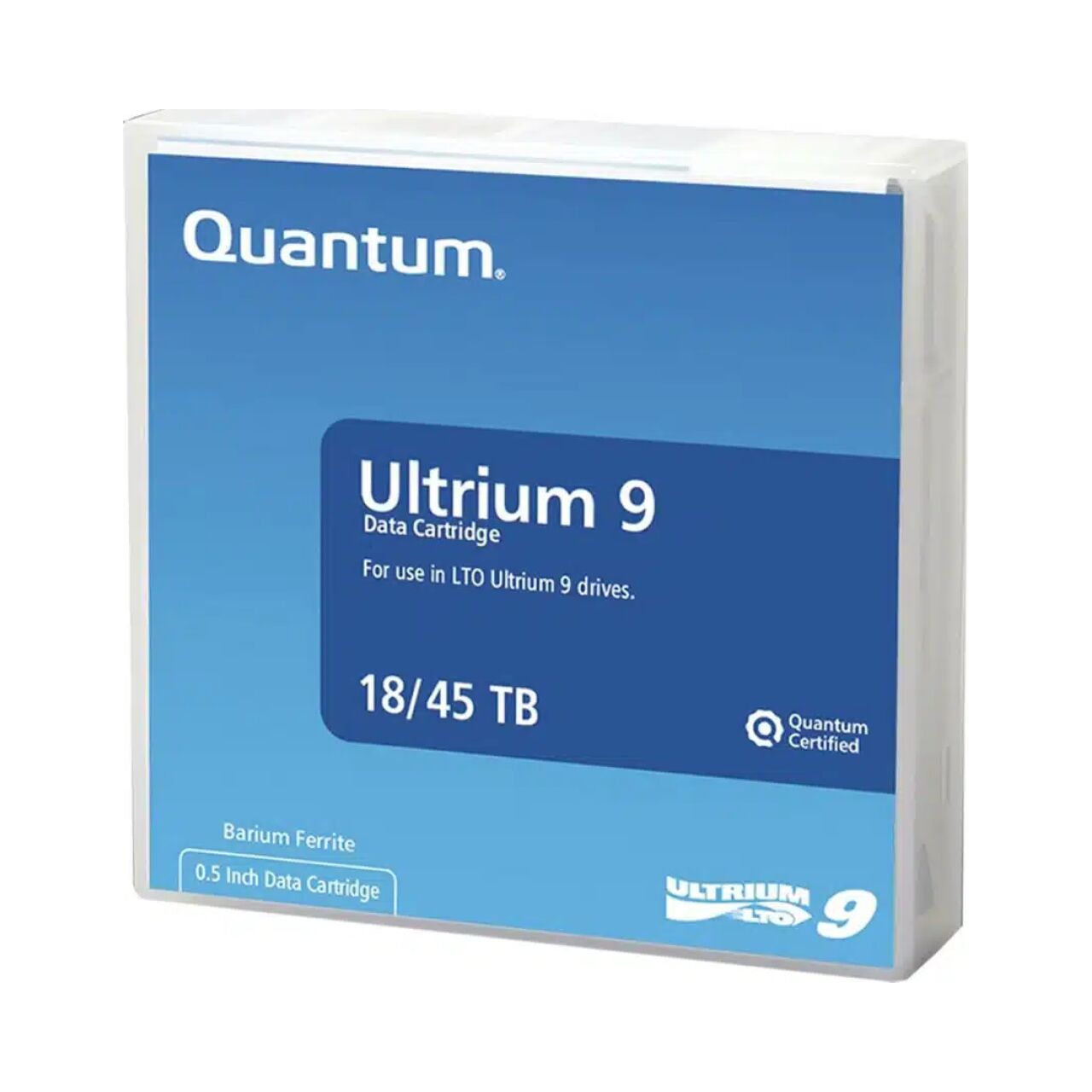

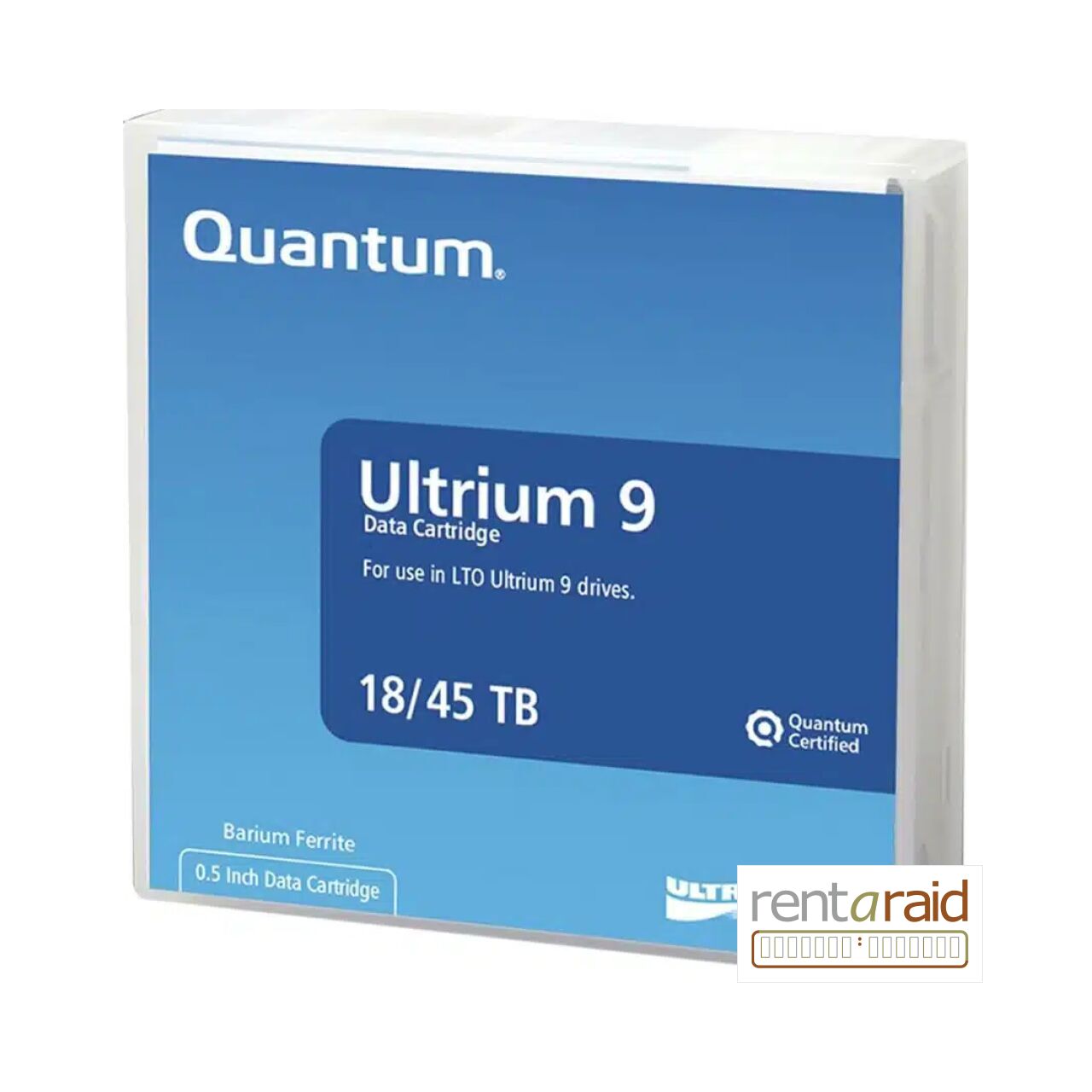

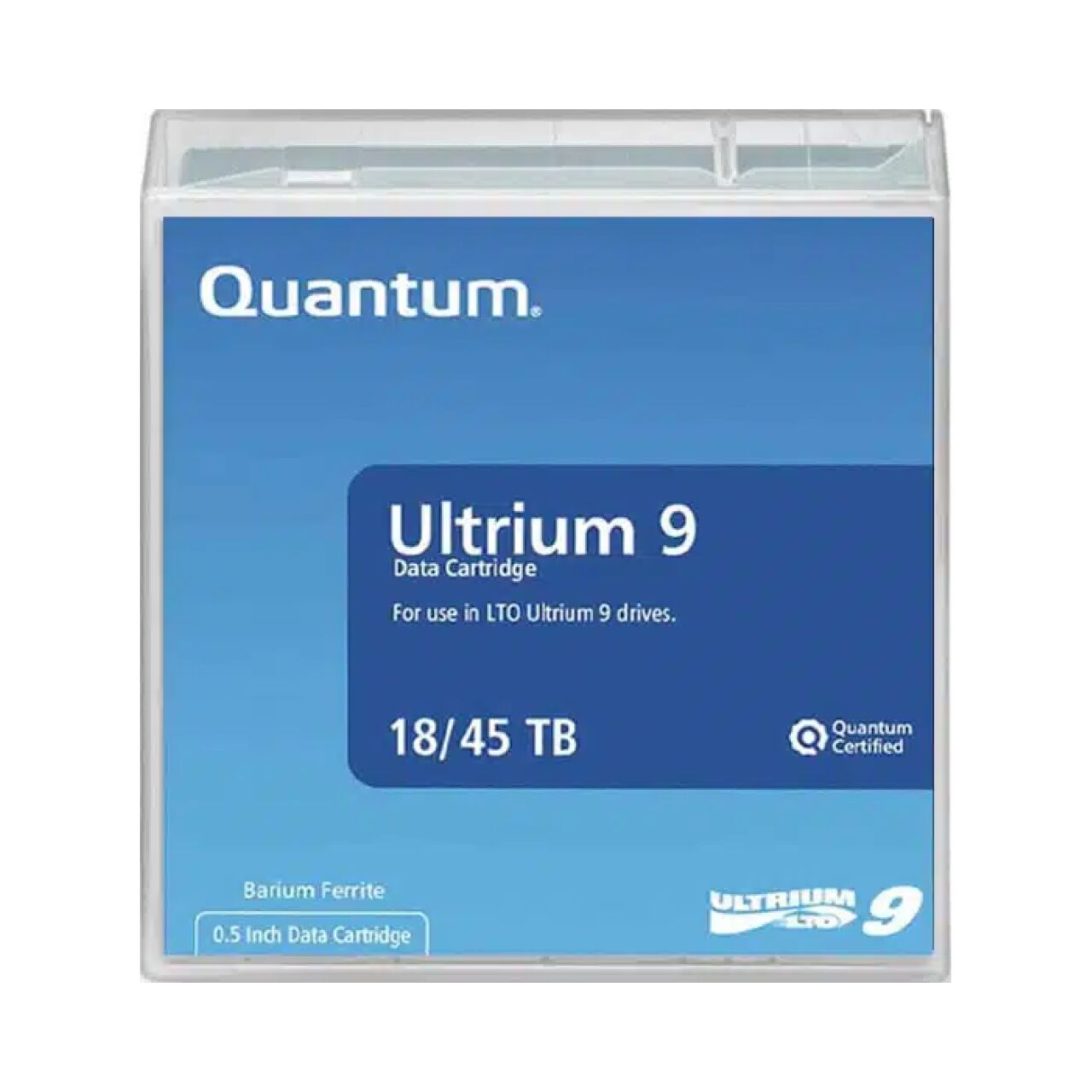

Quantum LTO-9 Data Cartridge
Quantum LTO-9 Data Cartridge
LTO-9 Ultrium Data Cartridge With 18 TB Native / 45 TB Compressed Capacity
The Quantum LTO-9 Ultrium Data Cartridge (MR-L9MQN-01) is a high-capacity tape cartridge designed for enterprise backup and long-term archive storage.
It provides 18 TB native capacity and 45 TB compressed capacity (based on 2.5:1 compression) with built-in media intelligence for library integration.
The cartridge is specified for up to 30 years of archival life when stored within recommended conditions.
- 18 TB native / 45 TB compressed capacity (2.5:1).
- Built-in IC memory chip up to 16 KB for improved library access.
- 960 m tape length on 12.65 mm media; compact cartridge dimensions.
Category: LTO Tape Media
Brand: Quantum
£ 71.95 | £ 86.34 inc VAT
In Stock
Quantum LTO-9 Data Cartridge – Product Overview
The Quantum LTO-9 Ultrium Data Cartridge (SKU MR-L9MQN-01) is a high-density LTO Ultrium cartridge designed for enterprise backup and long-term archiving. It provides the capacity, durability and library integration expected for automated tape environments.
This cartridge is part of Quantum’s LTO Ultrium media family and is manufactured and tested to support reliable long-term storage and media integrity analysis.
Capacity And Compression
The LTO-9 cartridge delivers 18 TB native capacity and 45 TB compressed capacity based on 2.5:1 compression. This density is intended for organisations that need to store large volumes of data offline for backup or archive.
Durability And Archival Life
Quantum specifies up to 30-year archival life for LTO Ultrium media when stored within the recommended environmental envelope, making the cartridge suitable for deep-archive retention policies.
Memory Chip And Library Integration
A high-durability, non-contact IC memory chip (up to 16 KB) is built into the cartridge to improve tape library access and support media health reporting and management.
Dimensions And Media
Tape length for LTO-9 is 960 m (3,150 ft) on a 12.65 mm (0.50 in) wide medium; cartridge dimensions are 21.5 mm x 105.4 mm x 102.0 mm (0.85 in x 4.15 in x 4.02 in), suitable for automation and manual handling.
Environmental And Storage
Recommended operational/storage dry-bulb temperature for LTO-9 is 15 to 25 °C (59 to 77 °F) with 20 to 50% relative humidity (non-condensing). An allowable operational envelope is defined as 15 to 35 °C and 20 to 80% RH for shorter-term use, and a shipping range of -23 to 49 °C and 5 to 80% RH.
Packaging And Labelling
Bar code labelling and library packaging options are available to speed loading into automation slots and trays while reducing waste and manual preparation time.
Compliance And Media Analysis
The cartridge is compliant with media integrity analysis utilities and supports features for media analysis and usage reporting to help manage pools of media over their lifecycle.
Warranty And Support
Quantum LTO Ultrium cartridges are covered by a limited lifetime warranty against defects in material and manufacturing for the original end-user purchaser; further support information is available from Quantum.
Quantum LTO-9 Data Cartridge – Key Features
- Native capacity of 18 TB and compressed capacity of 45 TB (based on 2.5:1 compression). This provides high-density on removable media for backup and archive workflows.
- Up to 30-year archival life when stored within recommended environmental conditions, offering long-term preservation for infrequently accessed data.
- Built-in high-durability non-contact IC memory chip up to 16 KB to improve tape library access and provide media health reporting.
- 960 m (3,150 ft) of tape length on a 12.65 mm (0.50 in) wide medium to maximise storage per cartridge.
- Compact cartridge dimensions of 21.5 mm x 105.4 mm x 102.0 mm (0.85 in x 4.15 in x 4.02 in) for easy handling and automation compatibility.
- Compliant with all media integrity analysis utilities to support media condition reporting and lifecycle management.
- Bar code labelling and library packaging options are available to speed automation loading and reduce manual handling.
- Designed to operate within recommended environmental ranges (15 to 25 °C and 20 to 50% RH) to protect media life and reliability.
- Allowable operational envelope for short-term use extends to 15 to 35 °C and 20 to 80% RH to accommodate varied operational conditions.
- Limited lifetime warranty against defects in material and manufacturing for the original end-user purchaser.
Quantum LTO-9 Data Cartridge – Technical Specifications
| Capacity (Native / Compressed) | 18 / 45 TB |
| Compression Assumption | Based on 2.5:1 compression |
| Tape Length | 960 m (3,150 ft) |
| Tape Width | 12.65 mm (0.50 in) |
| Cartridge Dimensions (W x H x L) | 21.5 mm x 105.4 mm x 102.0 mm (0.85 in x 4.15 in x 4.02 in) |
| Cartridge Colour | Green/Gray |
| IC Memory Chip | High-durability non-contact IC memory chip up to 16 KB |
| Archival Life | Up to 30 years (when stored within recommended environmental envelope) |
| Compliant With | All media integrity analysis utilities |
| Bar Code Labelling / Packaging | Bar code labeling and library packaging available |
| Recommended Dry-Bulb Temperature | 15 to 25 °C (59 to 77 °F) |
| Allowable Dry-Bulb Temperature | 15 to 35 °C (59 to 95 °F) |
| Shipping Dry-Bulb Temperature | -23 to 49 °C (-9 to 120 °F) |
| Recommended Relative Humidity | 20 to 50% (non-condensing) |
| Allowable Relative Humidity | 20 to 80% (non-condensing) |
| Shipping Relative Humidity | 5 to 80% (non-condensing) |
| Maximum Temperature Change | 5 °C / hour |
| Maximum Humidity Change | 5% / hour |
| Temperature Limitation For Humidity Conditions | Max Dew Point 22 °C (72 °F) |
| Maximum Altitude (Recommended / Allowable) | 3,048 m (10,000 ft) |
| Maximum Altitude (Shipping) | 12,192 m (40,000 ft) |
| Drive Compatibility | Compatible with LTO-9 Ultrium drives |
| Warranty | Limited lifetime warranty against defects in material and manufacturing for the original end-user purchaser |
