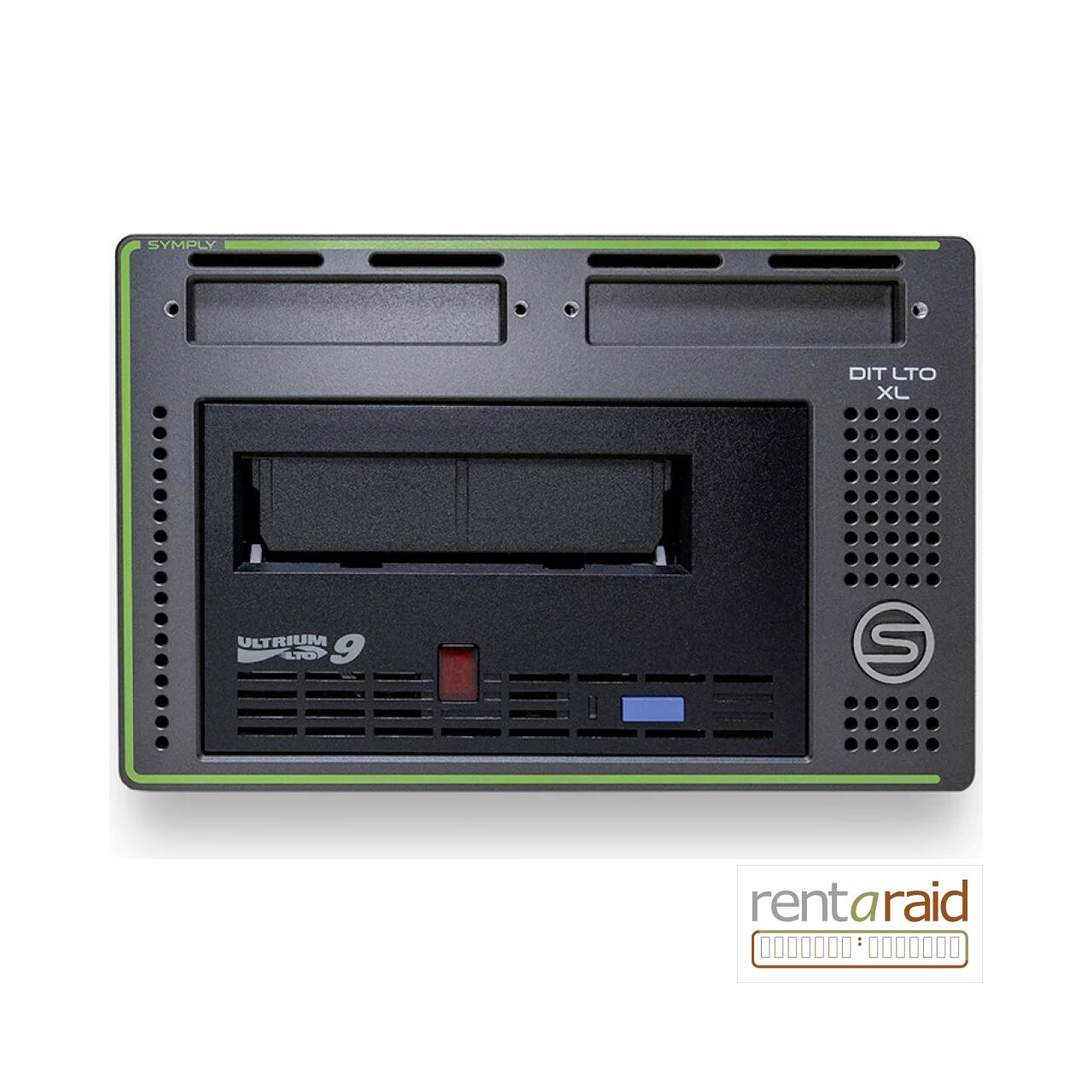

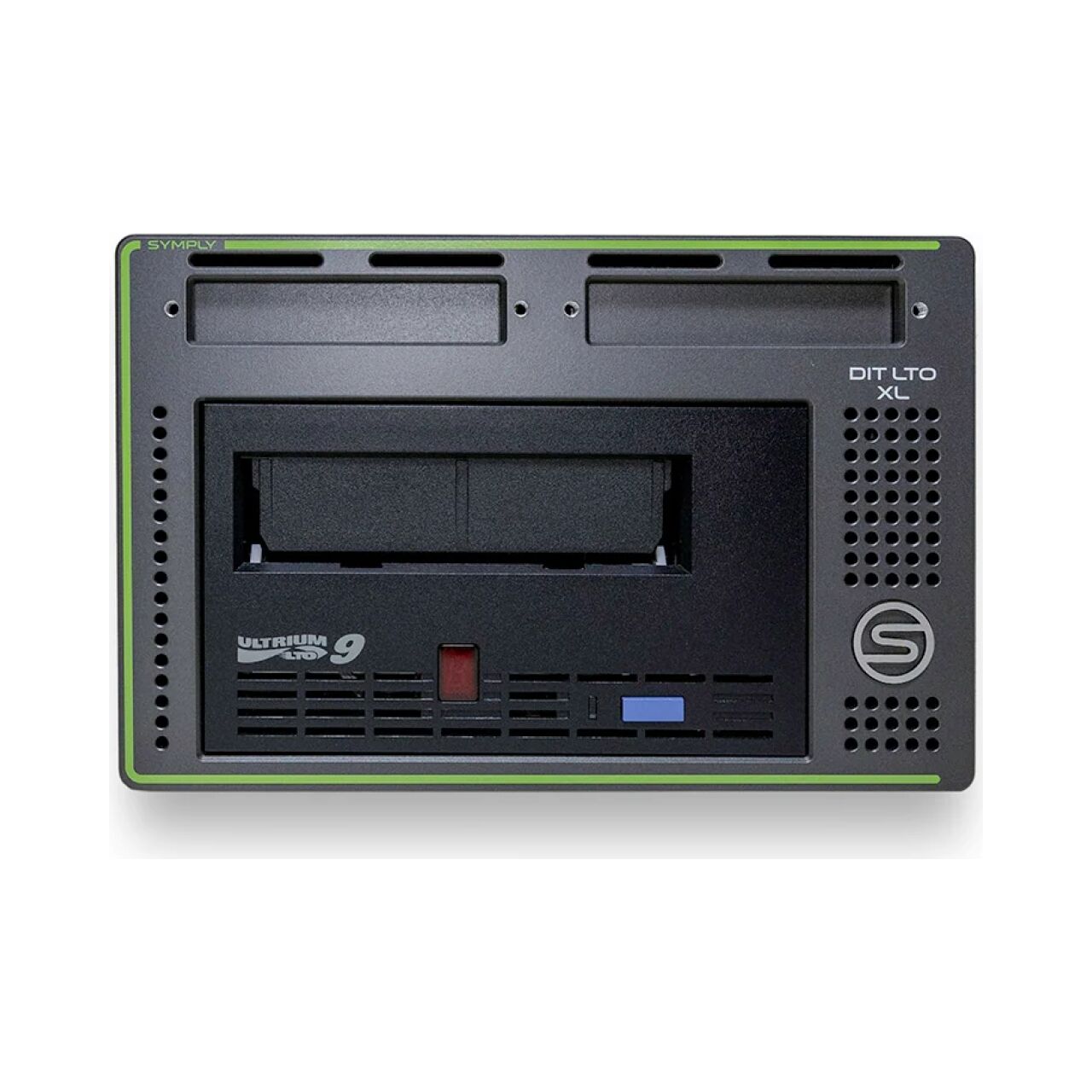

SymplyDIT XTF – LTO-9 FH

SymplyDIT XTF – LTO-9 FH
SymplyDIT XTF – LTO-9 FH - Image 2
SymplyDIT XTF – LTO-9 FH - Image 3
SymplyDIT XTF – LTO-9 FH

Full-Height LTO-9 DIT Desktop Archive System With Dual Thunderbolt 3, 12Gb SAS And Two 2.5-Inch SSD Reader Bays

The SymplyPRO DIT XTF – LTO-9 is a purpose-built on-set and DIT archive system combining one full-height LTO-9 tape drive with two front 2.5-inch SATA SSD reader bays for ingest and transfer workflows.

It provides 18TB native / 45TB compressed per cartridge, with native tape throughput up to 400MB/s. Dual Thunderbolt 3 ports support daisy-chaining and device charging, while SAS Host and SAS Expansion ports provide 12Gb SAS connectivity through SFF-8644.

  • One full-height LTO-9 drive.
  • Two 2.5-inch SATA SSD reader bays for DIT ingest workflows.
  • 2 × Thunderbolt 3 plus SAS Host and SAS Expansion.
  • LTFS, AES-256 hardware encryption and LTO WORM support.

Original price was: £ 15,999.00.Current price is: £ 15,034.95. | £ 18,041.94 inc VAT

Please Call Us For Availability Of This Item

Please Call To Order

0800 652 0080OUR CONTACT PAGE
Category: LTO Tape Drives
SKU: SYDIT-DT3L9F1B-A0
Brand: Symply

SymplyDIT XTF – LTO-9 FH – Product Overview

The SymplyPRO DIT XTF - LTO-9 is designed specifically for production and post-production teams that need to ingest removable SSD media and create LTO archive copies from one compact desktop system. Symply combines professional LTO tape hardware with two front 2.5-inch SATA SSD reader bays that also support Atomos Master Caddy workflows.

Integrated DIT Ingest

Two front 2.5-inch SATA SSD reader bays bridge removable SSD media into the Thunderbolt workflow, allowing ingest, verification and tape archive tasks to be handled from a single unit.

Thunderbolt 3 And 12Gb SAS

Two Thunderbolt 3 ports support daisy-chaining, with one port providing up to 60W charging. Separate SAS Host and SAS Expansion connections use SFF-8644, allowing the unit to work with non-Thunderbolt SAS hosts or attach additional compatible SAS devices.

LTO-9 Capacity And Performance

The full-height LTO-9 mechanism provides 18TB native / 45TB compressed per cartridge and native throughput up to 400MB/s. LTO-9 also supports LTO-8 media for read/write migration workflows.

LTFS And Data Protection

LTFS support enables file-based tape workflows, while AES-256 hardware encryption and LTO WORM media compatibility support secure long-term retention and offline archive strategies.

Professional Desktop Design

The all-metal enclosure includes a premium power supply and active cooling. Dimensions are approximately 30.0 × 21.1 × 13.6cm and weight is approximately 5.8kg.

Included For Deployment

Symply supplies the system with data and cleaning cartridges, a 2m active Thunderbolt 3 cable, SymplyLOCK and power cable. The product carries a 3-year Advanced Replacement warranty.

SymplyDIT XTF – LTO-9 FH – Key Features

  • Purpose-built SymplyPRO DIT desktop archive and transfer system.
  • 1 × full-height LTO-9 drive.
  • 18TB native / 45TB compressed per cartridge.
  • Native tape throughput up to 400MB/s.
  • 2 × front 2.5-inch SATA SSD reader bays for SSD and Atomos Master Caddy workflows.
  • 2 × Thunderbolt 3 ports with daisy-chain support; one port supplies up to 60W charging.
  • SAS Host and SAS Expansion via SFF-8644.
  • LTFS support for file-based tape workflows.
  • AES-256 hardware encryption and LTO WORM media support.
  • All-metal enclosure with integrated PSU and active cooling.
  • Data cartridge, cleaning cartridge, 2m active Thunderbolt 3 cable, SymplyLOCK and power cable included.
  • 3-year Advanced Replacement warranty.

SymplyDIT XTF – LTO-9 FH – Technical Specifications

Product TypeSymplyPRO DIT XTF Desktop LTO System
Drive TypeLTO-9 Full Height
LTO Drives1
SSD Reader Bays2 × 2.5-Inch SATA SSD; Supports Drives Under 9mm And Atomos Master Caddy Workflows
Native Capacity18TB
Compressed Capacity45TB (2.5:1)
Native Tape ThroughputUp To 400MB/s
Thunderbolt2 × Thunderbolt 3; Daisy Chain; Up To 60W Charging On One Port
SAS Host1 × SFF-8644, 12Gb SAS
SAS Expansion1 × SFF-8644, 12Gb SAS
LTFSSupported
EncryptionAES-256 Hardware Encryption
WORMSupported
Dimensions30.0 × 21.1 × 13.6cm
WeightApprox. 5.8kg
IncludedData Cartridge, Cleaning Cartridge, 2m Active Thunderbolt 3 Cable, SymplyLOCK, Power Cable
Warranty3-Year Advanced Replacement
