Original price was: £ 4,210.82.£ 4,128.95Current price is: £ 4,128.95. | £ 4,954.74 inc VAT

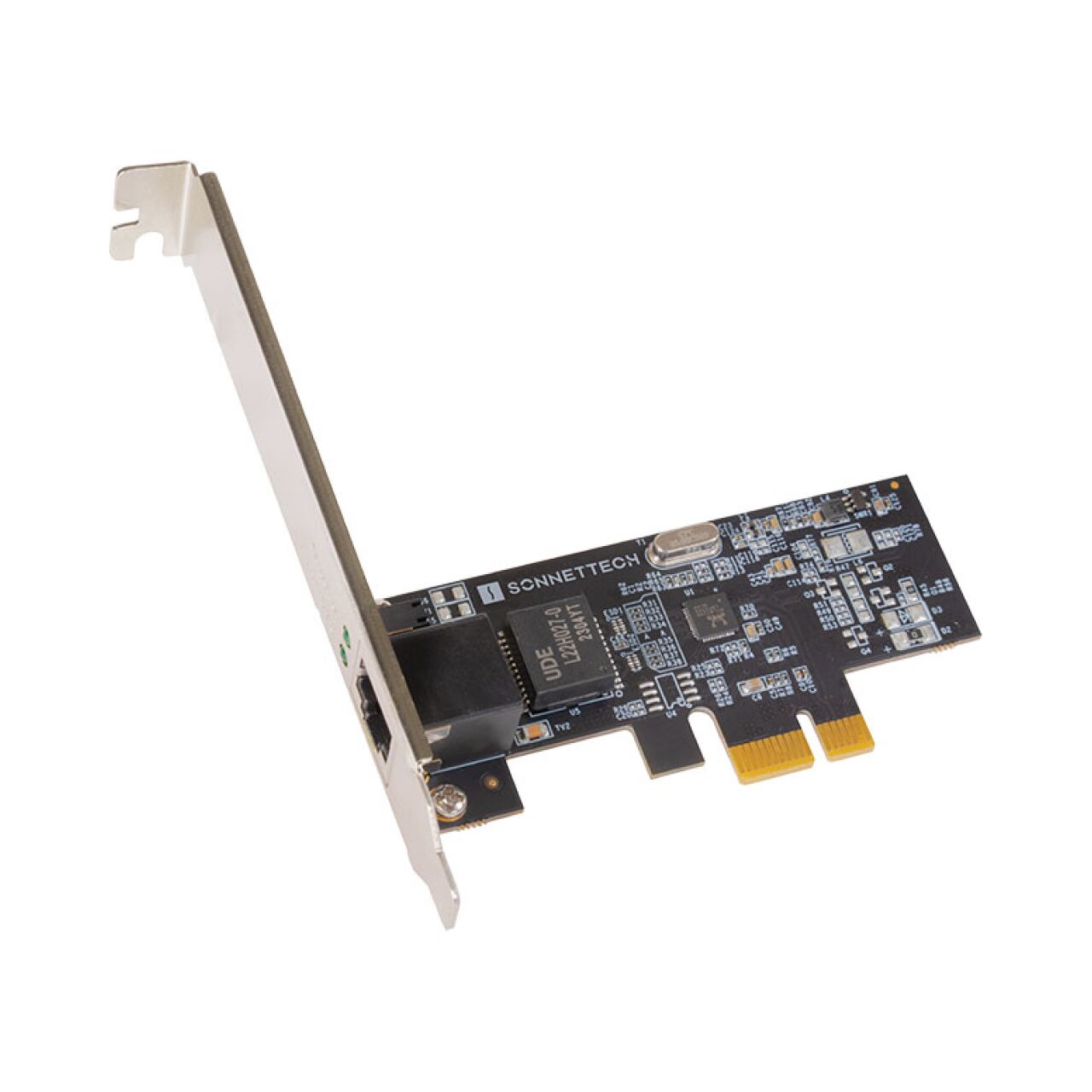

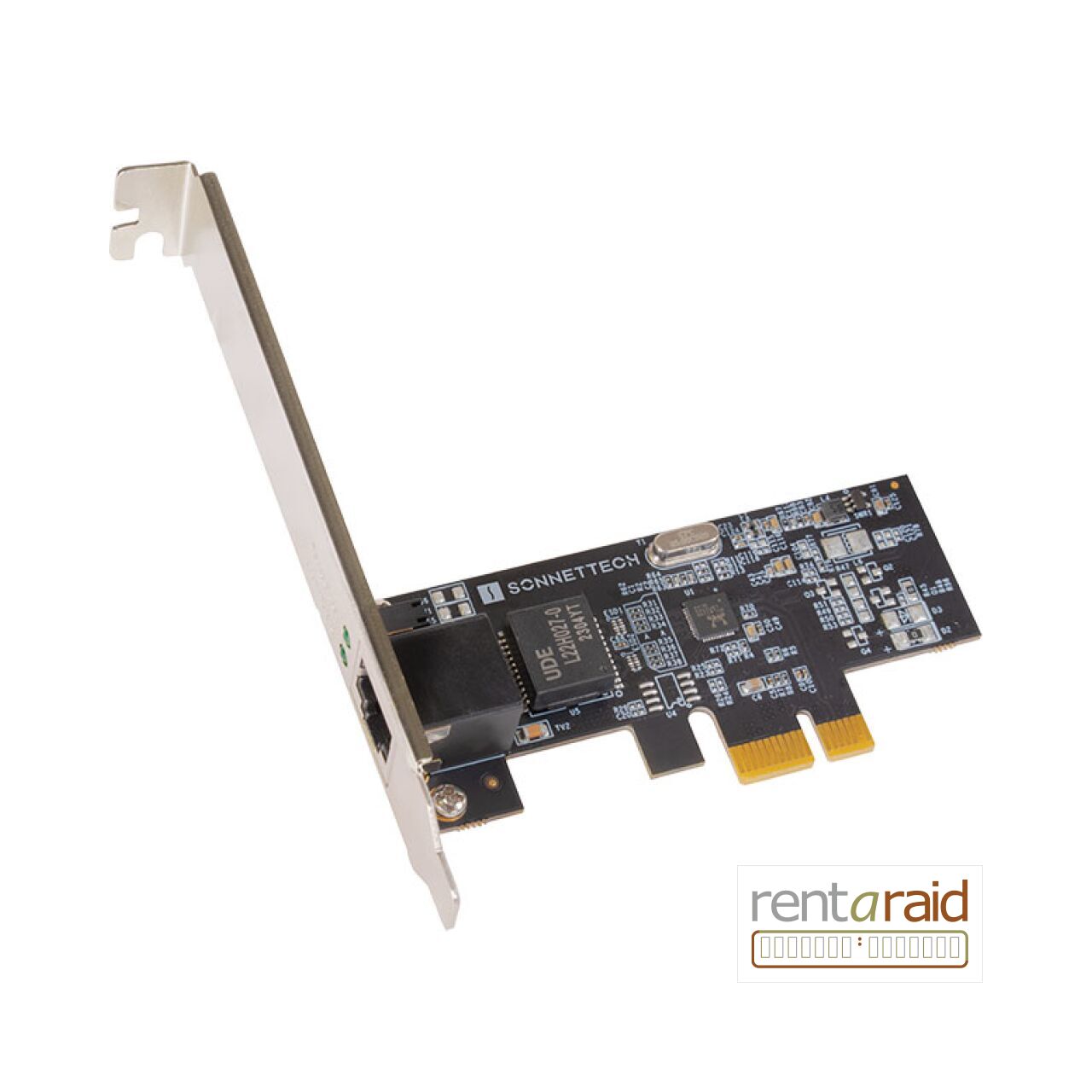

Sonnet Solo2.5G PCIe Card
Sonnet Solo2.5G PCIe Card
Single-Port 2.5GbE Networking Over Standard RJ45 Cabling
The Sonnet Solo2.5G PCIe Card adds a 2.5 Gigabit Ethernet RJ45 port to compatible Windows and Linux computers using an available PCIe slot.
It supports 2.5GbE, Gigabit Ethernet and 100Mb Ethernet over Cat 5e or better cabling at distances up to 100 metres.
- Single 2.5GbE RJ45 port.
- 2.5Gbps, 1Gbps and 100Mbps network support.
- Realtek 8125B Ethernet controller.
- Low-profile PCIe x1 design with both mounting brackets included.
Brand: Sonnet Technology
Original price was: £ 16.00.£ 15.95Current price is: £ 15.95. | £ 19.14 inc VAT
In Stock
Sonnet Solo2.5G PCIe Card – Product Overview
The Sonnet Solo2.5G PCIe Card, part number G2A5E-1X-E, is a compact low-profile Ethernet adapter for adding multi-Gigabit copper networking to a compatible computer.
Its standard RJ45 interface works with widely available Cat 5e or better cabling, providing an economical step beyond Gigabit Ethernet without requiring optical transceivers or specialist cabling.
2.5 Gigabit Ethernet
Solo2.5G supports 2.5GBASE-T at up to 2.5Gb/s and automatically supports 1000BASE-T Gigabit Ethernet and 100BASE-TX Fast Ethernet for compatibility with lower-speed network infrastructure.
Up To 100 Metres Over Cat 5e
Sonnet specifies network distances up to 100 metres using Cat 5e or better cabling, making the card suitable for conventional structured copper Ethernet installations.
Realtek 8125B Controller
The card uses a Realtek 8125B 2.5GbE controller and supports jumbo frames with a maximum packet size of up to 16,128 bytes.
Compact PCIe x1 Installation
The low-profile card uses a PCI Express 2.1 x1 bus interface and therefore consumes only a single PCIe lane. Both full-height and low-profile mounting brackets are supplied.
Current Windows And Linux Support
Sonnet currently lists compatibility with Windows 11 and Linux systems using kernel 6.6, 6.12, 6.18 or later, subject to the host computer having an available compatible PCIe slot.
Sonnet Solo2.5G PCIe Card – Key Features
- Sonnet part number G2A5E-1X-E.
- Single 2.5GbE RJ45 port.
- Supports 2.5GBASE-T.
- Supports 1000BASE-T Gigabit Ethernet.
- Supports 100BASE-TX Fast Ethernet.
- Data rates of 2.5Gb/s, 1Gb/s and 100Mb/s.
- Up to 100 metres over Cat 5e or better cabling.
- Realtek 8125B Ethernet controller.
- Jumbo frames up to 16,128 bytes.
- Low-profile PCIe x1 form factor.
- PCI Express 2.1 bus interface.
- Full-height and low-profile mounting brackets included.
- RoHS 3 compliant.
- 2-year Sonnet warranty.
Sonnet Solo2.5G PCIe Card – Technical Specifications
| Manufacturer | Sonnet Technologies |
| Manufacturer Part Number | G2A5E-1X-E |
| Product Type | Single-port 2.5 Gigabit Ethernet PCIe network card |
| Form Factor | Low-profile x1 PCIe card |
| PCIe Interface | PCI Express 2.1 x1 |
| External Connector | 1 x RJ45 |
| Ethernet Controller | Realtek 8125B |
| Network Standards | 2.5GBASE-T, 1000BASE-T, 100BASE-TX |
| Supported Data Rates | 2.5Gb/s, 1Gb/s, 100Mb/s |
| Maximum Cable Distance | 100m using Cat 5e or better cabling |
| Maximum Packet Size | Up to 16,128 bytes |
| Operating Temperature | 0°C to 35°C |
| Windows Compatibility | Windows 11 |
| Linux Compatibility | Linux kernel 6.6, 6.12, 6.18 or later |
| Compliance | RoHS 3; IEC62368-1 / IEC62368-2 |
| Warranty | 2 years |
| Package Contents | Solo2.5G PCIe Card, full-height and low-profile mounting brackets |
