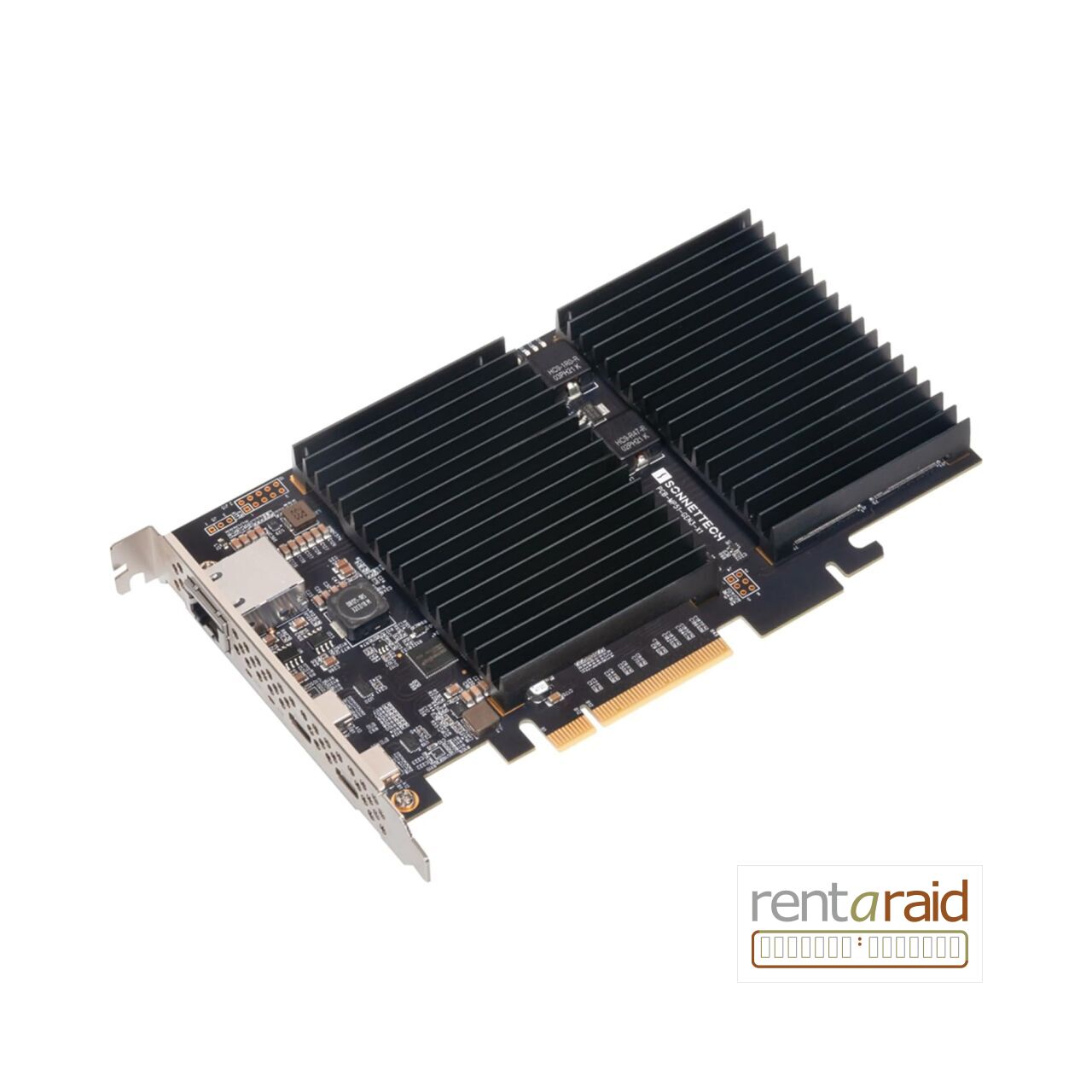

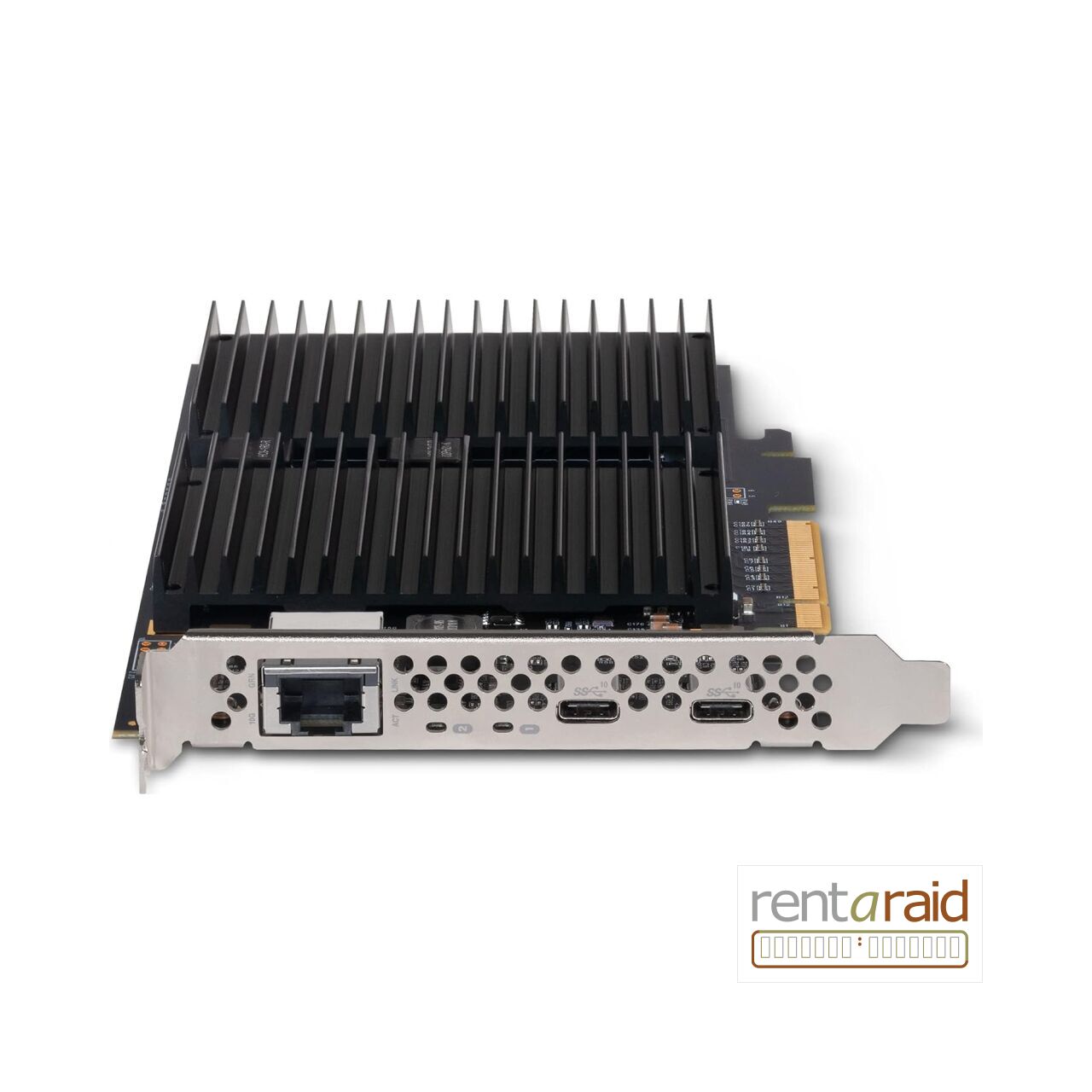

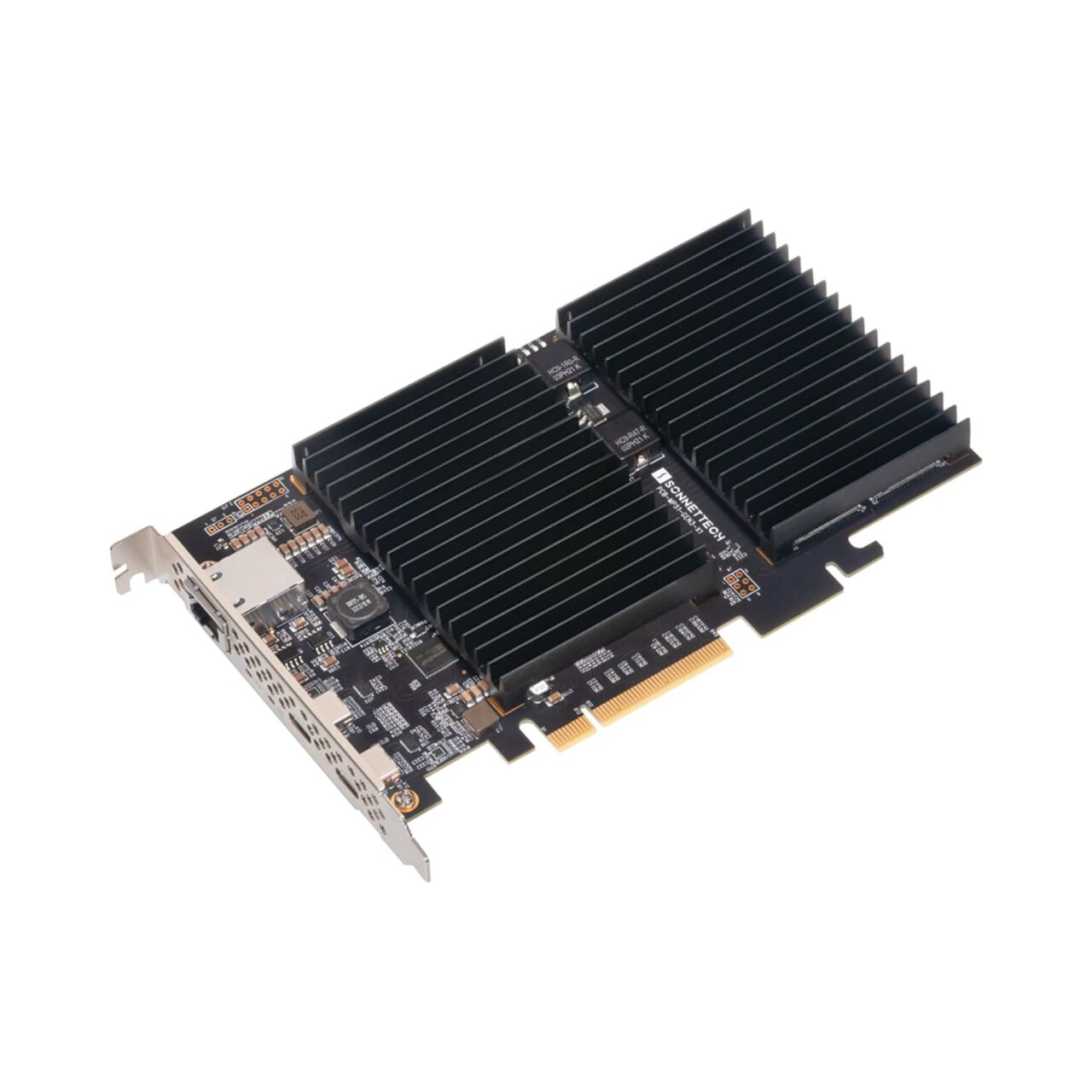

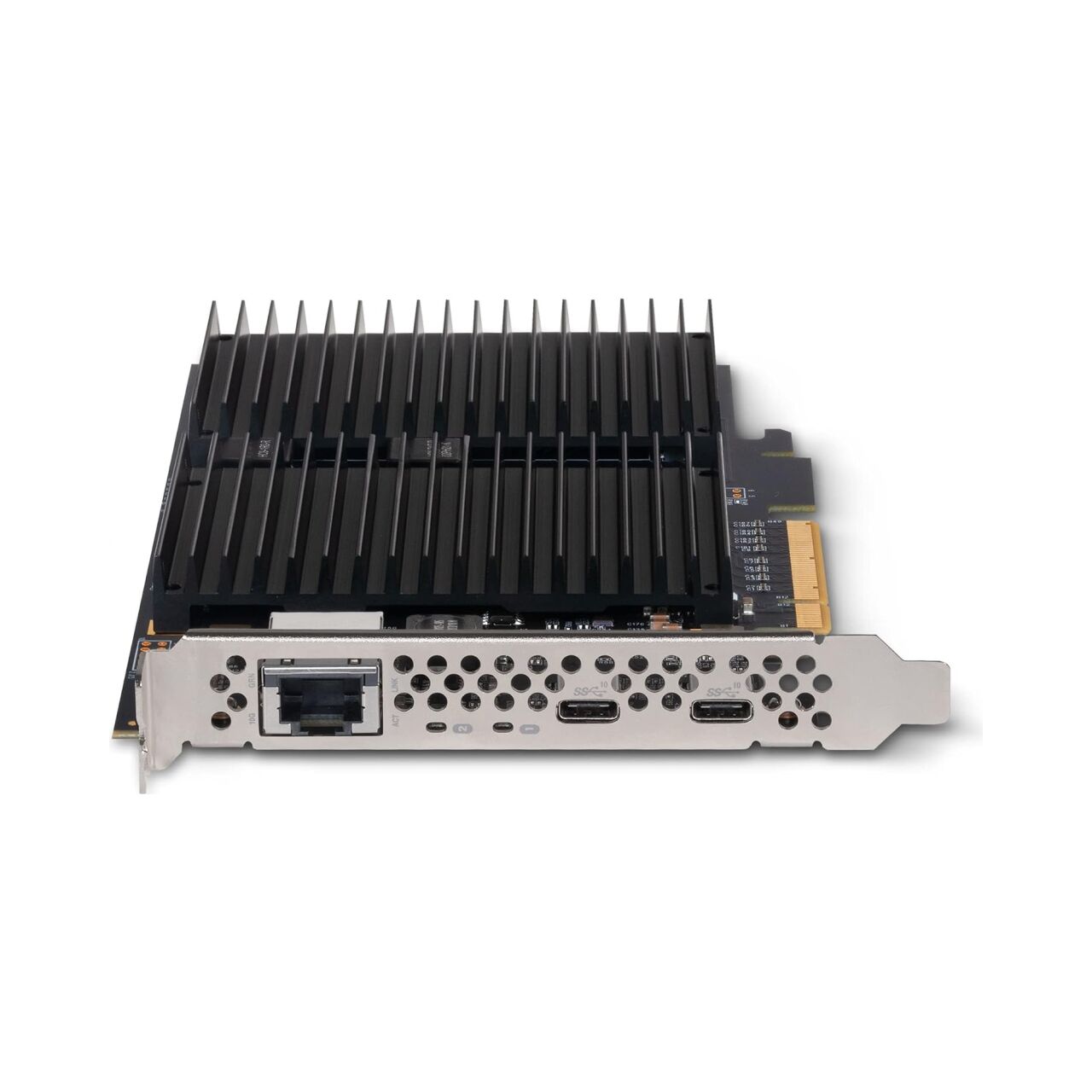

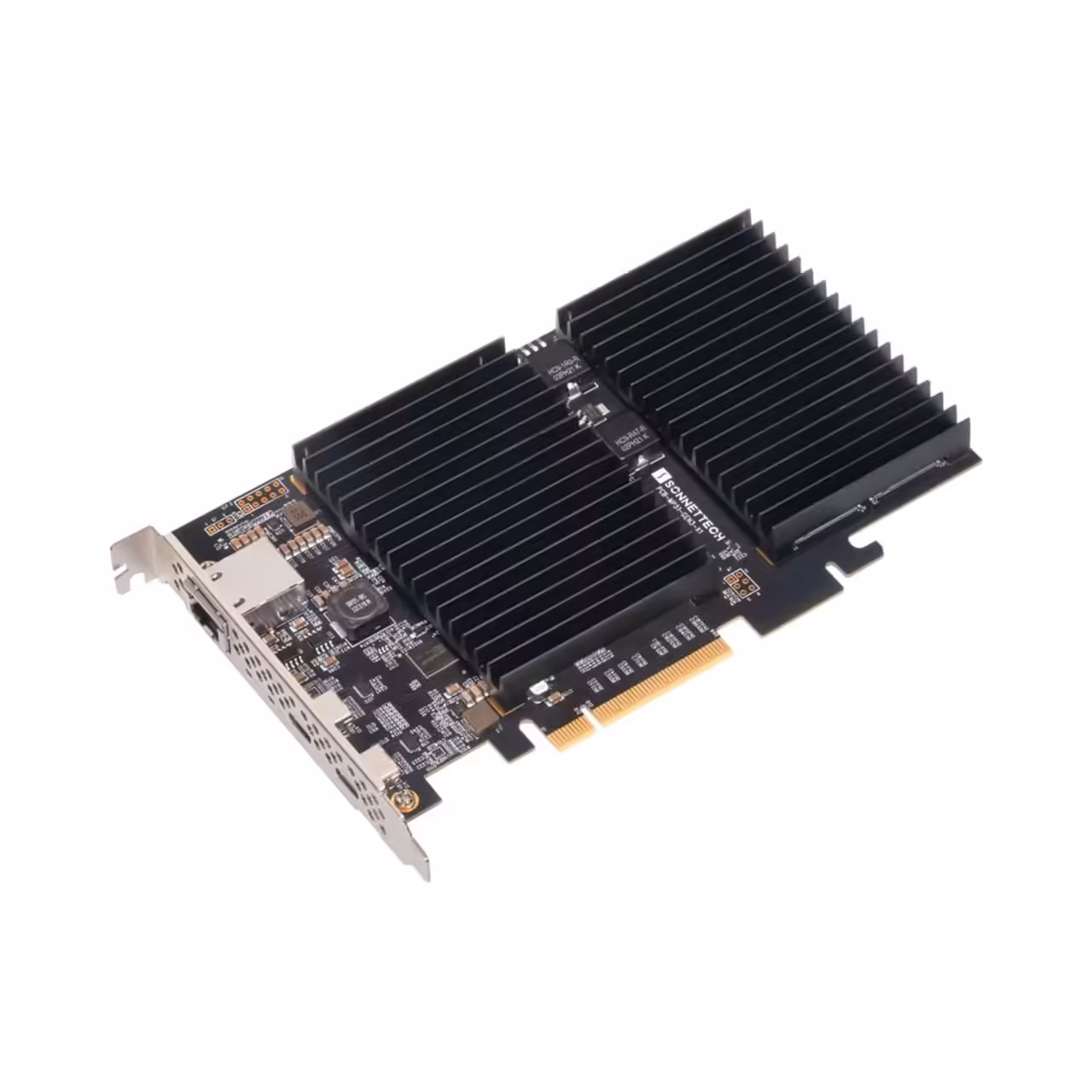

Sonnet McFiver PCIe Card
Sonnet McFiver PCIe Card
10GbE, Dual 10Gbps USB-C And Dual M.2 NVMe
The Sonnet McFiver PCIe Card combines three workstation expansion functions on one PCIe card: 10Gb Ethernet, two 10Gbps USB-C ports and two M.2 NVMe SSD sockets.
Designed for an x8 PCIe slot, it can add high-speed networking, external USB connectivity and internal NVMe storage without consuming three separate expansion slots.
- One 10GbE RJ45 network port.
- Two 10Gbps USB-C ports with up to 7.5W per port.
- Two M.2 2280 NVMe SSD slots.
- Supports software RAID 0 or RAID 1 across installed NVMe SSDs.
Brand: Sonnet Technology
Original price was: £ 368.00.£ 335.95Current price is: £ 335.95. | £ 403.14 inc VAT
In Stock
Sonnet McFiver PCIe Card – Product Overview
The Sonnet McFiver PCIe Card, part number G10E-USBC-M2-E, is a multifunction PCIe 3.0 x8 expansion card combining 10Gb Ethernet, two USB-C ports and dual M.2 NVMe storage.
For systems with limited expansion slots, McFiver can consolidate networking, external-device connectivity and fast internal SSD storage onto a single full-height PCIe card.
10Gb Ethernet
The RJ45 port uses a Marvell AQC113S controller and supports 10GbE, 5GbE, 2.5GbE, Gigabit Ethernet and 100Mb Ethernet. Sonnet specifies up to 100 metres at 10GbE using Cat 6A cable or up to 55 metres using Cat 6.
Two M.2 NVMe SSD Slots
Two internal M-keyed slots accept M.2 2280 NVMe PCIe SSDs. S.M.A.R.T. reporting is supported, and software RAID 0 or RAID 1 can be configured under supported macOS, Windows and Linux environments.
Two 10Gbps USB-C Ports
The two USB-C ports support USB 3.2 Gen 2 operation at up to 10Gbps and backwards-compatible USB devices. Each port advertises up to 7.5W of bus power for compatible peripherals.
Jumbo Frames And Network Offloads
The Ethernet interface supports jumbo frames up to 16,352 bytes, with 9000-byte operation under macOS, plus features including flow control, RSS, interrupt coalescing, checksum offload, TSO and LRO.
PCIe 3.0 x8 Interface
McFiver is a full-height, half-length-plus PCIe 3.0 x8 card. Sonnet supports installation in compatible computers and supported Thunderbolt-to-PCIe expansion systems with an available x8 slot.
Boot And RAID Notes
On supported Macs, booting is supported from a single installed NVMe SSD rather than a RAID set. Sonnet states that Windows and Linux booting from the card's NVMe SSDs is not supported, and booting from devices attached to the USB-C ports is not supported.
Sonnet McFiver PCIe Card – Key Features
- Sonnet part number G10E-USBC-M2-E.
- PCIe 3.0 x8 multifunction expansion card.
- One 10GbE RJ45 port.
- Marvell AQC113S Ethernet controller.
- 10GbE, 5GbE, 2.5GbE, 1GbE and 100Mb network support.
- Two USB-C 3.2 Gen 2 ports at up to 10Gbps.
- Up to 7.5W bus power per USB-C port.
- Two internal M-keyed M.2 NVMe slots.
- Supports M.2 2280 NVMe PCIe SSDs.
- Software RAID 0 and RAID 1 support for installed NVMe SSDs.
- S.M.A.R.T. status reporting support.
- Jumbo frames up to 16,352 bytes; 9000 bytes under macOS.
- Wake-on-LAN support.
- USB Attached SCSI Protocol support on supported operating systems.
- Hot-pluggable USB device support.
- 2-year Sonnet warranty.
Sonnet McFiver PCIe Card – Technical Specifications
| Manufacturer | Sonnet Technologies |
| Manufacturer Part Number | G10E-USBC-M2-E |
| Product Type | Multifunction Ethernet, USB-C and M.2 NVMe PCIe card |
| Form Factor | Full-height, half-length+ PCIe card |
| PCIe Interface | PCI Express 3.0 x8 |
| Ethernet Port | 1 x RJ45 |
| Ethernet Controller | Marvell AQC113S |
| Ethernet Speeds | 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s, 100Mb/s |
| 10GbE Cable Distance | Up to 100m Cat 6A; up to 55m Cat 6 |
| Multi-Gigabit / Gigabit Cable Distance | Up to 100m Cat 5e or better |
| Maximum Network Packet Size | 16,352 bytes; 9000 bytes under macOS |
| USB Ports | 2 x USB-C |
| USB Interface | USB 3.2 Gen 2, up to 10Gbps per port |
| USB Controller | ASMedia 3142 |
| USB-C Bus Power | 7.5W per port (5V @ 1.5A) |
| M.2 SSD Slots | 2 x M-keyed M.2 NVMe |
| Supported SSD Form Factor | M.2 2280 NVMe PCIe SSD |
| NVMe RAID Support | Software RAID 0 or RAID 1 under supported macOS, Windows and Linux |
| S.M.A.R.T. Reporting | Supported |
| USB Hot Plug | Supported |
| USB Boot Support | Not supported |
| Operating Temperature | 0°C to 35°C |
| Warranty | 2 years |
