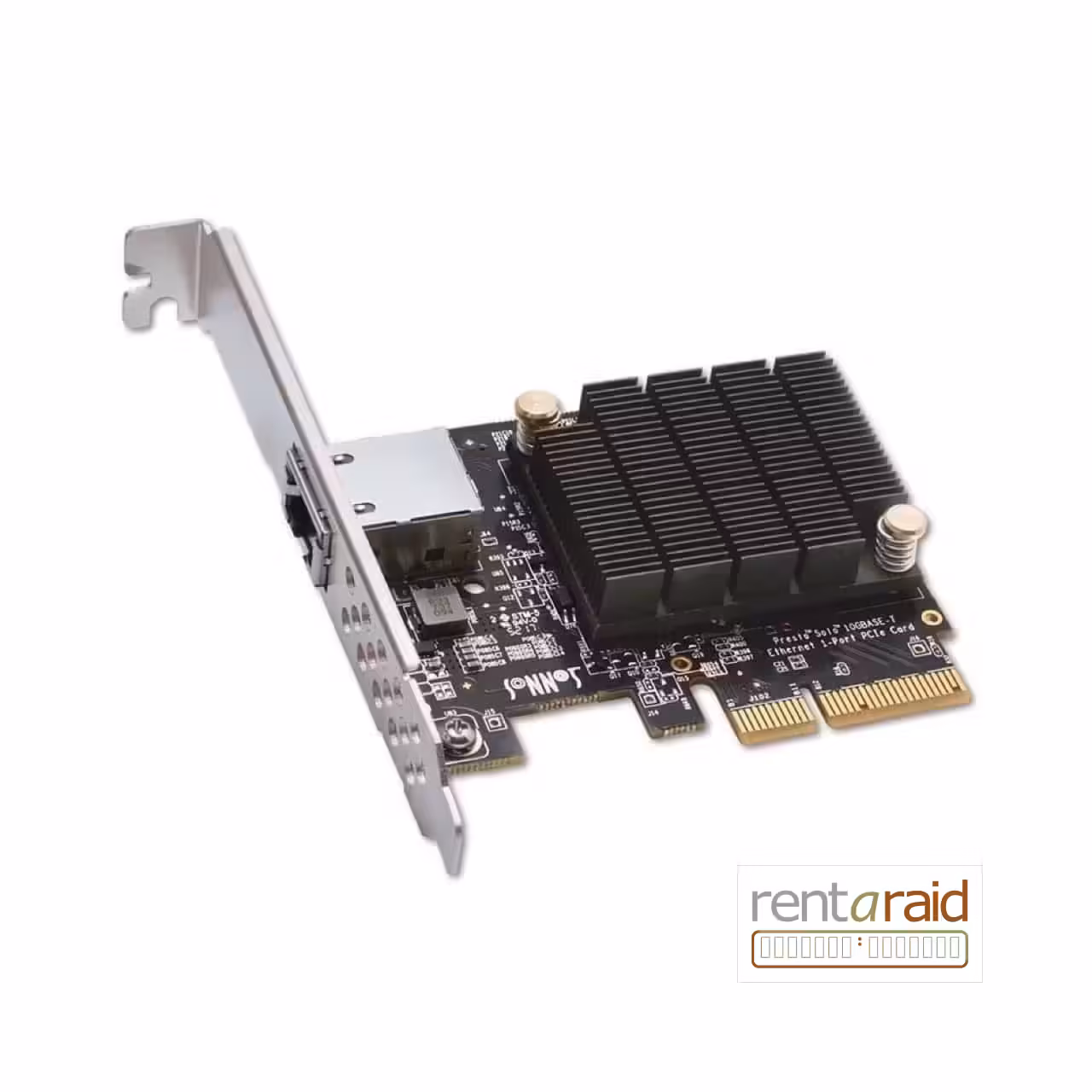

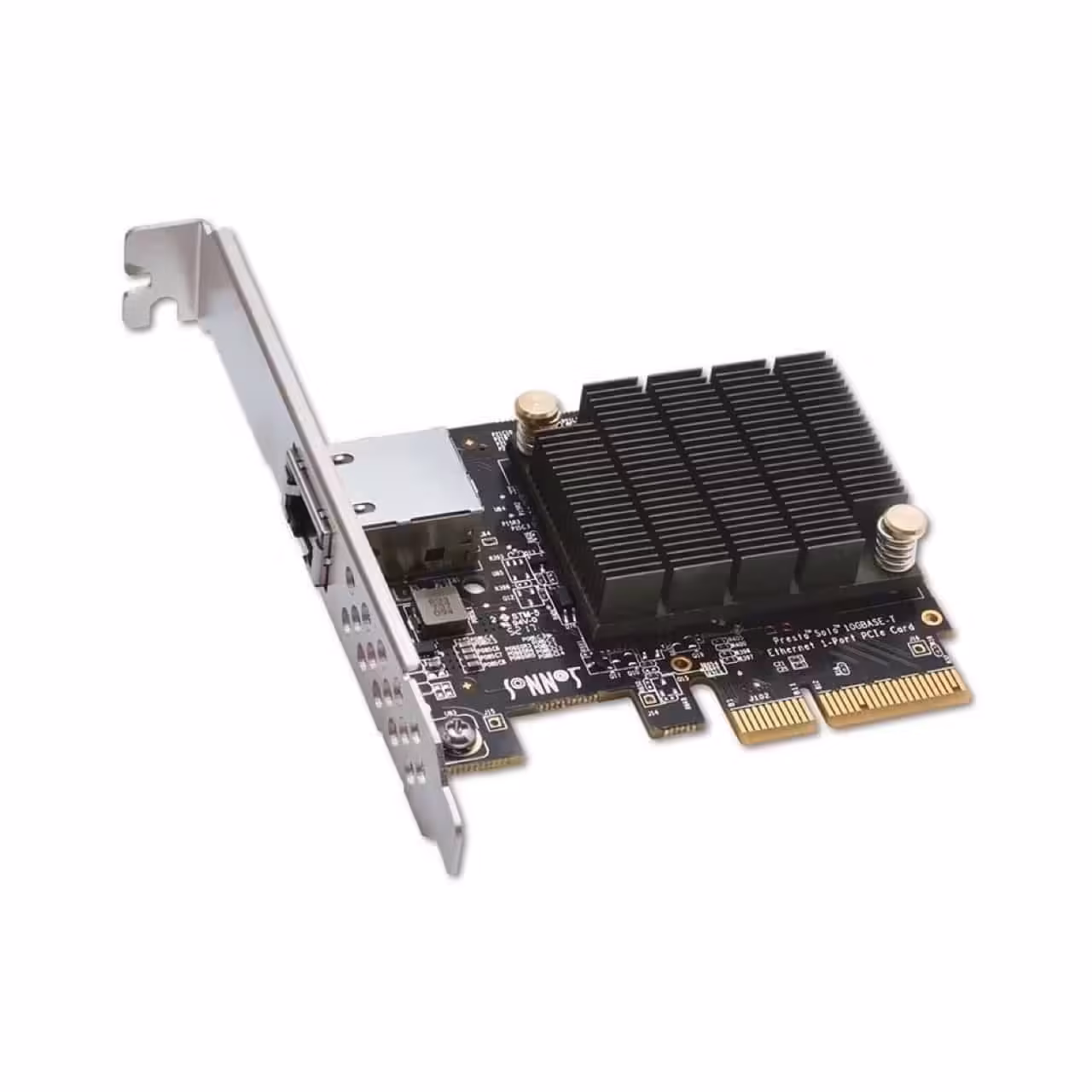

Sonnet Solo10G PCIe Card

Sonnet Solo10G PCIe Card
Sonnet Technology Logo

Sonnet Solo10G PCIe Card

Single-Port 10GBASE-T PCIe 3.0 x4 Network Card With NBASE-T And AVB

The Sonnet Solo10G PCIe Card adds one high-performance 10GBASE-T Ethernet port to a compatible Mac Pro, Windows or Linux computer, server, or supported Thunderbolt-to-PCIe expansion system.

Its RJ45 interface supports 10Gb/s plus NBASE-T 5Gb/s and 2.5Gb/s link rates, allowing multi-gigabit networking over existing Cat 5e or better cabling where compatible network infrastructure is used.

  • Single RJ45 10GBASE-T Ethernet port.
  • 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s and 100Mb/s support.
  • PCI Express 3.0 x4 host interface.
  • AVB and jumbo-frame support.
  • 2-year Sonnet warranty.
Category: Ethernet NICs, Ethernet PCIe Cards
SKU: SONG10E1XE3
Brand: Sonnet Technology

Original price was: £ 116.00.Current price is: £ 105.95. | £ 127.14 inc VAT

In Stock

Sonnet Solo10G PCIe Card – Product Overview

The Sonnet Solo10G PCIe Card is a low-profile 10 Gigabit Ethernet adapter for professional shared-storage, media and high-bandwidth network workflows.

10GBASE-T And NBASE-T Networking

The single RJ45 port supports 10GBASE-T together with 5GBASE-T, 2.5GBASE-T, 1000BASE-T and 100BASE-TX. Sonnet specifies 10GbE operation up to 100 metres with Cat 6A cabling and up to 55 metres with Cat 6, while lower NBASE-T speeds can operate over Cat 5e or better cabling up to 100 metres with compatible equipment.

PCI Express 3.0 x4

The card uses a PCI Express 3.0 x4 interface and includes both full-height and low-profile mounting brackets. It can also be used in compatible Sonnet Thunderbolt-to-PCIe expansion systems.

Advanced Network Offload

The Marvell AQC107S controller supports flow control, receive-side scaling, interrupt coalescing, multicast filtering, Energy-Efficient Ethernet and hardware offloads including TCP, UDP and IPv4 checksum offloading, TSO and LRO.

AVB And Jumbo Frames

Audio Video Bridging is supported with compatible AVB switches or routers. Maximum packet size is 16,352 bytes, with 9,000-byte jumbo frames supported under macOS.

Current Sonnet Platform Support

Sonnet provides current support documentation for compatible Mac Pro, Windows, Windows Server, Linux and Thunderbolt-expansion-system installations.

Sonnet Solo10G PCIe Card – Key Features

  • One RJ45 10 Gigabit Ethernet port.
  • 10GBASE-T support.
  • NBASE-T 5Gb/s and 2.5Gb/s support.
  • 1000BASE-T and 100BASE-TX support.
  • PCI Express 3.0 x4 host interface.
  • Marvell AQC107S Ethernet controller.
  • 10GbE reach up to 100m with Cat 6A and 55m with Cat 6.
  • Multi-gigabit operation up to 100m over Cat 5e or better with compatible NBASE-T equipment.
  • AVB support with compatible network infrastructure.
  • Maximum packet size 16,352 bytes; 9,000-byte jumbo frames under macOS.
  • Flow control, MSI, RSS, interrupt coalescing and multicast filtering.
  • Energy-Efficient Ethernet support.
  • TCP, UDP and IPv4 checksum offload plus TSO and LRO.
  • Wake-on-LAN support.
  • Full-height and low-profile mounting brackets included.
  • Compatible with supported Sonnet Thunderbolt-to-PCIe expansion systems.
  • 2-year Sonnet warranty.

Sonnet Solo10G PCIe Card – Technical Specifications

ManufacturerSonnet Technologies
Manufacturer Part NumberG10E-1X-E3
ProductSolo10G PCIe Card
Product TypeSingle-port 10 Gigabit Ethernet PCIe network card
Form FactorLow-profile PCIe computer card
Host InterfacePCI Express 3.0 x4
External Connector1 x RJ45
Ethernet Support10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX
Data Rates10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s, 100Mb/s
ControllerMarvell AQC107S
10GbE Cable DistanceUp to 100m Cat 6A; up to 55m Cat 6
NBASE-T Cable DistanceUp to 100m Cat 5e or better with compatible network equipment
Maximum Packet Size16,352 bytes; 9,000 bytes under macOS
AVBSupported with compatible AVB switch/router
Wake-on-LANSupported
Advanced FeaturesFlow control, MSI, RSS, interrupt coalescing, multicast filtering, Energy-Efficient Ethernet
Stateless OffloadsTCP, UDP and IPv4 checksum offload; TSO; LRO; RSS
PowerPCIe host powered
RoHSRoHS 3 compliant
Warranty2 years
Package ContentsSolo10G PCIe Card, full-height and low-profile brackets, documentation

Sonnet Solo10G PCIe Card Product Downloads

Sonnet Solo10G PCIe Card Quick Start Guide >>
