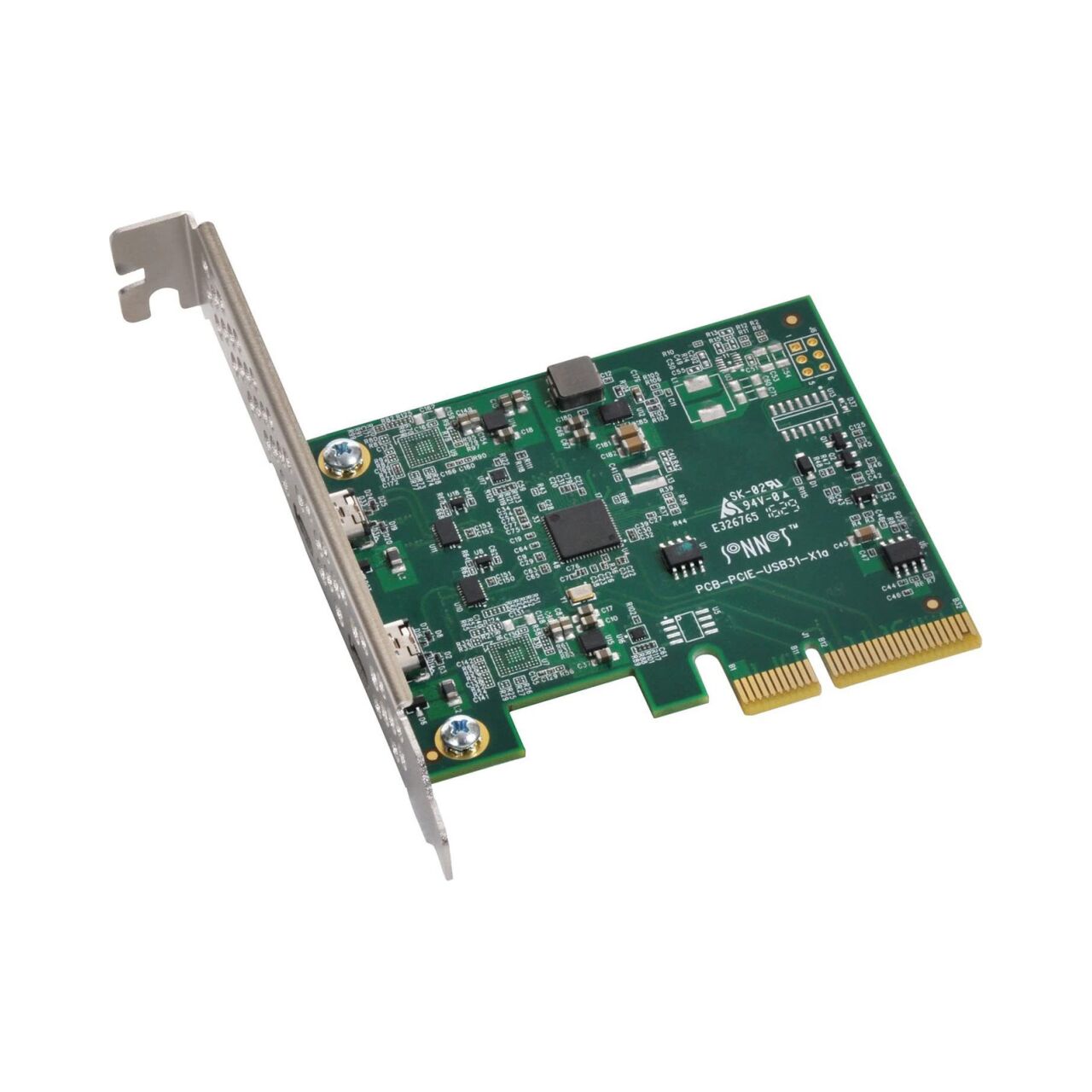

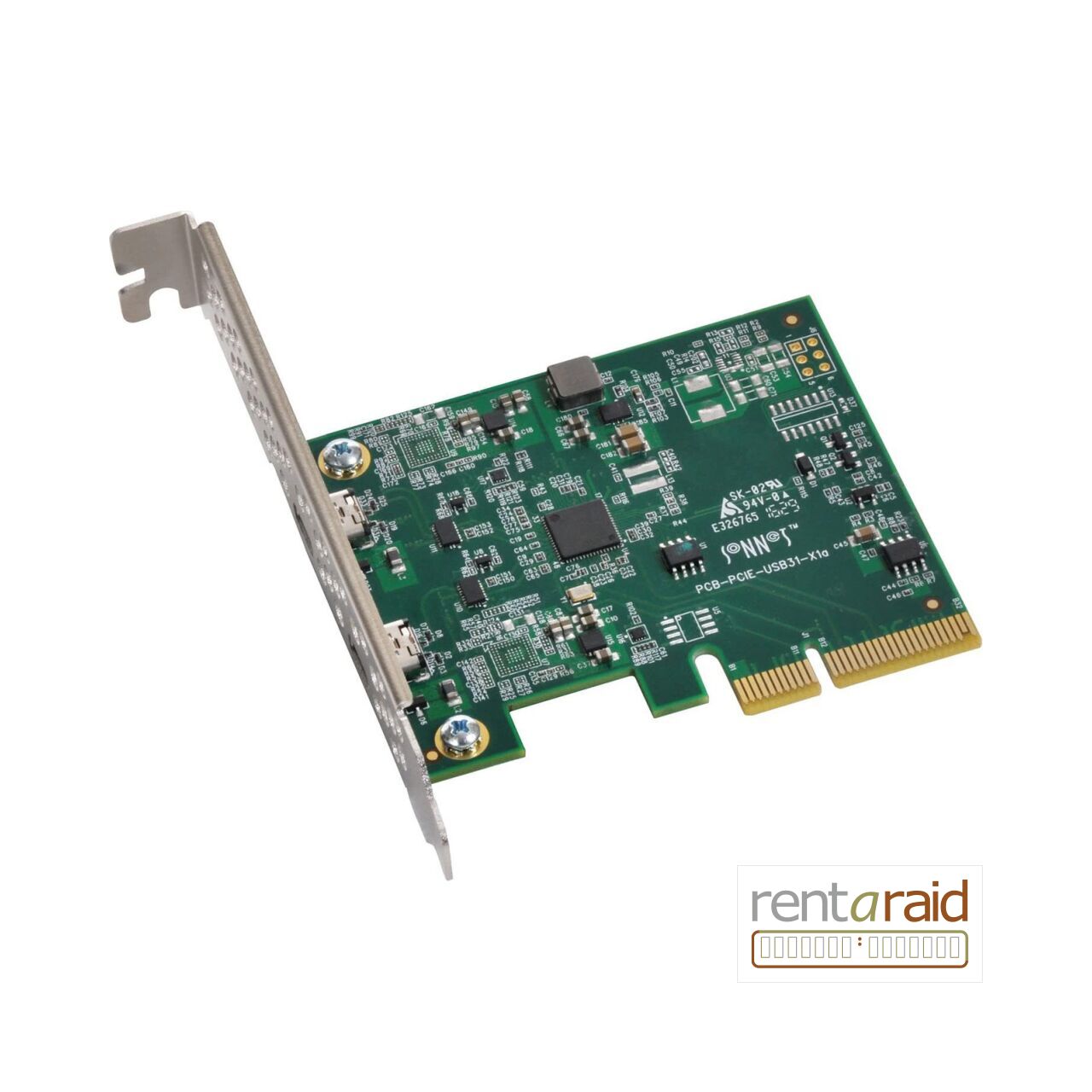

Sonnet Allegro USB-C 2-Port PCIe Card
Sonnet Allegro USB-C 2-Port PCIe Card
Dual-Port USB-C 10Gbps PCIe 3.0 Card With 15W Per-Port Power
The Sonnet Allegro USB-C 2-Port PCIe Card adds two external USB-C 10Gbps ports to a compatible Mac, Windows or Linux computer, or to a Thunderbolt expansion system with an available PCIe slot.
Using an ASMedia ASM3142 controller and a PCIe 3.0 x2 host interface, the card supports high-speed USB storage and other USB-IF compliant devices while providing up to 15W (3A) of power independently from each USB-C port.
- Two external USB-C 10Gbps USB 3.2 Gen 2 ports.
- Up to 960MB/s transfer performance from a single supported drive.
- Up to 925MB/s from each of two supported drives during simultaneous transfers.
- Up to 15W (3A) bus power per USB-C port with independent power regulation.
- Full-height bracket fitted with a low-profile bracket also included.
Category: USB PCIe Cards
Brand: Sonnet Technology
Original price was: £ 78.00.£ 74.95Current price is: £ 74.95. | £ 89.94 inc VAT
Please Call Us For Availability Of This Item
Sonnet Allegro USB-C 2-Port PCIe Card – Product Overview
The Sonnet Allegro USB-C 2-Port PCIe Card is a PCI Express adapter designed to add two high-performance USB-C 10Gbps ports to desktop computers and Thunderbolt-to-PCIe expansion systems. Sonnet identifies the card as manufacturer part number USB3C-2PM-E.
The card combines a PCIe 3.0 x2 interface with an ASMedia ASM3142 USB controller, providing high USB storage performance without requiring an auxiliary power connection.
Two USB-C 10Gbps Ports
Both external Type-C ports support USB 3.2 Gen 2 operation at up to 10Gbps and remain compatible with USB 3 and USB 2 peripherals. Thunderbolt-only peripherals are not supported despite using the same USB-C connector.
High-Speed Storage Performance
Sonnet specifies transfer performance of up to 960MB/s from a single supported drive. With two USB-C Gen 2 NVMe SSD devices connected simultaneously, the card can sustain up to 925MB/s from each device under suitable conditions.
15W Power Per Port
Each USB-C port advertises up to 3A of VBUS current and can provide up to 15W for compatible bus-powered devices. Independent power regulation helps prevent activity or power events on one port from disrupting a device connected to the other.
Resettable Overcurrent Protection
Each port includes resettable overcurrent protection. If a fuse trips because of a cable or peripheral fault, Sonnet specifies that shutting down the host system resets the protection without requiring replacement of the card.
No Auxiliary Power Connection Required
The card draws the power required for connected USB devices from the PCIe slot and does not require a separate internal power cable, making it suitable for systems and Thunderbolt expansion chassis where auxiliary power connectors may not be available.
PCIe Data-Link Auto-Negotiation
The Allegro card uses a PCIe 3.0 x2 interface and can auto-negotiate its data link to suit supported PCIe generations. Sonnet specifies one-lane operation in a PCIe 3.0 slot and two-lane operation in a PCIe 2.0 slot while maintaining the bandwidth required for full 10Gbps USB operation.
Full-Height And Low-Profile Installation
The card is supplied with a full-height mounting bracket fitted and a low-profile bracket in the package, allowing installation in compatible full-height or low-profile systems.
Sonnet Allegro USB-C 2-Port PCIe Card – Key Features
- Two external USB-C 10Gbps USB 3.2 Gen 2 ports.
- PCI Express 3.0 x2 host interface.
- ASMedia ASM3142 USB controller.
- Up to 960MB/s transfer performance from a single supported drive.
- Up to 925MB/s per drive with two supported USB-C Gen 2 NVMe SSD devices operating simultaneously.
- Up to 15W (3A) power available from each USB-C port.
- Independent per-port power regulation.
- Resettable overcurrent protection on each port.
- No auxiliary internal power connection required.
- Supports USB 3 and USB 2 peripherals.
- Supports UASP USB Attached SCSI Protocol.
- Supports up to 31 USB devices.
- Supports hot-pluggable and hot-swappable USB device connection.
- Compatible with Thunderbolt expansion systems containing an available PCIe slot.
- Full-height mounting bracket fitted.
- Low-profile mounting bracket included.
- Two-year manufacturer warranty.
Sonnet Allegro USB-C 2-Port PCIe Card – Technical Specifications
| Manufacturer | Sonnet Technologies |
| Manufacturer Part Number | USB3C-2PM-E |
| Product Type | USB-C PCIe Adapter Card |
| External Ports | 2 x USB-C |
| USB Standard | USB 3.2 Gen 2 |
| Maximum USB Link Speed | 10Gbps Per Port |
| Host Interface | PCI Express 3.0 x2 |
| Mechanical Form Factor | PCIe x4 Low-Profile Card |
| Controller | ASMedia ASM3142 |
| Combined Controller Throughput | 16Gbps |
| Single-Drive Performance | Up To 960MB/s |
| Simultaneous Two-Drive Performance | Up To 925MB/s Per Drive With Supported USB-C Gen 2 NVMe SSD Devices |
| Bus Power Per Port | Up To 15W / 3A |
| Power Regulation | Independent Per Port |
| Overcurrent Protection | Resettable Fuse Per Port |
| Auxiliary Power Connection | Not Required |
| USB Peripheral Support | USB 3 And USB 2 Devices |
| Thunderbolt Peripheral Support | Thunderbolt-Only Devices Not Supported |
| UASP | Supported |
| Maximum USB Devices | Up To 31 |
| Hot Plug / Hot Swap | Supported |
| Boot Support | Not Supported |
| Included Brackets | Full-Height Bracket Attached; Low-Profile Bracket Included |
| Package Contents | Allegro USB-C PCIe Adapter Card And Low-Profile Mounting Bracket |
| RoHS Compliant | Yes |
| Warranty | 2 Years |
