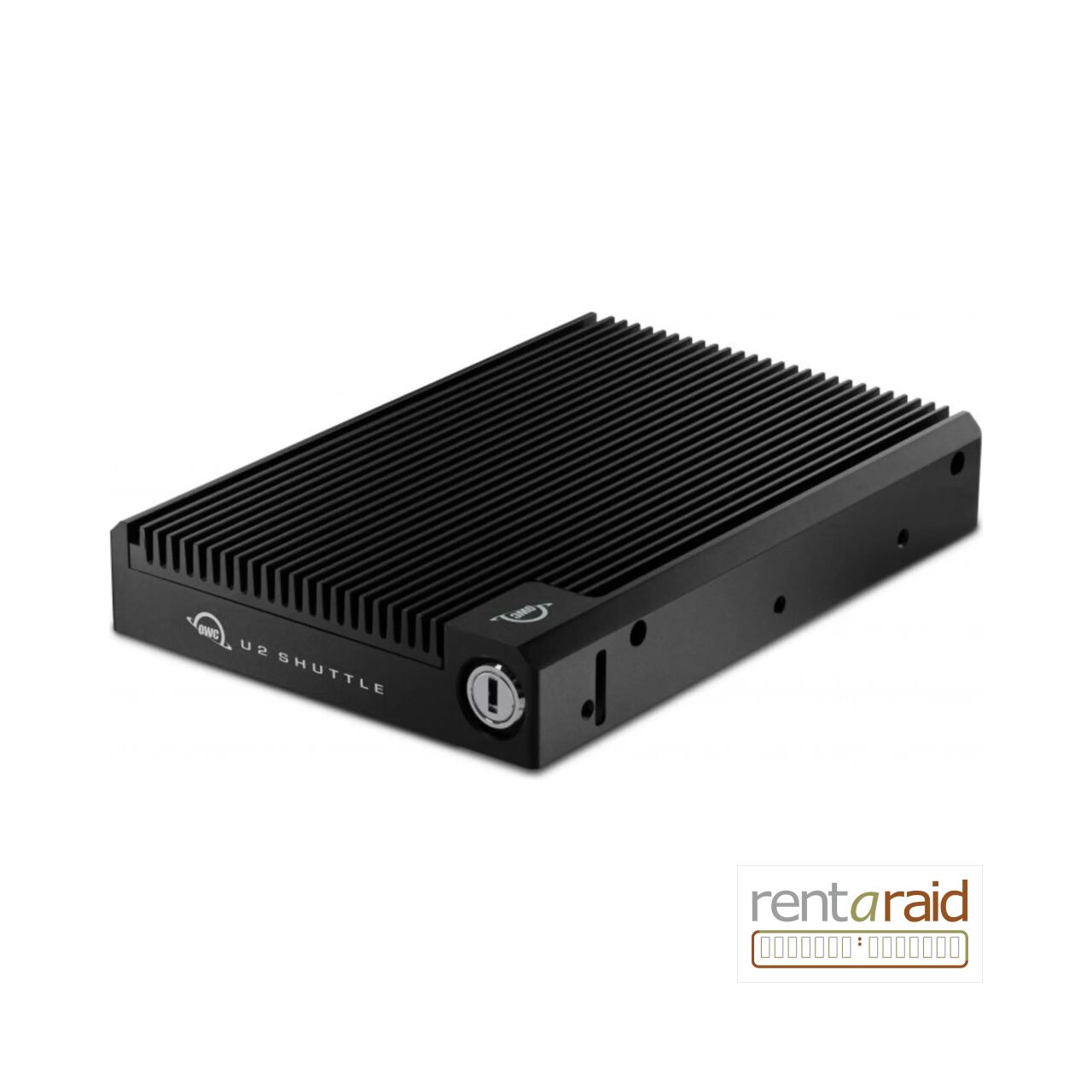

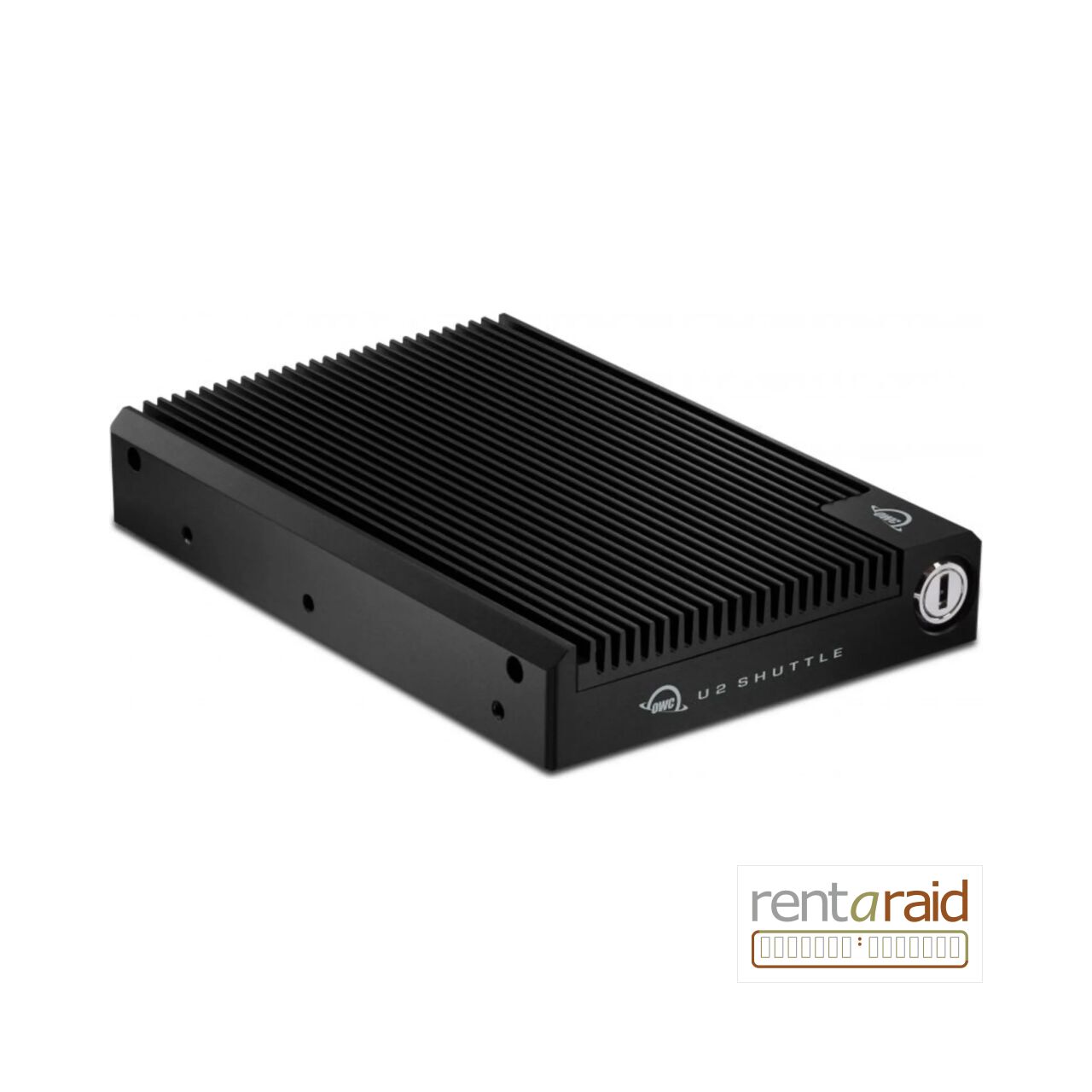

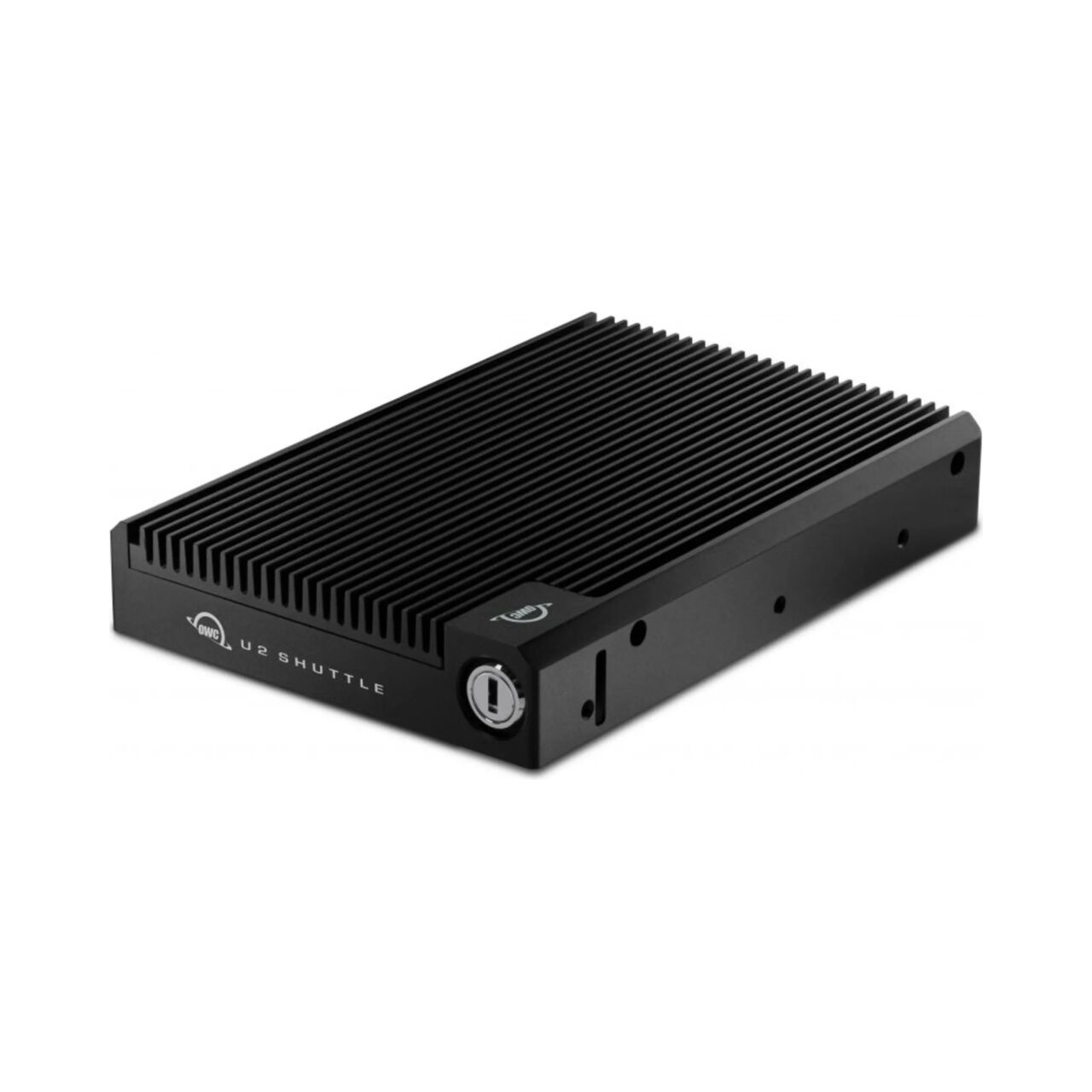

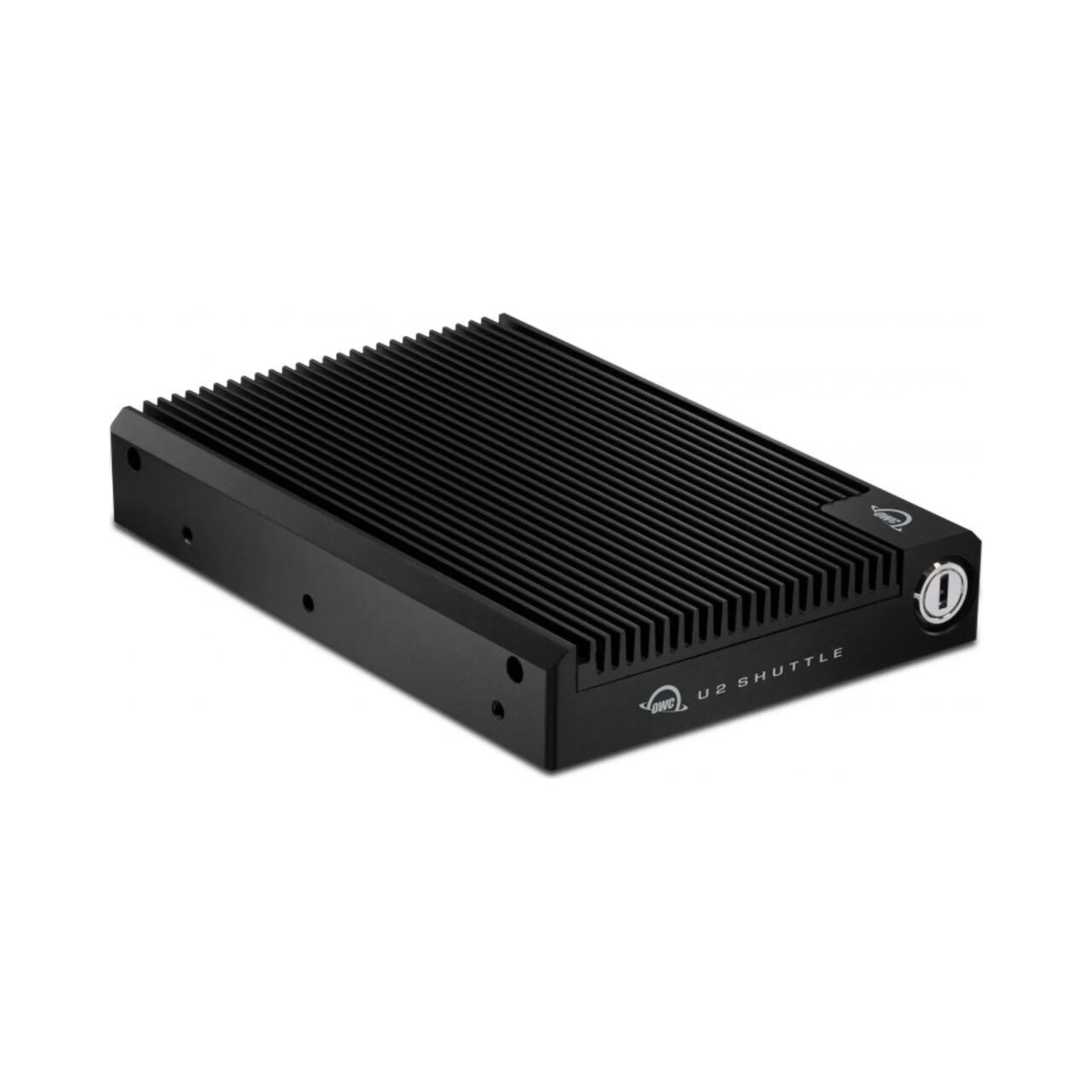

The OWC U2 Shuttle 0TB is a 3.5-inch U.2 storage carrier that combines up to four M.2 NVMe SSDs behind a single U.2 connection for high-performance workstation and server storage.
£ 118.95 | £ 142.74 inc VAT
Please Call Us For Availability Of This Item
The OWC U2 Shuttle 0TB turns a single 3.5-inch U.2 bay into a compact four-M.2 NVMe storage platform. It is designed for systems such as OWC ThunderBay Flex 8, Flex 1U4, Mercury Helios 3S with the U.2 interchange system, and compatible PCs or servers with U.2 support.
No M.2 NVMe SSDs fitted. Four M.2 2280 M-key slots connect through an ASMedia PCIe switch, allowing multiple NVMe SSDs to share the U.2 host connection.
The U.2 interface provides four upstream PCIe lanes. The internal switch provides two downstream lanes to each installed M.2 SSD, balancing compact capacity with high aggregate performance.
With suitable software such as OWC SoftRAID, the installed SSDs can be configured for RAID 0, RAID 1, RAID 4, RAID 5, RAID 10 or JBOD workflows depending on performance, capacity and resilience requirements.
The 3.5-inch U.2 form factor makes the Shuttle suitable for removable high-speed media, workstation storage and rackmount systems where multiple M.2 SSDs need to be consolidated into one serviceable carrier.
| Product | OWC U2 Shuttle |
| Manufacturer Part Number | U2SHUTTLE |
| Total Capacity | 0TB |
| Installed Storage | No M.2 NVMe SSDs fitted |
| SSD Slots | 4 x M.2 2280 M-key NVMe |
| Host Form Factor | 3.5-inch U.2 |
| Host Connector | U.2 / SFF-8639 |
| Host PCIe Interface | PCIe 3.0 x4 |
| PCIe Switch | ASMedia ASM2812X |
| Downstream Lanes | 2 PCIe lanes per installed M.2 SSD |
| RAID Support | RAID 0, 1, 4, 5, 10 and JBOD with suitable software |
| Warranty | 1-year OWC limited warranty |
