The ARC-8050T5U-4A is a 4-bay desktop RAID enclosure configured for SAS/SATA drives and dual Thunderbolt 5 connectivity.
It pairs a hardware RAID-on-chip controller and ECC-protected SDRAM cache with controller-level encryption and SED support for secure, high-performance storage.
Management is available via the front-panel LCD, in-band Thunderbolt tools or an out-of-band RJ-45 port for remote administration.
Original price was: £ 1,375.00.£ 1,029.95Current price is: £ 1,029.95. | £ 1,235.94 inc VAT
In Stock
We pride ourselves on knowing, selling and supporting Areca RAIDs & Controllers better than anyone else in the UK!
All our Areca RAIDs ship pre-configured & tested (RAID5 or RAID6, for Mac or PC). Please allow us 1-2 days to do this for you for free.
Seen a better price elsewhere? Let us know & we’ll do our best so you also benefit from our Areca knowledge, expertise & totally free after-sales support.
– The UK’s Areca RAID Experts!The ARC-8050T5U-4A is Areca's 4-bay desktop RAID enclosure configured for SAS/SATA drives and built for professional video and content workflows that require a compact Thunderbolt 5 storage target.
It combines a hardware RAID controller, ECC-protected SDRAM cache and dual Thunderbolt 5 ports with a full-size DisplayPort output to deliver managed, high-bandwidth storage for Mac and Windows hosts.
At the core is a Raid-on-Chip (ROC) storage controller with on-board SDRAM cache and ECC protection to offload parity and RAID computation from the host and to maintain throughput during rebuilds or heavy I/O.
The 4A variant provides SAS/SATA-only bays and supports a range of hardware RAID levels including 0, 1, 10, 3, 5, 6, Single Disk and JBOD to match performance and redundancy needs.

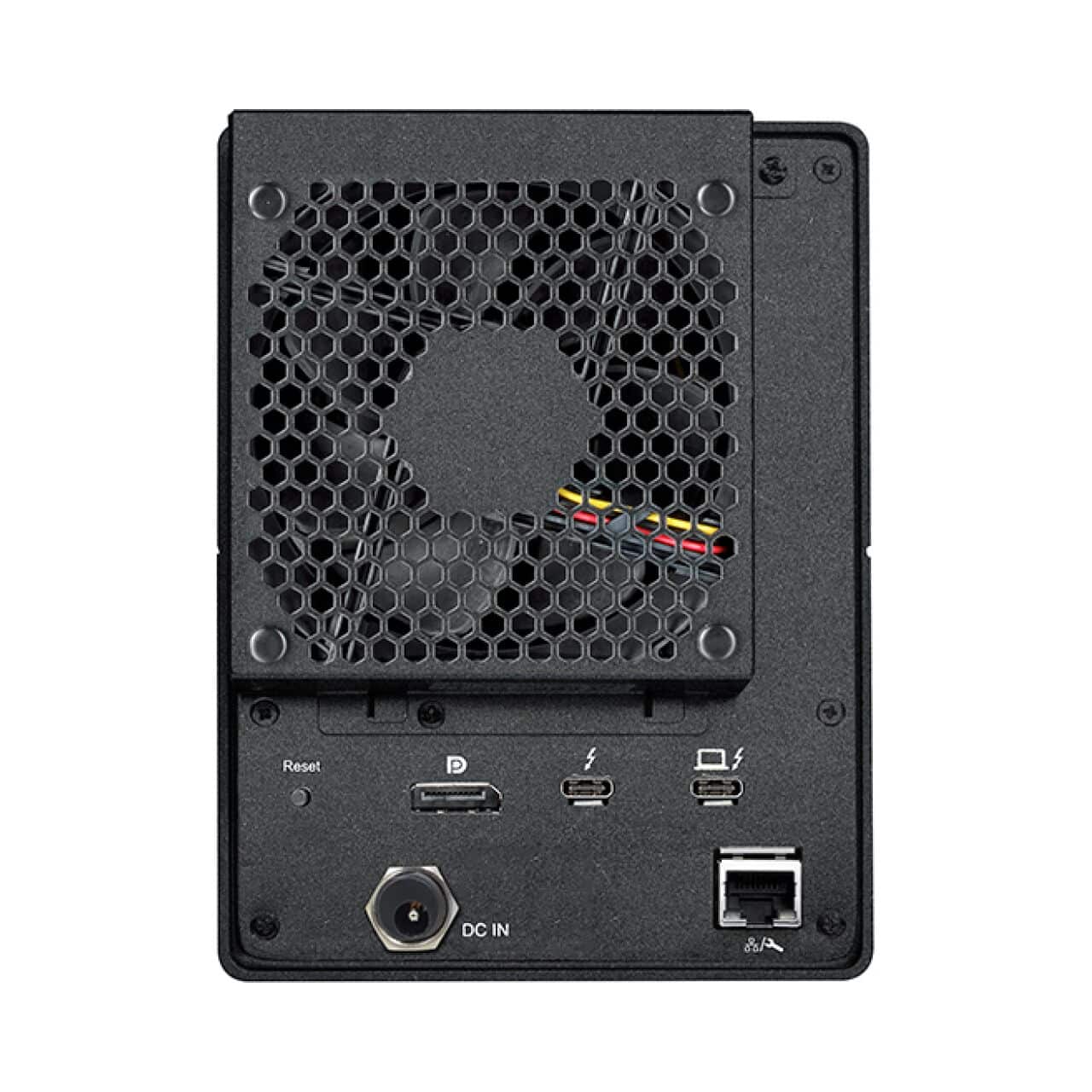

Two Thunderbolt 5 ports and one full-size DisplayPort are provided on the rear. Thunderbolt 5 delivers up to 80 Gbps bi-directional bandwidth and Bandwidth Boost up to 120 Gbps for display-heavy workflows, and the unit includes a 1m 120 Gbps active Thunderbolt 5 cable.
Controller-level hardware encryption is supported along with SED (self-encrypting drive) functionality; the controller supports 128- and 256-bit AES keys or password-based keys to protect data at rest.
Configuration and monitoring can be handled locally via the front-panel LCD or remotely using McRAID web manager and ArcSAP. The enclosure also provides an RJ-45 out-of-band management port so the unit can be managed without disturbing host access.
The ARC-8050T5U-4A uses intelligent fan control (1 x 2700rpm fan) to minimise acoustic impact while maintaining thermal performance and includes power On/Off controls that can mirror host power state for data integrity.
The desktop 4-bay chassis is compact and portable for a workstation environment, with dimensions and weight suited to studio desks and mobile content-creation setups.
The enclosure supports Thunderbolt 5 hosts (macOS 15.3 or above, Windows 11 (23H2) or above), Thunderbolt 4 and Thunderbolt 3 (Mac-only) hosts, and offers USB-C compatibility via USB 3.2 Gen 2 when connected to a USB-C port.
| Model | ARC-8050T5U-4A |
| Form Factor | Desktop 4-Bay |
| Connection | Thunderbolt 5 x 2 / Display Port x 1 |
| Host Interface | 2 x Thunderbolt 5 ports; 1 x Display Port |
| Storage Interface | T5U-4A => SAS/SATA |
| RAID Level | 0, 1, 10, 3, 5, 6, Single Disk, JBOD |
| Expansion Support | N/A |
| Cooling Fan | 1 x 2700rpm |
| Power Supply | 180W |
| Physical Dimensions (H x W x D) | 4.84 x 6.51 x 9.11 in (123 x 165.6 x 232 mm) |
| Weight | 8.0 lbs / 3.6 Kg |
| Sound Pressure Level | 37 dB |
| OS Support | Thunderbolt 5 Host: macOS 15.3 or above, Windows 11(23H2) or above Thunderbolt 4 Host: macOS 14.x or above, Windows 11 or above Thunderbolt 3 Host: macOS 15.0 or above USB: OS Independent |
| Computer Port Type | Works with any Thunderbolt 5 | Thunderbolt 4 | Thunderbolt 3 (Mac Only) | USB4 or USB 3.2 Gne 2 |
| Included Cable | 1m 120 Gbps active Thunderbolt™ 5 (USB-C) cable included |
| Controller | Raid-on-Chip (ROC) Storage Controller |
| On-board Cache | On-board SDRAM Cache with ECC Protection |
| Hardware Encryption | Controller-level hardware encryption; supports 128- and 256-bit encryption keys using AES (a key size of 128, or 256 bits), or password (a variable key size) |
| SED Support | SED (self-encrypting drives) function support |
| Power On/Off Controls | Intelligent power On/Off function for data integrity (power can mirror host computer power status) |
| Management Interfaces | Front-panel LCD; RJ-45 out-of-band management port; in-band Thunderbolt management via ArcHTTP; McRAID web manager and ArcSAP utilities |
| Video Output | Full sized DisplayPort 2.1 MF video output (supports dual 6K display setup) |
| Thunderbolt Daisy-chain | Thunderbolt 5 daisy-chaining allows connection of up to 10 devices |
| Advanced Features | Advanced configuration for video optimized performance settings; Hard drive firmware update all at once |
