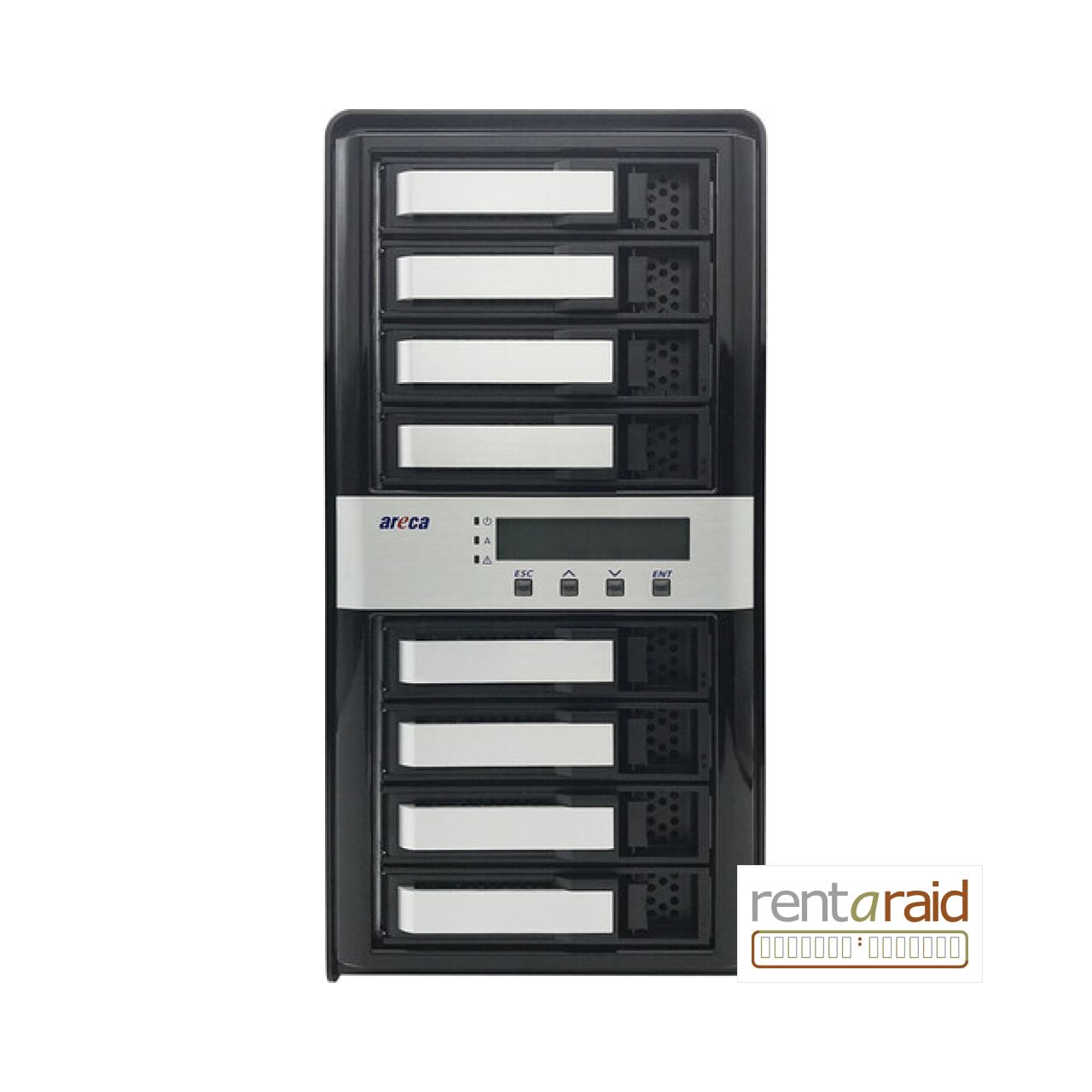

The Areca ARC-8050T5U-8E is an eight-bay professional desktop hardware RAID enclosure for compatible SAS and SATA hard drives or SSDs, supplied unpopulated so the drive type, capacity and RAID configuration can be selected for the intended workflow.
It combines dual Thunderbolt 5 / USB-C host connectivity with a 1.6GHz dual-core ARM A15 hardware RAID controller, 8GB DDR4-2666 ECC-protected cache and eight 12Gb/s SAS / 6Gb/s SATA drive channels.
Original price was: £ 2,300.00.£ 1,699.95Current price is: £ 1,699.95. | £ 2,039.94 inc VAT
In Stock
We pride ourselves on knowing, selling and supporting Areca RAIDs & Controllers better than anyone else in the UK!
All our Areca RAIDs ship pre-configured & tested (RAID5 or RAID6, for Mac or PC). Please allow us 1-2 days to do this for you for free.
Seen a better price elsewhere? Let us know & we’ll do our best so you also benefit from our Areca knowledge, expertise & totally free after-sales support.
– The UK’s Areca RAID Experts!The Areca ARC-8050T5U-8E is the eight-bay SAS/SATA member of Areca's ARC-8050T5U Thunderbolt 5 hardware RAID family. Supplied without drives, it gives professional users control over drive choice and RAID configuration.
Its 1.6GHz dual-core ARM A15 RAID-on-Chip controller and 8GB DDR4-2666 ECC-protected cache distinguish the 8E from smaller ARC-8050T5U models, while Thunderbolt 5 and USB-C 10Gb host compatibility make it suitable for modern Mac and Windows workstations.
The ARC-8050T5U-8E provides eight 12Gb/s SAS / 6Gb/s SATA drive channels for compatible 3.5-inch or 2.5-inch hard drives and SSDs. This enclosure-only configuration is supplied without drives, allowing capacity, performance and media type to be selected for the intended workflow.
The 8E provides eight drive channels supporting 12Gb/s SAS or 6Gb/s SATA devices. It is the SAS/SATA-only eight-bay model and should not be confused with the ARC-8050T5U-8N, which additionally supports U.2/U.3 NVMe drives.
A Broadcom SAS39xx dual-core ARM A15 RAID-on-Chip running at up to 1.6GHz handles RAID processing independently of the host CPU. The controller is paired with 8GB DDR4-2666 SDRAM cache with ECC protection and uses a PCIe Gen4 controller architecture.
Two Thunderbolt 5 ports provide up to 80Gb/s bidirectional Thunderbolt bandwidth. When connected to a compatible USB-only computer, the same USB-C connection operates using USB 3.2 Gen 2 at up to 10Gb/s. Thunderbolt 5 Bandwidth Boost can provide up to 120Gb/s for supported display-intensive workflows.
Supported modes include RAID 0, 1, 3, 5, 6, 10, 30, 50 and 60 together with Single Disk and JBOD, allowing the eight-drive set to be configured for performance, capacity, drive-failure protection or a suitable balance between them.
A full-size DisplayPort 2.1 output is provided alongside the Thunderbolt 5 ports. Compatible Thunderbolt peripherals can be daisy-chained from the RAID, with Areca supporting chains of up to 10 devices.
The array can be configured and monitored through the front-panel LCD, through the host connection or independently using the dedicated Gigabit Ethernet management port. Areca's McRAID browser interface and ArcSAP provide additional local and remote administration options. The Ethernet port is for RAID management rather than host storage connectivity.
Controller-based AES 128-bit and 256-bit hardware encryption is supported together with compatible self-encrypting drives. Additional RAID functions include drive-health monitoring, array verification, disk scrubbing, hot-spare support and online RAID migration.
The eight-bay desktop chassis uses two intelligently controlled 2700rpm cooling fans and a 300W internal power supply. Areca specifies approximately 37.4dB sound pressure for this chassis.
Rent a Raid can advise on suitable enterprise drives and RAID levels for the intended Mac or Windows workflow. Systems purchased with drives can also be configured and tested before dispatch.
Thunderbolt 5 host support is specified for macOS 15.3 or later and Windows 11 23H2 or later. Thunderbolt 4 is supported on macOS 14.x or later and Windows 11 or later; compatible Thunderbolt 3 Macs require macOS 15.0 or later. USB host operation is OS independent.
| Manufacturer | Areca Technology |
| Product | ARC-8050T5U-8E |
| Configuration | Unpopulated / no drives fitted |
| Raw Capacity | Dependent on drives installed |
| Form Factor | Desktop 8-Bay |
| Drive Bays | 8 |
| Supported Drive Types | Compatible SAS or SATA HDDs and SSDs |
| Storage Interface | SAS / SATA only |
| Drive Channels | 8 x 12Gb/s SAS or 6Gb/s SATA |
| NVMe Support | No — ARC-8050T5U-8E is the SAS/SATA-only eight-bay model |
| Host / Peripheral Ports | 2 x Thunderbolt 5 USB-C |
| Thunderbolt 5 Bandwidth | Up to 80Gb/s bidirectional |
| Bandwidth Boost | Up to 120Gb/s for supported display workloads |
| USB-C Compatibility | USB 3.2 Gen 2 / USB-C 10Gb |
| Display Output | 1 x full-size DisplayPort 2.1 |
| RAID Controller | Broadcom SAS39xx dual-core ARM A15 ROC, up to 1.6GHz |
| Controller Architecture | PCIe Gen4 RAID-on-Chip |
| Cache Memory | 8GB DDR4-2666 SDRAM with ECC protection |
| RAID Levels | RAID 0, 1, 3, 5, 6, 10, 30, 50, 60 |
| Additional Storage Modes | Single Disk, JBOD |
| Hardware Encryption | Controller-based AES 128-bit / 256-bit |
| SED Support | Supported with compatible self-encrypting drives |
| Management Interfaces | Front-panel LCD, in-band management, dedicated Gigabit Ethernet out-of-band management |
| Management Software | McRAID browser manager, ArcSAP |
| Expansion Support | None |
| Cooling | 2 x 2700rpm intelligent cooling fans |
| Sound Pressure Level | Approximately 37.4dB |
| Power Supply | 300W internal power supply |
| Dimensions | 146 x 302 x 290mm (5.7 x 11.8 x 11.4in) |
| Enclosure Weight | Approximately 6.8kg / 14.9lb |
| Thunderbolt 5 OS Support | macOS 15.3 or later; Windows 11 23H2 or later |
| Thunderbolt 4 OS Support | macOS 14.x or later; Windows 11 or later |
| Thunderbolt 3 Support | Compatible Macs; macOS 15.0 or later |
| USB Host Support | OS independent |
| Included Data Cable | 1m active 120Gb/s Thunderbolt 5 USB-C cable |
