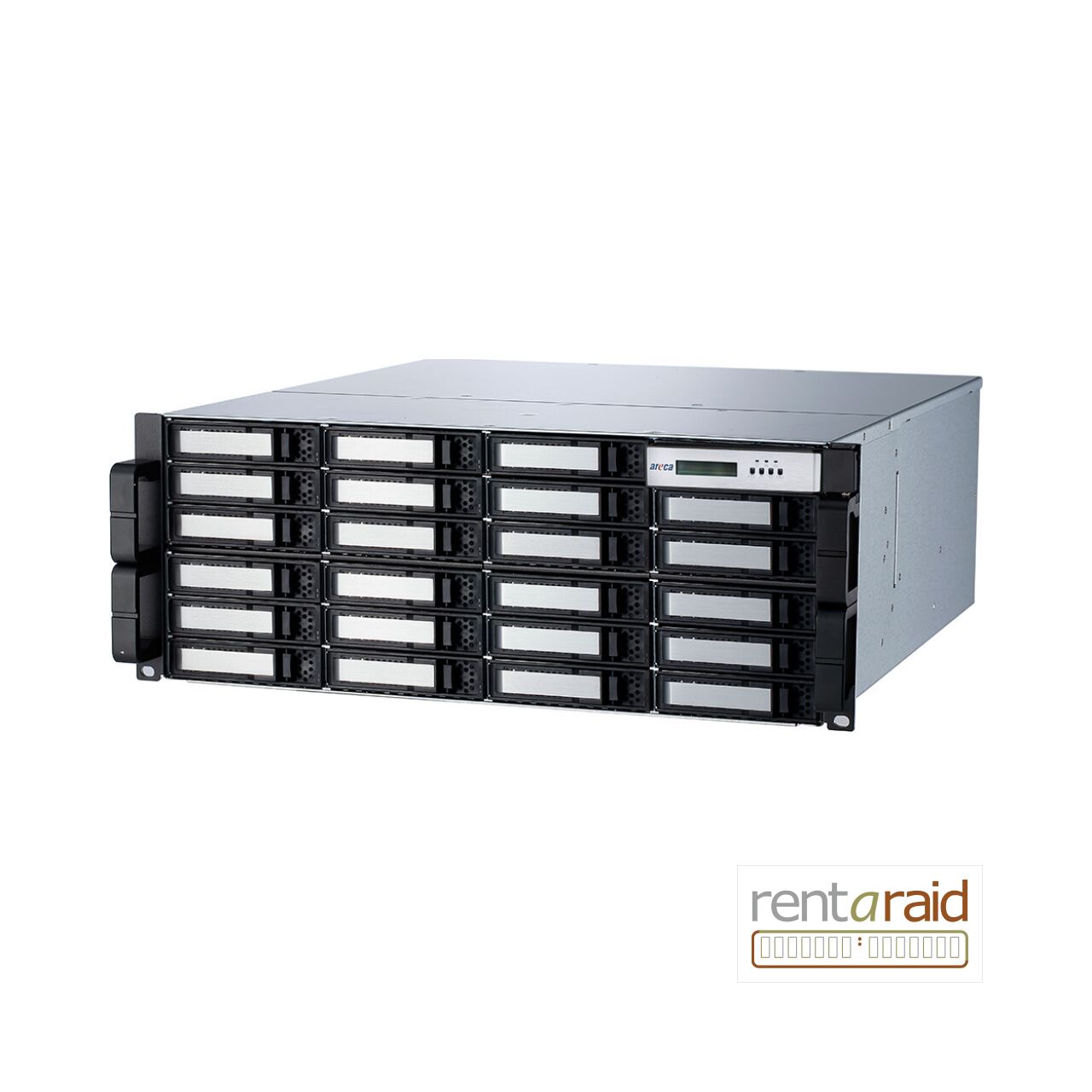

Areca ARC-8050T5U-24R – Unpopulated
(NEW THUNDERBOLT 5 VERSION)
We Are The UK’s No.1 Areca Reseller!
Have Any Questions? We’re Here To Help.
Areca ARC-8050T5U-24R – Unpopulated
(NEW THUNDERBOLT 5 VERSION)
Really Fast, Expandable 24-Bay Thunderbolt 5 & USB-C 4u Rackmount Hardware RAID Array with Display Port (No Drives Fitted - 3yr Warranty)
The Areca ARC-8050T5U-24R is a 4U, 24-bay Thunderbolt 5 rackmount RAID storage system aimed at high-resolution video and enterprise storage workflows.
It combines a hardware RAID controller, 8GB ECC cache and dual Thunderbolt 5 ports for low-latency, high-bandwidth connectivity.
The unit includes controller-level encryption, SED support, redundant hot-swappable power supplies and options for cache backup.
- 4U 24-bay 19-inch rackmount RAID enclosure.
- Dual Thunderbolt 5 ports and DisplayPort with included 1m active Thunderbolt 5 cable.
- Dual-core ARM A15 ROC with 8GB DDR4-2666 ECC SDRAM.
Category: Rackmount Hard Drives & RAIDs
Brand: Areca Technology
Original price was: £ 5,450.00.£ 4,499.95Current price is: £ 4,499.95. | £ 5,399.94 inc VAT
Please Call Us For Availability Of This Item
){kind=link}
We’re the UK’s #1 Areca Reseller!
We pride ourselves on knowing, selling and supporting Areca RAIDs & Controllers better than anyone else in the UK!
All our Areca RAIDs ship pre-configured & tested (RAID5 or RAID6, for Mac or PC). Please allow us 1-2 days to do this for you for free.
Seen a better price elsewhere? Let us know & we’ll do our best so you also benefit from our Areca knowledge, expertise & totally free after-sales support.
– The UK’s Areca RAID Experts!
Areca ARC-8050T5U-24R – Unpopulated (NEW THUNDERBOLT 5 VERSION) Product Overview
The Areca ARC-8050T5U-24R is a 4U, 24-bay Thunderbolt 5 rackmount RAID storage system designed for high-resolution media production and enterprise-class storage use. It pairs a hardware RAID controller and ECC-protected cache with Thunderbolt 5 connectivity for low-latency, high-bandwidth workflows.
This model is built to handle sustained multi-stream HD and dual 6K workflows while offering controller-level encryption, SED support and options for cache backup to protect in-flight data.
Performance Architecture
At its core the ARC-8050T5U-24R uses a dual-core ARM A15 1.6GHz RAID-on-Chip (ROC) and 8GB DDR4-2666 SDRAM with ECC protection to deliver true hardware RAID processing and high sustained throughput for demanding workloads.
Connectivity
Connection options include 2 x Thunderbolt 5 ports and 1 x DisplayPort. The Thunderbolt 5 interface provides the highest-capacity USB-C link available on this product and the unit ships with a 1m active Thunderbolt™ 5 (USB-C) cable.
Drive Support and Expansion
The chassis accepts 24 x 3.5"/2.5" drives (12Gb/s SAS or 6Gb/s SATA) and offers an SFF-8644 expansion port to attach additional SAS expanders for larger deployments.
RAID and Data Protection
Hardware RAID is provided with support for RAID 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD. Features include online migration, global/local hot spares and background initialization for availability.
Encryption and SED Support
Controller-based hardware encryption secures stored data without impacting device performance, and the unit supports self-encrypting drives (SEDs) for drive-level protection.
Management
Management can be performed from the front-panel LCD, via in-band Thunderbolt using ArcHTTP/ArcSAP utilities, or out-of-band over the RJ-45 Ethernet management port, giving flexible local and remote control options.
Power, Cooling and Reliability
The ARC-8050T5U-24R uses redundant, hot-swappable 550W x2 power supplies with PFC and 80Plus Platinum compliance and an adaptive cooling system to balance noise and thermal performance; a cache backup module (CBM) is supported to protect cached writes during power events.
Operational Environment and Compliance
Designed to operate between 0 °C and 35 °C and 10% to 85% non-condensing humidity, the system meets CE and FCC regulatory certifications and ships with a 3-year warranty.
Physical Details
The 24-bay chassis is a 4U 19-inch rackmount unit. Dimensions without handles are 6.9 x 17.5 x 17.6 in (176.4 x 445 x 448 mm) and with handles 6.9 x 22.9 x 19.0 in (176.4 x 482 x 484 mm); weight (without drives) is 75 lbs / 34Kg.
Areca ARC-8050T5U-24R – Unpopulated (NEW THUNDERBOLT 5 VERSION) Key Features
- 24-bay 19-inch rackmount chassis in a 4U form factor specifically for the ARC-8050T5U-24R model.
- Dual Thunderbolt 5 host ports plus one DisplayPort for direct connection to Thunderbolt-enabled hosts and displays.
- High-performance Broadcom dual-core ARM A15 1.6GHz RAID-on-Chip (ROC) for hardware RAID processing.
- 8GB DDR4-2666 SDRAM with ECC protection as on-board cache for sustained multi-stream video and high-load workloads.
- Support for up to 24 x 12Gb/s SAS or 6Gb/s SATA 3.5"/2.5" HDDs or SSDs for flexible capacity and media choices.
- True hardware RAID with support for RAID 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD.
- Controller-level hardware encryption plus SED drive management to protect data without impacting storage performance.
- Included 1m active Thunderbolt™ 5 (USB-C) cable to ensure full Thunderbolt 5 link performance out of the box.
- Support for a cache backup module (CBM) option to protect cached data in the event of power loss.
- Redundant, hot-swappable dual 550W power supplies with PFC and 80Plus Platinum compliance for continuous operation.
- Intelligent Power On/Off controls to synchronise storage power with host computer state for data integrity.
- Multiple management paths: front-panel LCD, in-band Thunderbolt (ArcHTTP/ArcSAP) and out-of-band Ethernet for flexible administration.
- Expansion via one SFF-8644 port to attach SAS expanders for larger storage pools.
- Designed for professional video workflows, supporting simultaneous 6K in/output and video-optimised configuration settings.
Areca ARC-8050T5U-24R – Unpopulated (NEW THUNDERBOLT 5 VERSION) Technical Specifications
| Model | ARC-8050T5U-24R |
| Form Factor | 4U-24 bays 19-inch |
| Drive Bays | 24 x 3.5”/2.5” 12Gb/s SAS or 6Gb/s SATA HDDs/SSDs |
| Connection | Thunderbolt 5 x 2 / Display Port x 1 |
| Host Interface | 2 x Thunderbolt 5 ports |
| Display Port | 1 x Display Port |
| I/O Processor | Dual Core ARM A15 1.6GHz ROC |
| On-Board Cache | 8GB DDR4-2666 SDRAM |
| SDRAM Type | DDR4-2666 |
| RAID Levels | 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD |
| Expansion Support | One SFF-8644 expansion up to 512 HDDs |
| Computer Port Type | Works with any Thunderbolt 5 | Thunderbolt 4 | Thunderbolt 3 (Mac Only) | USB4 or USB 3.2 Gne 2 |
| OS Support | Thunderbolt 5 Host: macOS 15.3 or above, Windows 11(23H2) or above; Thunderbolt 4 Host: macOS 14.x or above, Windows 11 or above; Thunderbolt 3 Host: macOS 15.0 or above; USB: OS Independent |
| Cooling Fan | Four cooling fans |
| Power Supply | Redundant and hot-swappable 550W x2 with PFC and energy-efficient 80Plus Platinum Compliant. Supports 100–240VAC input at 47 and 63Hz frequency |
| Power Dissipation | Typical: 25.3W |
| Operating Temperature | 0 °C to 35 °C |
| Operating Humidity | 10% to 85%, non-condensing |
| Regulatory Certification | CE, FCC |
| Physical Dimensions (Without handles H x W x D) | 6.9 x 17.5 x 17.6 in (176.4 x 445 x 448 mm) |
| Physical Dimensions (With handles H x W x D) | 6.9 x 22.9 x 19.0 in (176.4 x 482 x 484 mm) |
| Weight (Without drives) | 75 lbs / 34Kg |
| Sound Pressure Level | 40.3 dB |
| Warranty | 3 years |
| Cache Protection | ARC-1886-CBM |
| Included Cable | 1m 120Gb/s active Thunderbolt™ 5 (USB-C) cable included |
| Controller Encryption | Controller-level hardware encryption; supports 128- and 256-bit AES keys or password |
| SED Support | SED (self-encrypting drives) function support |
