Areca ARC-8050T3U-6 – 48TB

The Areca ARC-8050T3U-6 is a desktop RAID storage enclosure engineered for professional media production environments where high-speed data access and reliable data protection are critical requirements.

This six-bay system combines enterprise-grade hardware RAID capabilities with modern connectivity standards, making it suitable for video editors, colorists, motion graphics artists, and other professionals working with large media files that demand consistent, high-bandwidth access.

Connectivity and Interface Architecture

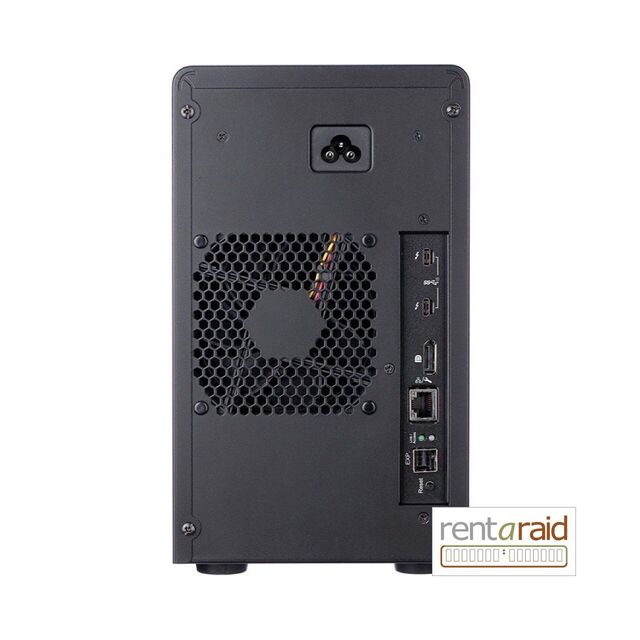

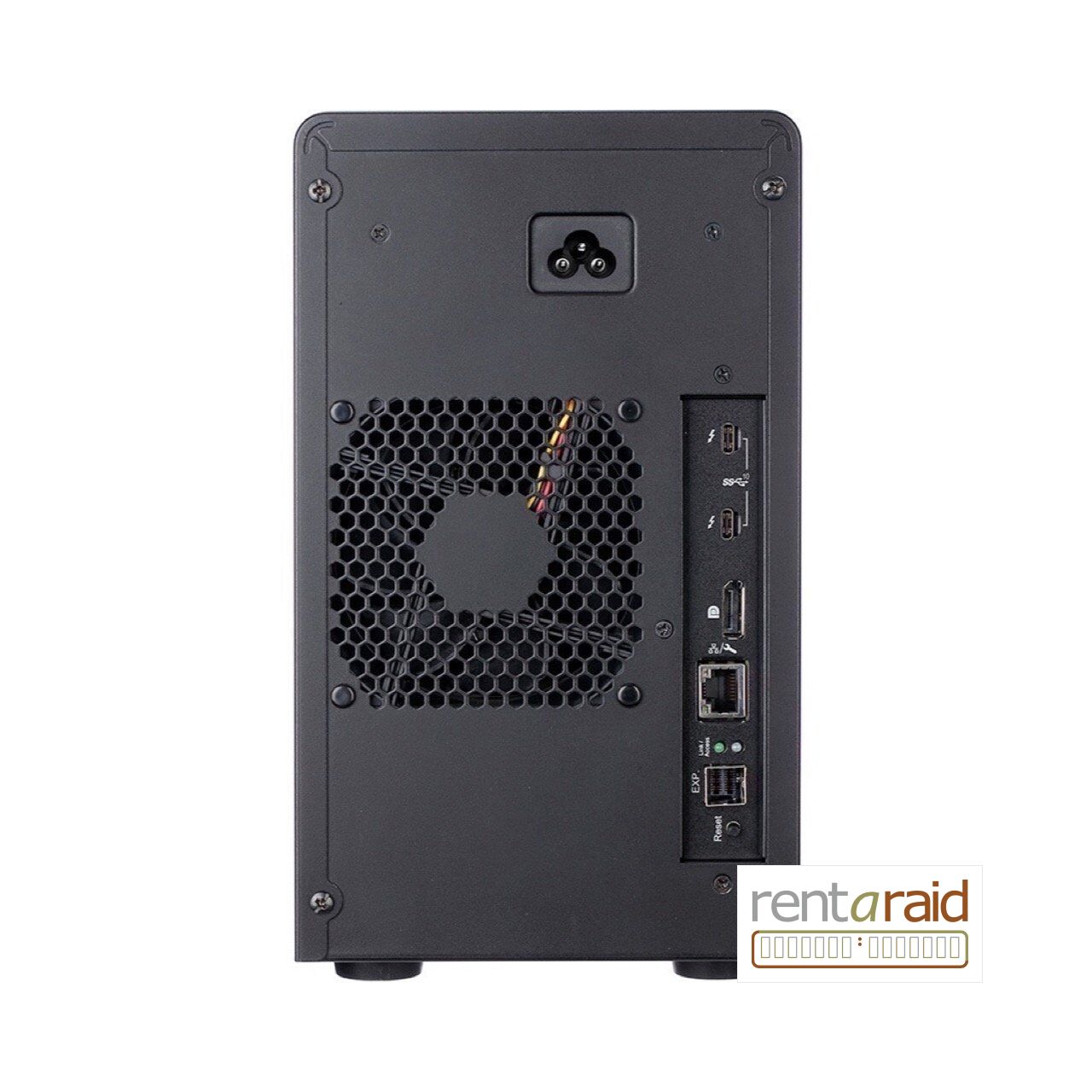

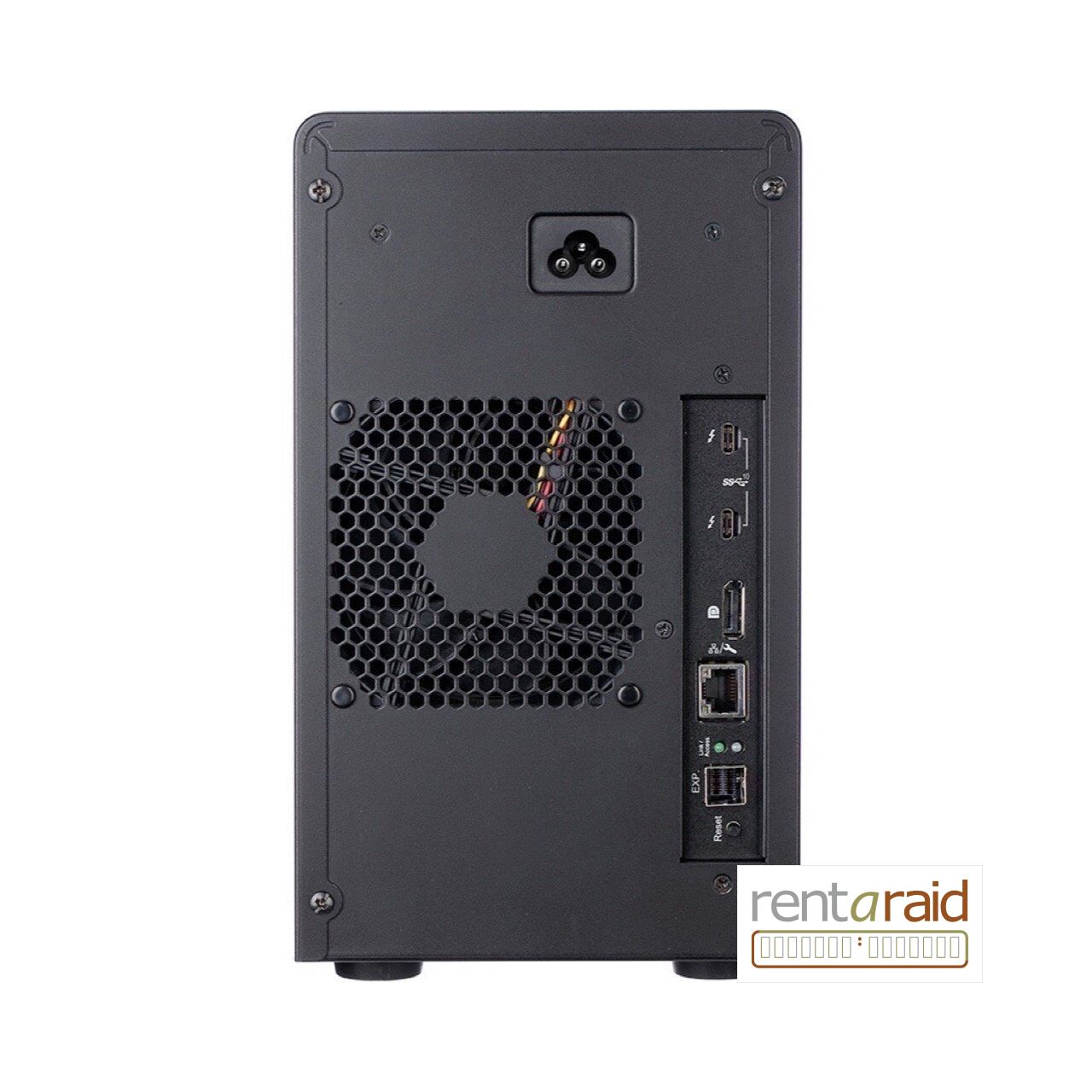

The ARC-8050T3U-6 features dual Thunderbolt 3 ports operating at 40Gbps, providing direct connection to Thunderbolt 3-equipped computers including Mac and Windows systems.

An integrated USB device controller allows the Thunderbolt 3 port to operate in USB 3.2 Gen 2 mode when connected to USB-C computer ports, ensuring compatibility with systems lacking native Thunderbolt 3 support.

A dedicated DisplayPort 1.4 output enables connection of external displays for real-time monitoring of array status and performance metrics, supporting up to 8K 30Hz video output.

The second Thunderbolt 3 port supports daisy-chaining of up to six additional Thunderbolt 3 peripherals, allowing expansion of the storage ecosystem without consuming additional computer ports.

Hardware RAID Controller and Processing

At the core of the ARC-8050T3U-6 is a dual-core 1.2 GHz Broadcom SAS ROC (RAID-on-Chip) processor that handles all RAID operations independently from the host computer's CPU.

This dedicated hardware RAID architecture eliminates CPU overhead associated with software RAID implementations, maintaining consistent system performance during intensive read/write operations and array rebuilds.

The controller includes 2GB of DDR3-1866 SDRAM with ECC protection, providing high-speed cache memory for optimizing data transfer patterns and improving overall throughput.

Drive Configuration and Capacity

The unit accommodates six 3.5-inch or 2.5-inch drives supporting 12Gb/s SAS or 6Gb/s SATA protocols, with the standard configuration including six 8TB enterprise-class 7200 RPM SATA drives.

Alternative configurations are available with 10TB drives (60TB total capacity) or other capacity combinations to match specific workflow requirements.

The system supports both HDD and SSD installations, allowing users to optimize for either capacity or performance depending on their primary use case.

RAID Levels and Data Protection

The ARC-8050T3U-6 supports ten distinct RAID configurations: RAID 0 (striping), RAID 1 (mirroring), RAID 10 (striped mirrors), RAID 3 (striping with dedicated parity), RAID 5 (striping with distributed parity), RAID 6 (dual-parity striping), RAID 30, RAID 50, RAID 60, single-disk mode, and JBOD (Just a Bunch of Disks).

This flexibility allows users to balance performance, capacity, and fault tolerance according to their specific requirements, from maximum performance (RAID 0) to maximum redundancy (RAID 6 with dual-parity protection).

4K Workflow Optimization

The system is specifically engineered to support simultaneous 4K input and output operations, with the 40Gbps Thunderbolt 3 bandwidth providing sufficient throughput for real-time 4K video streaming at high frame rates and bit depths.

The combination of high-speed cache memory and dedicated RAID processor ensures consistent performance during demanding 4K editing, color grading, and effects rendering workflows without introducing latency or dropped frames.

Thermal Management and Power

The enclosure features dual 2700 RPM cooling fans that maintain optimal operating temperatures during sustained high-performance operations, with intake and exhaust design optimized for efficient heat dissipation.

A 180W power supply provides sufficient capacity for the six-drive configuration with headroom for peak power demands during simultaneous drive operations.

Configuration and Management

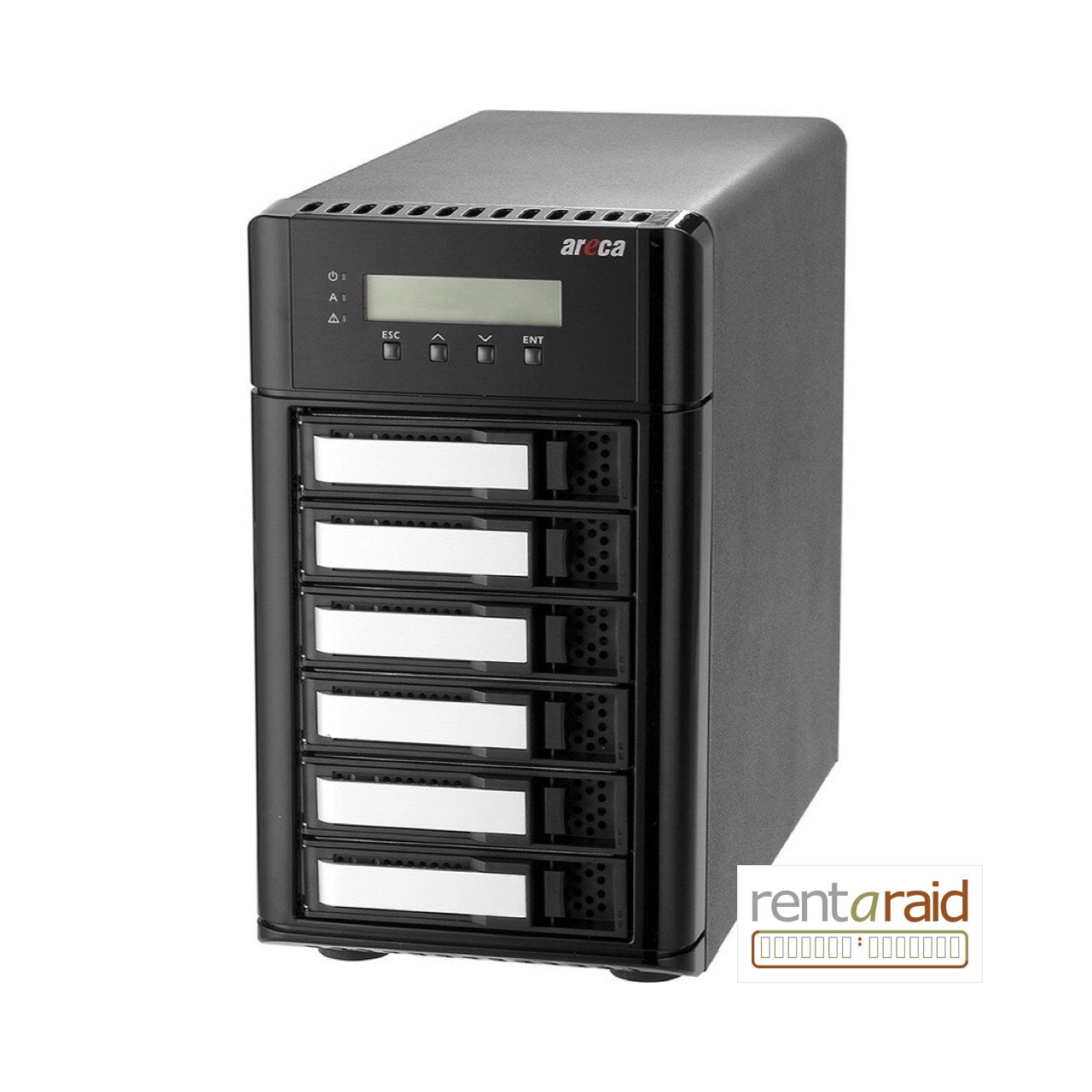

The ARC-8050T3U-6 can be configured and monitored through multiple interfaces: the Thunderbolt connection, LAN port, or integrated LCD display panel on the front of the unit.

This multi-interface approach allows users to manage the array directly from the device itself or remotely through network connectivity, providing flexibility in deployment scenarios.

Compatibility and Operating System Support

The system supports macOS 10.12 or later and Windows 8/10 or later when connected via Thunderbolt 3, with full compatibility for Apple M1 silicon-based Macs.

When operating in USB 3.2 Gen 2 mode, the device is OS-independent, functioning with any operating system that supports USB mass storage protocols.
