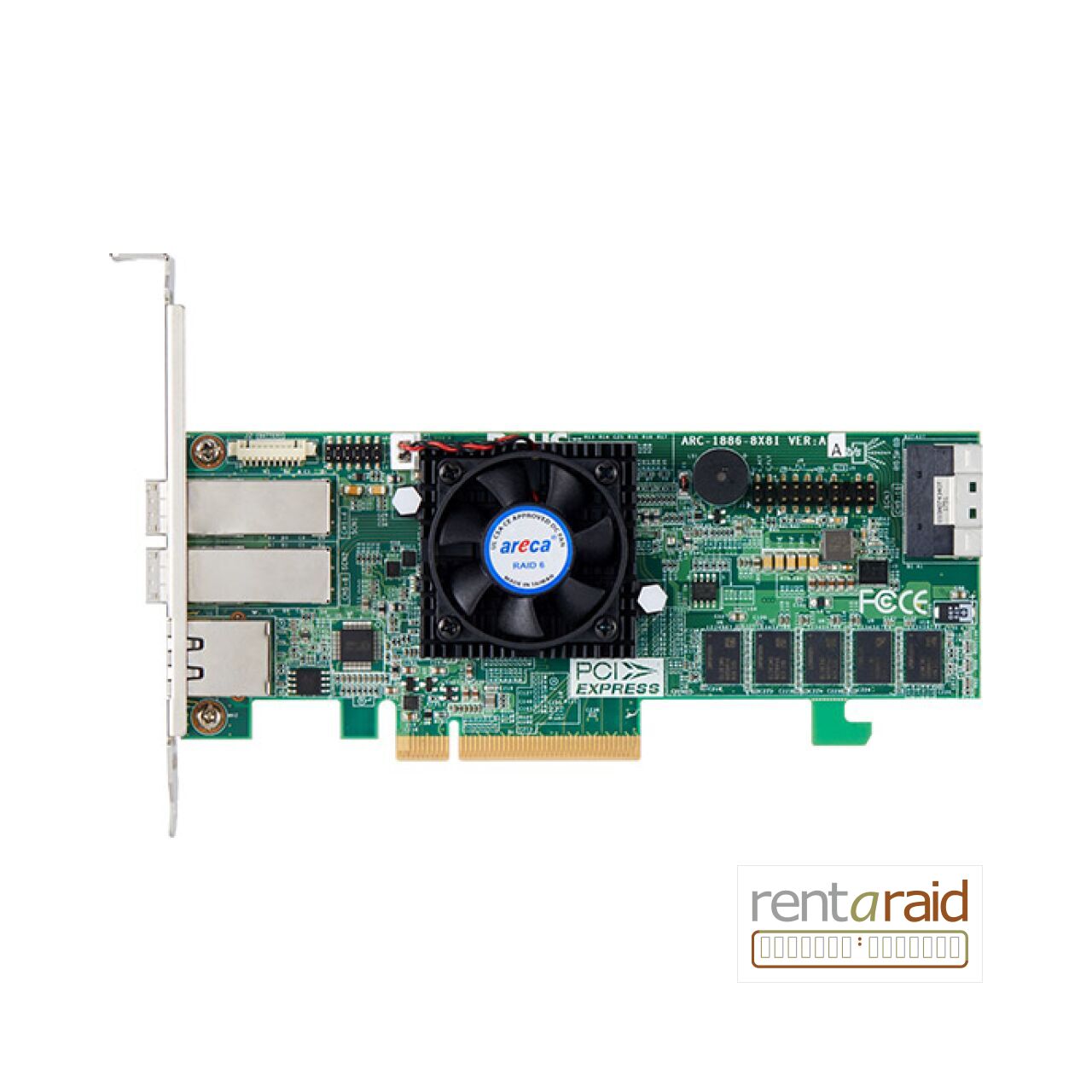

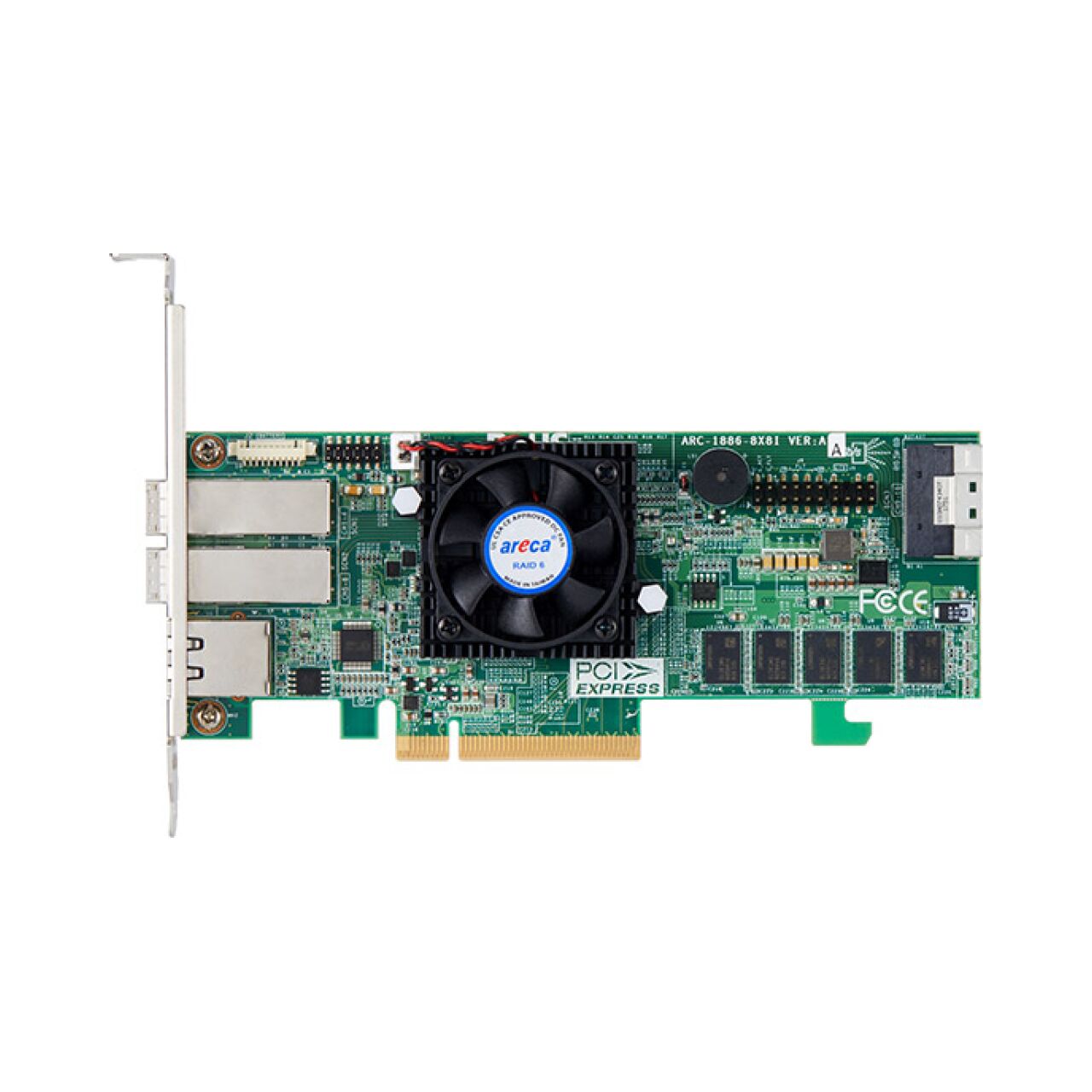

Areca ARC-1886-8X8I
Areca ARC-1886-8X8I
PCIe Gen 4.0 Tri-Mode RAID Adapter With 8 Internal And 8 External Ports
The Areca ARC-1886-8X8I is an 8-port PCIe Gen 4.0 tri-mode RAID adapter with 8 internal and 8 external ports for mixed SAS, SATA and NVMe storage.
It features a Tri-Mode Dual Core ARM A15 1.6GHz ROC and 8GB on-board DDR4-2666 SDRAM with ECC protection to accelerate RAID processing and buffering.
- Tri-mode ports supporting 12Gb/s SAS, 6Gb/s & 3Gb/s SATA and Gen 4.0 PCIe (NVMe).
- Supports up to 512 SAS/SATA drives with expanders and up to 32 NVMe drives through PCIe switches.
- Hardware RAID levels 0, 1, 3, 5, 6, 10, 30, 50, 60 and JBOD with advanced cache and migration features.
Category: Tri-Mode RAID PCIe Cards
Brand: Areca Technology
Original price was: £ 1,301.89.£ 1,074.95Current price is: £ 1,074.95. | £ 1,289.94 inc VAT
Please Call Us For Availability Of This Item
We’re the UK’s #1 Areca Reseller!
We pride ourselves on knowing, selling and supporting Areca RAIDs & Controllers better than anyone else in the UK!
All our Areca RAIDs ship pre-configured & tested (RAID5 or RAID6, for Mac or PC). Please allow us 1-2 days to do this for you for free.
Seen a better price elsewhere? Let us know & we’ll do our best so you also benefit from our Areca knowledge, expertise & totally free after-sales support.
– The UK’s Areca RAID Experts!
Areca ARC-1886-8X8I Product Overview
The Areca ARC-1886-8X8I is a PCIe Gen 4.0 tri-mode RAID adapter designed for mixed SAS/SATA/NVMe storage environments that require both protocol flexibility and enterprise-grade data protection.
Built around a Tri-Mode Dual Core ARM A15 1.6GHz ROC and 8GB of on-board DDR4-2666 SDRAM with ECC protection, the ARC-1886-8X8I provides multi-protocol connectivity and hardware RAID acceleration.
Performance
The adapter uses an 8-Lane PCI Express® 4.0 host interface and a Tri-Mode Dual Core ARM A15 1.6GHz ROC to deliver high throughput, with up to 12Gb/s SAS/SATA/Gen 4.0 PCIe (NVMe) data transfer rate per port.
Connectivity
The Areca ARC-1886-8X8I offers 8 x internal and 8 x external ports exposed via 1 x SFF-8654 [x8] and 2 x SFF-8644 [x4] drive connectors, and uses an SFF-9402 compliant connector pin-out.
Drive Support
The adapter supports up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs when using 12Gb/s SAS expanders, and supports up to 32 NVMe drives through the PCIe switches.
RAID And Data Protection
Supported RAID levels include 0, 1, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD; features include RAID 1 multi-mirroring and mirrored pass-through disk, configurable stripe size up to 1MB, write-through/write-back cache modes and controller-level hardware encryption and self-encryption drive management.
Cache And Backup
The card includes 8GB on-board DDR4-2666 SDRAM with ECC protection and supports an optional cache backup module (ARC-1886-CBM) for SuperCap-backed cache protection.
Management And Compatibility
Management is available through McRAID Storage Manager, McRAID Utility, McBIOS Configuration Utility, a command-line interface, API code support and a CIM provider for VMware; host-interface modes include NVMe native drivers and Areca legacy drivers for Windows, multiple Linux distributions, FreeBSD, macOS and VMware ESXi.
Environmental And Power
The adapter operates from 0 °C to 60 °C at 10% to 85% non-condensing humidity and has a power consumption of approximately 12 Watts.
Cabling And Monitoring
The ARC-1886-8X8I is configured with x8 SFF-8654 internal connectors and supports a range of fan-out cabling options; monitoring and notification features include global HDD activity/fault connector, individual fault connector, LCD/I²C connector and alarm buzzer, SNMP and SMTP.
Areca ARC-1886-8X8I Key Features
- Provides PCIe Gen 4.0 host connectivity via an 8-Lane PCI Express® 4.0 interface for high-bandwidth server deployments.
- Tri-mode ports support 12Gb/s SAS, 6Gb/s and 3Gb/s SATA and Gen 4.0 PCIe (NVMe) for flexible mixed-drive configurations.
- Equipped with 8GB on-board DDR4-2666 SDRAM with ECC protection to buffer I/O and improve transaction performance.
- Includes a Tri-Mode Dual Core ARM A15 1.6GHz ROC to manage RAID and multi-protocol traffic on the adapter.
- Offers 8 x internal and 8 x external drive ports with 1 x SFF-8654 [x8] and 2 x SFF-8644 [x4] connectors for varied backplane and direct-attach topologies.
- Supports up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs using 12Gb/s SAS expanders and up to 32 NVMe drives through the PCIe switches.
- Delivers hardware RAID functionality across levels 0, 1, 3, 5, 6, 10, 30, 50 and 60, plus Single Disk or JBOD and advanced features such as multi-mirroring and mirrored pass-through disk.
- Provides cache management including write-through and write-back modes, configurable stripe size up to 1MB and read/write cache allocation by policy.
- Supports data-protection and availability features: redundant flash image, global and dedicated hot spare, online RAID level/stripe size migration, online capacity expansion and background initialization.
- Integrates enclosure management (UBM, SES-2, SMP and SGPIO), monitoring and notification including SNMP and SMTP and connectors for global and individual fault indicators.
Areca ARC-1886-8X8I Technical Specifications
| Model | Areca ARC-1886-8X8I |
| Series | ARC-1886 series |
| RAID-On-Chip Controller | Tri-Mode Dual Core ARM A15 1.6GHz ROC |
| Host Bus Interface | 8-Lane PCI Express® 4.0 |
| Cache Memory | 8GB on-board DDR4-2666 SDRAM with ECC Protection |
| Cache Protection | ARC-1886-CBM |
| Ports | 8 x internal; 8 x external |
| Drive Connectors | 1 x SFF-8654 [x8]; 2 x SFF-8644 [x4] |
| Data Transfer Rate | Up to 12Gb/s SAS/SATA/Gen 4.0 PCIe (NVMe) per port |
| Drive Support (SAS/SATA) | Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs, using 12Gb/s SAS expander |
| Drive Support (NVMe) | Up to 32 NVMe drives through the PCIe switches |
| RAID Levels | 0, 1, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD |
| RAID Features | Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk; Multiple RAID 0 and RAID 10(1E) support (RAID 00 and RAID100); Multiple RAID selection; Configurable stripe size up to 1MB; Write-through or write-back cache support; Support read/write cache allocation by policy; Support HDD firmware update; Online array roaming; Online RAID level/stripe size migration; Online capacity expansion and RAID level migration simultaneously; Instant availability and background initialization; Support global and dedicated hot spare; Automatic drive insertion/removal detection and rebuilding; Support for native 4K and 512 byte sector SAS and SATA devices; Support UNMAP command; S.M.A.R.T. support; Multiple pairs SSD/HDD disk clone function; SSD automatic monitor clone (AMC); Controller based hardware encryption function; SED function support |
| Enclosure Management | UBM, SES-2, SMP and SGPIO enclosure management |
| Connector Compliance | SFF-9402 compliant connector pin-out |
| Support For Tape Devices | Support for SAS tape devices and transport layer retries (TLR) for error handling |
| Management Software | McRAID Storage Manager; McRAID Utility; McBIOS Configuration Utility; Command-line interface; API code support; CIM provider for VMware; Firmware built-in EFI Shell |
| Monitoring / Notification | Global HDD activity/fault connector; individual fault connector; LCD/I²C connector and alarm buzzer; SNMP; SMTP |
| Physical Dimensions (Low Profile) | 167.65(L) x 64.4(H) mm |
| Power Consumption | Approximately 12 Watts |
| Operating Temperature | 0 °C to 60 °C |
| Operating Humidity | 10% to 85%, non-condensing |
| Availability / Reliability | Redundant flash image for adapter availability |
| Additional Features | Support optional cache backup module (CBM) protection using SuperCap; Support NTP protocol synchronize RAID adapter clock over the onboard Ethernet port; Support intelligent power management to save energy and extend service life; Controller level hardware encryption and self-encryption drive management |
