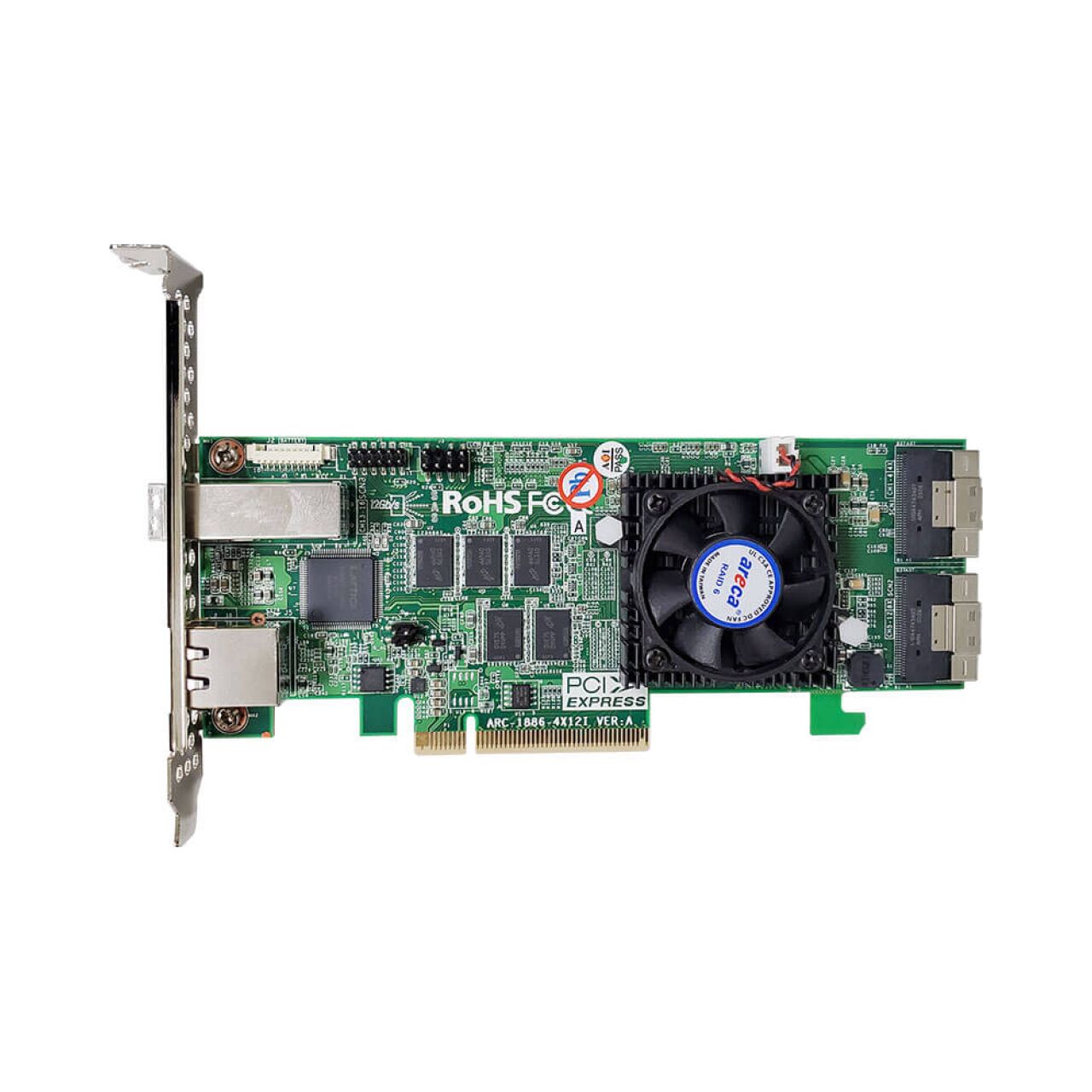

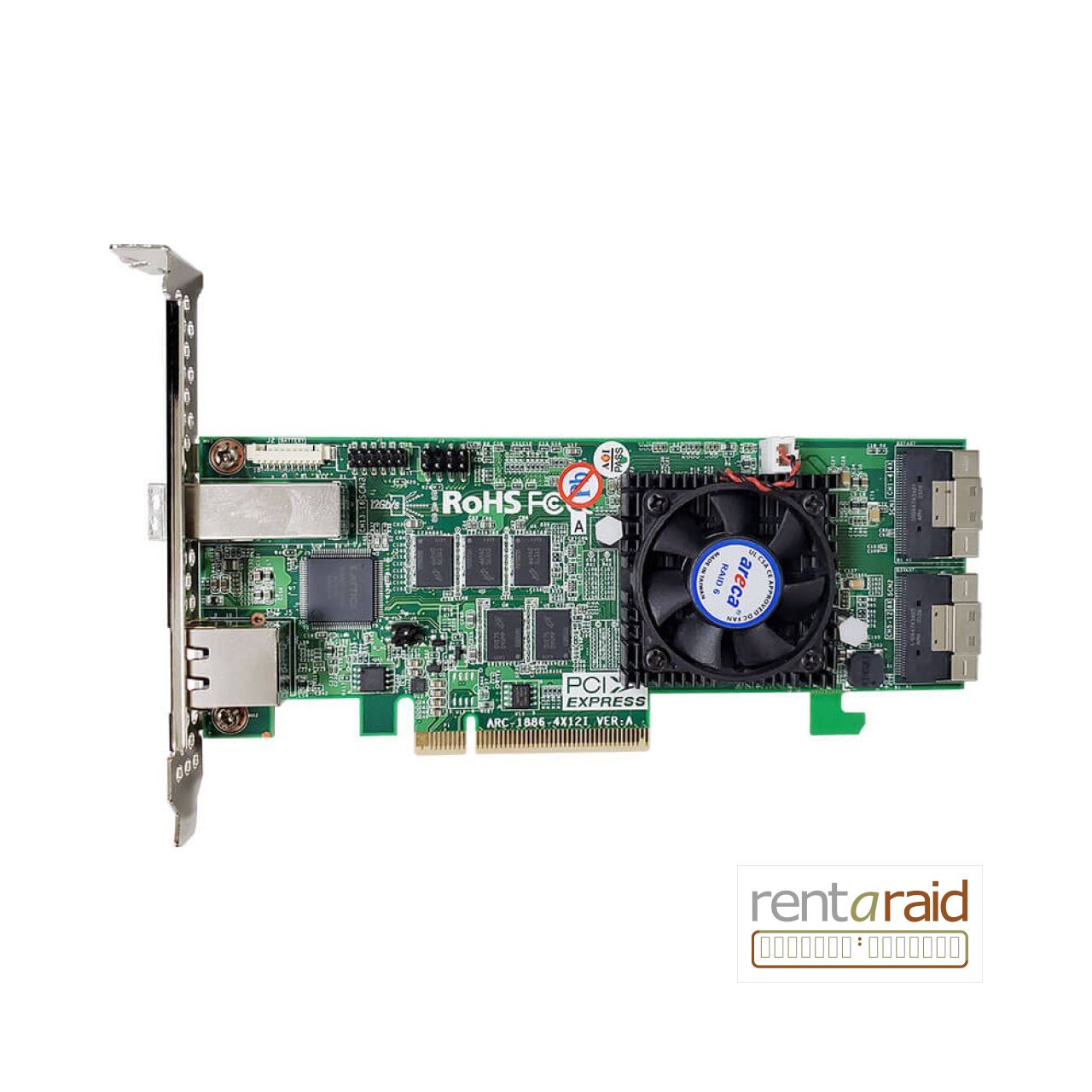

Areca ARC-1886-4X12I
Areca ARC-1886-4X12I
PCIe Gen 4.0 Tri-Mode RAID Adapter With 12 Internal And 4 External Ports
The Areca ARC-1886-4X12I is a PCIe Gen 4.0 tri-mode RAID adapter configured with 12 internal and 4 external ports for mixed SAS/SATA and NVMe storage.
It features a Tri-Mode Dual Core ARM A15 1.6GHz ROC, 8GB DDR4-2666 SDRAM with ECC protection and an 8-lane PCI Express® 4.0 host interface.
The adapter supports up to 32 NVMe drives through PCIe switches and up to 512 SAS/SATA drives using 12Gb/s SAS expanders.
- Tri-mode per-port: 12Gb/s SAS/SATA and Gen 4.0 PCIe (NVMe).
- Supports RAID 0, 1, 3, 5, 6, 10, 30, 50, 60, single disk and JBOD.
- Includes redundant flash image and optional ARC-1886-CBM SuperCap cache backup support.
Category: Tri-Mode RAID PCIe Cards
Brand: Areca Technology
Original price was: £ 1,283.47.£ 1,054.95Current price is: £ 1,054.95. | £ 1,265.94 inc VAT
Please Call Us For Availability Of This Item
We’re the UK’s #1 Areca Reseller!
We pride ourselves on knowing, selling and supporting Areca RAIDs & Controllers better than anyone else in the UK!
All our Areca RAIDs ship pre-configured & tested (RAID5 or RAID6, for Mac or PC). Please allow us 1-2 days to do this for you for free.
Seen a better price elsewhere? Let us know & we’ll do our best so you also benefit from our Areca knowledge, expertise & totally free after-sales support.
– The UK’s Areca RAID Experts!
Areca ARC-1886-4X12I Product Overview
The Areca ARC-1886-4X12I is a PCIe Gen 4.0 tri-mode RAID adapter configured with 12 internal and 4 external drive ports for mixed SAS/SATA and NVMe deployments.
It combines a dual-core ROC processor, on-board ECC cache and broad management and OS support to address demanding database and enterprise storage use cases.
Performance And Controller
The adapter uses a Tri-Mode Dual Core ARM A15 1.6GHz ROC and presents a Host Bus Interface of 8-Lane PCI Express® 4.0 to the system.
Cache And Backup
On-board cache is 8GB DDR4-2666 SDRAM with ECC protection and the adapter supports the optional ARC-1886-CBM cache backup module for SuperCap-based protection.
Ports And Connectors
The ARC-1886-4X12I offers 12 internal and 4 external ports with drive connectors consisting of 2 x SFF-8654 [x8] and 1 x SFF-8644 [x4].
Drive Support
The adapter supports up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs using 12Gb/s SAS expanders and up to 32 NVMe drives through the PCIe switches.
Tri-Mode And Data Rates
Each drive port supports tri-mode operation with data transfer rates up to 12Gb/s SAS/SATA or Gen 4.0 PCIe (NVMe) per port.
RAID Features
Supported RAID levels include 0, 1, 3, 5, 6, 10, 30, 50, 60, single disk and JBOD. Additional features include RAID 1 multi-mirroring, mirrored pass-through disk, configurable stripe sizes up to 1MB, write-through or write-back cache, online RAID level/stripe size migration, online capacity expansion and support for global and dedicated hot spares.
Management And OS Support
Management is available via McRAID Storage Manager (web-based GUI), McRAID Utility, command-line tools, CIM provider for VMware and McBIOS configuration utility. Host Interface options include NVMe Mode with OS-native NVMe driver and Areca Legacy Mode supporting Microsoft Windows, Red Hat/CentOS, SUSE, Fedora, Debian, Ubuntu, FreeBSD, XenServer, unRAID, macOS and VMware ESXi.
Physical, Power And Environmental
Physical options include Low Profile and full-height mounting dimensions and the adapter consumes approximately 14 Watts. It operates from 0 °C to 60 °C at 10% to 85% non-condensing humidity.
Reliability And Enclosure Features
The adapter provides redundant flash image for availability, supports UBM/SES-2/SGPIO enclosure management, and includes features such as S.M.A.R.T., automatic drive insertion/removal detection and rebuilding, and controller-based hardware encryption with SED support.
Areca ARC-1886-4X12I Key Features
- Supports up to 8GB DDR4-2666 SDRAM with ECC protection, providing a sizeable read/write cache for sustained workloads.
- Tri-mode drive interface at each port—12Gb/s SAS, SATA and Gen 4.0 PCIe (NVMe)—for maximum connectivity flexibility.
- Can address up to 32 NVMe drives through PCIe switches to scale flash capacity and performance.
- Supports up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs using 12Gb/s SAS expanders.
- Provides RAID levels 0, 1, 3, 5, 6, 10, 30, 50, 60, single disk and JBOD, plus RAID 1 multi-mirroring and mirrored pass-through disk.
- Controller-level hardware encryption and self-encryption drive (SED) management for data security.
- Redundant flash image for adapter availability and support for an optional cache backup module (ARC-1886-CBM) using SuperCap.
- Host interface is 8-lane PCI Express® 4.0 driven by a Tri-Mode Dual Core ARM A15 1.6GHz ROC for modern server platforms.
- Includes broad enclosure management support (UBM, SES-2, SMP and SGPIO) and global/individual fault monitoring.
- Compatible with a wide range of host OS environments and management tools including Windows, major Linux distributions, FreeBSD, macOS, VMware ESXi and Areca management utilities.
- Power-efficient design with power consumption of approximately 14 Watts for the 12-internal / 4-external port configuration.
- Designed to operate from 0 °C to 60 °C at 10% to 85% non-condensing humidity for typical data-centre environments.
Areca ARC-1886-4X12I Technical Specifications
| Model | Areca ARC-1886-4X12I |
| Manufacturer | Areca Technology |
| Host Bus Interface | 8-Lane PCI Express® 4.0 |
| I/O Processor | Tri-Mode Dual Core ARM A15 1.6GHz ROC |
| Cache Memory | 8GB DDR4-2666 SDRAM with ECC Protection |
| Cache Protection | ARC-1886-CBM (optional) |
| Data Transfer Rate | Up to 12Gb/s SAS/SATA/Gen 4.0 PCIe (NVMe) per port |
| Ports | 12 internal and 4 external |
| Drive Connectors | 2 x SFF-8654 [x8] and 1 x SFF-8644 [x4] |
| Drive Support | Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs using 12Gb/s SAS expanders; Up to 32 NVMe drives through the PCIe switches |
| RAID Levels | 0, 1, 3, 5, 6, 10, 30, 50, 60, Single Disk, JBOD |
| RAID Features | RAID 1 multi-mirroring, mirrored pass-through disk, configurable stripe size up to 1MB, write-through/write-back cache, read/write cache allocation by policy, online RAID level/stripe size migration, online capacity expansion, instant availability, background initialization, global and dedicated hot spare support |
| Encryption | Controller level hardware encryption and self-encryption drive (SED) management |
| Enclosure Management | UBM, SES-2, SMP and SGPIO |
| Management Software | McRAID Storage Manager (web GUI), McRAID Utility, command-line interface, McBIOS Configuration Utility, CIM provider for VMware |
| Operating Systems | Host Interface=NVMe Mode: OS Native (In-box) NVMe host adapter driver; Host Interface=Areca Legacy Mode: Microsoft Windows; Red Hat Linux, Centos Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux; FreeBSD; XenServer; unRAID; macOS; VMware ESXi |
| Power Consumption | Approximately 14 Watts |
| Operating Temperature | 0 °C to 60 °C |
| Operating Humidity | 10% to 85%, non-condensing |
| Reliability Features | Redundant flash image, S.M.A.R.T., automatic drive insertion/removal detection and rebuilding, SSD automatic monitor clone (AMC) |
| Additional Features | Support for SAS tape devices and transport layer retries (TLR), support HDD firmware update, support UNMAP command, support for backplanes based on SFF-TA-1005 (UBM) |
| Physical Dimensions | Low Profile: 167.65(L) x 64.41(H) mm; Full Height: 205(L) x 107.2(H) mm |
| Product Support Files | ARC-1886 series firmware version 1.75 (2026/06/16); ARC-1886 series Specification version 3.0 (2026/05/19) |
