SymplySPARK 8-Bay Rack Kit 4U
SymplySPARK 8-Bay Rack Kit 4U
4U Rackmount Kit For SymplySPARK And SymplySPARK XT 8-Bay Desktop RAID Systems
The SymplySPARK 8-Bay Rack Kit converts a compatible SymplySPARK or SymplySPARK XT 8-bay desktop RAID into a secure 4U rack installation while retaining straightforward front access for installation and removal.
The 350mm-deep kit includes adjustable rear rack rails for cabinets approximately 450–750mm deep, together with the required mounting hardware. The SymplySPARK RAID itself is not included.
Category: Rack Kits
Brand: Symply
Original price was: £ 319.00.£ 318.95Current price is: £ 318.95. | £ 382.74 inc VAT
Please Call Us For Availability Of This Item
SymplySPARK 8-Bay Rack Kit 4U – Product Overview

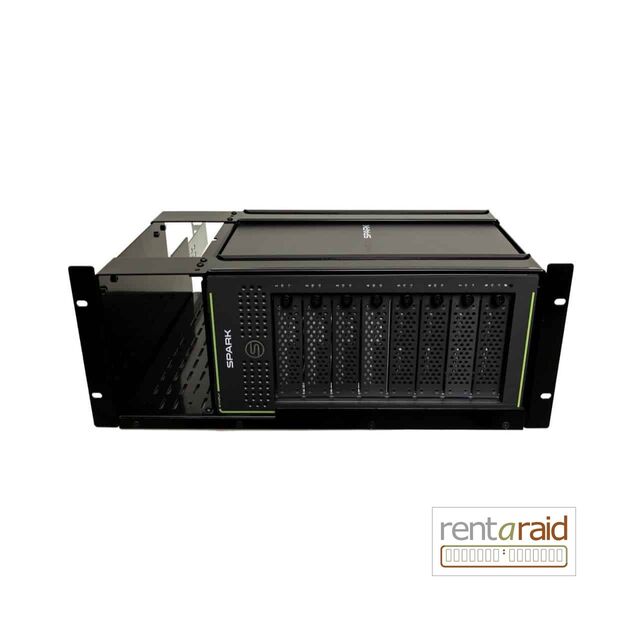

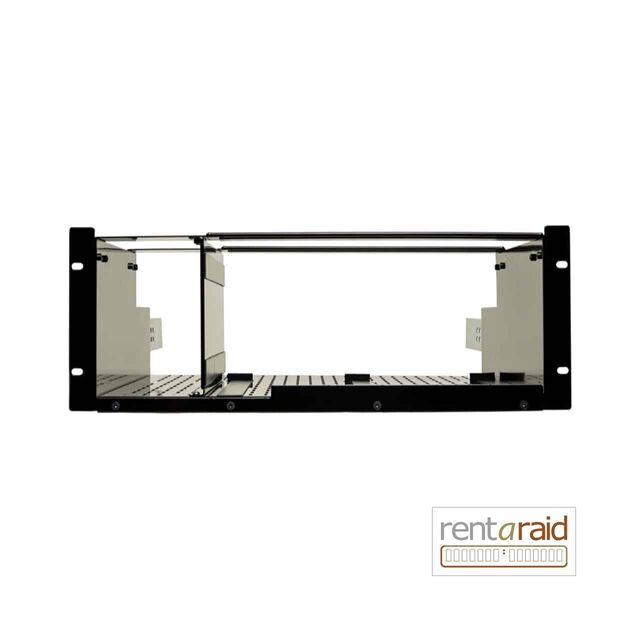

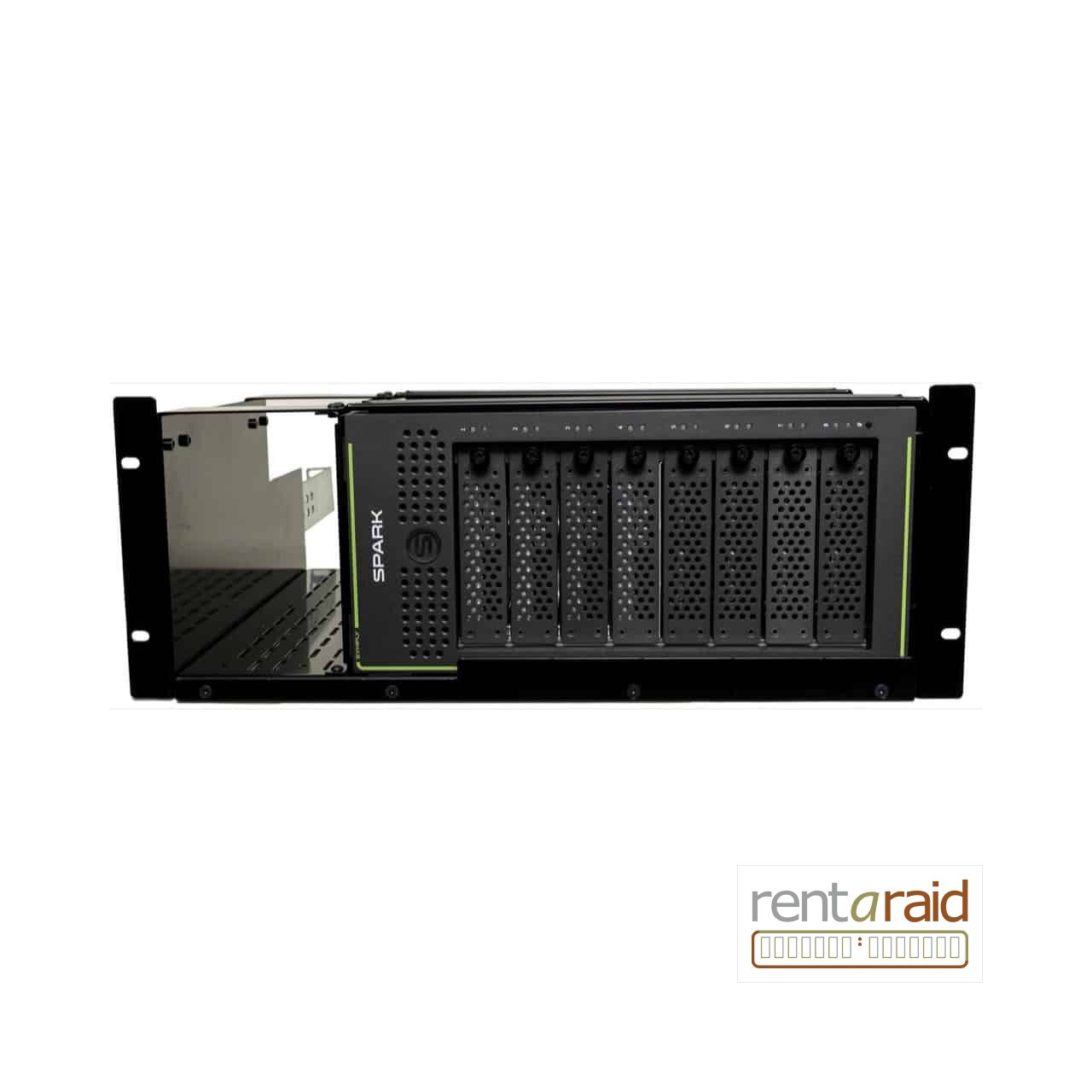

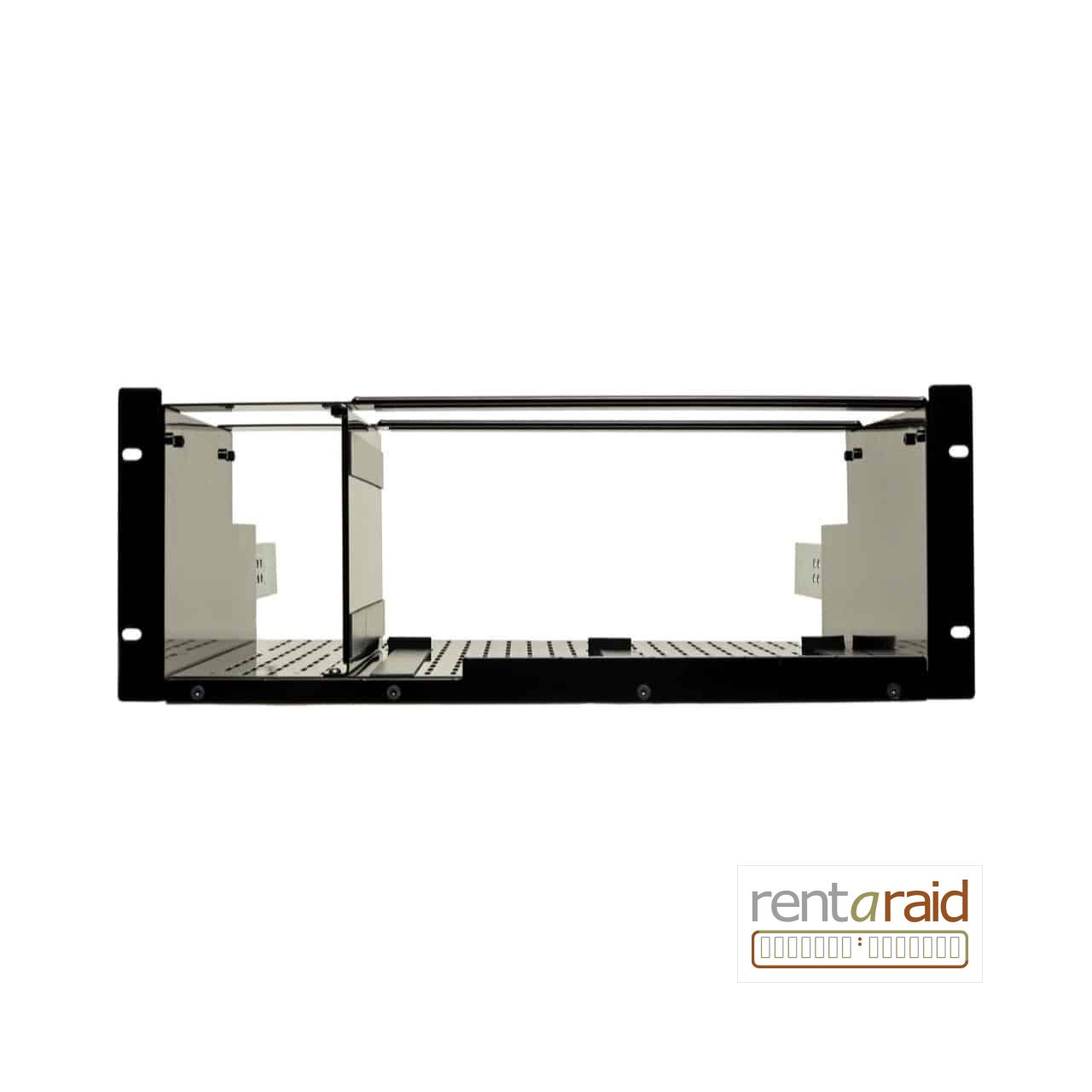

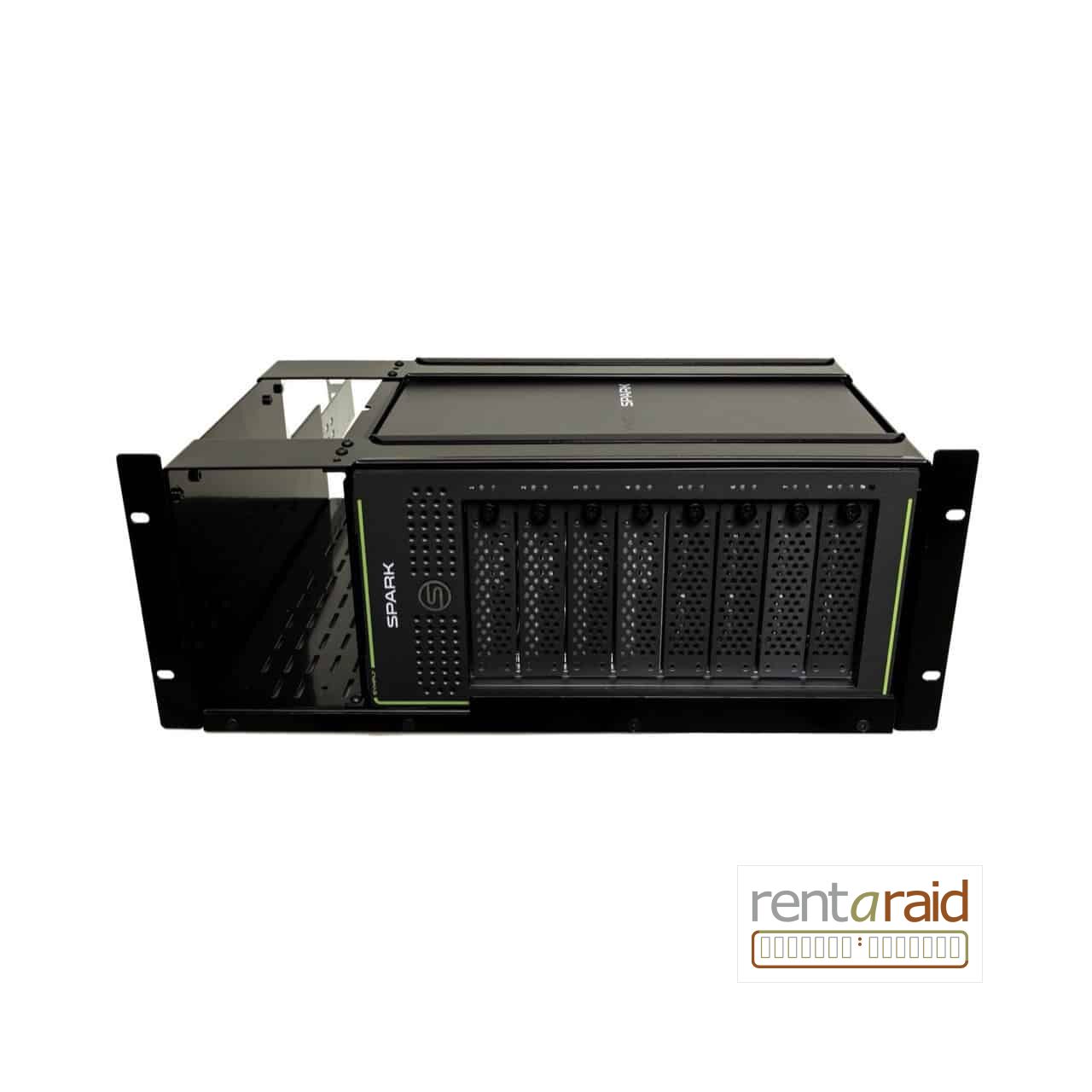

The SymplySPARK 8-Bay Rack Kit is the purpose-built 4U mounting solution for compatible SymplySPARK and SymplySPARK XT 8-bay desktop RAID systems. It provides a cleaner way to integrate the portable desktop chassis into machine rooms, DIT carts and other professional rack environments without replacing the storage system.
Front-Loading Rack Integration
The design allows the SymplySPARK chassis to be installed and removed from the front of the rack, helping simplify servicing and movement between desktop and rack-based workflows.

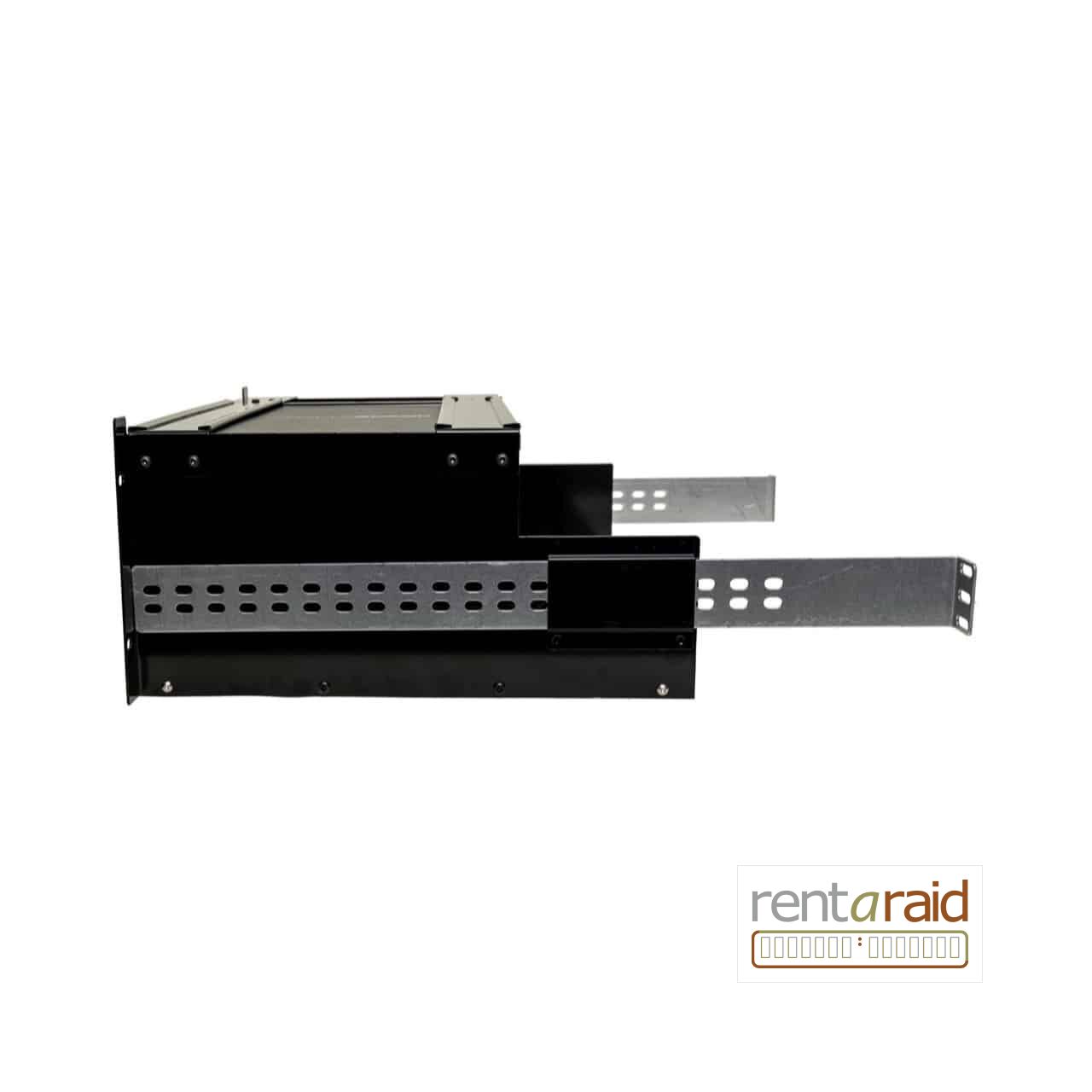

Adjustable Rear Support
Included rear support rails accommodate rack depths of approximately 450–750mm. Additional rail options are available for deeper racks.
Purpose-Built 4U Format
The rack kit is 4U high and approximately 350mm deep. It is designed specifically around the 8-bay SymplySPARK chassis rather than being a generic shelf.
Complete Mounting Hardware
The kit includes the rack assembly, rear rails, screws, assembly tool and rack-cage mounting hardware. The SymplySPARK RAID system is sold separately.
SymplySPARK 8-Bay Rack Kit 4U – Key Features
- Purpose-built rack kit for compatible SymplySPARK and SymplySPARK XT 8-bay desktop RAID systems.
- 4U rack form factor.
- Approx. 350mm rack-kit depth.
- Front-loading design for straightforward installation and removal of the RAID chassis.
- Adjustable rear rack support for cabinets approximately 450–750mm deep.
- Additional rack rails available for deeper rack installations.
- Includes rear rack rails, screws, assembly tool and rack-cage mounting hardware.
- SymplySPARK RAID system is not included.
- Manufacturer part number: SYSPK-DX8-RK1.
SymplySPARK 8-Bay Rack Kit 4U – Technical Specifications
| Product Type | Rackmount Kit |
| Manufacturer Part Number | SYSPK-DX8-RK1 |
| Compatibility | SymplySPARK / SymplySPARK XT 8-Bay Desktop RAID Systems |
| Rack Height | 4U |
| Kit Depth | Approx. 350mm / 13.8in |
| Supported Rack Depth | Approx. 450–750mm With Included Rear Rails |
| Overall Dimensions | Approx. 48.3 × 35.1 × 17.8cm |
| Weight | Approx. 5.1kg |
| Installation | Front-Loading RAID Chassis |
| Included | Rack Kit, Rear Rack Rails, Screws, Assembly Tool, Rack-Cage Nuts / Washers / Bolts |
| RAID System Included | No |
