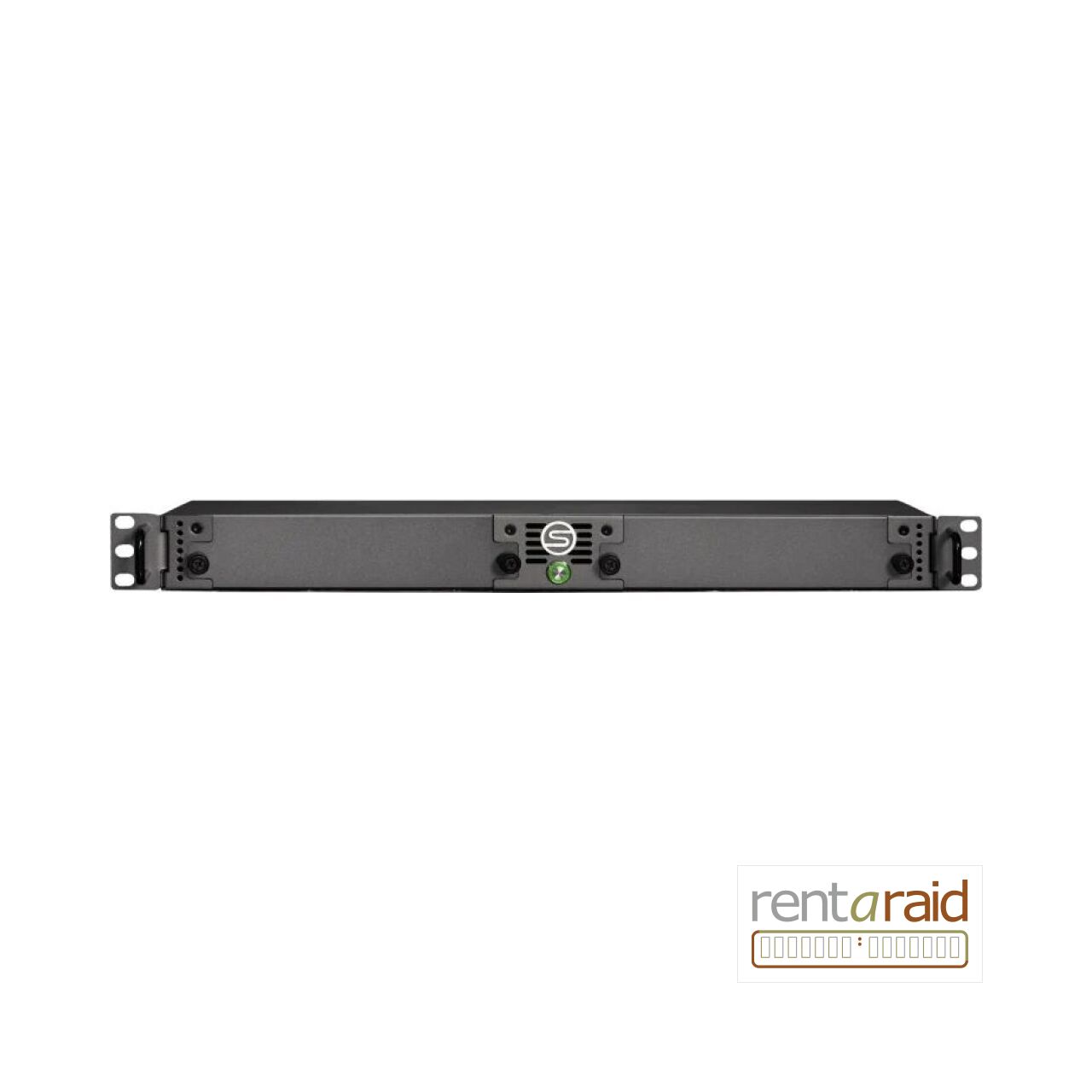

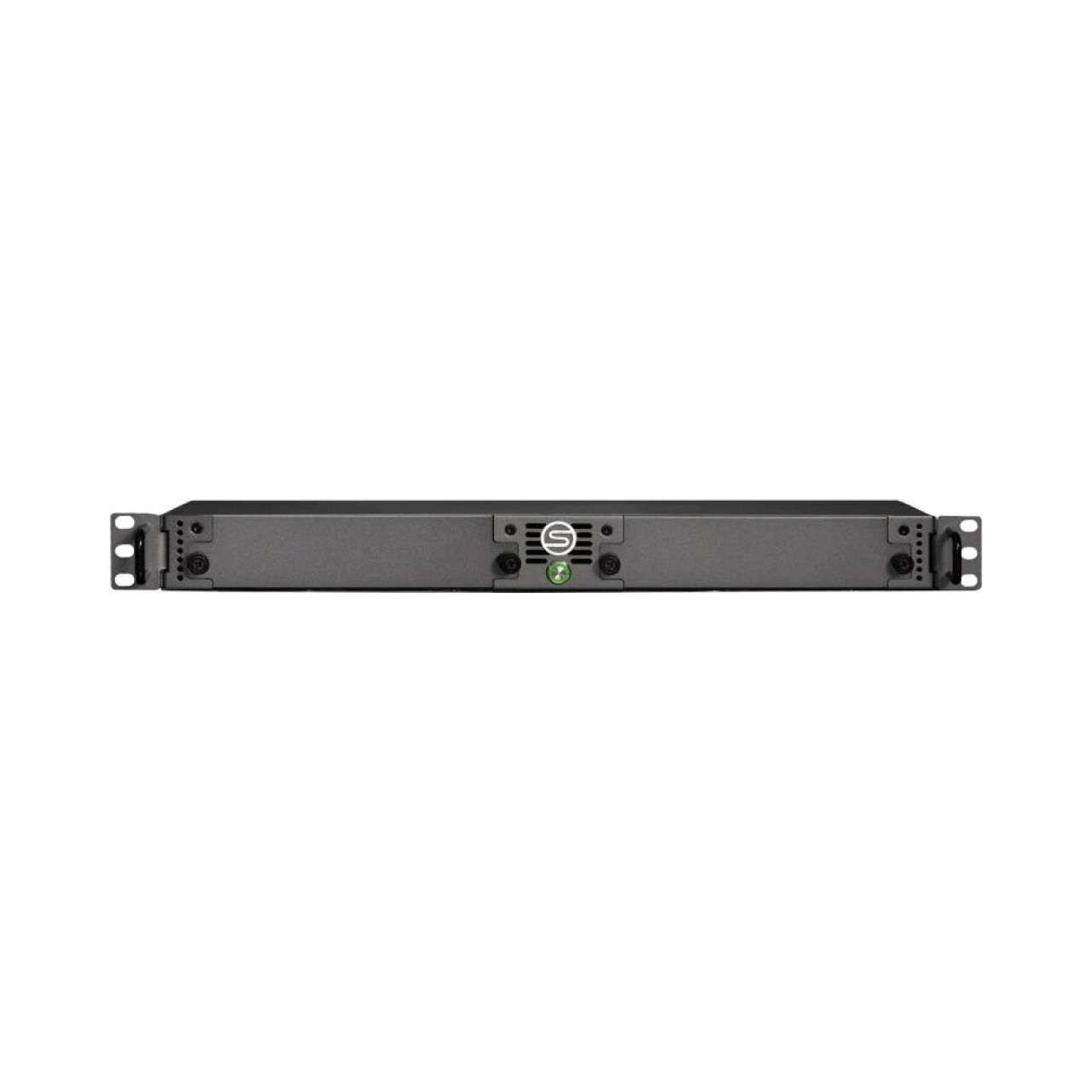

The SymplyPRO Ethernet Bridge 1RU is a purpose-built network appliance for making external SAS LTO tape drives available to hosts over 10Gb Ethernet using iSCSI. It contains no LTO drive itself; instead, a single 12Gb mini-SAS HD connection can present up to four external LTO drives from standalone units, tape libraries, or a mixed installation.
Original price was: £ 3,199.00.£ 3,006.95Current price is: £ 3,006.95. | £ 3,608.34 inc VAT
Please Call Us For Availability Of This Item
The SymplyPRO Ethernet Bridge 1RU is designed for organisations that want to share existing SAS-attached LTO tape resources across a standard Ethernet network without tying each tape drive to a dedicated workstation or server. Acting as an iSCSI target, the bridge converts high-speed 10Gb Ethernet access into a 12Gb SAS connection for external LTO drives.
Two independent 10GbE SFP+ data ports provide the network-facing side of the appliance. Hosts connect using iSCSI and see the attached tape resources through the bridge, allowing LTO workflows to be separated from individual host computers and made available across an appropriately configured 10GbE network.
The rear 12Gb mini-SAS HD (SFF-8644) connection supports up to four external SAS LTO tape drives. Those drives can be standalone LTO units, drives installed in an automated tape library, or a combination of both. No LTO drive is included in the Ethernet Bridge itself.
Symply documents support for up to four iSCSI initiators with two sessions per initiator, for a total of eight sessions. This gives facilities flexibility when integrating tape resources into multi-system backup, archive and media workflows while keeping the tape hardware centralised.
The Ethernet Bridge supports LTFS, SAS Transport Layer Retries (TLR), access-control lists and Symply SpeedWrite technology. Symply rates the Ethernet appliance architecture for performance up to 2000MB/s, depending on the connected drives, network and workflow.
A separate 1GbE RJ45 management port keeps administration distinct from the two 10GbE data interfaces. The appliance supports command-line management over SSH and firmware updates over SFTP. Windows and Linux can use their available iSCSI initiators; for macOS, Symply specifies an iSCSI initiator such as ATTO Xtend SAN.
The bridge is housed in a 1RU rackmount chassis and ships with a rack kit. Symply specifies an internal 350W 110–240V power supply, with typical consumption listed at 166W, and a 3-year manufacturer warranty.
| Product | SymplyPRO Ethernet Bridge 1RU |
| Manufacturer Part Number | SYPR1-RE1BD04B-A0 |
| Product Type | 10GbE iSCSI-to-SAS LTO Bridge |
| Form Factor | 1RU Rackmount |
| LTO Drives Included | None — Bridge Only |
| Maximum External LTO Drives | Up To 4 SAS LTO Drives |
| 10GbE Data Interfaces | 2 × 10GbE SFP+ |
| Network Protocol | iSCSI Over TCP/IP |
| iSCSI Initiators | Up To 4 Initiators |
| iSCSI Sessions | 2 Per Initiator; 8 Sessions Total |
| SAS Interface | 1 × 12Gb mini-SAS HD (SFF-8644) |
| Management Interface | 1 × 1GbE RJ45 |
| Supported Deployment | External Standalone LTO Drives, Tape-Library Drives, Or Mixed Deployment |
| LTFS | Supported |
| SAS TLR | Supported |
| Access Control | ACL Support |
| Management | CLI Over SSH |
| Firmware Update | SFTP / Current Symply Ethernet Appliance Firmware |
| Acceleration | Symply SpeedWrite Technology |
| Maximum Platform Performance | Up To 2000MB/s; Configuration Dependent |
| macOS | Intel Or Apple Silicon; macOS 10.15 Or Later; 10GbE And Compatible iSCSI Initiator Required |
| Windows | Windows 8.1–11 / Windows Server 2016–2022; Microsoft iSCSI Initiator |
| Linux | Supported Linux Host With 10GbE And iSCSI Initiator |
| Dimensions (D × W × H) | 43.5 × 48.2 × 4.4cm |
| Weight | Approx. 6.1kg |
| Power Supply | 350W Internal, 110–240V; Typical 166W |
| Rack Kit | Included |
| Warranty | 3 Years |
Generally, next working day delivery services (UK Mainland) are available on standard Symply Delivery orders placed before 2 pm (subject to stock availability).
Non-timed deliveries should be delivered between 9 am and 6 pm.
Orders placed after 2 pm on Fridays and weekends will be processed as normal the following Monday.
Orders placed on Bank Holidays will be processed the next working day.
If urgent, please call one of our helpful account managers so they may double check everything for you, enabling you to place your order with confidence.
• Please note: these product details are for guide purposes only, and may contain errors.
•• We always recommend double-checking the product specs and features on the manufacturer website, and/or contacting us if unsure before ordering.
