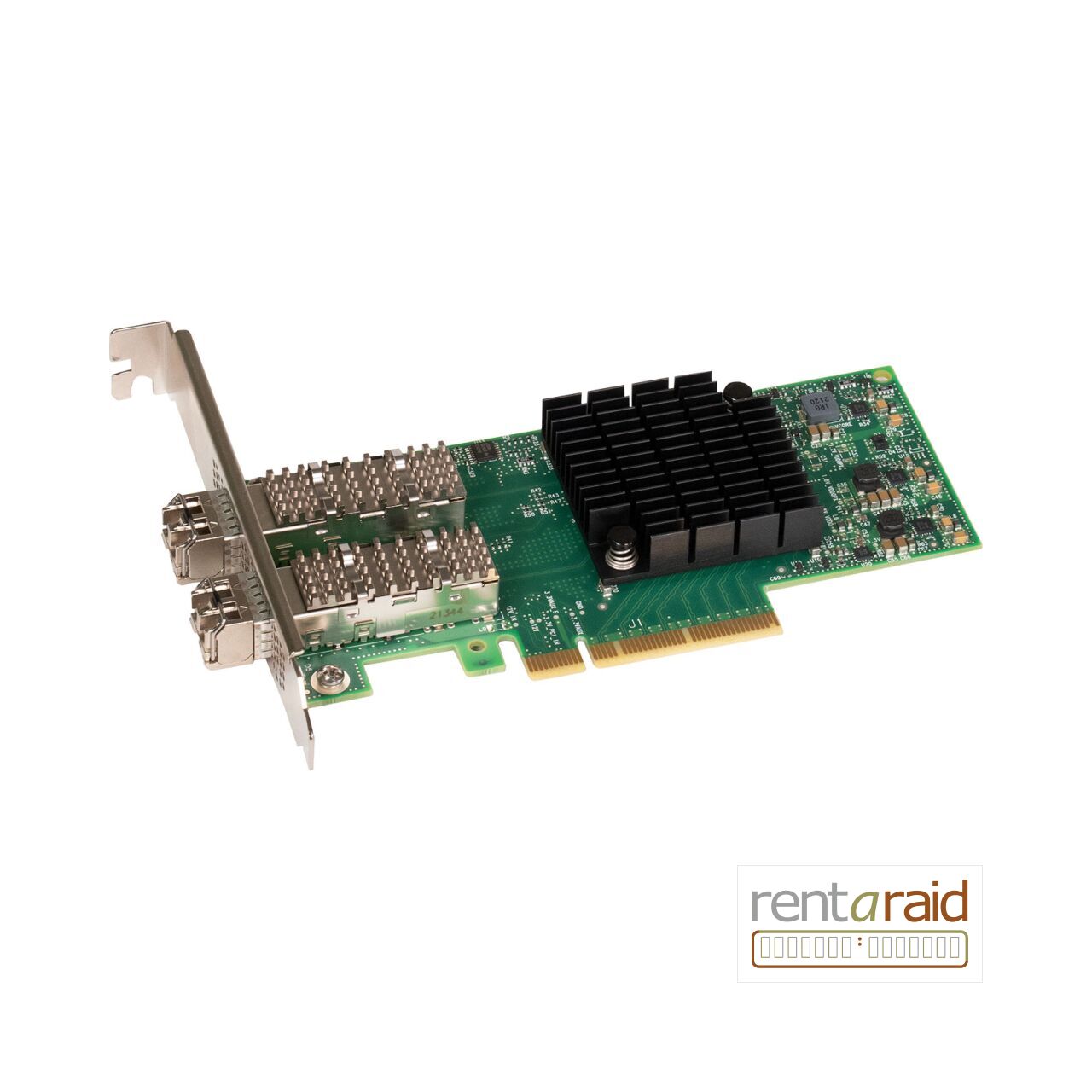

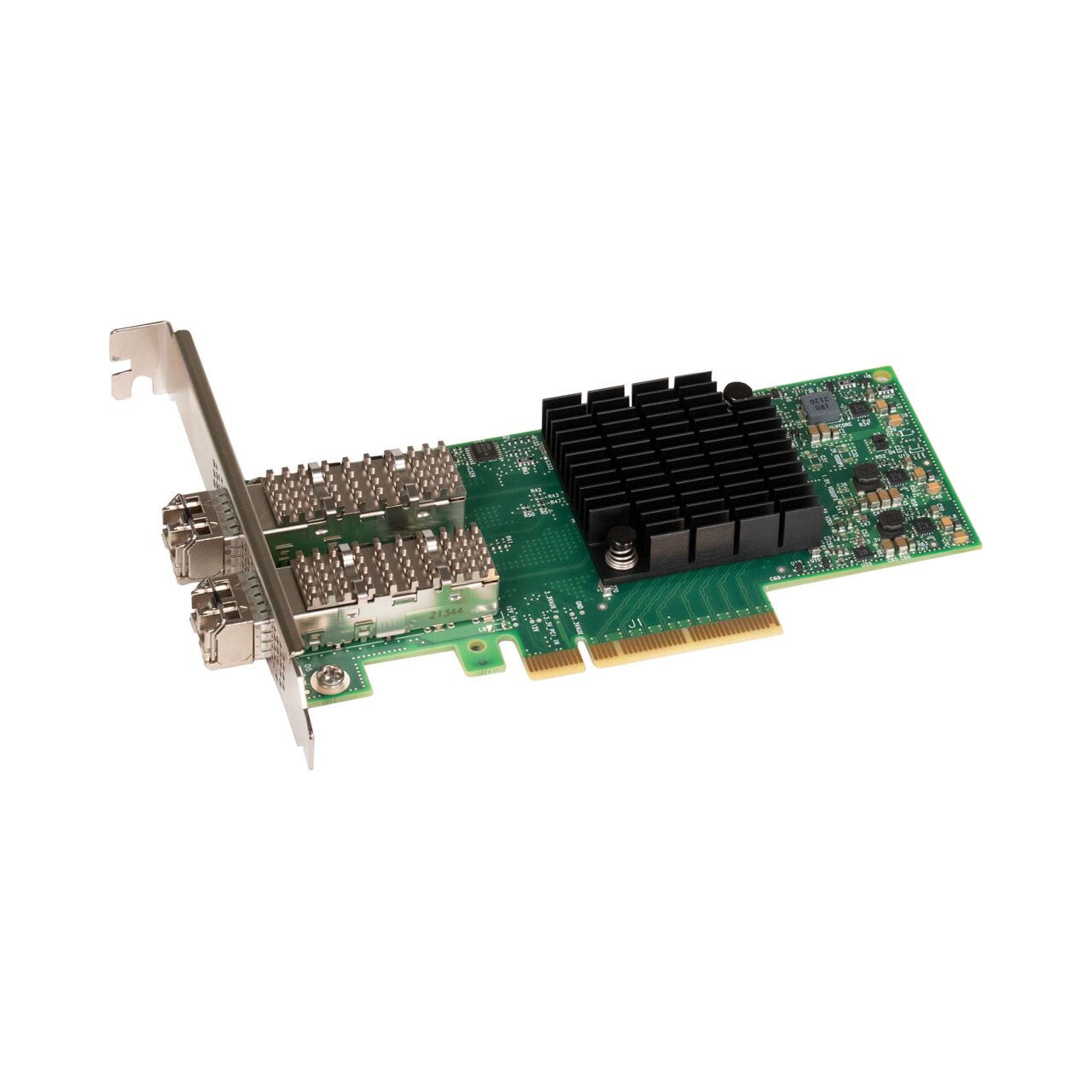

The Sonnet Twin25G PCIe Card adds two high-speed SFP28 Ethernet ports to compatible workstations, servers and PCIe expansion systems for demanding shared-storage and media-network workflows.
Two short-range 25GBASE-SR SFP28 optical transceivers are installed and included, with support for both 25Gbps and 10Gbps network connections.
Original price was: £ 631.00.£ 556.95Current price is: £ 556.95. | £ 668.34 inc VAT
In Stock
The Sonnet Twin25G PCIe Card, part number G25E-2X-E3, is a low-profile dual-port 25 Gigabit Ethernet adapter designed for high-bandwidth professional networking.
It ships with two short-range SFP28 optical transceivers installed and supports both 25Gbps and 10Gbps network operation.
Two SFP28 sockets provide 25Gb/s connectivity per port. The card also supports 10Gb/s network operation, allowing integration with compatible 10GbE and 25GbE infrastructure.
Sonnet includes two short-range SFP28 optical transceivers on the card. OM3 or OM4 LC/LC multimode fibre cabling is used for 25GbE operation; compatible OM2 cabling supports 10Gbps operation.
Supported operating systems can use the two ports for teaming or link aggregation. Sonnet specifies aggregate transfer capability up to 50Gb/s in supported teamed configurations, along with balanced traffic and automatic failover.
The Mellanox ConnectX controller supports flow control, receive-side scaling, multicast filtering and hardware checksum and segmentation offloads for efficient high-throughput networking.
Twin25G is a low-profile PCIe 3.0 x8 card. An x4 slot can support one port at full bandwidth, while an x8 slot provides full bandwidth for both ports.
The card supports jumbo frames with a maximum packet size of 9000 bytes, helping reduce protocol overhead on suitably configured high-performance networks.
| Manufacturer | Sonnet Technologies |
| Manufacturer Part Number | G25E-2X-E3 |
| Product Type | Dual-port 25 Gigabit Ethernet SFP28 PCIe network card |
| Form Factor | Low-profile PCIe card |
| PCIe Interface | PCIe 3.0 x8 |
| PCIe x4 Operation | One port at full bandwidth |
| PCIe x8 Operation | Two ports at full bandwidth |
| External Connectors | 2 x SFP28 |
| Included Transceivers | 2 x short-range SFP28 optical transceivers, installed |
| Ethernet Controller | Mellanox ConnectX |
| Network Speeds | 25Gb/s and 10Gb/s |
| Link Aggregation / Teaming | Supported on compatible operating systems; aggregate transfer capability up to 50Gb/s |
| Maximum Packet Size | 9000 bytes |
| Advanced Networking | Flow control, MSI, RSS, multicast filtering, 64-bit addressing |
| Stateless Offloads | TCP, UDP and IPv4 checksum offload; TSO; TCP receive offload |
| Wake-on-LAN | Not supported |
| Recommended Fibre For 25GbE | OM3 or OM4 LC/LC multimode fibre |
| OM2 Fibre Operation | 10Gbps supported |
| Compliance | RoHS 3; IEC62368-1 / IEC62368-2 |
| Warranty | 2 years |
| Package Contents | Twin25G PCIe Card, two installed short-range SFP28 transceivers, full-height and low-profile brackets, documentation |
