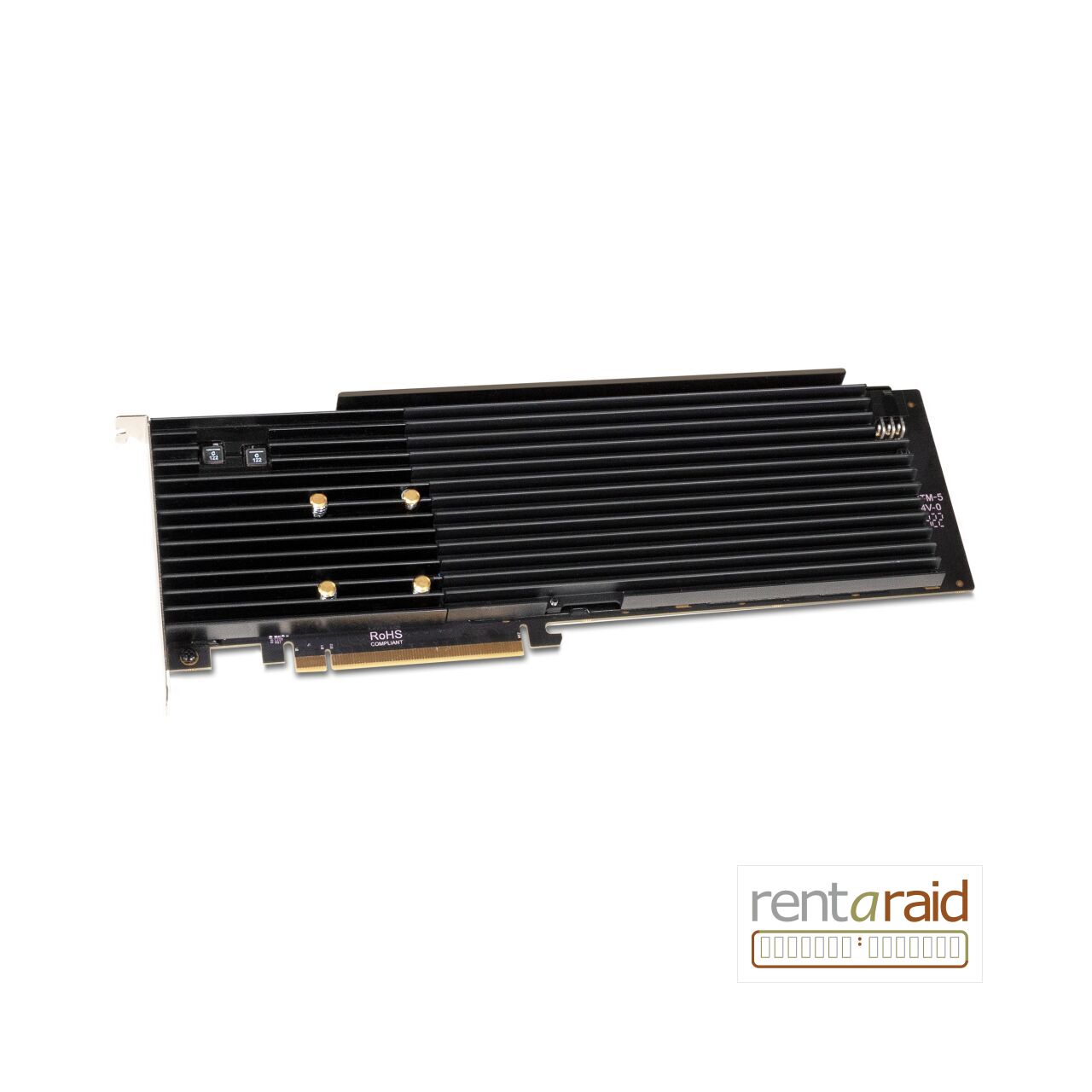

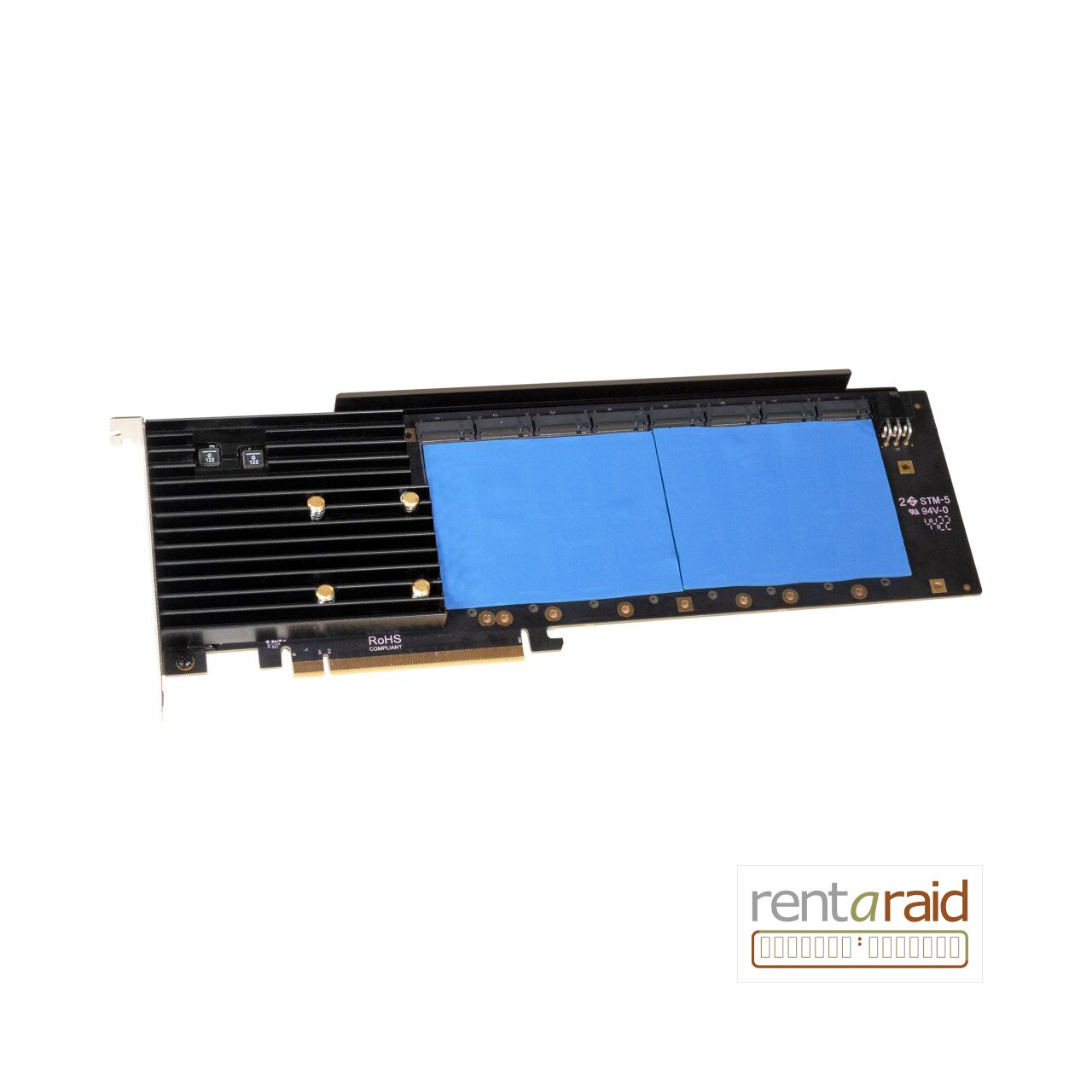

Sonnet M.2 8×4 Silent Gen4 PCIe Card
Sonnet M.2 8×4 Silent Gen4 PCIe Card
Eight-Slot M.2 NVMe PCIe 4.0 x16 Card With Silent Cooling
The Sonnet M.2 8×4 Silent Gen4 PCIe Card adds up to eight M.2 NVMe SSDs to a single full-length x16 PCIe slot, supporting up to 64TB of raw storage when populated with eight 8TB SSDs.
Its PCIe 4.0 x16 host interface and 48-lane PCIe 4.0 switch are designed for high-throughput professional storage. Sonnet specifies up to 30,000MB/s read and 18,000MB/s write with four suitable SSDs configured as RAID 0 in a PCIe 4.0 host.
- Eight M.2 2280 NVMe SSD slots.
- PCI Express 4.0 x16 host interface.
- Up to 64TB raw capacity with eight 8TB SSDs.
- RAID 0, 1, 5 and 10 support depending on OS/software.
- Silent passive cooling with no card fan.
Brand: Sonnet Technology
Original price was: £ 841.00.£ 767.95Current price is: £ 767.95. | £ 921.54 inc VAT
In Stock
Sonnet M.2 8×4 Silent Gen4 PCIe Card – Product Overview

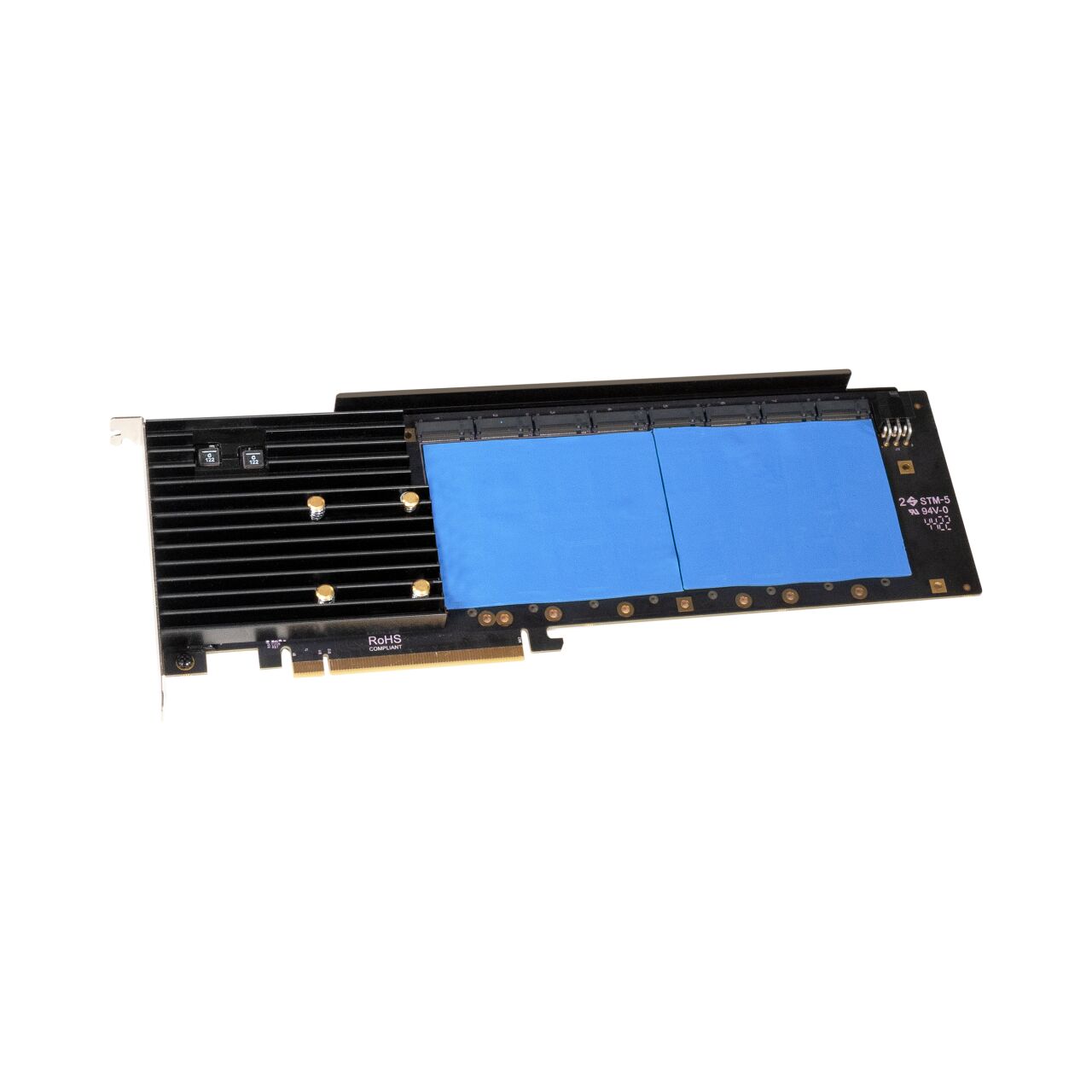

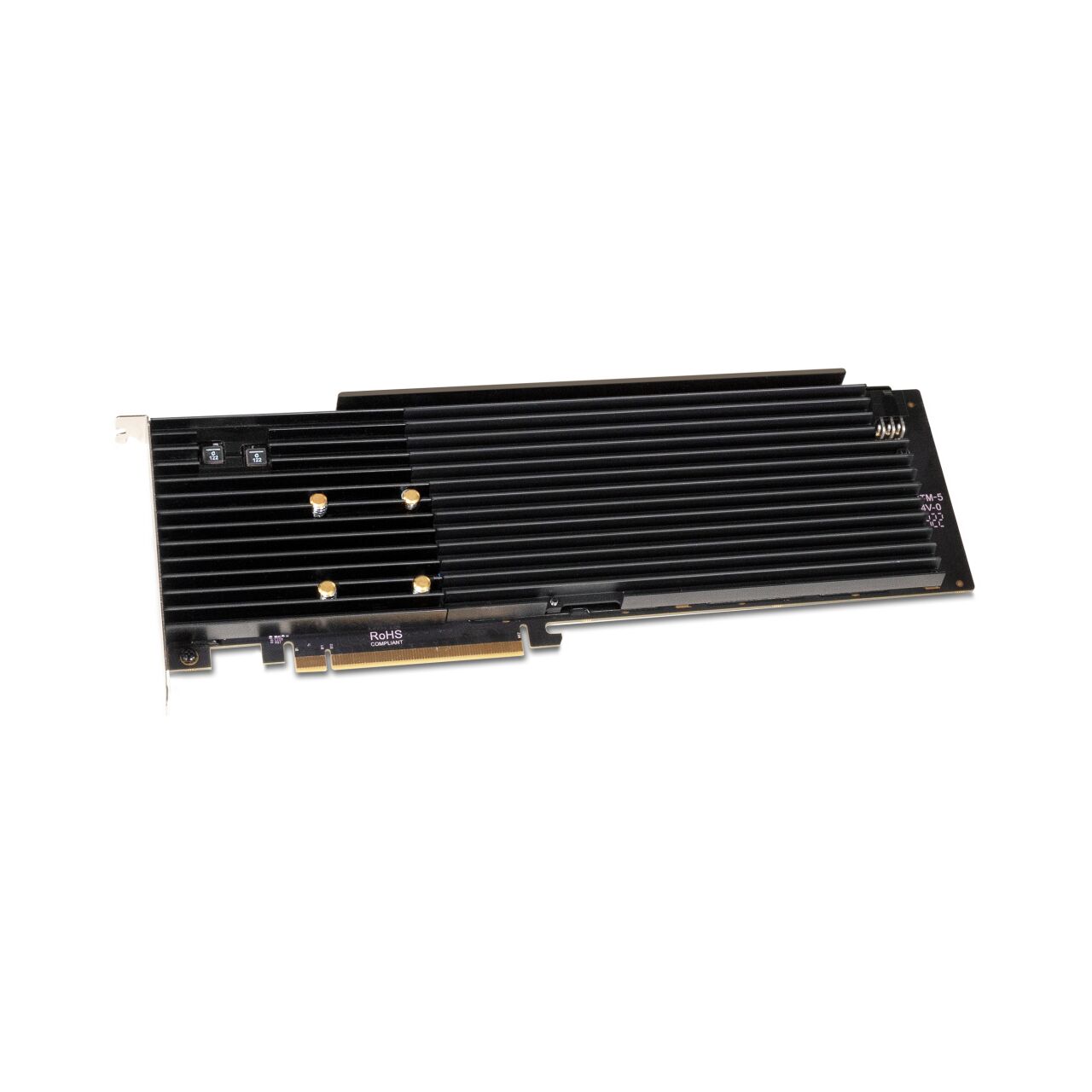

The Sonnet M.2 8x4 Silent Gen4 PCIe Card is a full-length, full-height PCIe storage card that mounts up to eight M.2 2280 NVMe SSDs in a single x16 slot.
Eight M.2 NVMe SSD Slots
The card supports single-sided and double-sided M.2 2280 NVMe PCIe SSDs, including compatible Gen4 and Gen3 devices. With eight 8TB SSDs installed, raw capacity can reach 64TB.
PCIe 4.0 x16 Architecture
A PCI Express 4.0 x16 host interface and 48-lane PCIe 4.0 switch make full x16 slot bandwidth available across the installed x4-connected SSDs. PCIe bifurcation is not required.
Up To 30,000MB/s Read
In a PCIe 4.0 x16 host, Sonnet specifies up to 30,000MB/s read and 18,000MB/s write with four suitable SSDs configured as RAID 0. In a PCIe 3.0 x16 host, four-drive RAID 0 performance is specified up to 14,000MB/s read and 12,000MB/s write. Actual performance varies with SSDs, host architecture and workload.
Thunderbolt Expansion Compatibility
The card can also be installed in compatible Sonnet Thunderbolt expansion systems with a full-length x16 PCIe slot. Sonnet currently specifies maximum Thunderbolt performance up to 2800MB/s.
Silent Cooling
Sonnet uses a passive thermal design to sustain SSD performance without an onboard cooling fan. SSD health monitoring is supported through S.M.A.R.T. data reporting.
RAID And Boot Support
RAID 0, 1, 5 and 10 are supported according to operating system and software capability; RAID 5 on macOS requires third-party software such as SoftRAID. Booting from a single non-RAIDed SSD is supported on compatible systems.
Auxiliary Power For Seven Or Eight SSDs
When seven or eight SSDs are installed, Sonnet requires the included 6-pin PCIe auxiliary power connection. Auxiliary power is optional with up to six SSDs installed.
Sonnet M.2 8×4 Silent Gen4 PCIe Card – Key Features
- Eight M-keyed M.2 2280 NVMe SSD sockets.
- Supports compatible Gen4 and Gen3 NVMe SSDs.
- Up to 64TB raw capacity with eight 8TB SSDs.
- PCI Express 4.0 x16 host interface.
- 48-lane PCIe 4.0 switch.
- No PCIe bifurcation required.
- Up to 30,000MB/s read and 18,000MB/s write with four suitable SSDs in RAID 0 on PCIe 4.0.
- Up to 14,000MB/s read and 12,000MB/s write with four suitable SSDs in RAID 0 on PCIe 3.0.
- RAID 0, 1, 5 and 10 support depending on OS/software.
- Supports booting from a single non-RAIDed SSD on compatible systems.
- Silent passive cooling with no onboard fan.
- S.M.A.R.T. status reporting support for all installed SSDs.
- Compatible with Sonnet Thunderbolt expansion systems that provide a full-length x16 PCIe slot.
- Up to 2800MB/s in compatible Thunderbolt expansion systems.
- 6-pin auxiliary power required when seven or eight SSDs are installed.
- 2-year Sonnet warranty.
Sonnet M.2 8×4 Silent Gen4 PCIe Card – Technical Specifications
| Manufacturer | Sonnet Technologies |
| Manufacturer Part Number | FUS-SSD-8X4-E4S |
| Product | M.2 8x4 Silent Gen4 PCIe Card |
| Product Type | Eight-slot M.2 NVMe PCIe storage card |
| Form Factor | Full-length, full-height PCIe card |
| Host Interface | PCI Express 4.0 x16 |
| PCIe Switch | 48-lane PCIe 4.0 switch |
| Internal SSD Connectors | 8 x M-keyed M.2 NVMe sockets |
| Supported SSD Form Factor | M.2 2280 NVMe PCIe SSDs; single-sided and double-sided |
| Maximum Raw Capacity | Up to 64TB with eight 8TB SSDs |
| PCIe 4.0 RAID 0 Performance | Up to 30,000MB/s read and 18,000MB/s write with four suitable SSDs |
| PCIe 3.0 RAID 0 Performance | Up to 14,000MB/s read and 12,000MB/s write with four suitable SSDs |
| Thunderbolt Expansion Performance | Up to 2800MB/s in compatible Sonnet expansion systems |
| RAID Support | RAID 0, 1, 5 and 10 depending on operating system/software |
| Boot Support | Single non-RAIDed SSD on compatible systems |
| Cooling | Passive silent cooling; no onboard fan |
| S.M.A.R.T. | Supported for all SSDs |
| Auxiliary Power | 6-pin PCIe auxiliary power required with seven or eight SSDs; optional with up to six |
| Warranty | 2 years |
| Package Contents | M.2 8x4 Silent Gen4 PCIe Card, thermal transfer pads, 6-pin to 6-pin auxiliary power cable for Mac Pro, documentation |
Sonnet M.2 8×4 Silent Gen4 PCIe Card Product Downloads
Sonnet M.2 8×4 Silent Gen4 PCIe Card – Product Videos
