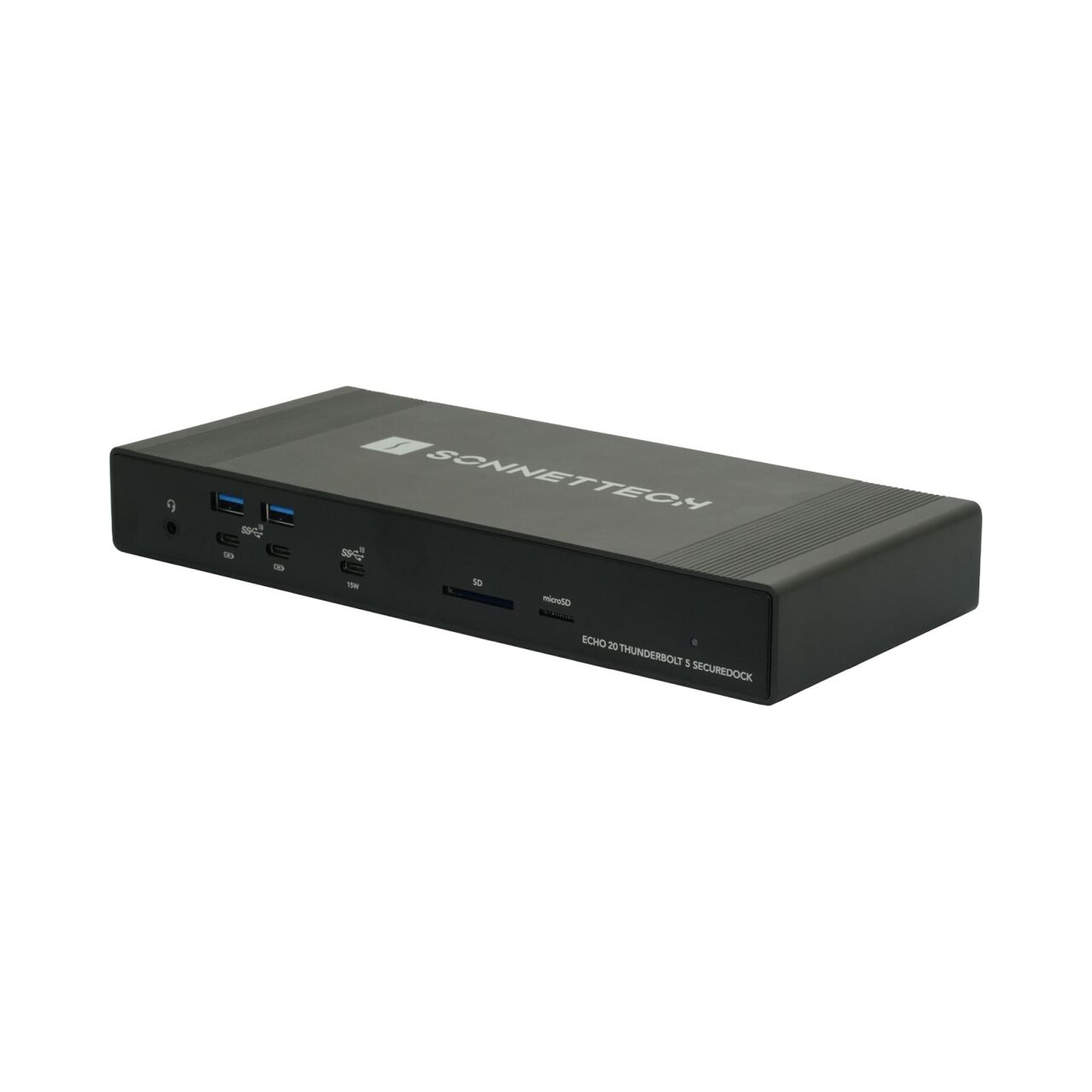

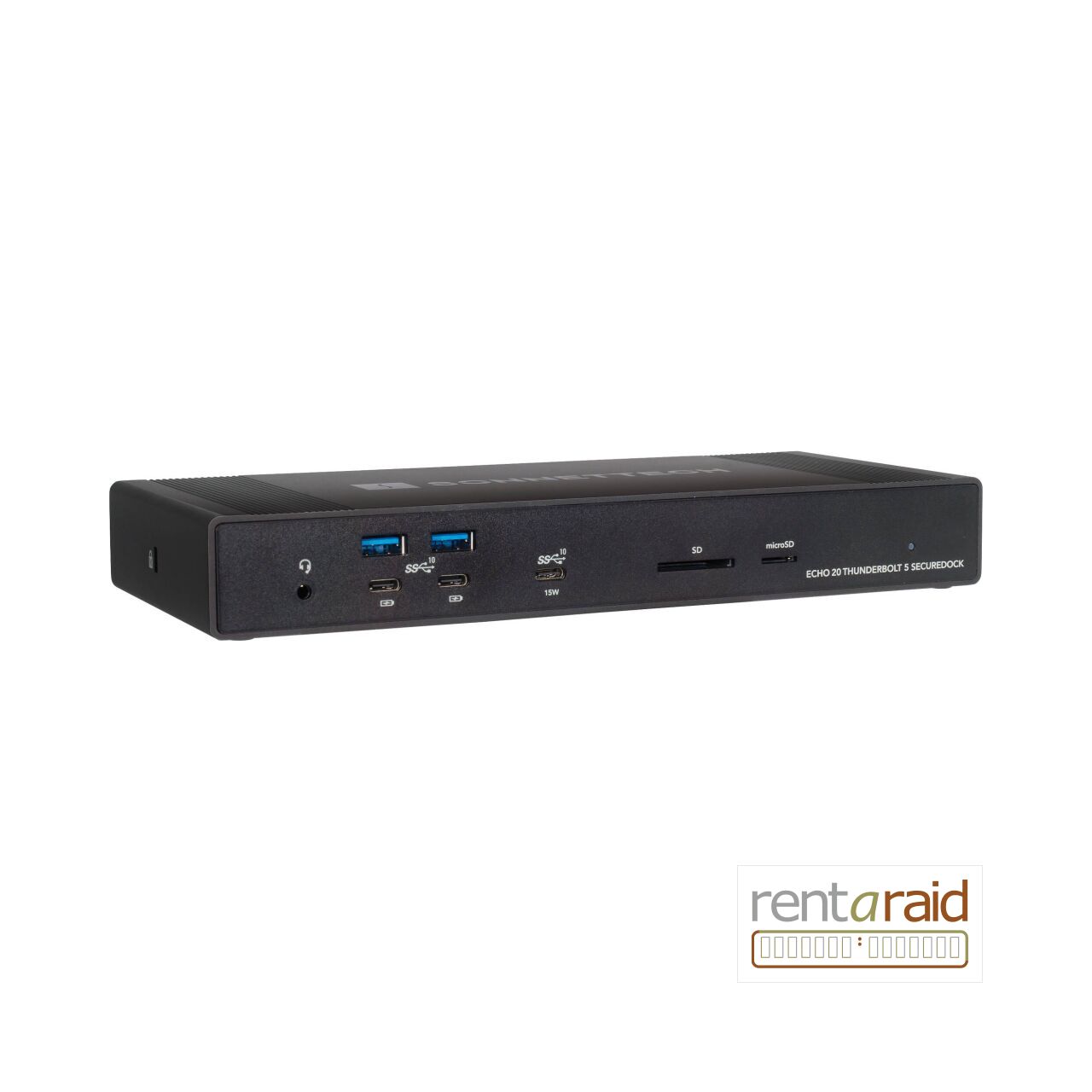

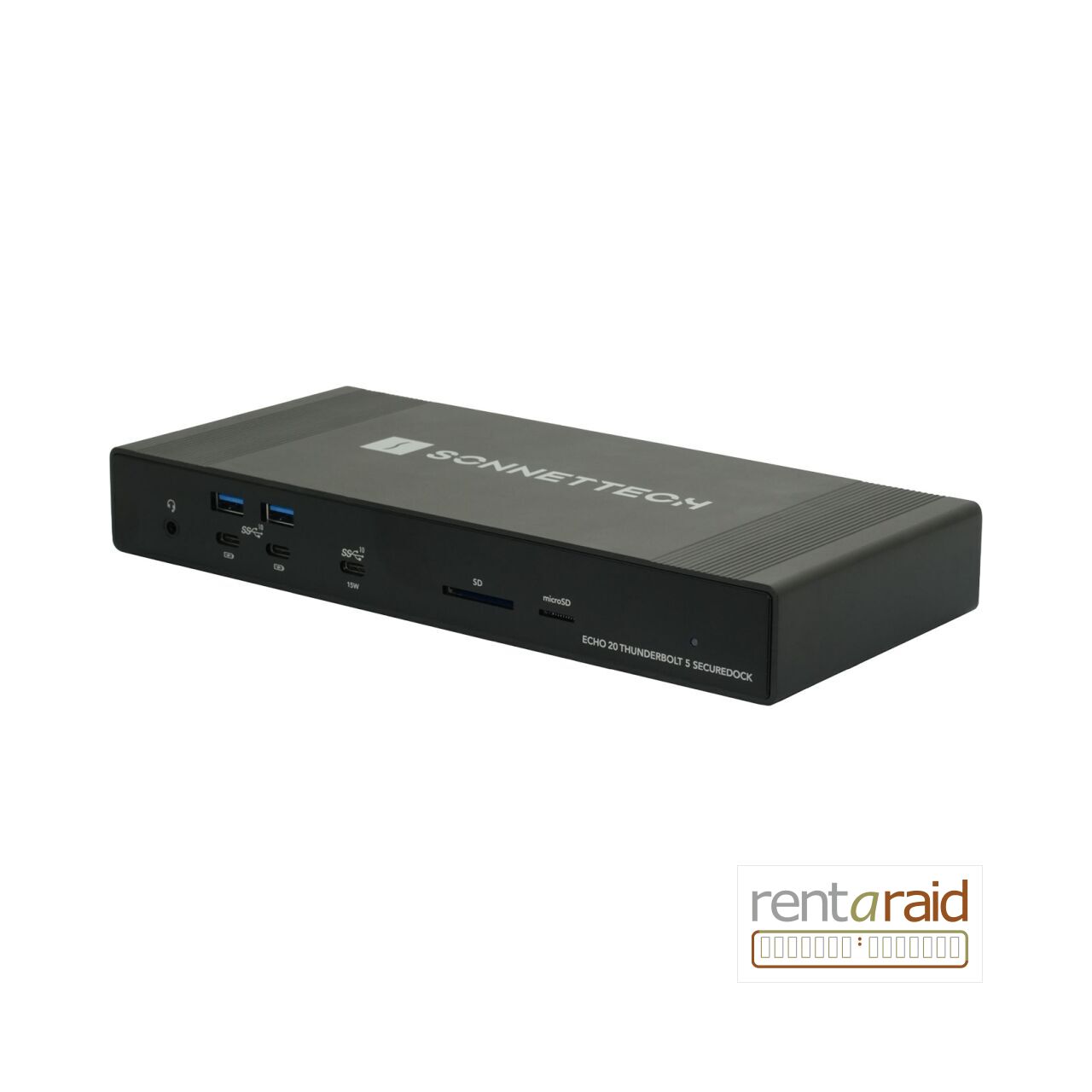

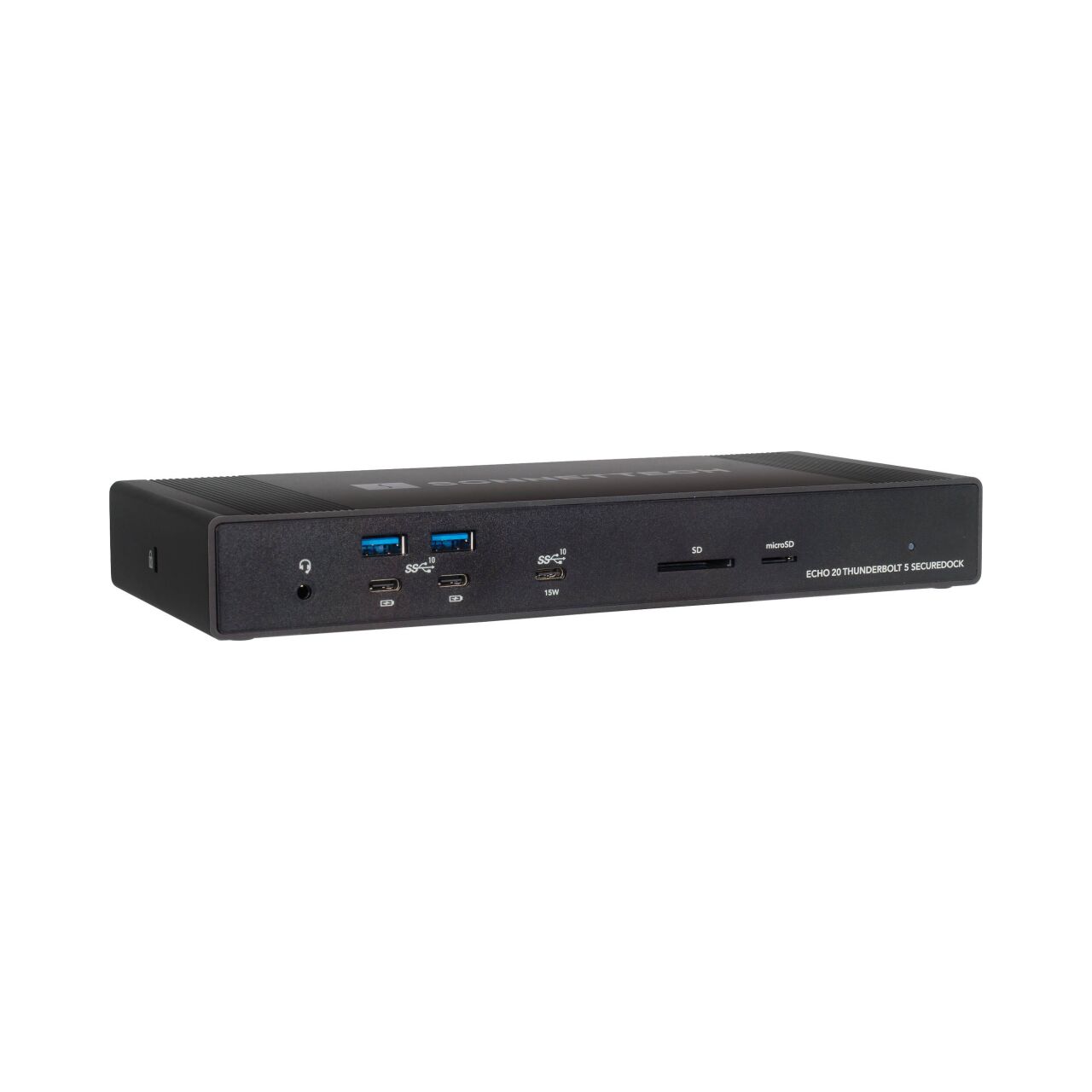

The Sonnet Echo 20 Thunderbolt 5 SecureDock is an enterprise-focused dock designed for environments that prohibit onboard SSD storage while still requiring high-performance networking, display and peripheral connectivity.
It combines three Thunderbolt 5 ports, 10GbE, HDMI and DisplayPort outputs, nine 10Gbps USB ports, UHS-II SD and microSD readers, audio I/O and up to 140W laptop charging.
Original price was: £ 437.00.£ 385.95Current price is: £ 385.95. | £ 463.14 inc VAT
In Stock
The Sonnet Echo 20 Thunderbolt 5 SecureDock (ECHO-DK20-T5) is a high-bandwidth enterprise docking station built for secure or storage-restricted environments where internal SSD storage is not permitted.

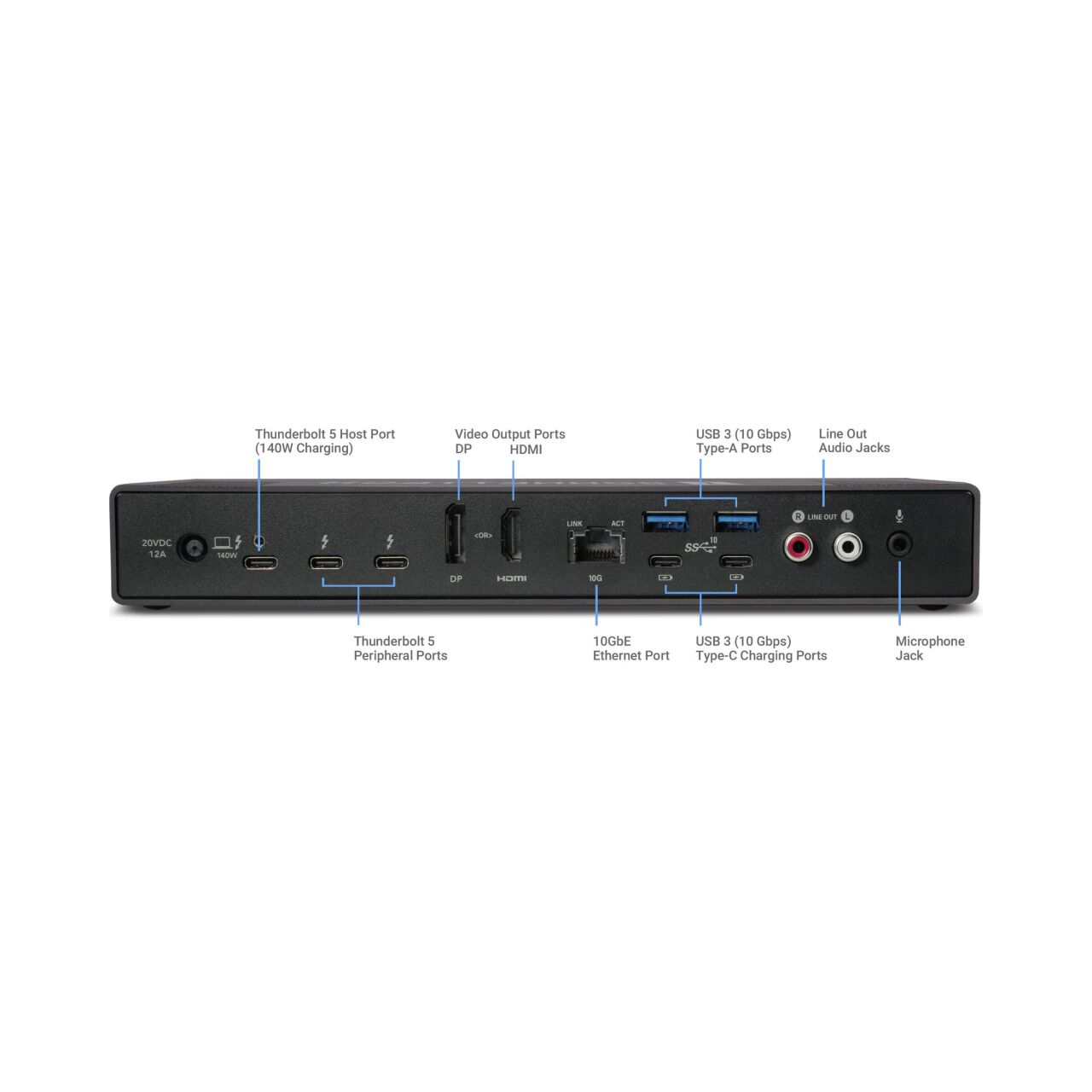

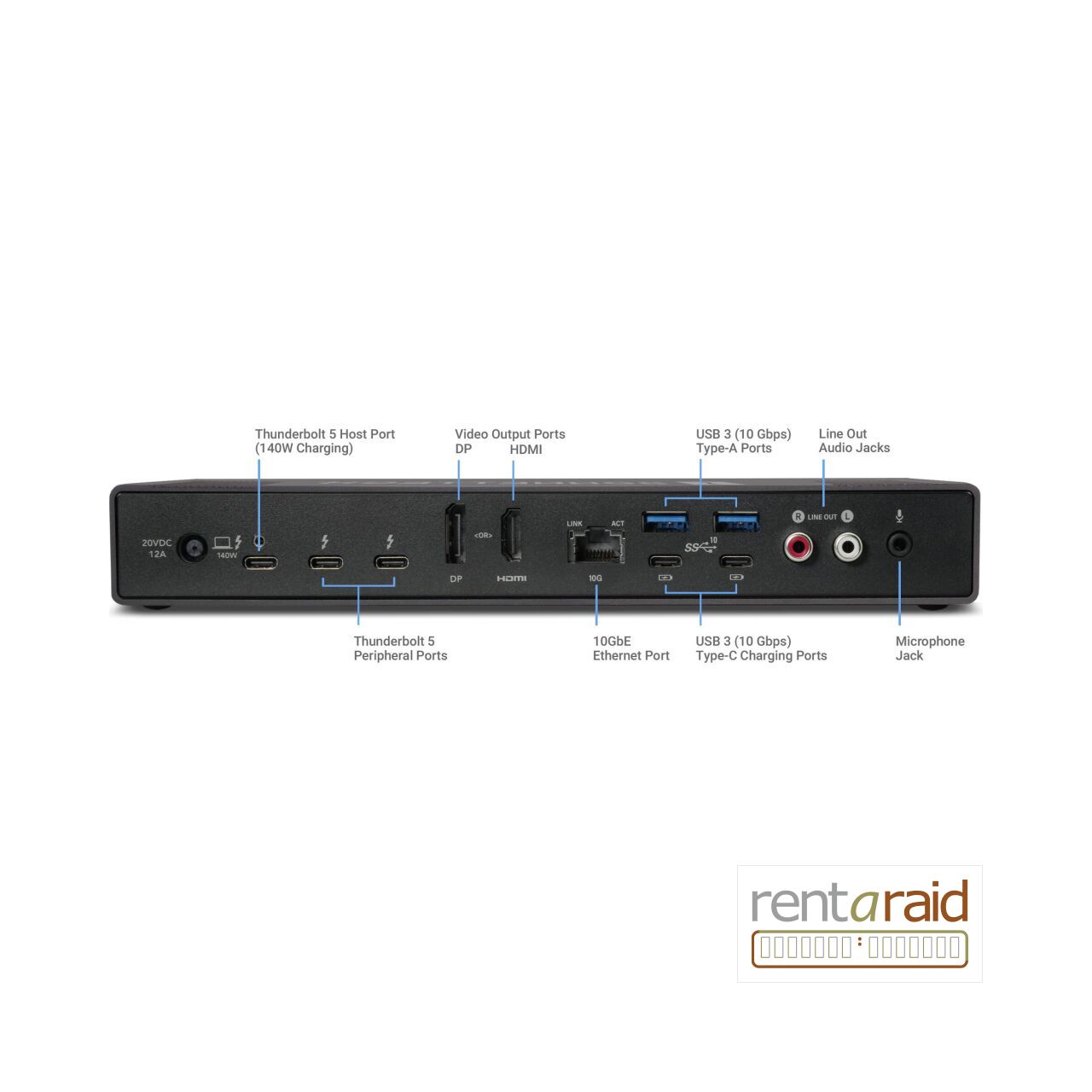

Three Thunderbolt 5 ports provide one computer connection and two downstream ports supporting Thunderbolt 5, 4 and 3 devices, USB4 v2, USB4, USB peripherals and compatible displays.
The integrated 10GBASE-T RJ45 interface supports 10GbE, 5GbE, 2.5GbE, 1GbE and 100Mb/s links. Sonnet also specifies AVB support under macOS.
The dock includes separate HDMI and DisplayPort outputs. Under Windows, HDMI 2.1 supports up to 8K 60Hz; under macOS the HDMI output operates as HDMI 2.0b up to 4K 60Hz. The DisplayPort 2.0 output supports up to 4K 144Hz, subject to host capability.

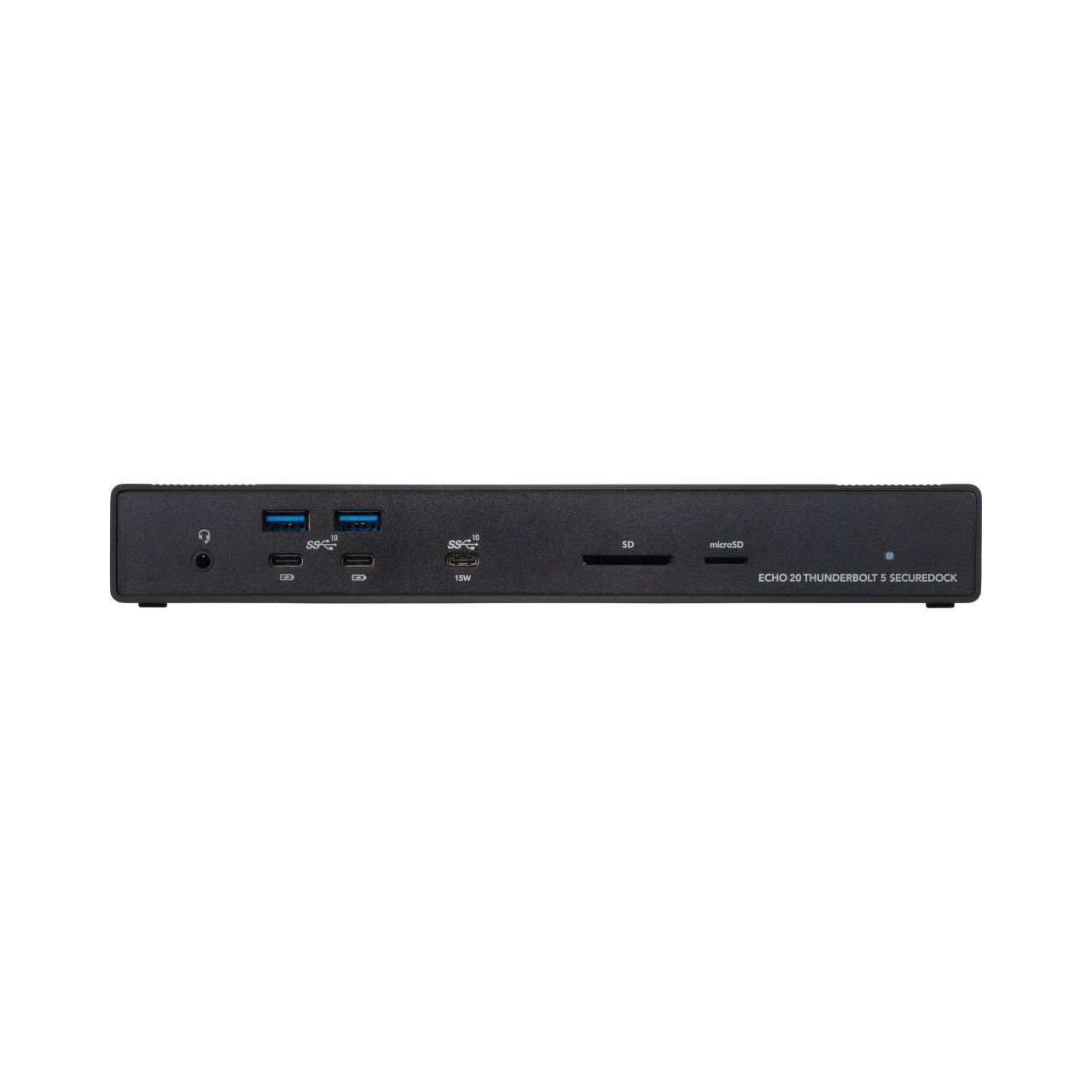

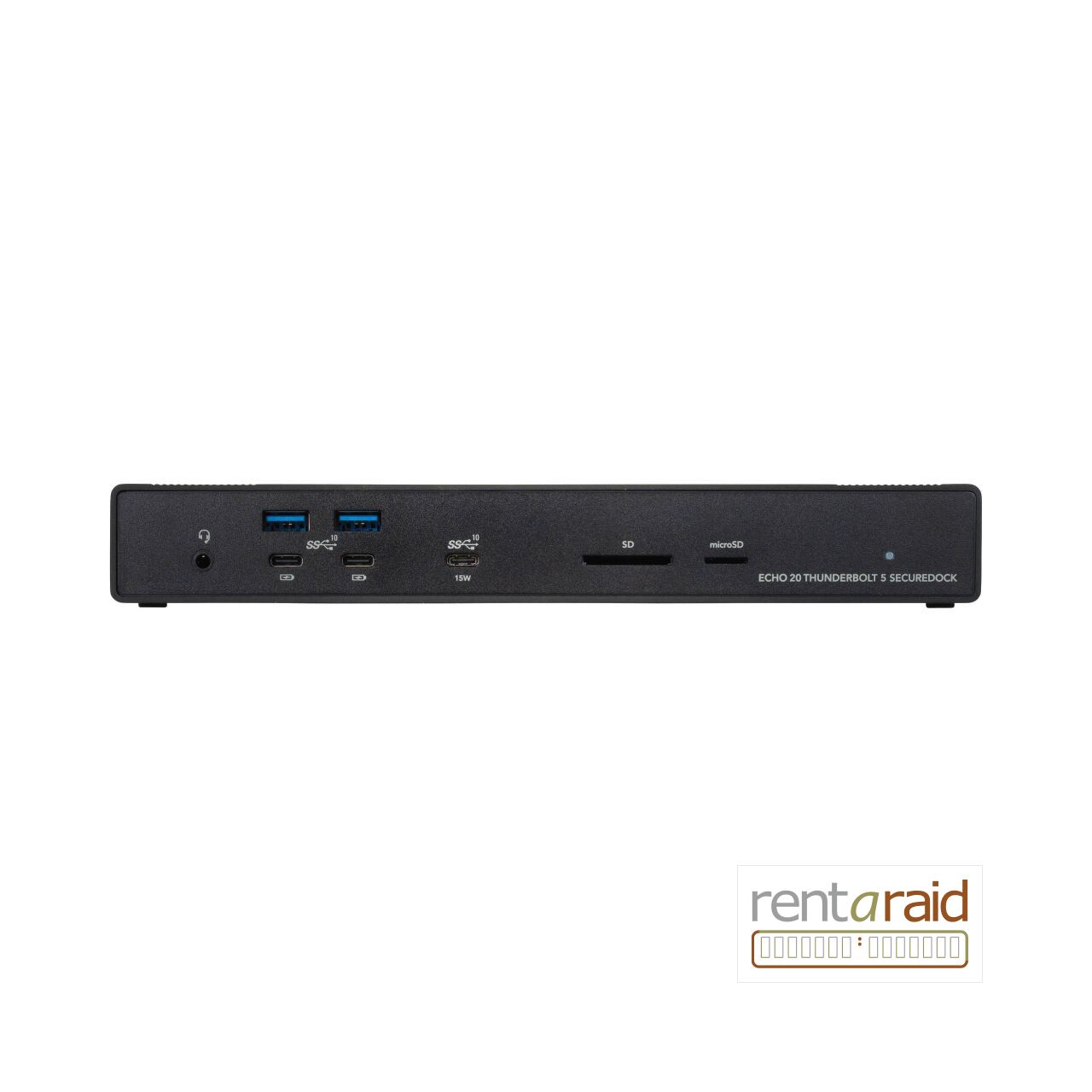

Four USB-A and five USB-C ports operate at up to 10Gbps. One front USB-C port provides up to 15W, while the remaining USB-C ports provide up to 7.5W each.
Dedicated UHS-II SD and microSD readers support removable media workflows even though the dock deliberately omits internal SSD storage. Audio connections include headset, microphone and stereo RCA line-out ports, and a Kensington lock slot supports physical security.
The Thunderbolt 5 host port provides up to 140W to a compatible laptop. A 240W universal power adapter and 0.8m Thunderbolt 5 cable are included.
| Product | Sonnet Echo 20 Thunderbolt 5 SecureDock |
| Sonnet Part Number | ECHO-DK20-T5 |
| Thunderbolt Ports | 3 × Thunderbolt 5 (1 host, 2 downstream) |
| Internal SSD Storage | None |
| Ethernet | 10GbE RJ45; 10/5/2.5/1GbE and 100Mb/s supported |
| Video Outputs | HDMI + DisplayPort |
| USB-A Ports | 4 × USB 3.2 Gen 2, 10Gbps |
| USB-C Ports | 5 × USB 3.2 Gen 2, 10Gbps |
| Card Readers | UHS-II SD; UHS-II microSD |
| Audio | 3.5mm headset, microphone input, RCA L/R line out |
| Host Power Delivery | Up to 140W |
| Power Adapter | Universal 240W |
| Warranty | 2 years |
