Original price was: £ 37.00.£ 35.95Current price is: £ 35.95. | £ 43.14 inc VAT

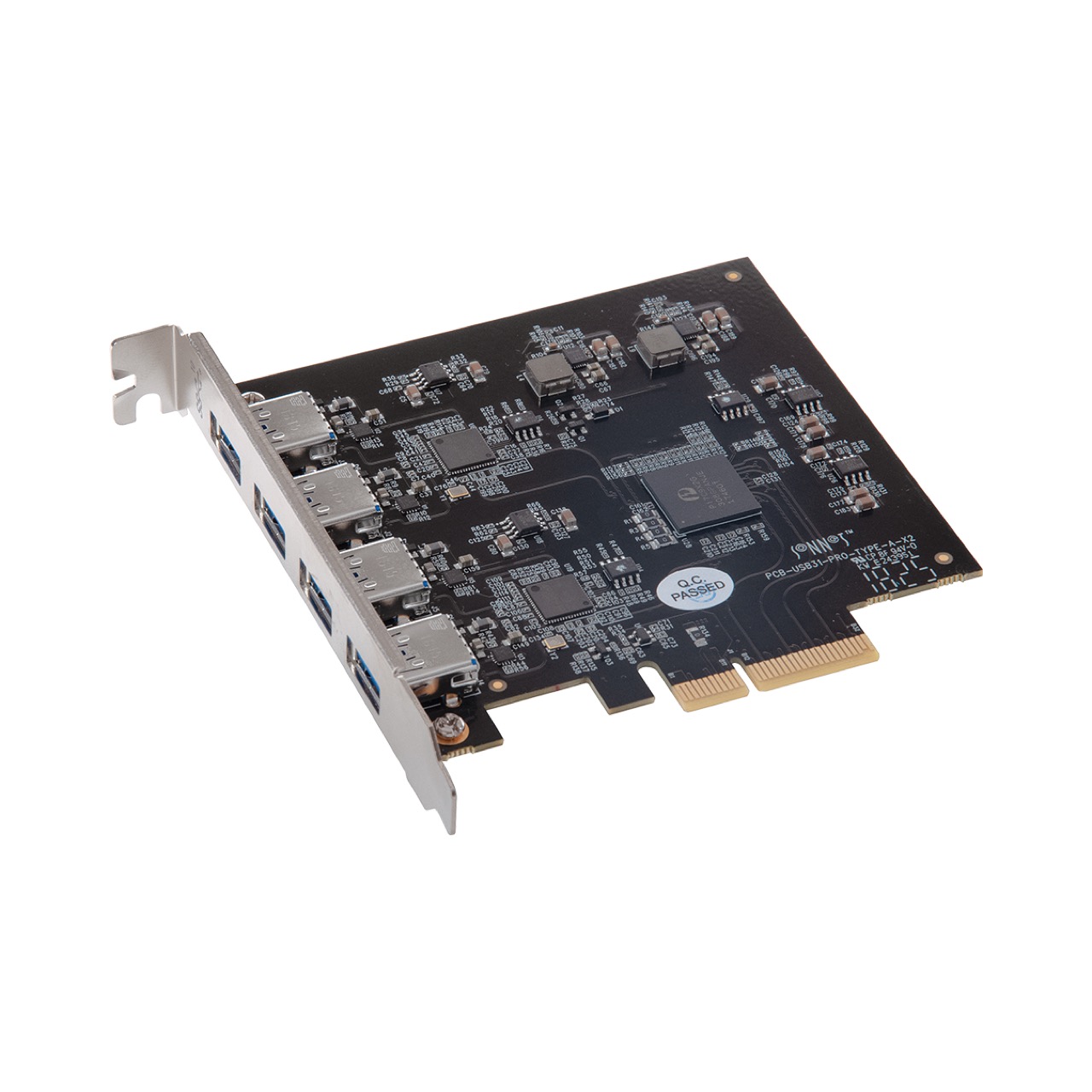

Sonnet Allegro Pro Type-A USB 3.2 PCIe Card
Sonnet Allegro Pro Type-A USB 3.2 PCIe Card
Four-Port USB-A 10Gbps PCIe Card With Dual USB 3.2 Gen 2 Controllers
The Sonnet Allegro Pro Type-A USB 3.2 PCIe Card adds four external USB-A 10Gbps ports to a compatible Mac Pro, Windows PC or supported Thunderbolt-to-PCIe expansion system.
Two independent USB 3.2 Gen 2 controllers provide 20Gbps combined controller throughput and improve simultaneous drive-to-drive performance. Each port can supply up to 7.5W for compatible bus-powered devices without requiring an auxiliary power connection.
- Four USB-A 10Gbps ports.
- Dual USB 3.2 Gen 2 controllers with 20Gbps combined throughput.
- PCI Express 2.0 x4 host interface.
- Up to 7.5W power per USB port with USB Battery Charging 1.2 support.
- No auxiliary power connector required.
Category: USB PCIe Cards
Brand: Sonnet Technology
Original price was: £ 158.00.£ 149.95Current price is: £ 149.95. | £ 179.94 inc VAT
Please Call Us For Availability Of This Item
Sonnet Allegro Pro Type-A USB 3.2 PCIe Card – Product Overview
The Sonnet Allegro Pro Type-A USB 3.2 PCIe Card provides four high-speed USB-A ports from a single PCIe card, making it suitable for connecting fast external SSDs, storage systems, hubs and other USB peripherals to compatible computers and PCIe expansion chassis.
Its dual-controller architecture is designed to maintain useful simultaneous throughput when multiple high-performance devices are active, while independent port power regulation helps protect connected devices from power disturbances caused by other ports.
Four USB-A 10Gbps Ports
All four external ports support USB 3.2 Gen 2 operation at up to 10Gbps per connection and retain compatibility with USB 3.0, USB 2.0 and USB 1.1 peripherals.
Dual USB 3.2 Gen 2 Controllers
Two ASMedia USB controllers provide 20Gbps combined chipset throughput. Sonnet specifies up to 800MB/s with a single suitable USB 3.2 Gen 2 SSD RAID device, while the dual-controller design improves simultaneous transfers between multiple connected drives.
Independent Power Regulation
Each USB port has independent power regulation and protection to reduce the risk of power disturbances on one port causing devices on another port to disconnect. Resettable protection is provided for each port.
Up To 7.5W Per Port
The card supports compatible bus-powered hard drives, SSDs and SSD RAID devices with up to 7.5W available per USB port. USB Battery Charging 1.2 is supported at up to 1.5A per port.
No Auxiliary Power Connection
Power is drawn from the PCIe slot, so no separate SATA, Molex or other auxiliary power connector is required.
PCIe And Expansion Chassis Installation
The full-height card uses a PCI Express 2.0 x4 interface and installs into a PCIe x4 mechanical slot or larger. It can also be installed in compatible Thunderbolt-to-PCIe expansion systems.
Hot-Plug And UASP Support
USB devices may be hot-plugged and hot-swapped, with automatic device configuration. UASP is supported on compatible operating systems for efficient storage-device operation.
Sonnet Allegro Pro Type-A USB 3.2 PCIe Card – Key Features
- Four external USB-A 10Gbps ports.
- USB 3.2 Gen 2 interface with backward compatibility for USB 3.0, USB 2.0 and USB 1.1 devices.
- Two ASMedia USB controllers.
- 20Gbps combined controller throughput.
- Up to 800MB/s transfer performance with a suitable single USB 3.2 Gen 2 SSD RAID device.
- Up to 7.5W power available per USB port.
- USB Battery Charging 1.2 support at up to 1.5A per port.
- Independent power regulation for each USB port.
- Per-port overcurrent protection.
- No auxiliary power connector required.
- PCI Express 2.0 x4 host interface.
- Installs in PCIe x4 mechanical or larger slots.
- Supports hot-pluggable and hot-swappable USB devices.
- UASP support on compatible operating systems.
- Full-height PCIe card form factor.
- 2-year Sonnet warranty.
Sonnet Allegro Pro Type-A USB 3.2 PCIe Card – Technical Specifications
| Manufacturer | Sonnet Technologies |
| Manufacturer Part Number | USB3-PRO-4P10-E |
| Product Type | USB PCIe Expansion Card |
| Form Factor | Full-Height PCIe Computer Card |
| Host Interface | PCI Express 2.0 x4 |
| Required PCIe Slot | PCIe x4 Mechanical Slot Or Larger |
| External Ports | 4 x USB-A |
| USB Interface | USB 3.2 Gen 2 |
| Maximum Port Signalling Rate | 10Gbps |
| Combined Controller Throughput | 20Gbps |
| USB Controllers | 2 x ASMedia ASM3142 On Current Hardware |
| Supported USB Standards | USB 3.2 Gen 2 / USB 3.1 Gen 2, USB 3.0, USB 2.0, USB 1.1 |
| Bus-Powered Peripheral Support | Hard Drives, SSDs And SSD RAID Devices |
| Power Per USB Port | Up To 7.5W |
| USB Charging | USB Battery Charging 1.2, Up To 1.5A Per Port |
| Auxiliary Power Connection | Not Required |
| UASP | Supported On Compatible Operating Systems |
| Hot Plug | Supported |
| Maximum Devices Supported | Up To 62 |
| Boot Support | No |
| Standards | OHCI, EHCI And xHCI Compliant |
| RoHS | Compliant |
| Warranty | 2 Years |
| Package Contents | Allegro Pro USB PCIe Card And Documentation |
