Original price was: £ 368.00.£ 324.95Current price is: £ 324.95. | £ 389.94 inc VAT

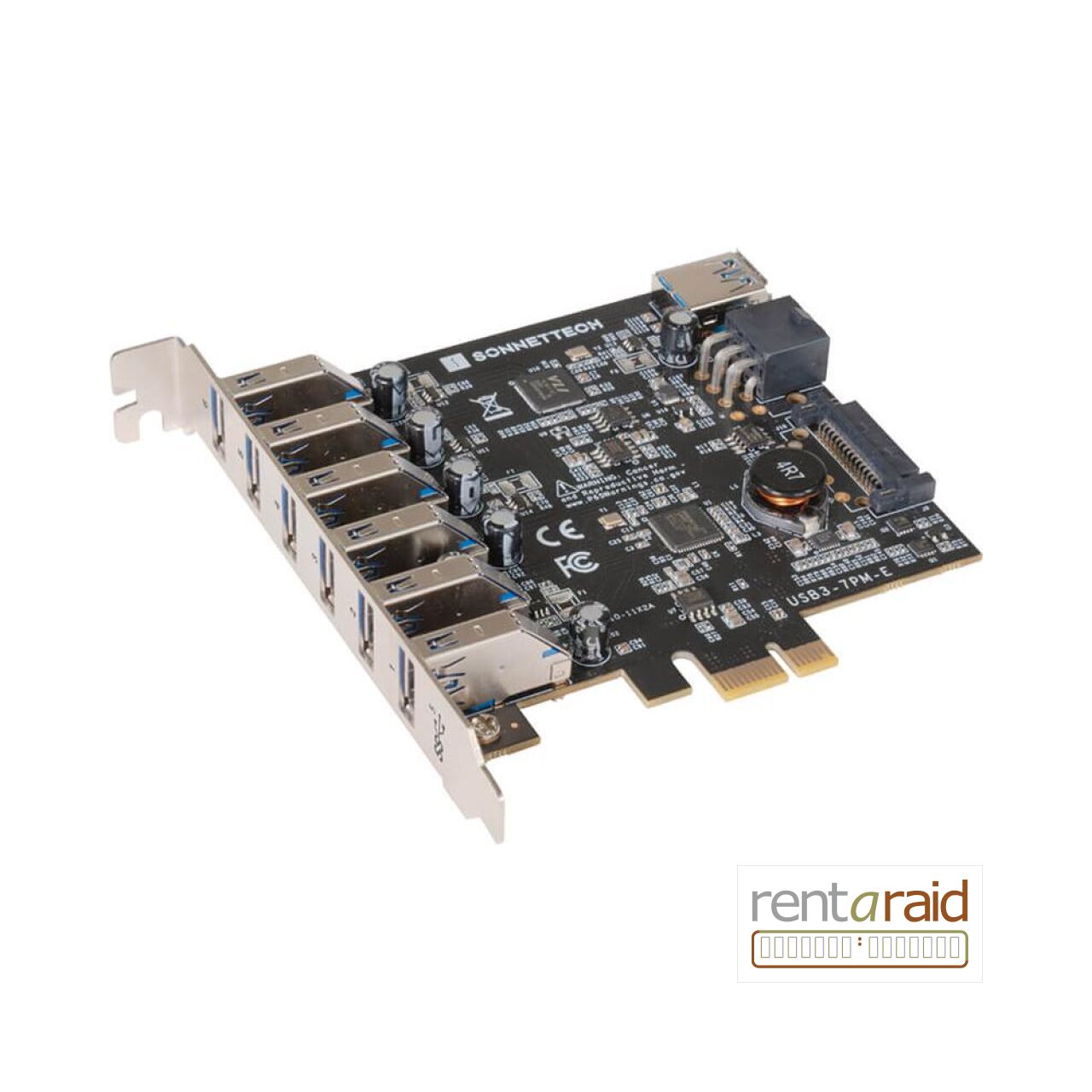

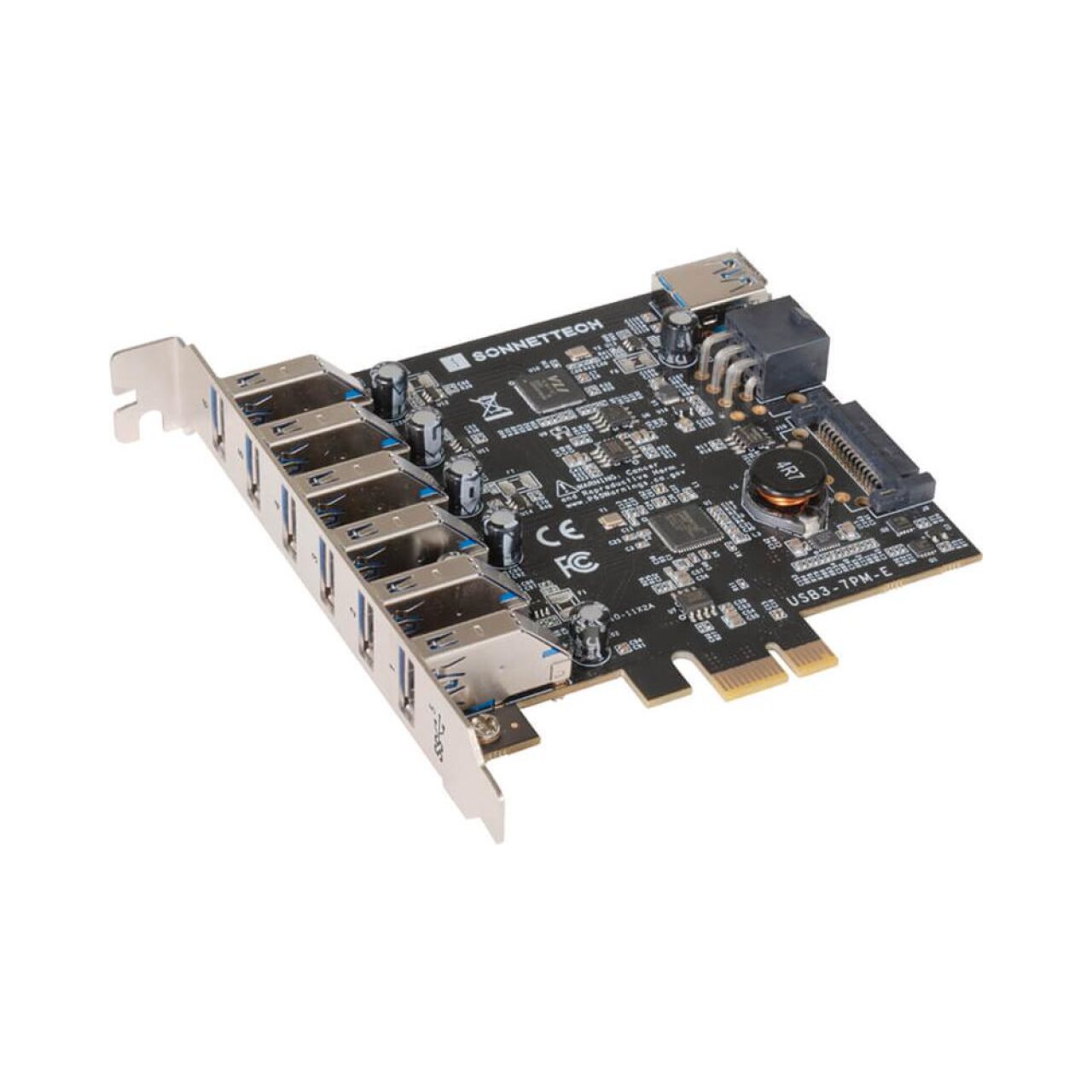

Sonnet Allegro 7-Port USB 3.2 Gen 1 Type-A PCIe Card
Sonnet Allegro 7-Port USB 3.2 Gen 1 Type-A PCIe Card
Seven 5Gbps USB-A Ports From One PCIe Slot
The Sonnet Allegro 7-Port USB 3.2 Gen 1 Type-A PCIe Card adds seven USB-A ports to a compatible Mac, Windows or Linux computer while using only one full-height PCIe slot.
Six ports are external and one is internal, with up to 5Gbps USB connectivity, bus power for compatible peripherals and resettable overcurrent protection on each port.
- Six external plus one internal USB-A port.
- Up to 5Gbps USB 3.2 Gen 1 connectivity.
- Fresco Logic FL1100EX controller.
- Up to 5W of power available from each port.
Category: USB PCIe Cards
Brand: Sonnet Technology
Original price was: £ 53.00.£ 50.95Current price is: £ 50.95. | £ 61.14 inc VAT
In Stock
Sonnet Allegro 7-Port USB 3.2 Gen 1 Type-A PCIe Card – Product Overview
The Sonnet Allegro 7-Port USB 3.2 Gen 1 Type-A PCIe Card, part number USB3-7PM-E, is designed for systems that need a large number of conventional USB-A connections without occupying multiple PCIe slots.
It combines six externally accessible ports with one internal USB-A port, supporting storage, audio, control, input and other USB peripherals.
Seven USB-A Ports
The card adds six external USB-A ports and one internal USB-A port. Each supports USB 3.2 Gen 1 operation at up to 5Gbps and maintains backwards compatibility with older USB devices.
Power For Bus-Powered Devices
Each port can provide up to 0.9A, approximately 5W, supporting many bus-powered flash drives, hard drives, SSDs and other compatible peripherals without a separate power adapter.
Individual Port Protection
Resettable overcurrent protection is provided for each port, helping protect both the card and host computer if a faulty peripheral or cable causes a short circuit.
Bandwidth Distribution
Three external ports have their own 5Gbps bandwidth paths. The remaining three external ports and the internal port share a 5Gbps path; a single device on that shared group can access the full available bandwidth.
Fresco Logic Controller
The card uses a Fresco Logic FL1100EX USB controller and supports UASP on compatible operating systems for efficient storage transfers.
Simple Driverless Installation
Sonnet specifies plug-and-play installation on supported Mac, Windows and Linux systems, with hot-pluggable and hot-swappable device connection support.
Sonnet Allegro 7-Port USB 3.2 Gen 1 Type-A PCIe Card – Key Features
- Sonnet part number USB3-7PM-E.
- Six external USB-A ports.
- One internal USB-A port.
- Seven USB-A ports in total.
- USB 3.2 Gen 1 data rate up to 5Gbps.
- PCI Express 2.1 x1 host interface.
- Fresco Logic FL1100EX controller.
- Up to 0.9A / approximately 5W available per port.
- Resettable overcurrent fuse protection on each port.
- UASP support on compatible operating systems.
- Hot-pluggable and hot-swappable device support.
- Supports storage, audio and general USB peripherals.
- Mac, Windows and Linux support.
- 2-year Sonnet warranty.
Sonnet Allegro 7-Port USB 3.2 Gen 1 Type-A PCIe Card – Technical Specifications
| Manufacturer | Sonnet Technologies |
| Manufacturer Part Number | USB3-7PM-E |
| Product Type | Seven-port USB-A PCIe expansion card |
| Form Factor | Full-height PCIe card |
| PCIe Interface | PCI Express 2.1 x1 |
| External Ports | 6 x USB-A |
| Internal Port | 1 x USB-A |
| Total USB Ports | 7 |
| USB Interface | USB 3.2 Gen 1, up to 5Gbps |
| Controller | Fresco Logic FL1100EX |
| Per-Port Power | Up to 0.9A / approximately 5W |
| Port Protection | Resettable overcurrent fuse on each port |
| UASP | Supported on compatible macOS and Windows systems |
| Hot Plug | Supported |
| Boot Support | Not supported from USB 3 PCIe card-attached devices |
| Operating Temperature | 0°C to 35°C |
| Compliance | RoHS 3; IEC62368-1 / IEC62368-2 safety |
| Warranty | 2 years |
| Package Contents | Allegro 7-Port USB 3.2 Gen 1 Type-A PCIe Card and documentation |
