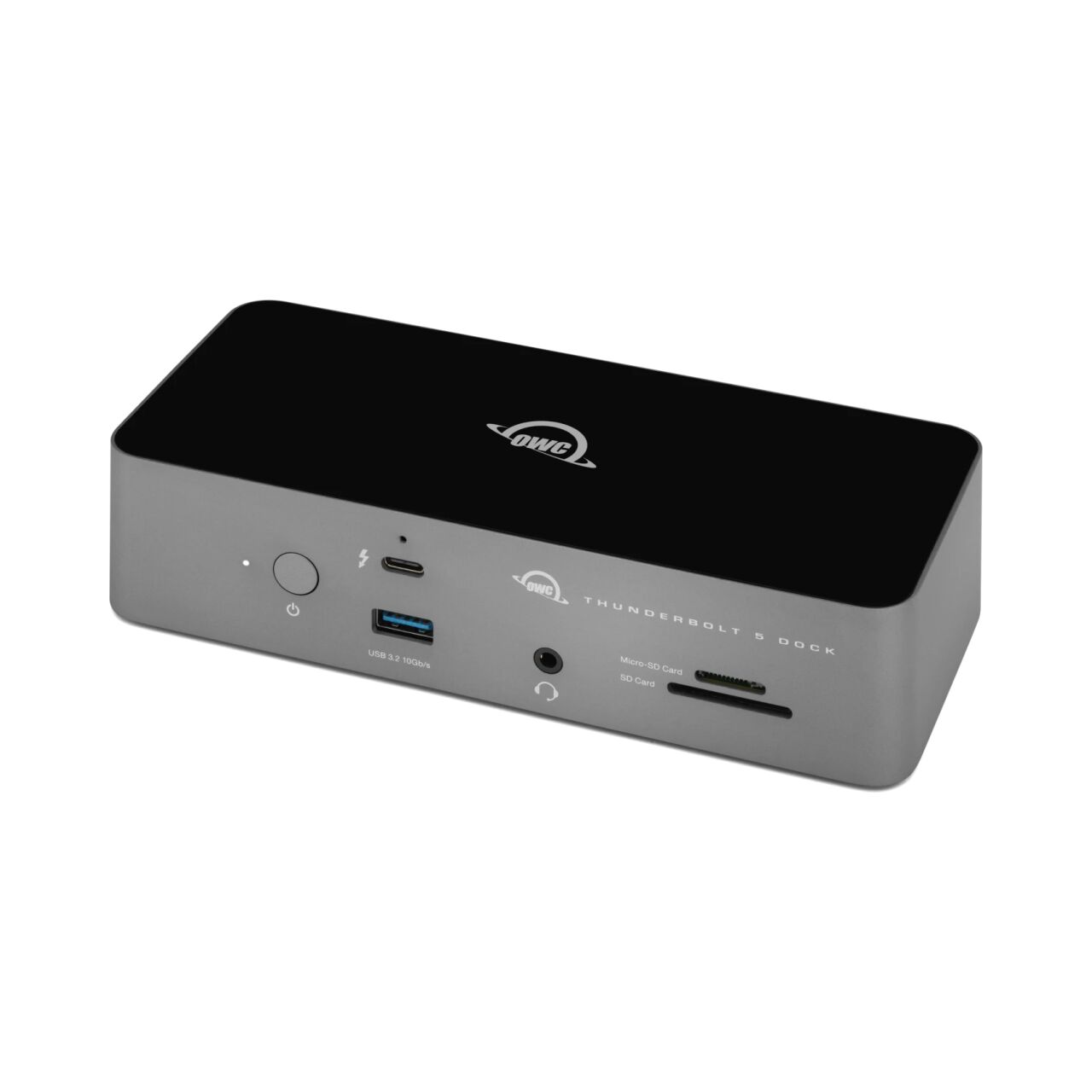

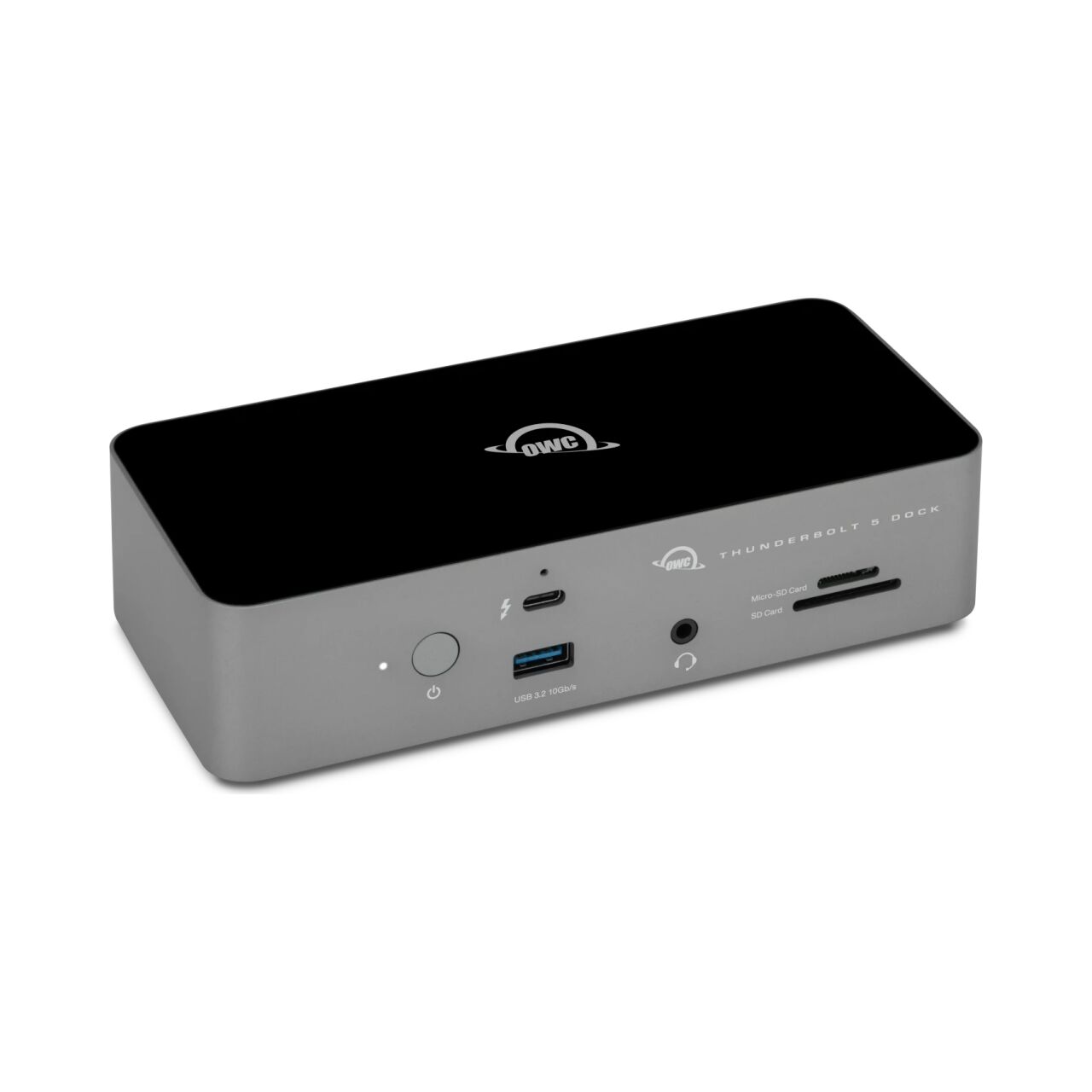

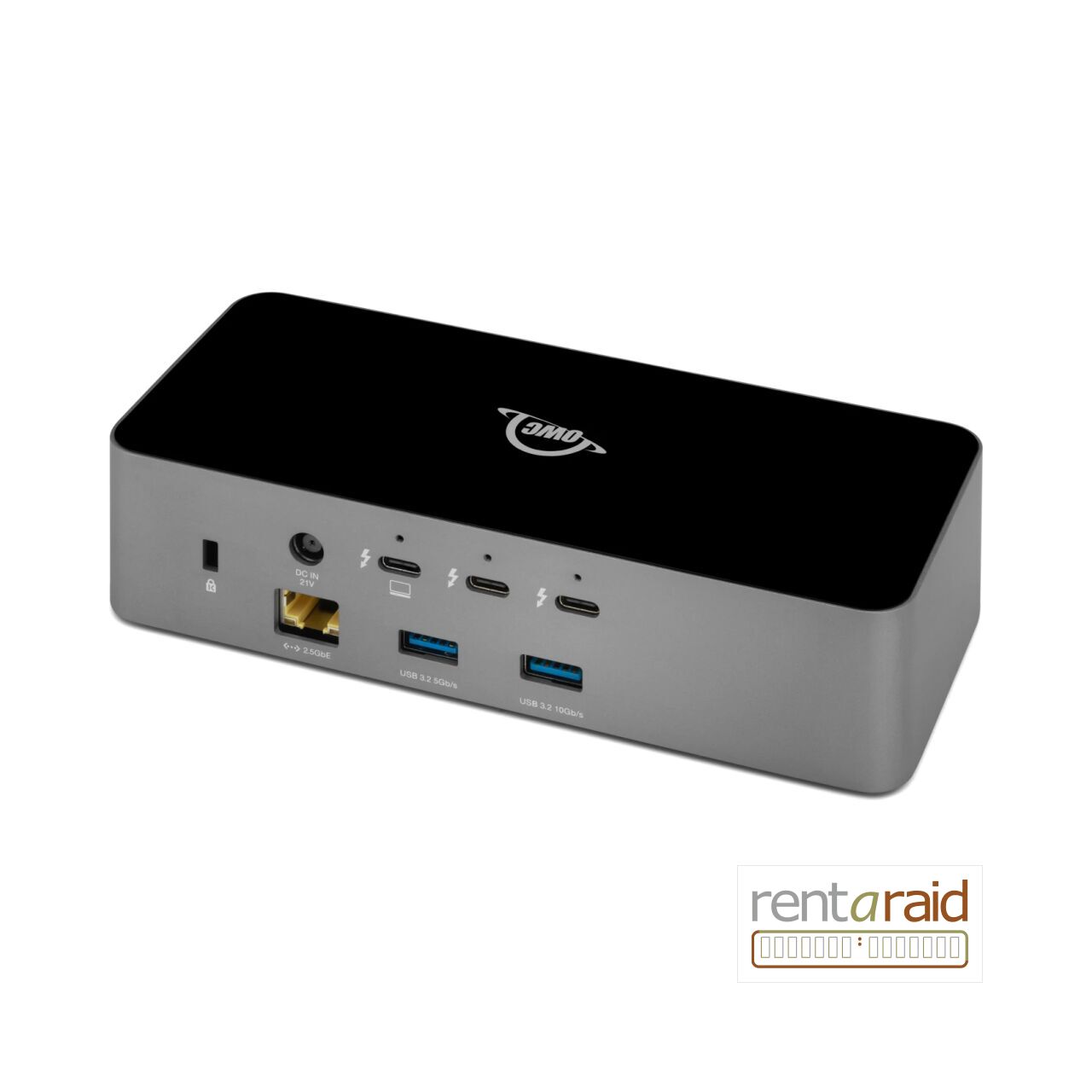

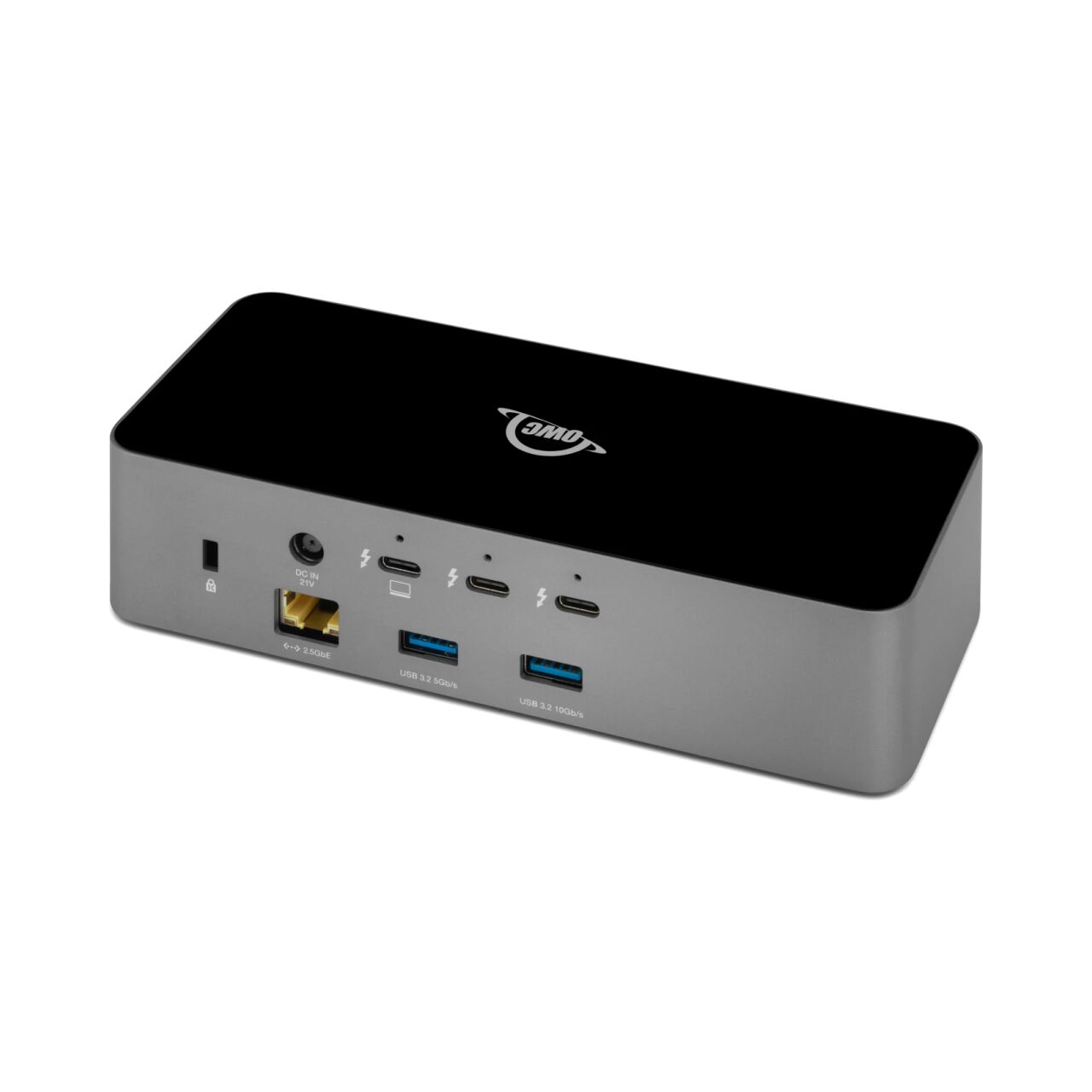

OWC Thunderbolt 5 Dock
OWC Thunderbolt 5 Dock
11-Port Thunderbolt 5 Dock With 140W Charging, 2.5GbE, SD & microSD UHS-II Readers
The OWC Thunderbolt 5 Dock expands a single Thunderbolt or USB-C connection into an 11-port workstation hub for high-speed storage, networking, displays, audio and media ingest.
It combines three downstream Thunderbolt 5 ports, three USB-A ports, 2.5GbE Ethernet, SD and microSD UHS-II readers and a 3.5mm audio connection, while supplying up to 140W of power to a compatible host.
- Three downstream Thunderbolt 5 ports with up to 80Gb/s bi-directional bandwidth.
- Up to 140W host power delivery.
- 2.5GbE Ethernet plus SD and microSD UHS-II card readers.
- Three USB-A ports for a wide range of peripherals.
- Fanless aluminium enclosure for silent desktop operation.
Brand: OWC
£ 274.95 | £ 329.94 inc VAT
In Stock
OWC Thunderbolt 5 Dock Product Overview
The OWC Thunderbolt 5 Dock is designed to turn one host connection into a complete professional workstation. It combines high-bandwidth Thunderbolt expansion, fast wired networking, integrated media readers, USB-A connectivity and audio in a compact fanless desktop enclosure.
It is compatible with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 on supported Macs, USB4 and USB-C hosts, automatically operating at the maximum speed supported by the connected system.
Thunderbolt 5 Performance
Three downstream Thunderbolt 5 ports provide high-speed connections for storage, displays and other peripherals, with up to 80Gb/s bi-directional data bandwidth and up to 120Gb/s of display bandwidth on supported Thunderbolt 5 systems.
140W Host Charging
The dedicated host connection can provide up to 140W of power delivery, allowing compatible notebooks and tablets to remain charged while drives, displays and peripherals are connected through the dock.
Integrated Media Ingest
Front-mounted SD and microSD card slots support UHS-II media, giving photographers, DITs and content creators direct high-speed card ingest without a separate reader.
2.5GbE Networking
The built-in 2.5GbE RJ45 port provides a fast wired connection for NAS access, large file transfers, cloud workflows and stable office networking.
Display And Peripheral Expansion
Depending on host capability, the dock supports high-resolution multi-display workflows while also providing three USB-A ports and a 3.5mm combo audio connection for everyday desktop peripherals.
Silent Desktop Design
The precision aluminium enclosure uses passive cooling, avoiding fan noise in edit suites, recording rooms and other noise-sensitive workspaces.
Included Connectivity
The dock includes a 1.0 metre Thunderbolt 5 cable, external power supply and power cable. OWC ClingOn cable stabilisers are supported but sold separately.
OWC Thunderbolt 5 Dock Key Features
- 11-port Thunderbolt 5 desktop dock
- Three downstream Thunderbolt 5 ports
- Up to 80Gb/s bi-directional Thunderbolt 5 data bandwidth
- Up to 120Gb/s display bandwidth on supported Thunderbolt 5 hosts
- Up to 140W host power delivery
- 2.5GbE RJ45 Ethernet
- SD 4.0 UHS-II and microSD UHS-II card readers
- Three USB-A ports: two 10Gb/s and one 5Gb/s
- 3.5mm combo audio input/output
- Fanless aluminium enclosure
- Supports OWC Dock Ejector
- Includes 1.0m Thunderbolt 5 cable and external power supply
- 2-year OWC limited warranty
OWC Thunderbolt 5 Dock Technical Specifications
| Product | OWC Thunderbolt 5 Dock |
| Host Interface | Thunderbolt 5 / USB-C |
| Host Bandwidth | Up to 80Gb/s bi-directional data; up to 120Gb/s display bandwidth on supported Thunderbolt 5 hosts |
| Downstream Thunderbolt | 3 x Thunderbolt 5 (USB-C), up to 15W per port |
| USB-A | 2 x USB 3.2 Gen 2 10Gb/s; 1 x USB 3.2 Gen 1 5Gb/s |
| Ethernet | 1 x 2.5GbE RJ45 |
| Card Readers | SD 4.0 UHS-II; microSD UHS-II |
| Card Reader Bus Speed | Up to 156MB/s full duplex or 312MB/s half duplex |
| Audio | 1 x 3.5mm combo audio input/output |
| Host Power Delivery | Up to 140W |
| Cooling | Fanless passive aluminium enclosure |
| Security | Kensington security slot |
| Compatibility | Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 on supported Macs, USB4 and USB-C hosts |
| Included Cable | 1.0m Thunderbolt 5 cable |
| Included Power | External power supply and power cable |
| Warranty | 2-year OWC limited warranty |
