OWC Express 4M2 Ultra – 16TB (SoftRAID License Included) is a pre-configured four-slot Thunderbolt 5 NVMe RAID array built for professional editing and high-bandwidth workflows.
It delivers up to 6622MB/s over Thunderbolt 5 and ships with NVMe SSDs installed and SoftRAID Premium included for 3 Years.
The second Thunderbolt 5 port supports daisy chaining up to five additional Thunderbolt devices plus one USB peripheral.
£ 4,767.95 | £ 5,721.54 inc VAT
Please Call Us For Availability Of This Item
OWC Express 4M2 Ultra – 16TB (SoftRAID License Included) is a four-slot Thunderbolt 5 NVMe RAID solution delivered pre-configured so creative teams can connect and start working immediately.
The enclosure combines all-flash NVMe capacity with SoftRAID-managed redundancy and Thunderbolt 5 bandwidth to accelerate demanding workflows.
Experience up to 6622MB/s real-world speed over Thunderbolt 5 (80Gb/s). Over Thunderbolt 4 or USB4 (40Gb/s) the array can reach up to 3200MB/s, and on Thunderbolt 3 systems it can reach up to 2800MB/s.
This SKU ships configured with 16TB of NVMe storage and the enclosure supports up to 32TB in a single unit. Capacity can be expanded up to 128TB as one unified volume by daisy chaining additional Express 4M2 Ultra units.
Four NVMe M.2 slots accept 2242 and 2280 single- or double-sided PCIe 3.0/4.0/5.0 SSDs. RAID 0/1/4/5/10 (1+0)/JBOD configurations are supported via SoftRAID or alternative RAID utilities.

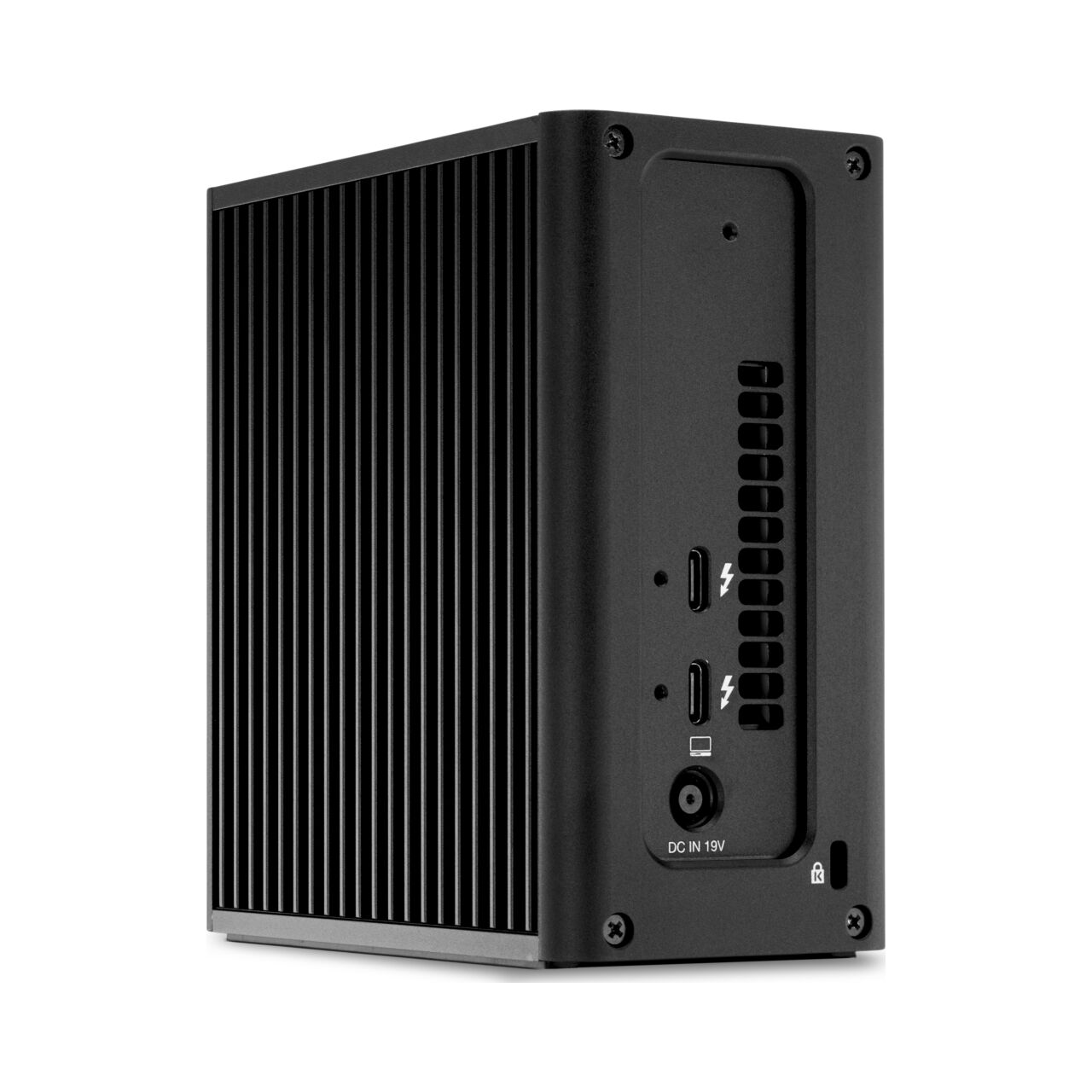

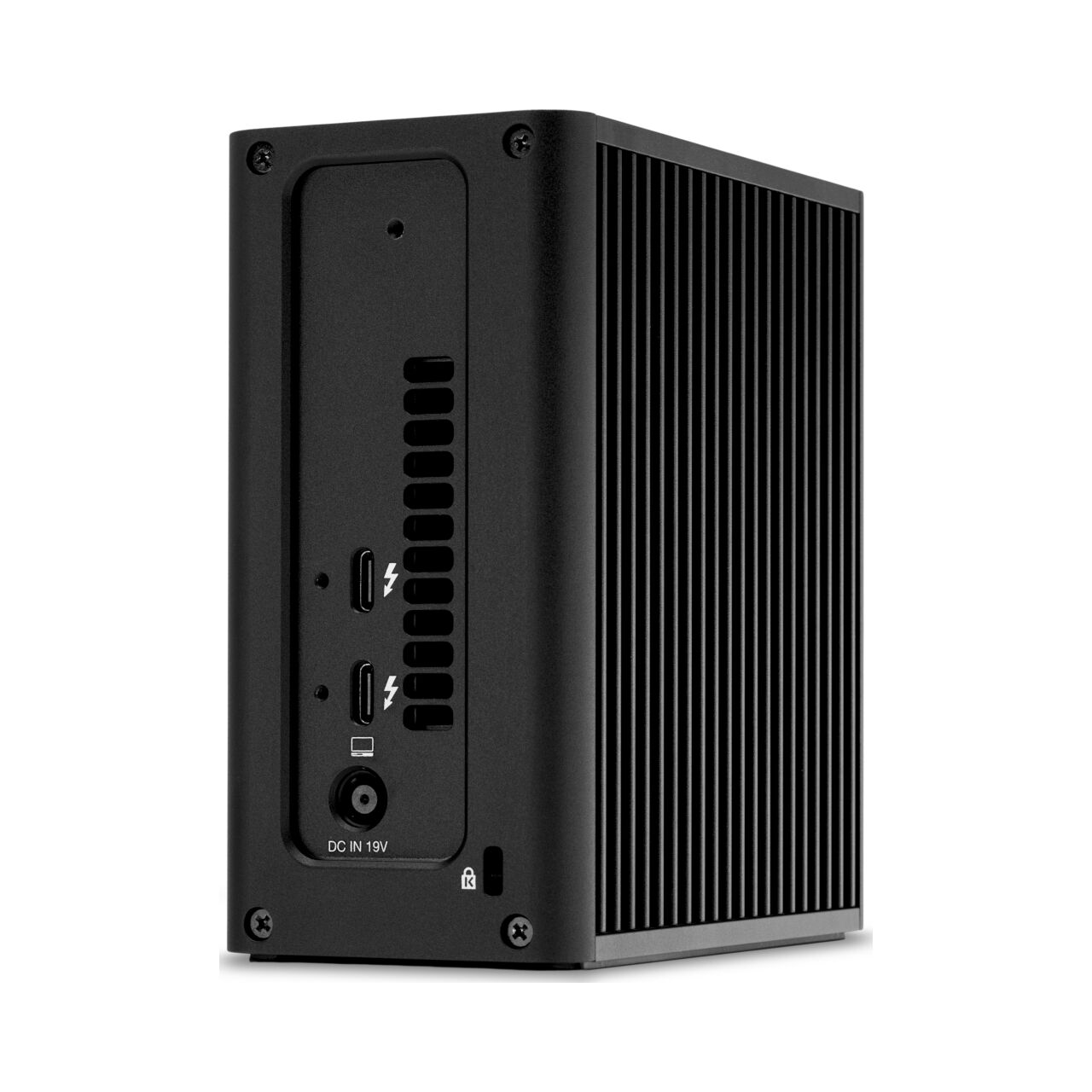

The unit provides two Thunderbolt 5 (80Gb/s) ports and ships with a Thunderbolt 5 80Gb/s cable. The second Thunderbolt 5 port allows daisy chaining of up to five additional Thunderbolt devices plus one USB peripheral.

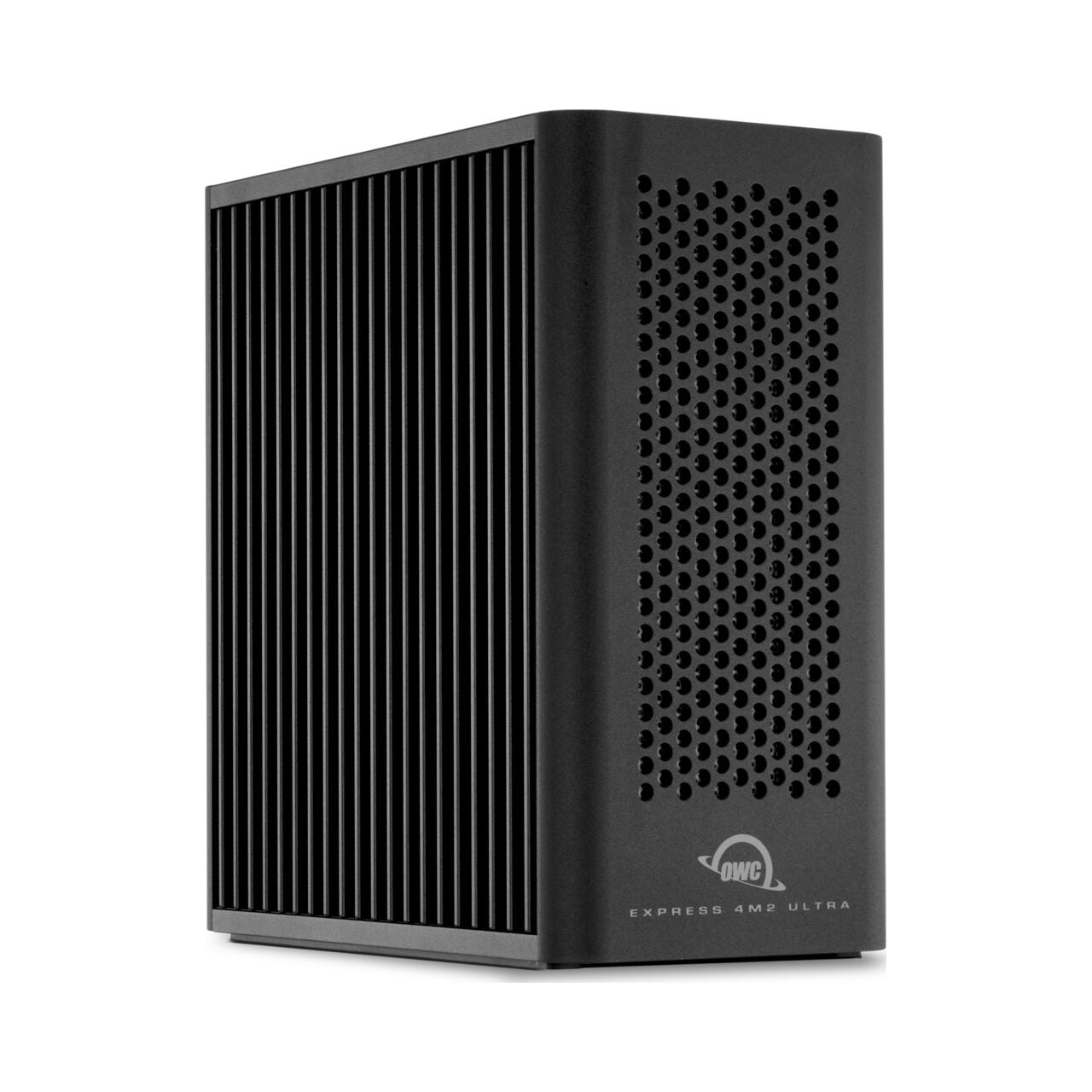

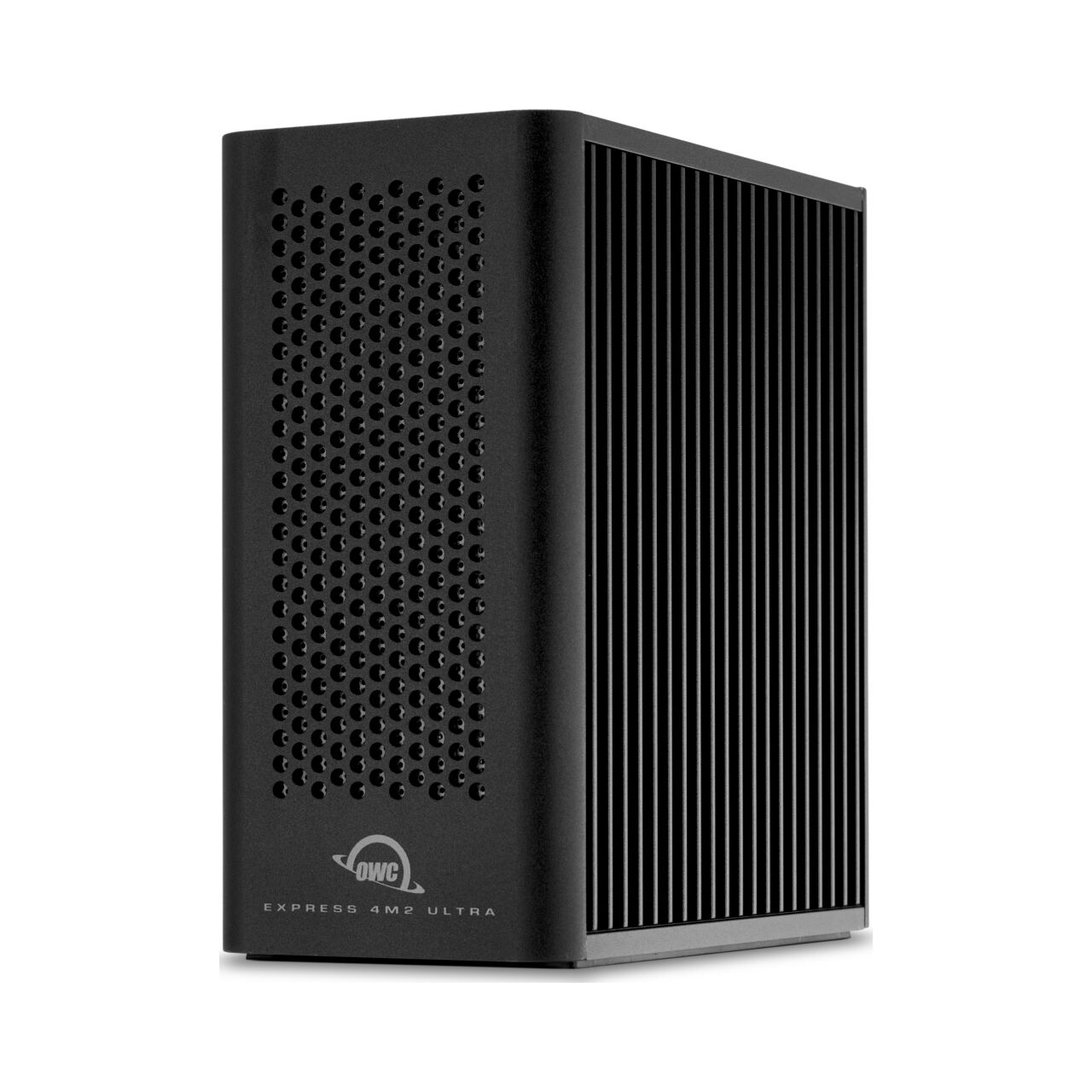

The solid aircraft-grade aluminium body offers passive thermal protection and a smart adaptive fan that quietly activates only during sustained workloads to avoid thermal throttling and unnecessary noise.
The product includes 3 Years of SoftRAID Premium for advanced RAID monitoring and predictive health alerts, and it ships with 2 Strada licenses for 90 days to enable remote team access and collaboration without cloud uploads.
Compatible with Thunderbolt 5, Thunderbolt 4, USB4 Macs and PCs, and Thunderbolt 3 Macs.
The unit is backed by a 2 Year OWC Limited Warranty and OWC’s manufacturing and testing processes; NVMe SSDs are installed, tested, and RAID-configured with SoftRAID before shipping.
| Configured Capacity | 16TB |
| Maximum Single-Enclosure Capacity | 32TB |
| Expandable Capacity (Daisy Chaining) | Up to 128TB as one volume |
| Drive Bays | Four NVMe M.2 slots |
| Supported Drive Form Factors | NVMe M.2 2242 and 2280, single or double-sided |
| Supported PCIe Generations | PCIe 3.0 / PCIe 4.0 / PCIe 5.0 SSDs |
| Preconfiguration | NVMe SSDs installed, tested, and RAID-configured with SoftRAID before shipping |
| RAID Levels Supported | RAID 0 / 1 / 4 / 5 / 10 (1+0) / JBOD |
| Host Connectivity | Two Thunderbolt 5 (80Gb/s) ports |
| Daisy Chain | Up to five additional Thunderbolt devices plus one USB peripheral via the second Thunderbolt 5 port |
| Included Cable | Thunderbolt 5 80Gb/s cable |
| Real-World Speed (Thunderbolt 5) | Up to 6622MB/s |
| Real-World Speed (Thunderbolt 4 / USB4 40Gb/s) | Up to 3200MB/s |
| Real-World Speed (Thunderbolt 3) | Up to 2800MB/s |
| PCIe Generation Performance Notes | Up to 6622MB/s achieved with PCIe 4.0 and later SSDs. PCIe 3.0 SSDs are limited up to 3800MB/s. |
| Cooling / Chassis | Solid aircraft-grade aluminium body with smart adaptive fan that activates only during sustained workloads |
| Compatibility | Use with Thunderbolt 5, Thunderbolt 4, USB4 Macs and PCs, and Thunderbolt 3 Macs |
| SoftRAID Included | SoftRAID Premium included: 3 Years |
| Strada Licenses Included | 2 Strada licenses for 90 days |
| Unit Warranty | 2 Year OWC Limited Warranty |
| Box Contents | Express 4M2 Ultra (configured with NVMe SSDs), Thunderbolt 5 80Gb/s cable, 3 Years of SoftRAID Premium, 2 Strada licenses for 90 days |
