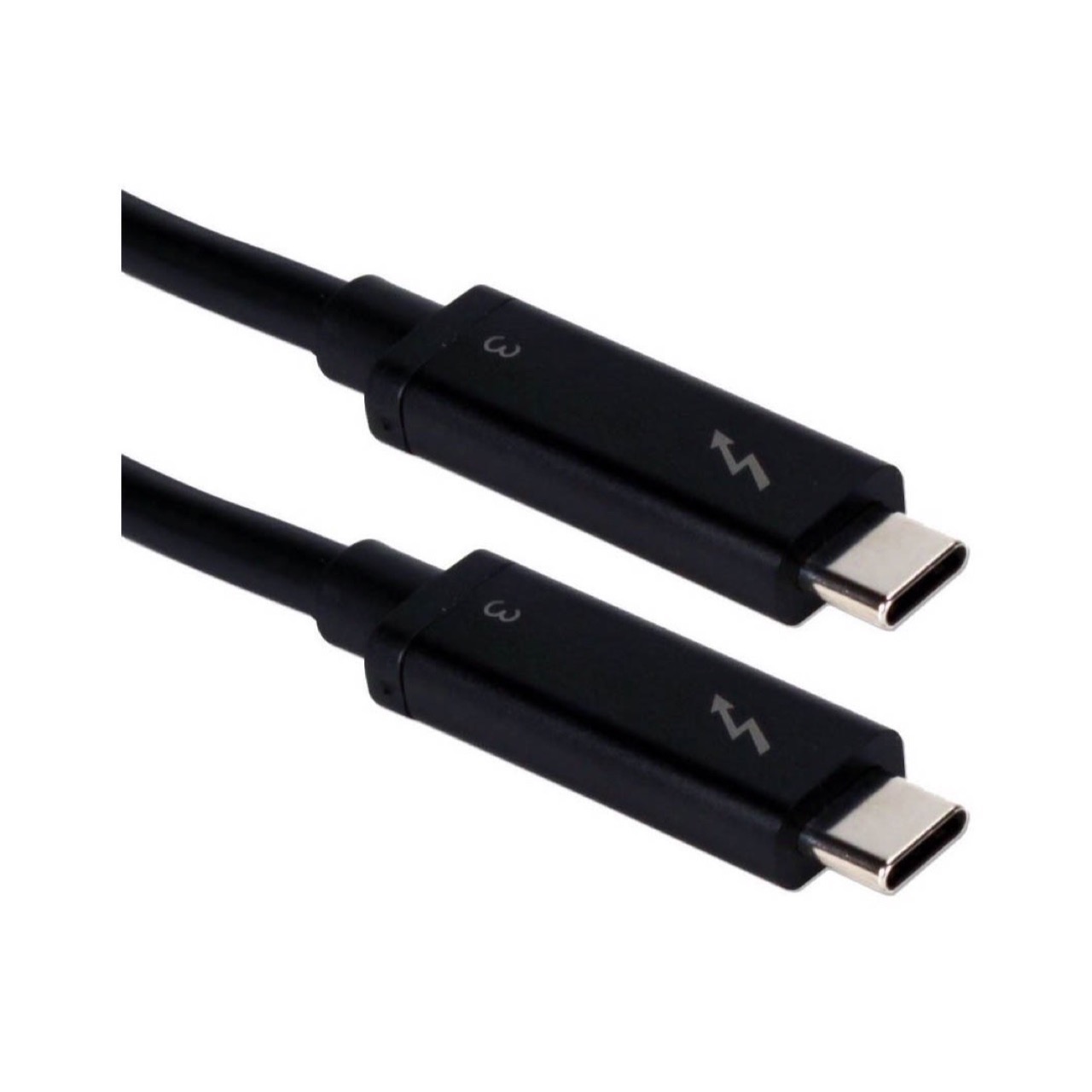

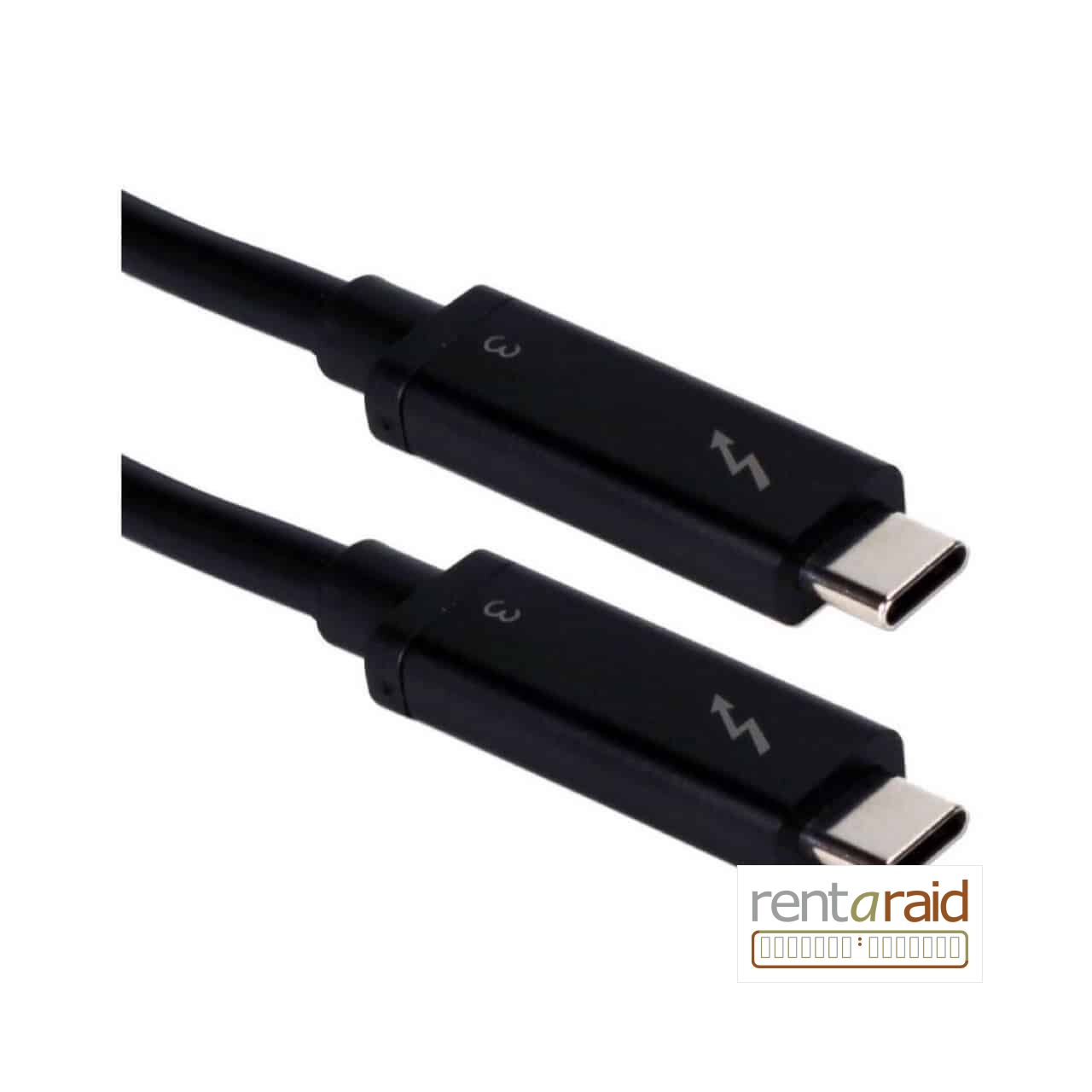

Corning Thunderbolt 3 Optical Cable – 15m

Corning Thunderbolt 3 Optical Cable – 15m

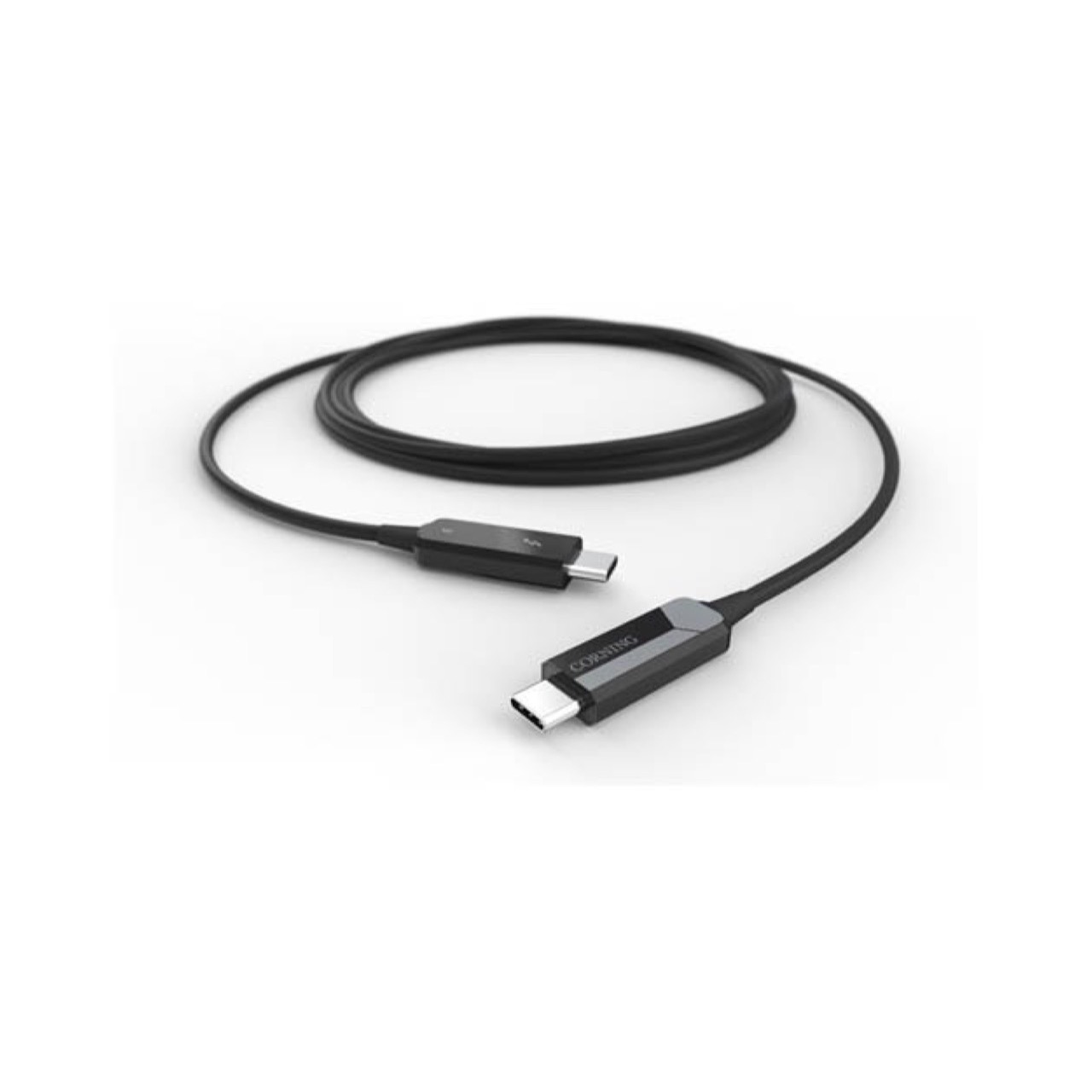

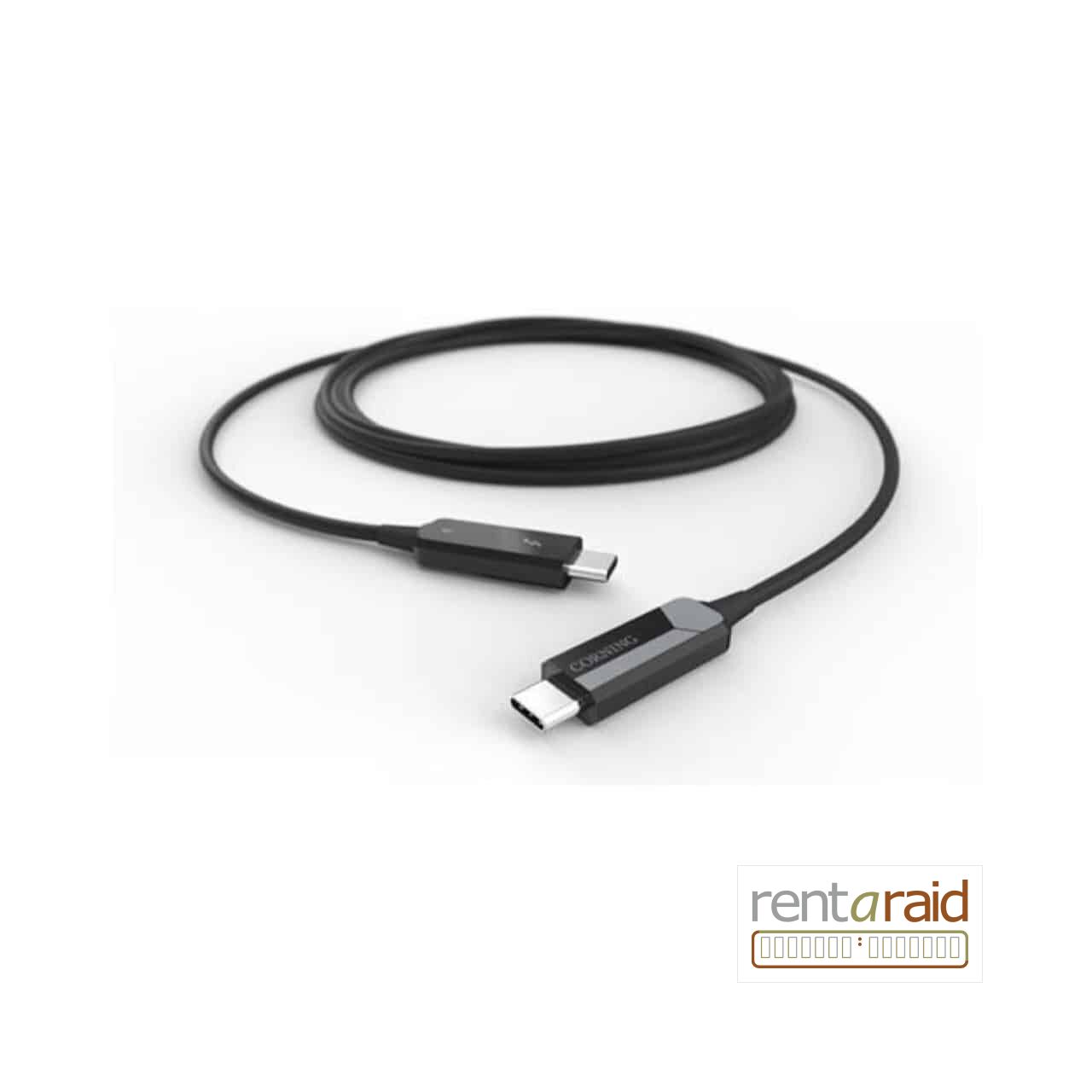

Corning Thunderbolt 3 Optical Cable – 15m - Image 2
Corning Thunderbolt 3 Optical Cable – 15m - Image 3
Corning Thunderbolt 3 Optical Cable – 15m

15m Active Optical Thunderbolt 3 Cable — 40Gb/s USB-C For Self-Powered Devices

The Corning Thunderbolt 3 Optical Cable extends 40Gb/s Thunderbolt 3 connectivity over a 15m active optical cable, making it ideal for longer workstation, storage and machine-room installations.

It uses reversible USB-C connectors and an all-dielectric optical design for electrically isolated connectivity. The connected peripheral must be self-powered because the cable does not provide bus power.

  • 40Gb/s Thunderbolt 3 active optical cable.
  • 15m cable length.
  • Reversible USB-C / Type-C connectors.
  • For self-powered Thunderbolt 3 peripherals.
Category: Cables
SKU: AOC-CCU6JPN015M20
Brand: Corning

£ 382.95 | £ 459.54 inc VAT

In Stock

Corning Thunderbolt 3 Optical Cable – 15m – Product Overview

40Gb/s Thunderbolt 3 Over Optical Fibre

Corning's Thunderbolt 3 Optical Cable carries high-speed data and display traffic over a 15m optical link, providing substantially greater installation flexibility than conventional short copper Thunderbolt cables.

Designed For Long-Distance Installations

The cable is well suited to professional media, storage and machine-room workflows where noisy or heat-generating equipment needs to be positioned away from the workstation while retaining a direct Thunderbolt 3 connection.

Reversible USB-C Connectivity

Both ends use reversible Type-C connectors. Corning specifies 40Gb/s Thunderbolt 3 operation, Thunderbolt device daisy chaining and support for one 5K display or two 4K displays with compatible systems.

Optical Isolation And Robust Construction

The all-dielectric optical design provides galvanic isolation between connected equipment. Corning also specifies improved abrasion resistance and thermal shutdown protection for the active electronics inside the connector assemblies.

Compatibility And Power

No driver software is required. The cable is intended for Thunderbolt 3 ports and self-powered peripherals; it does not provide bus power and does not support native USB or DisplayPort operation. Corning recommends use with macOS.

Corning Thunderbolt 3 Optical Cable – 15m – Key Features

  • 40Gb/s Thunderbolt 3 active optical cable.
  • 15m cable length.
  • Reversible USB-C / Type-C connectors.
  • Supports Thunderbolt device daisy chaining.
  • Supports one 5K display or two 4K displays with compatible systems.
  • All-dielectric construction provides galvanic isolation.
  • Robust cable design with improved abrasion resistance.
  • Thermal shutdown protection for active connector electronics.
  • No driver software required.
  • For self-powered Thunderbolt 3 peripherals.
  • Does not provide bus power.
  • Does not support native USB or DisplayPort operation.
  • Corning recommends use with macOS.

Corning Thunderbolt 3 Optical Cable – 15m – Technical Specifications

ProductCorning Thunderbolt 3 Optical Cable
SKUAOC-CCU6JPN015M20
Cable Length15m
InterfaceThunderbolt 3
Data Rate40Gb/s
ConnectorUSB-C / Type-C, reversible
Maximum Host-To-Device DistanceUp to 50m across the product family
Display Support1 x 5K display or 2 x 4K displays with compatible systems
Daisy ChainingSupported for Thunderbolt devices
Peripheral Power RequirementSelf-powered peripheral required
Bus Power To DeviceNot supported
Native USB / DisplayPortNot supported
Connector Dimensions12.4 x 34.9 x 6.5mm
Maximum Cable Tensile Strength100N (22lb)
Operating Temperature0°C to 50°C
Eye SafetyClass 1 laser product, IEC 60825-1:2014
EmissionsFCC Class B, CE
RegulatoryRoHS 3
Recommended PlatformmacOS (per Corning)
