Original price was: £ 19.99.£ 19.95Current price is: £ 19.95.

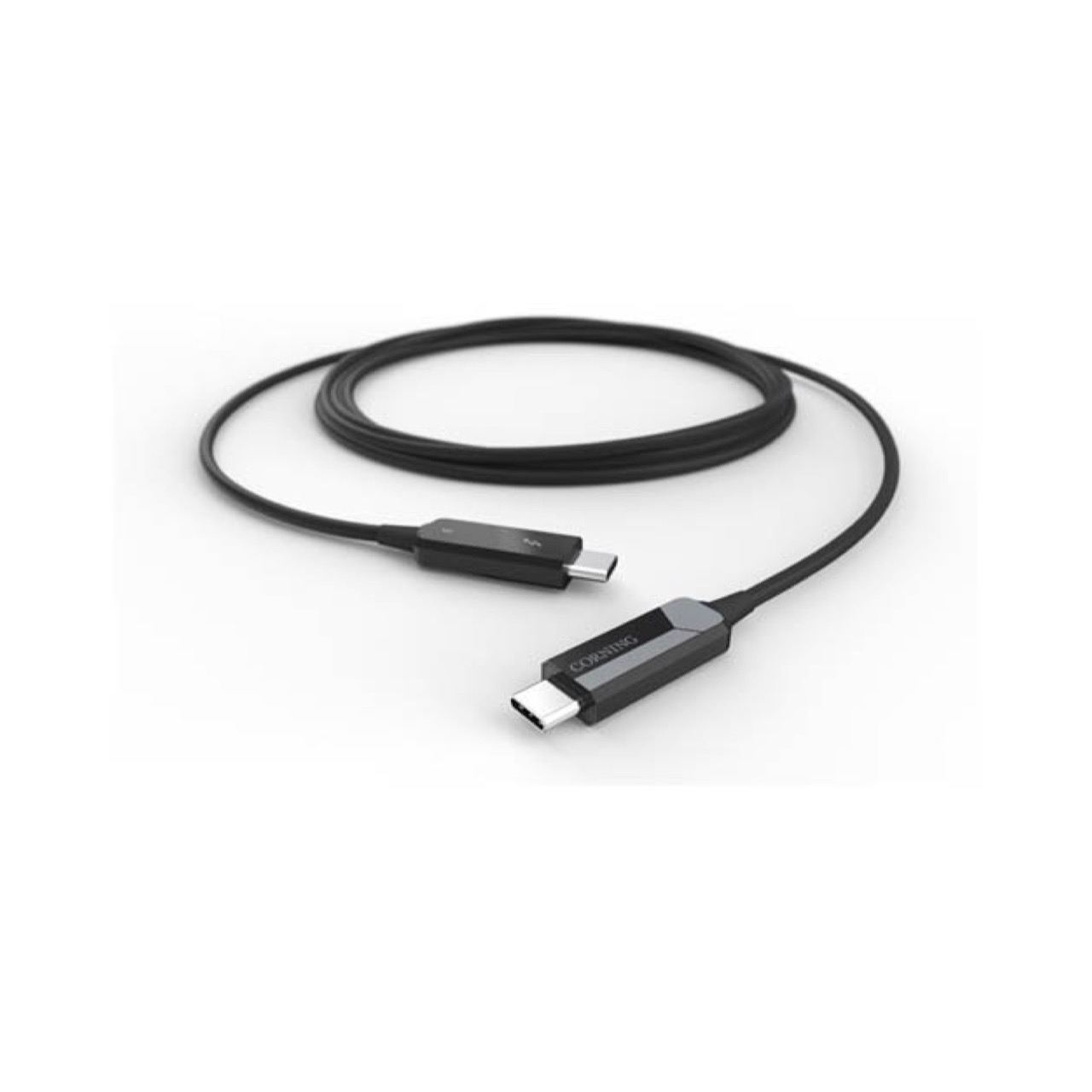

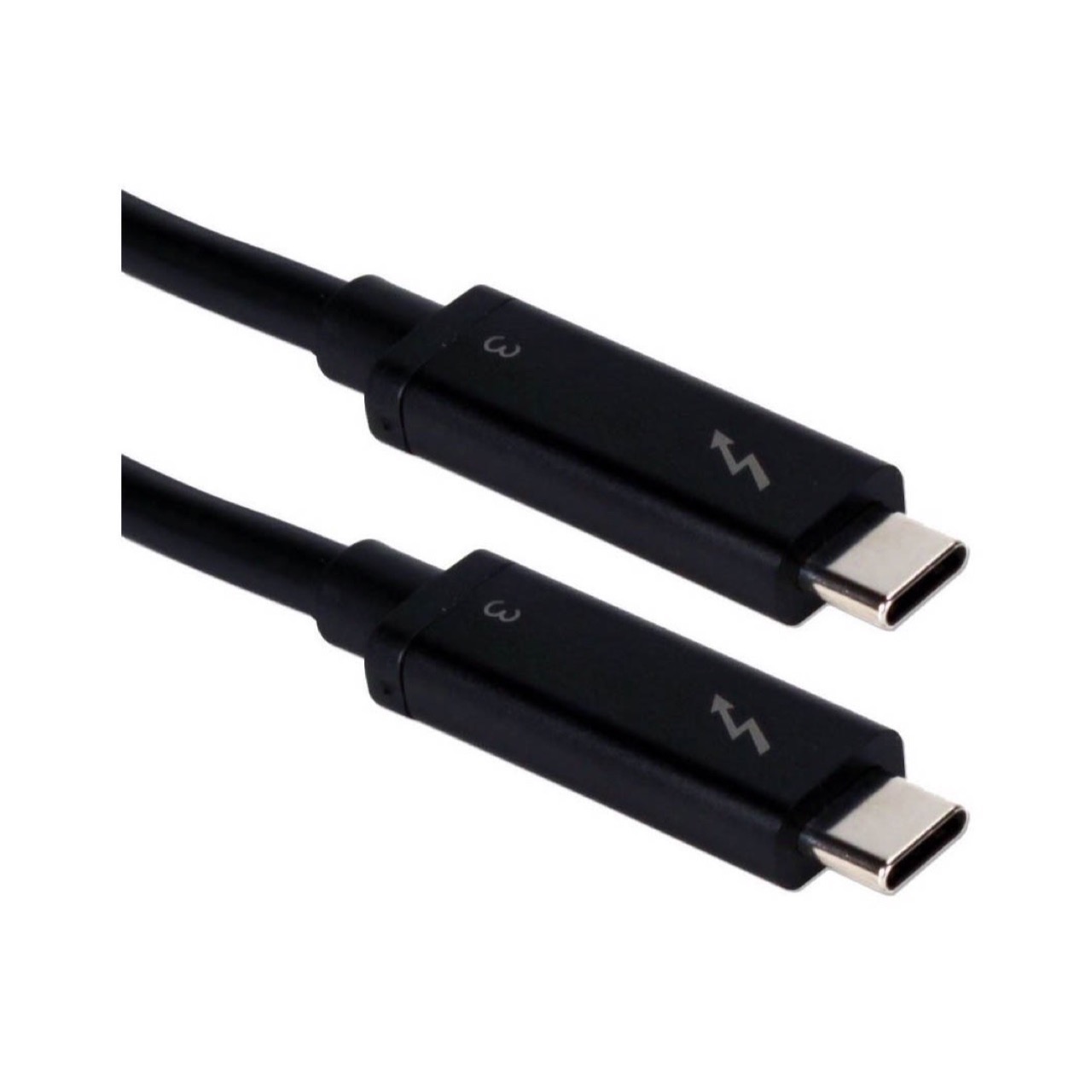

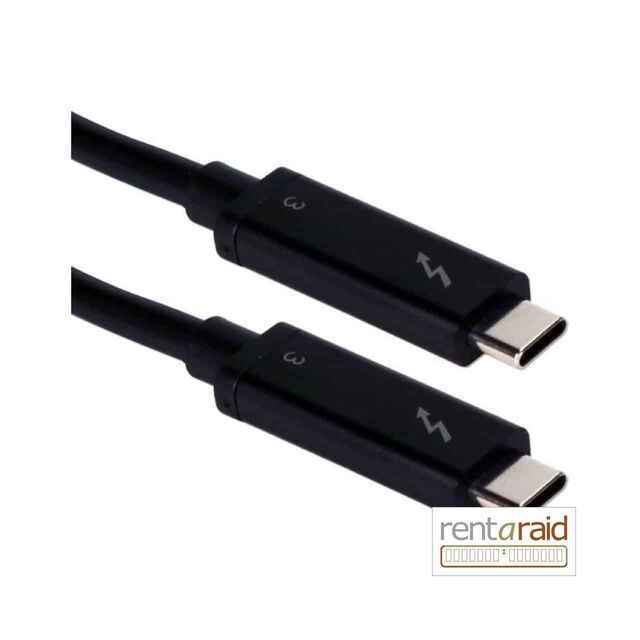

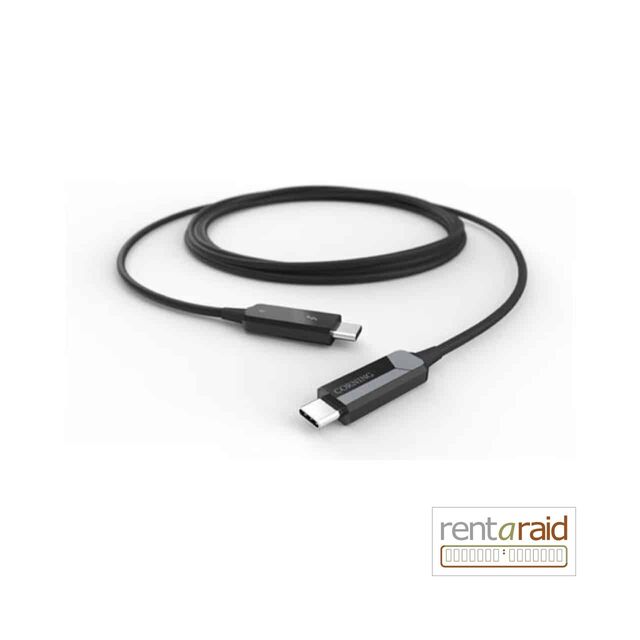

Corning Thunderbolt 3 Optical Cable – 10m
Corning Thunderbolt 3 Optical Cable – 10m
10m Active Optical Thunderbolt 3 Cable — 40Gb/s USB-C For Self-Powered Devices
The Corning Thunderbolt 3 Optical Cable extends 40Gb/s Thunderbolt 3 connectivity over a 10m active optical cable, making it ideal for longer workstation, storage and machine-room installations.
It uses reversible USB-C connectors and an all-dielectric optical design for electrically isolated connectivity. The connected peripheral must be self-powered because the cable does not provide bus power.
- 40Gb/s Thunderbolt 3 active optical cable.
- 10m cable length.
- Reversible USB-C / Type-C connectors.
- For self-powered Thunderbolt 3 peripherals.
Category: Cables
Brand: Corning
£ 362.95 | £ 435.54 inc VAT
Please Call Us For Availability Of This Item
Corning Thunderbolt 3 Optical Cable – 10m – Product Overview
40Gb/s Thunderbolt 3 Over Optical Fibre
Corning's Thunderbolt 3 Optical Cable carries high-speed data and display traffic over a 10m optical link, providing substantially greater installation flexibility than conventional short copper Thunderbolt cables.
Designed For Long-Distance Installations
The cable is well suited to professional media, storage and machine-room workflows where noisy or heat-generating equipment needs to be positioned away from the workstation while retaining a direct Thunderbolt 3 connection.
Reversible USB-C Connectivity
Both ends use reversible Type-C connectors. Corning specifies 40Gb/s Thunderbolt 3 operation, Thunderbolt device daisy chaining and support for one 5K display or two 4K displays with compatible systems.
Optical Isolation And Robust Construction
The all-dielectric optical design provides galvanic isolation between connected equipment. Corning also specifies improved abrasion resistance and thermal shutdown protection for the active electronics inside the connector assemblies.
Compatibility And Power
No driver software is required. The cable is intended for Thunderbolt 3 ports and self-powered peripherals; it does not provide bus power and does not support native USB or DisplayPort operation. Corning recommends use with macOS.
Corning Thunderbolt 3 Optical Cable – 10m – Key Features
- 40Gb/s Thunderbolt 3 active optical cable.
- 10m cable length.
- Reversible USB-C / Type-C connectors.
- Supports Thunderbolt device daisy chaining.
- Supports one 5K display or two 4K displays with compatible systems.
- All-dielectric construction provides galvanic isolation.
- Robust cable design with improved abrasion resistance.
- Thermal shutdown protection for active connector electronics.
- No driver software required.
- For self-powered Thunderbolt 3 peripherals.
- Does not provide bus power.
- Does not support native USB or DisplayPort operation.
- Corning recommends use with macOS.
Corning Thunderbolt 3 Optical Cable – 10m – Technical Specifications
| Product | Corning Thunderbolt 3 Optical Cable |
| SKU | AOC-CCU6JPN010M20 |
| Cable Length | 10m |
| Interface | Thunderbolt 3 |
| Data Rate | 40Gb/s |
| Connector | USB-C / Type-C, reversible |
| Maximum Host-To-Device Distance | Up to 50m across the product family |
| Display Support | 1 x 5K display or 2 x 4K displays with compatible systems |
| Daisy Chaining | Supported for Thunderbolt devices |
| Peripheral Power Requirement | Self-powered peripheral required |
| Bus Power To Device | Not supported |
| Native USB / DisplayPort | Not supported |
| Connector Dimensions | 12.4 x 34.9 x 6.5mm |
| Maximum Cable Tensile Strength | 100N (22lb) |
| Operating Temperature | 0°C to 50°C |
| Eye Safety | Class 1 laser product, IEC 60825-1:2014 |
| Emissions | FCC Class B, CE |
| Regulatory | RoHS 3 |
| Recommended Platform | macOS (per Corning) |
