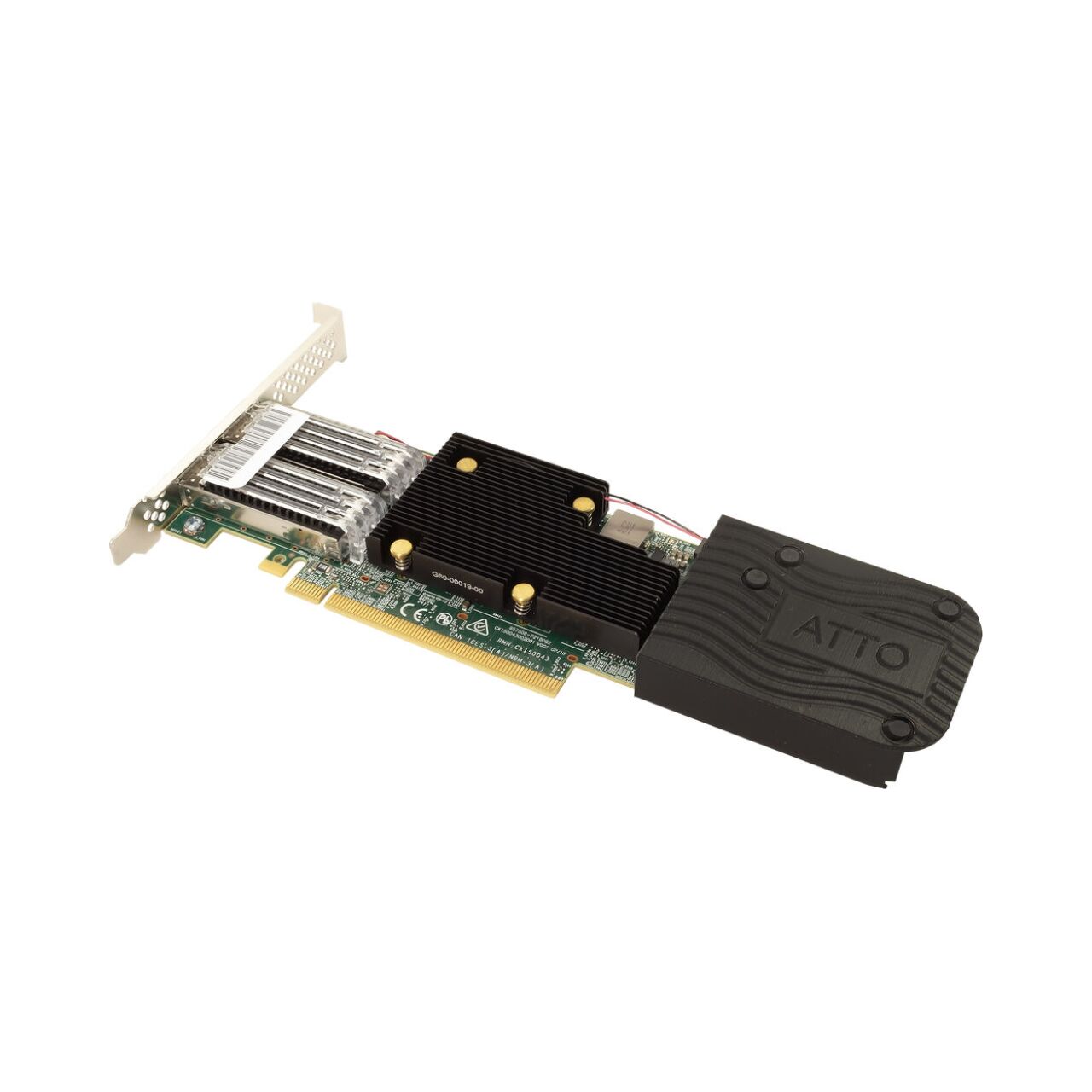

ATTO FastFrame AIR N412
ATTO FastFrame AIR N412
Dual-Port 100GbE PCIe 4.0 x16 SmartNIC With Advanced Heat Baffling And QSFP28 Optics
The ATTO FastFrame AIR N412 is a dual-port 100GbE SmartNIC engineered for high-performance workstations where chassis airflow may be limited. Advanced Heat Baffling Technology provides dedicated thermal management while the adapter delivers up to 100Gb/s throughput per port.
It connects through PCIe 4.0 x16, supports 50/100GbE over QSFP28 and is supplied with QSFP28 optical module(s) and a low-profile bracket. ATTO lists support for macOS, Windows and Linux.
- Dual-port 50/100GbE QSFP28 connectivity.
- Up to 100Gb/s throughput per port.
- PCIe 4.0 x16 host interface.
- Advanced Heat Baffling for workstation deployments.
- RoCE, TCP/UDP/IP offloads and NVMe over Fabrics target offload at 100Gb.
Brand: ATTO Technology
£ 1,723.95 | £ 2,068.74 inc VAT
Please Call Us For Availability Of This Item
ATTO FastFrame AIR N412 – Product Overview
The FastFrame AIR N412 combines dual-port 100Gb Ethernet connectivity with active thermal management for demanding workstation environments. ATTO's Advanced Heat Baffling Technology is designed to maintain airflow around the adapter where conventional chassis airflow may be constrained.
Dual-Port 100GbE Connectivity
The N412-AIR supports 50GbE and 100GbE operation over QSFP28, with throughput of up to 100Gb/s per port. QSFP28 optical module(s) are included with this finished-goods SKU.
PCIe 4.0 x16 Host Interface
A PCIe 4.0 x16 mechanical and electrical interface provides the host connection required for high-bandwidth workstation networking.
Advanced Networking Offloads
ATTO lists RDMA over Converged Ethernet together with TCP, UDP and IP stateless offloads and built-in hardware offloads. NVMe over Fabrics target offload is supported on the 100Gb model.
Workstation-Friendly Form Factor
The adapter uses a low-profile, half-height, three-quarter-length form factor and is designed specifically for workstation installations. ATTO lists macOS, Windows and Linux operating-system support.
ATTO FastFrame AIR N412 – Key Features
- Dual-port 100GbE Ethernet SmartNIC.
- 50GbE and 100GbE link support.
- Up to 100Gb/s throughput per port.
- QSFP28 connectivity with optical module(s) included.
- PCIe 4.0 x16 mechanical and electrical host interface.
- Advanced Heat Baffling Technology for constrained-airflow workstations.
- Low-profile, half-height, three-quarter-length form factor.
- RDMA over Converged Ethernet.
- TCP/UDP/IP stateless offloads and built-in hardware offloads.
- NVMe over Fabrics target offload at 100Gb.
- macOS, Windows and Linux support.
- Three-year standard product warranty.
ATTO FastFrame AIR N412 – Technical Specifications
| Model | ATTO FastFrame AIR N412 |
| SKU | FFRM-N412-AIR |
| Ethernet Ports | 2 |
| Supported Ethernet Speeds | 50GbE / 100GbE |
| Maximum Throughput | Up to 100Gb/s per port |
| Optical Interface | QSFP28 |
| Included Optics | QSFP28 optical module(s) |
| Host Interface | PCIe 4.0 x16, mechanical and electrical |
| Cooling | Advanced Heat Baffling Technology |
| Form Factor | Low profile; half height, three-quarter length |
| Networking Features | RoCE; TCP/UDP/IP stateless offloads; built-in hardware offloads |
| Storage Networking Offload | NVMe over Fabrics target offload at 100Gb |
| Operating Systems | macOS, Windows, Linux |
| Warranty | 3 years |
ATTO Technology Delivery Information
Generally, next working day delivery services (UK Mainland) are available on standard ATTO Technology Delivery orders placed before 2 pm (subject to stock availability).
Non-timed deliveries should be delivered between 9 am and 6 pm.
Orders placed after 2 pm on Fridays and weekends will be processed as normal the following Monday.
Orders placed on Bank Holidays will be processed the next working day.
If urgent, please call one of our helpful account managers so they may double check everything for you, enabling you to place your order with confidence.
Please note: these product details are for guide purposes only, and may contain errors.
We always recommend double-checking the product specs and features on the manufacturer website, or contact us if unsure before ordering.
