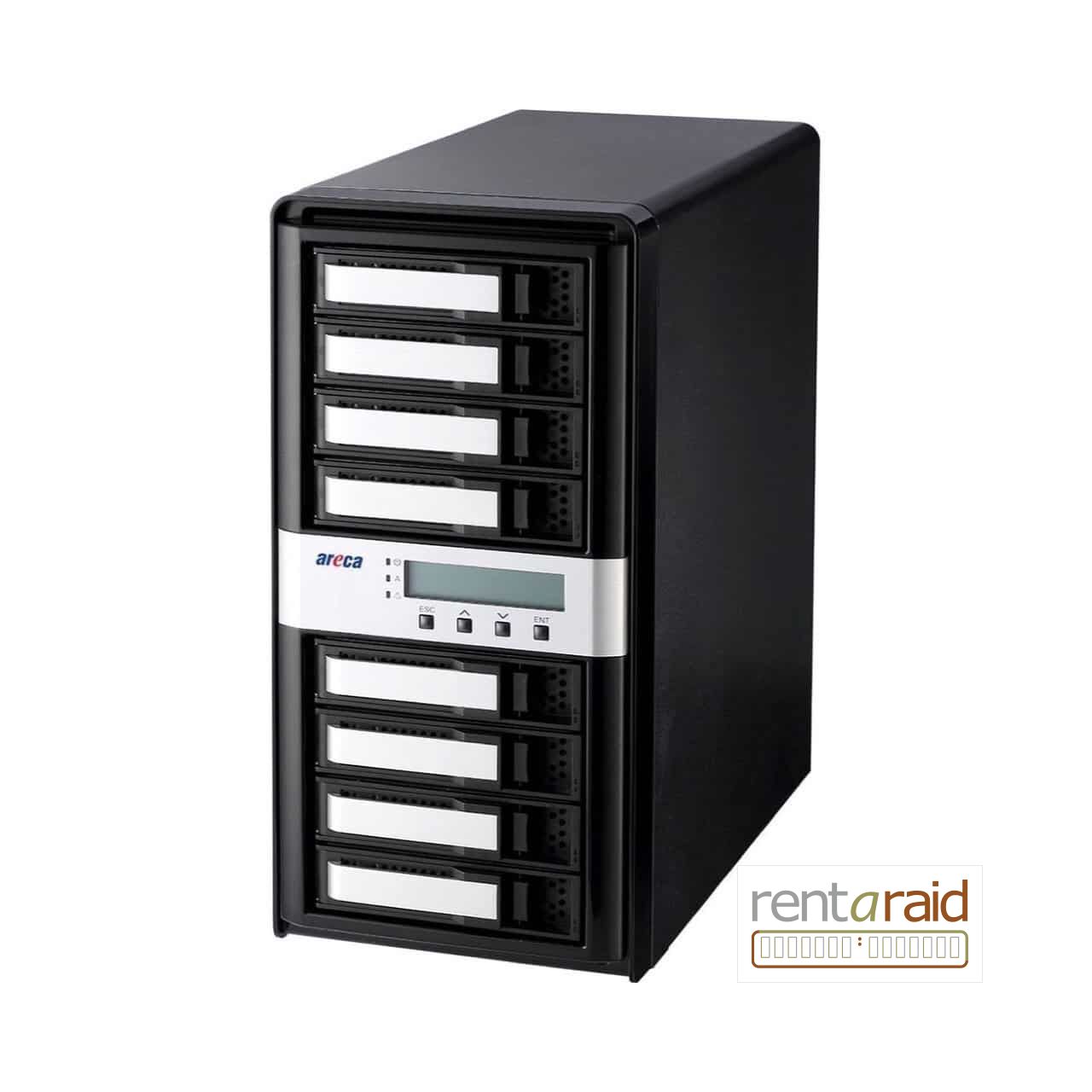

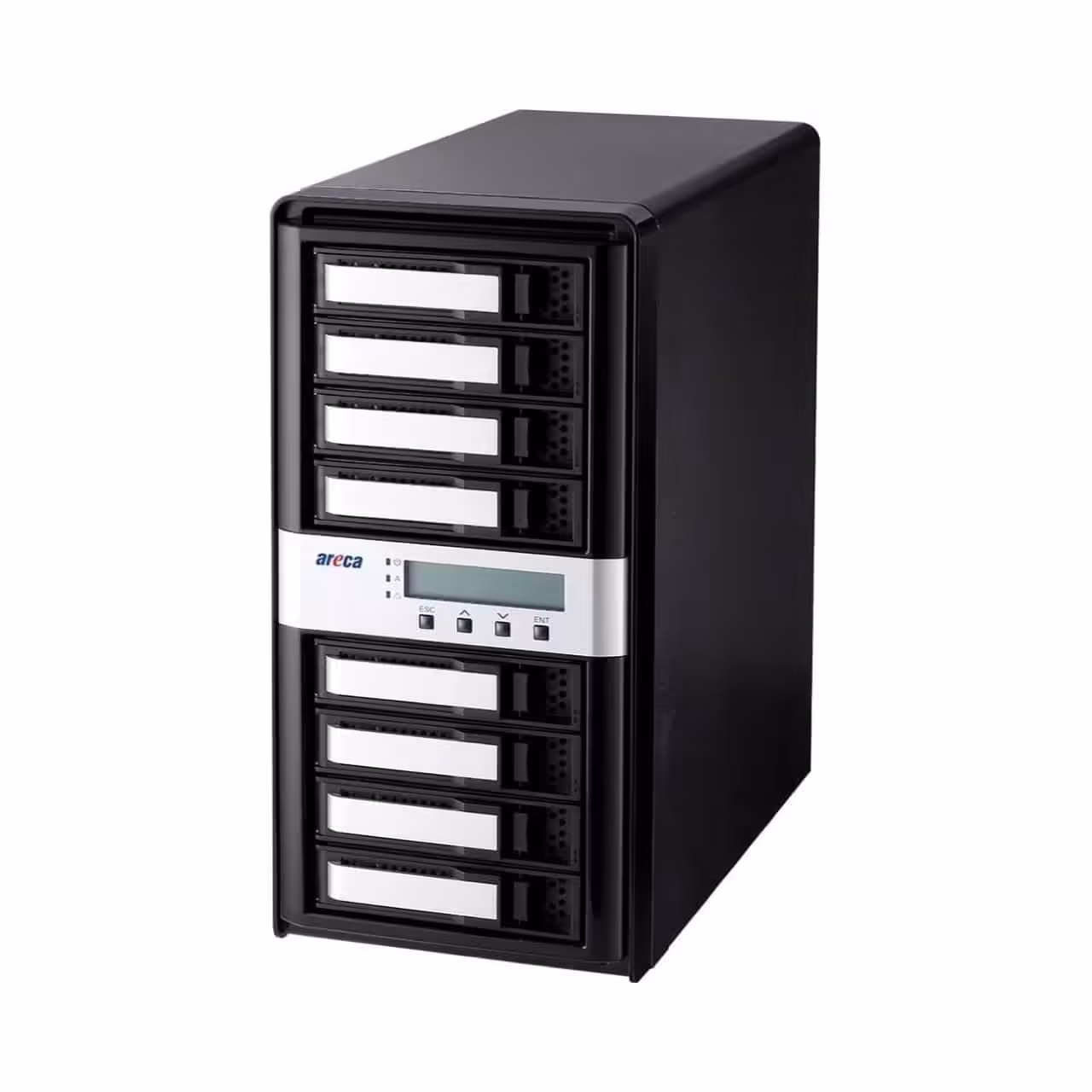

Areca ARC-8050T3U-8 – 64TB Enterprise

Very Fast 8-Bay Thunderbolt 3 and USB 3.2 Gen 2 Hardware RAID Array with Display Port (8 x 8.0 TB Enterprise Drives Fitted - 7200rpm, 5yr Warranty)

• Hardware RAID Levels: 0, 1, 10, 3, 5, 6, 50, 60, Single Disk, JBOD.
• High performance 40Gbps Thunderbolt 3 interface.
• Support a USB-C (or) USB X.X computer port.
• Support simultaneous 4K in/output workflow.
• EFI Option ROM supported for macOS multi-boot.
• Configuration by the Thunderbolt/LAN port/LCD.

• 1 x 40Gb/s Thunderbolt™ 3 Type-C Cable Included (1 Meter).

• Areca Chassis - 3 Year RTB Manufacturer Warranty.
• Drives Mechanisms - 3 or 5 Year RTB Warranty.

Original price was: £ 3,630.00.Current price is: £ 2,894.95. | £ 3,473.94 inc VAT

In stock

We’re the UK’s #1 Areca Reseller!

We pride ourselves on knowing, selling and supporting Areca RAIDs & Controllers better than anyone else in the UK!

All our Areca RAIDs ship pre-configured, tested and benefit from our unrivalled expertise, setup and FREE TECH SUPPORT INCLUDED FOR LIFE!

rentaraid – The UK Areca RAID Experts!
  • Product Overview
  • Key Features
  • Tech Specs
  • Product Downloads
  • Delivery Info

64TB Areca ARC-8050T3U-8 | Thunderbolt™ 3 / USB 3.2 Gen 2 Desktop Hardware RAID Array

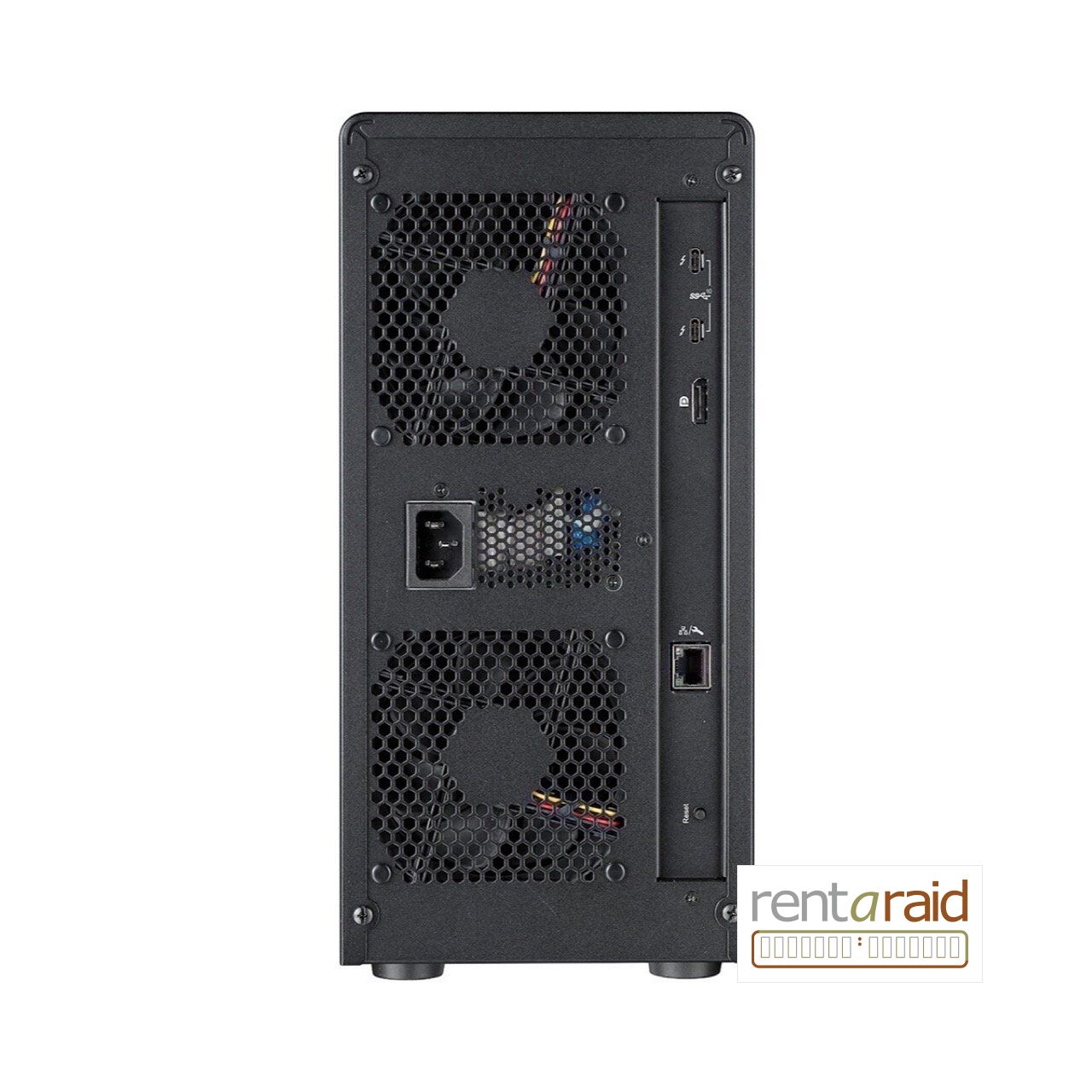

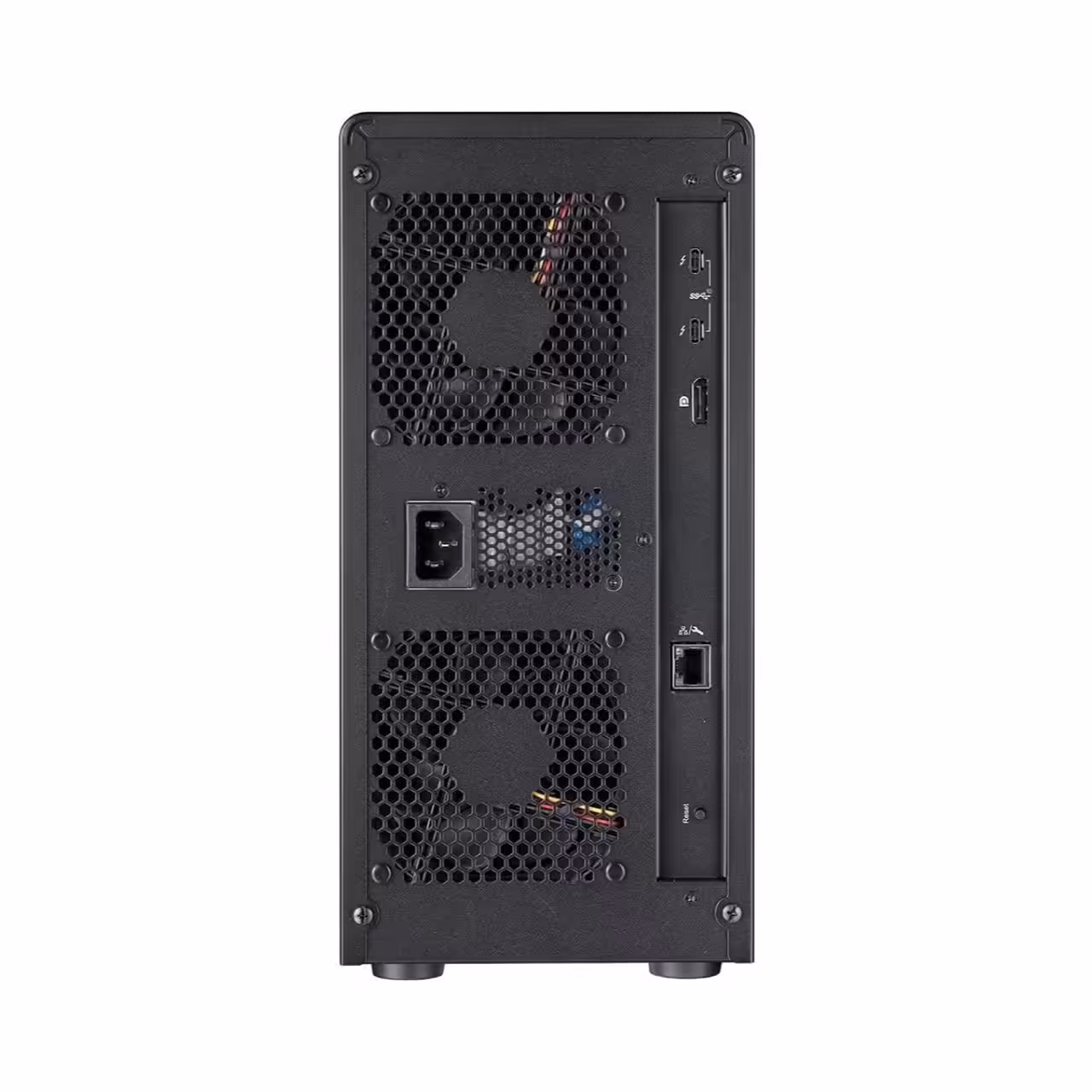

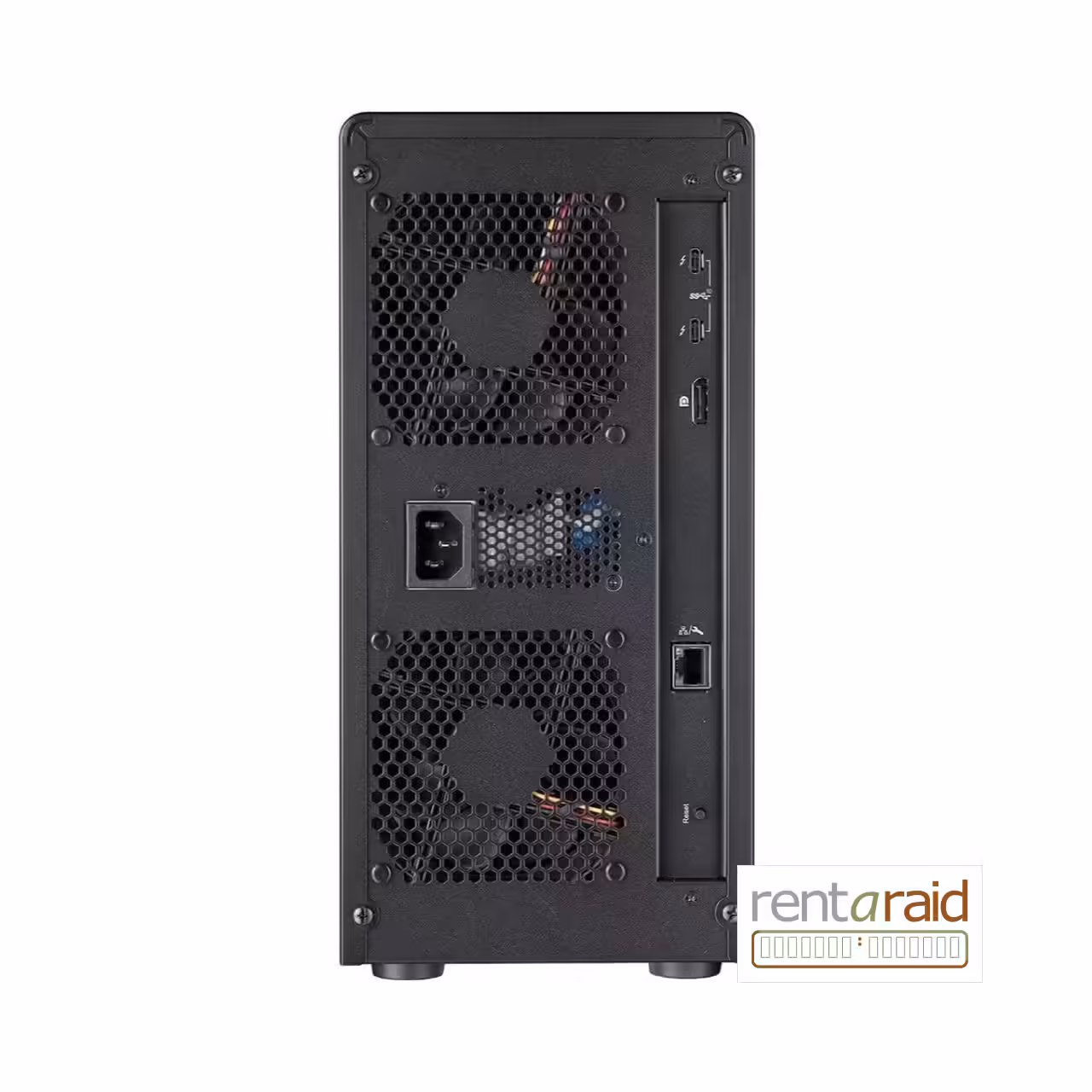

The ARC-8050T3U series is equipped with dual Thunderbolt 3 ports for connecting to any Thunderbolt 3-enabled host and offers an additional Thunderbolt 3 port for daisy-chaining other peripherals, while also supplying power for quick notebook charging. The ARC-8050T3U also sports a full-sized DisplayPort 1.4 video output on its rear, allowing for a quick and easy 8K 30Hz display setup.

If an ARC-8050T3U is plugged into a USB-C computer port, a USB device controller inside the ARC-8050T3U-enabled system is activated, and the inside USB device controller drives USB (2.0, USB 3.2 Gen 1, or USB 3.2 Gen 2) signals to the USB-C port. In this condition, the ARC-8050T3U Thunderbolt 3 port behaves exactly like a typical USB-C 3.2 Gen 2-enabled connector.


Thunderbolt and USB Protocol in ONE Port

The existing Thunderbolt 3 port on the RAID storage does not support USB-C computer port compatibility mode. Areca’s newest ARC-8050T3U Thunderbolt 3 port supports both Thunderbolt 3 and USB protocol that allows USB-only computer users and Thunderbolt computer users to access the same storage seamlessly.


160TB Areca ARC-8050T3U-8. Configured as RAID5.
Tested Mac on a basic Apple Mini M1 / 8GB RAM.

Unprecedented Performance

ARC-8050T3U 6/8/12-bays RAID storage is built to deliver unprecedented performance, using only carefully, best-in-class components. These include the dual-core ROC, PCIe Gen3 x8, 12Gb/s SAS, on-board cache SDRAM with ECC protection and the latest Thunderbolt3 enabled USB-C ports up to 40Gbps, dual 4K UHD external displays.


Powerful Broadcom 12G SAS Engine

ARC-8050T3U 6/8/12-bays RAID storage integrates the latest Broadcom 12Gb/s dual-core SAS Raid-on-Chip to give you the maximum SAS and SATA bandwidth and protection you need to tackle even the hardest challenging tasks easily.

True Hardware RAID Controller

At the heart of ARC-8050T3U 6/8/12-bays RAID storage is the incredibly powerful dual-core Broadcom ROC, giving an effortless performance as desirable. It delivers true hardware RAID function without sharing the CPU computing power on the host system and also eases off CPU loading as compared to software RAID and when rebuilding an array in the event of a drive failure.


High-Speed On-Board Cache

With a massive on-board high-speed SDRAM, ARC-8050T3U gives you super-smooth multitasking during periods of high overload in a 4K environment. ARC-8050T3U can configure how much cache SDRAM dedicated for read, and how much for write. If your server application has significantly more reads than writes or more writes than reads, you might need to change this setting to adjust the read/write cache ratio to improve performance. A big cache is the perfect choice for a 4K application drive, making your professional apps work as fast as possible.


The USB-C That Does It All

ARC-8050T3U is equipped with dual Thunderbolt™ 3 ports for connecting to any Thunderbolt 3-enabled host and offers an additional Thunderbolt 3 port for daisy-chaining other peripherals, while also supplying power for quick notebook charging.

Thunderbolt 3 supports data transfers up to 40 Gbps, which is twice the bandwidth of Thunderbolt 2 and 4 times faster than USB 3.2 Gen 2.


Daisy-Chain Multiple Devices

Thunderbolt daisy-chaining allows connection of up to six devices, so customers can connect ARC-8050T3U for massive amounts of video storage with a single Thunderbolt connection to their host computer. Additionally, ARC-8050T3U supports a full-sized DisplayPort video output connector on its rear, allowing for a quick and easy 8K 30Hz display setup.


Compatible with Thunderbolt and Thunderbolt 2

Apple’s Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter (sold separately) lets you connect Areca ARC-8050T3U solutions to any Mac with a Thunderbolt or Thunderbolt 2 port and macOS Sierra 10.12 or later.


Controller-Based H/W Encryption Engine

Host independent real-time controller-based hardware encryption does not impact the performance of ARC-8050T3U-6/6M/8/12 RAID storage and can be implemented on any kind of HDD that is transparent to the user, the OS, and applications.

Areca encryption function secures a sensitive, mission-critical volume’s data from unauthorized access or modification in the event of drive theft, as well as more routine activities such as the return of defective drives for servicing or the decommission or repurposing of drives.

Local key management in the controller is designed to protect data from security breaches with minimal cost and complexity. Users can use ARC-8050T3U RAID storage API code to design their own key management utility. ARC-8050T3U RAID storages support 128- and 256-bit encryption keys using AES (a key size of 128, or 256 bits), or password (a variable key size).


* Please note: advertised drive capacities are the total unformatted amount.

** Please remember to take into consideration different RAID levels if used and formatting overheads.

Areca ARC-8050T3U-8 – Key Features


• High-performance 40Gbps Thunderbolt 3 interface.

• Support simultaneous 4K in/output workflow.

• Dual Thunderbolt 3 ports for daisy-chaining.

• Fully support Apple M1 silicon on Macs.

• Configuration by the Thunderbolt/LAN port/LCD.

• 1m 40Gb/s active Thunderbolt™ 3 (USB-C) cable included.

• Advanced configuration for video-optimized performance settings.

• Delivers enterprise-class data protection and security.

• Controller-level hardware encryption (not available for 4-Bay).

• Intelligent power On/Off function for data integrity.

• SED (self-encrypting drives) function support.

• Hard drive firmware update all at once.

Areca ARC-8050T3U-8 – Technical Specifications

Form FactorDesktop 8-Bay
ConnectionThunderbolt 3 x 2 / Display Port x 1
Disk Port8 x 12Gb/s SAS or 6Gb/s SATA
I/O ProcessorDual Core 1.2 GHz SAS ROC
On-Board Cache2GB DDR3-1866 SDRAM
Expansion SupportN/A
Cooling Fan2 x 2700rpm
Power Supply300W
Physical Dimensions
(H x W x D)
5.7 x 11.8 x 11.4 in
(146 x 302 x 290 mm)
Weight (Without Disks)14.9 lbs / 6.8 Kg
XLRN/A
RAID Level0, 1, 10, 3, 5, 6, 30, 50, 60, Single Disk, JBOD
OS SupportThunderbolt 3 : macOS 10.12 or later & Windows 8/10 or later
USB : OS Independent
Computer Port TypeThunderbolt™ 3  &  USB 3.2 Gen 2
