Areca ARC-Caddy – 26.0 TB Enterprise (Black)
Spare Hot-Swappable Drive Caddy (Matched 26.0 TB Enterprise Drive Included)
£ please call for the price
Areca ARC-8050T3U-6 – 156TB
We Are The UK’s No.1 Areca Reseller!
Have Any Questions? We’re Here To Help.

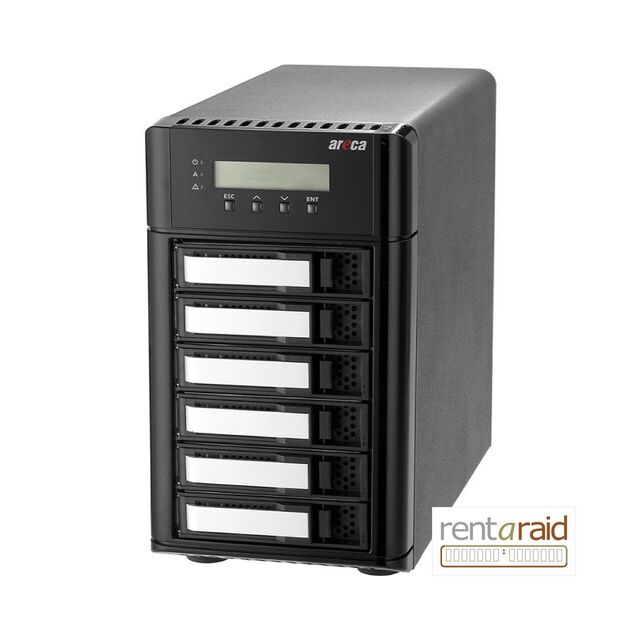

Areca ARC-8050T3U-6 – 156TB
Fast, Expandable 6-Bay Thunderbolt 3 and USB 3.2 Gen 2 Hardware RAID Array with Display Port (6 x 26.0 TB Enterprise Drives Fitted - 7200rpm, 5yr Warranty)
The Areca ARC-8050T3U-6 – 156TB is a 6-bay desktop RAID storage solution equipped with dual Thunderbolt 3 ports and USB 3.2 Gen 2 compatibility for high-speed data transfer up to 40Gbps.
It supports 12Gb/s SAS or 6Gb/s SATA drives in 3.5-inch or 2.5-inch form factors, powered by a dual-core 1.2GHz SAS ROC and 2GB DDR3-1866 SDRAM cache.
Pre-configured with 156TB capacity using six 26TB enterprise drives, it delivers enterprise-grade RAID protection for professional video, audio, and data workflows.
- Dual Thunderbolt 3 ports enable daisy-chaining and 8K DisplayPort output.
- Supports RAID levels 0, 1, 10, 3, 5, 6, 30, 50, 60, JBOD, and Single Disk.
- Compatible with macOS 10.12+ (including Apple M1) and Windows 8/10+.
- Includes intelligent power management and dual 2700rpm cooling fans.
£ please call for the price
Please Call Us For Availability Of This Item
Category: Desktop Hard Drives & RAIDs
Brand: Areca Technology
We’re the UK’s #1 Areca Reseller!
We pride ourselves on knowing, selling and supporting Areca RAIDs & Controllers better than anyone else in the UK!
All our Areca RAIDs ship pre-configured & tested (RAID5 or RAID6, for Mac or PC). Please allow us 1-2 days to do this for you for free.
Seen a better price elsewhere? Let us know & we’ll do our best so you also benefit from our Areca knowledge, expertise & totally free after-sales support.
– The UK Areca RAID Experts!
Areca ARC-8050T3U-6 – 156TB Product Overview
The Areca ARC-8050T3U-6 – 156TB provides high-performance hardware RAID storage in a 6-bay desktop form factor, optimized for Thunderbolt 3 and USB 3.2 Gen 2 connections.
It combines dual Thunderbolt 3 ports for 40Gbps transfer speeds with a DisplayPort 1.4 output for 8K 30Hz monitoring, supporting demanding workflows like 4K/8K video editing and large-scale data processing.
Host Connectivity
Dual Thunderbolt 3 ports connect to Thunderbolt-enabled hosts and allow daisy-chaining up to six peripherals while supplying power for device charging.
A full-size DisplayPort enables direct array monitoring without additional hardware.
USB-C compatibility activates a built-in USB device controller, supporting USB 3.2 Gen 2 (10Gbps), Gen 1 (5Gbps), or USB 2.0 protocols seamlessly.
RAID Controller and Performance
The dual-core 1.2GHz SAS RAID-on-Chip (ROC) from Broadcom handles true hardware RAID without taxing host CPU resources.
2GB DDR3-1866 SDRAM on-board cache with ECC protection optimizes read/write operations, configurable for video-optimized settings.
PCIe Gen3 x8 interface and 12Gb/s SAS backend deliver sustained high throughput for multi-stream 4K workflows.
Drive Support and Expansion
Accommodates up to six 3.5-inch or 2.5-inch 12Gb/s SAS or 6Gb/s SATA HDDs/SSDs, pre-populated here with 156TB enterprise 26TB drives at 7200rpm.
SFF-8644 mini-SAS expansion port (2-lanes) allows connectivity to additional JBOD enclosures for scaled capacity.
Supports simultaneous drive firmware updates and SED self-encrypting drives for enhanced security.
RAID and Data Protection
Offers RAID levels 0, 1, 10, 3, 5, 6, 30, 50, 60, JBOD, and Single Disk for flexible redundancy and performance balancing.
Controller-level hardware encryption and intelligent power on/off ensure data integrity during failures or power events.
Management and Cooling
Configuration via Thunderbolt/LAN port or LCD panel simplifies setup and monitoring.
Dual 2700rpm cooling fans maintain optimal temperatures, with 180W power supply for reliable operation.
Use Cases
Ideal for post-production suites handling 4K/8K video I/O, audio professionals requiring low-latency storage, and data-intensive environments needing portable, high-capacity RAID.
Full Apple M1 silicon support ensures compatibility across modern Mac and Windows systems.
Areca ARC-8050T3U-6 – 156TB Key Features
- High-performance 40Gbps Thunderbolt 3 interface with dual ports for host connection and daisy-chaining.
- USB 3.2 Gen 2 compatibility via USB-C for broad host support, including non-Thunderbolt systems.
- Dual-core 1.2GHz SAS ROC with 2GB DDR3-1866 SDRAM cache and ECC protection for smooth multitasking.
- Supports up to 6 x 3.5”/2.5” 12Gb/s SAS or 6Gb/s SATA drives, pre-populated with 156TB enterprise storage.
- RAID levels: 0, 1, 10, 3, 5, 6, 30, 50, 60, JBOD, Single Disk for enterprise data protection.
- DisplayPort 1.4 output for 8K 30Hz monitoring of array status.
- SFF-8644 expansion port for additional JBOD connectivity.
- Advanced features including hardware encryption, SED support, and batch drive firmware updates.
- Dual 2700rpm fans and 180W PSU in compact desktop chassis (146 x 255 x 290 mm).
- OS support: macOS 10.12+ (M1 compatible), Windows 8/10+, OS-independent USB mode.
Areca ARC-8050T3U-6 – 156TB Technical Specifications
| Form Factor | Desktop 6-Bay |
| Pre-Populated Capacity | 156TB (6 x 26TB Enterprise Drives, 7200rpm) |
| Host Interface | 2 x Thunderbolt 3 (USB-C, 40Gbps), 1 x DisplayPort 1.4 |
| USB Compatibility | USB 3.2 Gen 2 (10Gbps), Gen 1 (5Gbps), USB 2.0 |
| Drive Bays | 6 x 3.5”/2.5” (12Gb/s SAS or 6Gb/s SATA HDD/SSD) |
| RAID-on-Chip (ROC) | Dual-Core 1.2GHz SAS ROC |
| On-Board Cache | 2GB DDR3-1866 SDRAM (ECC protected) |
| Cache Data Rate | 14.9 GB/s peak transfer |
| Expansion | SFF-8644 (2-lanes, mini-SAS HD) |
| RAID Levels | 0, 1, 10, 3, 5, 6, 30, 50, 60, Single Disk, JBOD |
| Cooling | 2 x 2700rpm fans |
| Power Supply | 180W internal |
| Dimensions (W x H x D) | 4.84 x 8.45 x 9.11 in (123 x 165.6 x 232 mm, chassis); 146 x 255 x 290 mm (full) |
| Weight | 13.2 lbs / 6.0 kg (diskless); higher with drives |
| XLR Power Input | N/A |
| OS Support (Thunderbolt) | macOS 10.12+, Windows 8/10+ (M1 compatible) |
| OS Support (USB) | OS Independent |
| Configuration Options | Thunderbolt/LAN port, LCD panel |
| Additional Features | Hardware encryption, SED support, intelligent power on/off, batch firmware update |
