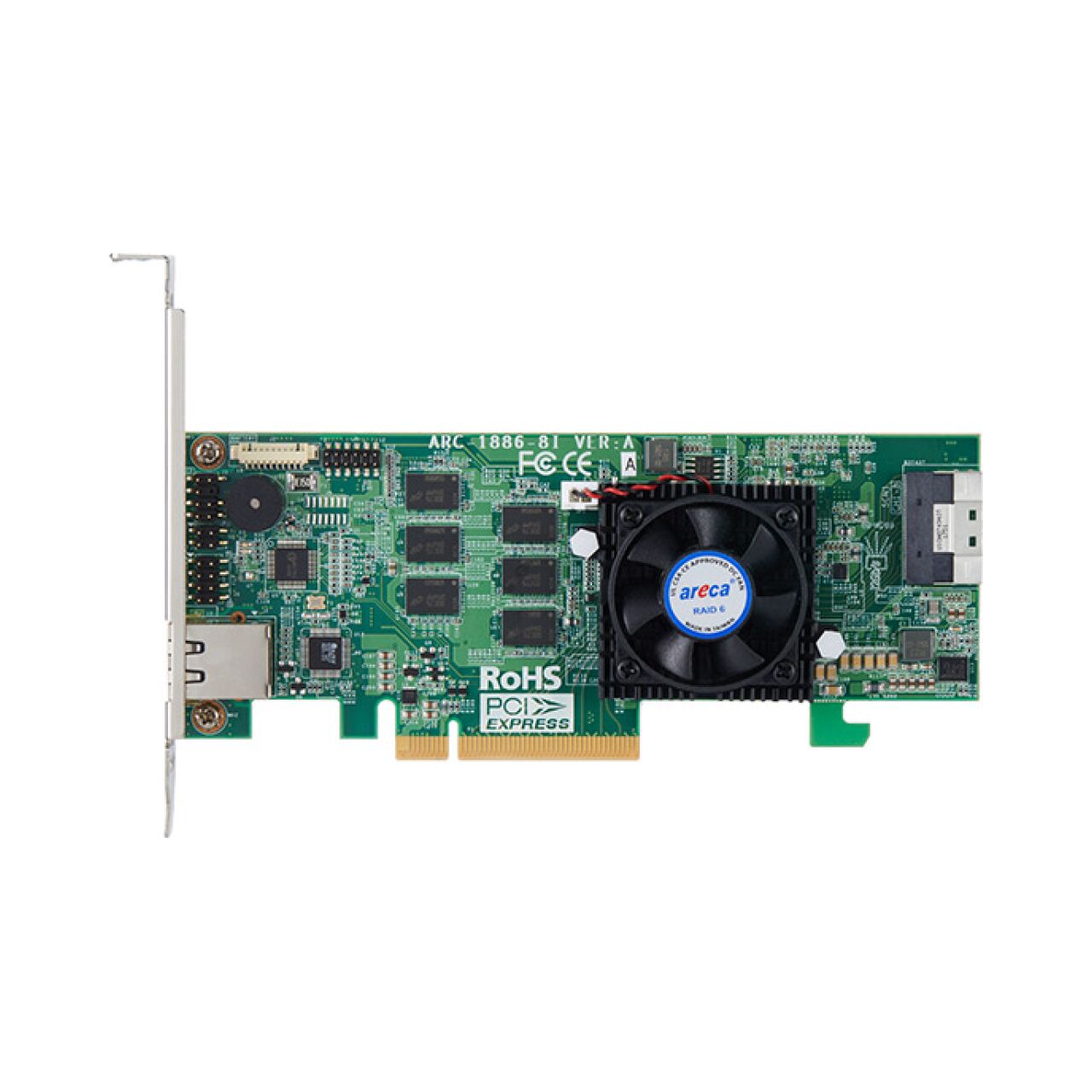

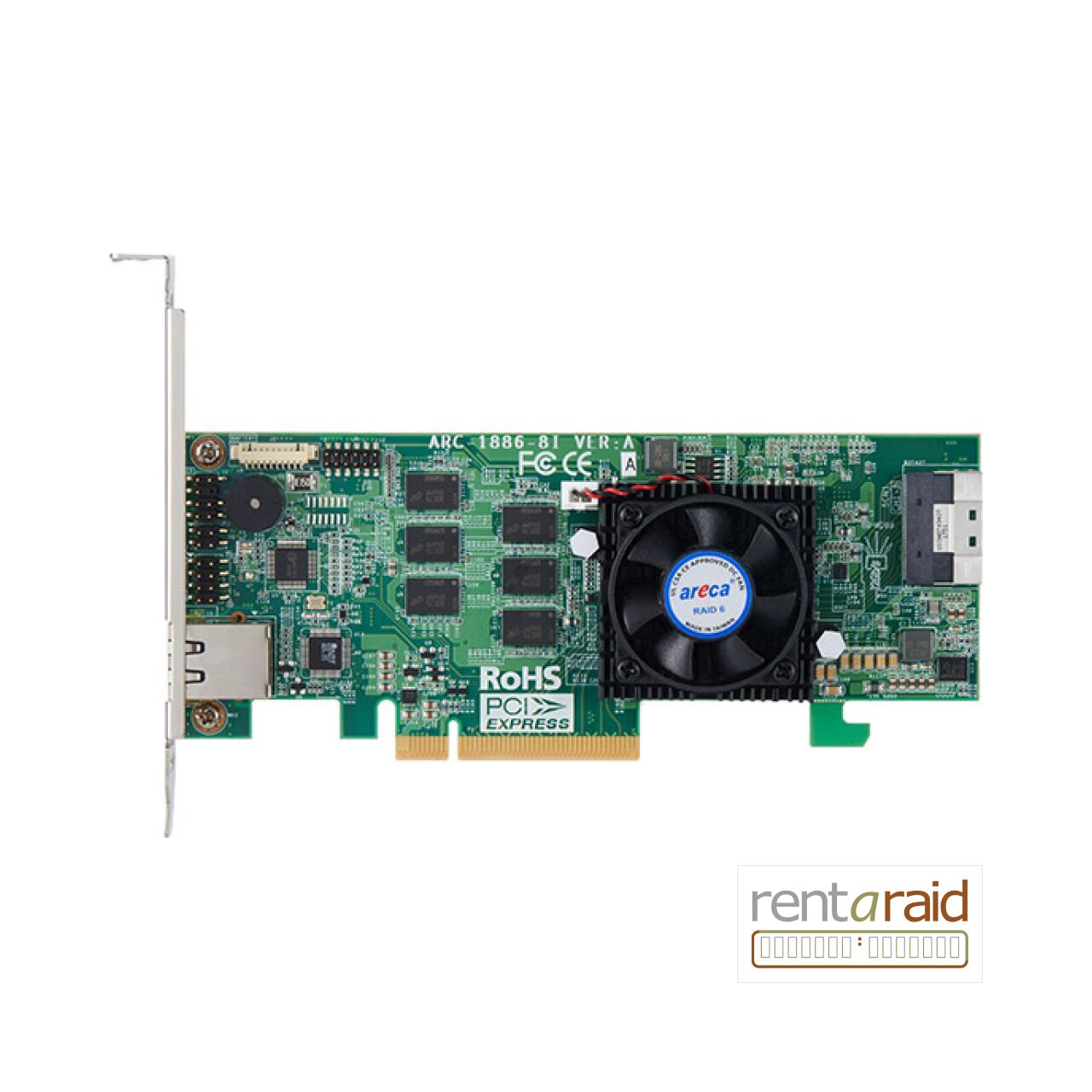

Areca ARC-1886-8i
Areca ARC-1886-8i
PCIe Gen 4.0 Tri-Mode Internal 8-Port RAID Adapter With 8GB Cache
The Areca ARC-1886-8I is a PCIe Gen 4.0 Tri-Mode internal RAID adapter with 8 internal ports and on-board cache.
It pairs a Tri-Mode Dual Core ARM A15 1.6GHz ROC with 8GB on-board DDR4-2666 SDRAM with ECC Protection for resilient storage performance.
The adapter supports mixed SAS/SATA and NVMe deployments with advanced RAID and management features.
- 8 x internal ports with 1 x SFF-8654 [x8] drive connector.
- Supports up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA drives via expanders and up to 32 NVMe drives through PCIe switches.
- Supports RAID Levels 0, 1, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD.
Category: Tri-Mode RAID PCIe Cards
Brand: Areca Technology
Original price was: £ 1,111.52.£ 914.95Current price is: £ 914.95. | £ 1,097.94 inc VAT
Please Call Us For Availability Of This Item
We’re the UK’s #1 Areca Reseller!
We pride ourselves on knowing, selling and supporting Areca RAIDs & Controllers better than anyone else in the UK!
All our Areca RAIDs ship pre-configured & tested (RAID5 or RAID6, for Mac or PC). Please allow us 1-2 days to do this for you for free.
Seen a better price elsewhere? Let us know & we’ll do our best so you also benefit from our Areca knowledge, expertise & totally free after-sales support.
– The UK’s Areca RAID Experts!
Areca ARC-1886-8i Product Overview
The Areca ARC-1886-8I is an internal 8-port PCIe Gen 4.0 Tri-Mode RAID adapter engineered for demanding storage applications. It combines a dual-core ROC, on-board DDR4 cache and tri-mode drive interfaces to support mixed SAS/SATA and NVMe storage configurations.
Built for scale and resilience, the ARC-1886-8I supports extensive RAID functions, enclosure management and optional cache backup to protect data during power events.
Performance and Controller
Tri-Mode Dual Core ARM A15 1.6GHz ROC and 8GB on-board DDR4-2666 SDRAM with ECC Protection provide the processing and cache required for performance-sensitive database and IT workloads.
Host Interface
Host Bus Interface is 8-Lane PCI Express® 4.0 to deliver Gen 4.0 connectivity to the server platform.
Ports and Connectors
Physical Ports: 8 x internal. Drive Connectors: 1 x SFF-8654 [x8]. The adapter is configured with x8 SFF-8654 internal connectors for maximum performance and connectivity.
Drive Support and Expandability
Supports up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs using 12Gb/s SAS expanders, and supports up to 32 NVMe drives through the PCIe switches.
Supported RAID Levels and Data Protection
Supported RAID Levels include 0, 1, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD, with additional features such as Multiple RAID 0 and RAID 10(1E) support, RAID 1 multi-mirroring and mirrored pass-through disk.
Cache and Backup
Cache Memory is 8GB on-board DDR4-2666 SDRAM with ECC Protection. Cache protection is provided by the optional ARC-1886-CBM cache backup module and the adapter supports read/write cache allocation by policy.
Management and Monitoring
Includes UBM, SES2, SMP and SGPIO enclosure management, an onboard Ethernet port for NTP synchronization, global HDD activity/fault connector, individual fault connector, LCD/I²C connector and alarm buzzer, and supports SNMP and SMTP notifications.
Enterprise Features
Features include redundant flash image for adapter availability, controller-level hardware encryption and self-encryption drive (SED) management, online RAID level/stripe size migration, online capacity expansion with RAID level migration, instant availability and background initialization.
Environmental and Physical
Physical Dimensions (Low Profile): 167.65(L) x 64.4(H) mm. Power Consumption: Approximately 12 Watts. Operating Temperature: 0 °C to 60 °C. Operating Humidity: 10% to 85%, non-condensing.
Compatibility and Utility
Broad operating support including Microsoft Windows; Red Hat Linux, Centos Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux; FreeBSD; XenServer; unRAID; macOS; and VMware ESXi. Management utilities include McRAID Storage Manager, McRAID Utility, McBIOS Configuration Utility and CLI/API support.
Areca ARC-1886-8i Key Features
- Areca ARC-1886-8I is an internal 8-port Tri-Mode RAID adapter delivering PCIe Gen 4.0 host connectivity and 12Gb/s SAS/SATA or Gen 4.0 PCIe (NVMe) drive interfaces.
- Equipped with a Tri-Mode Dual Core ARM A15 1.6GHz ROC and 8GB on-board DDR4-2666 SDRAM with ECC Protection for sustained I/O performance and data integrity.
- Provides a single internal x8 SFF-8654 connector and supports 8 x internal ports for direct backplane or drive connections.
- Supports up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs using 12Gb/s SAS expanders and up to 32 NVMe drives through the PCIe switches for large-scale expansion.
- Offers broad RAID functionality including RAID Levels 0, 1, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD and multiple RAID 0 and RAID 10(1E) configurations.
- Supports advanced cache behaviour with read/write cache allocation by policy and optional cache backup module (ARC-1886-CBM) protection using SuperCap.
- Includes comprehensive enclosure and system management: UBM, SES2, SMP and SGPIO enclosure management plus SNMP and SMTP notification support.
- Provides controller-level hardware encryption and self-encryption drive (SED) management alongside redundant flash image for adapter availability.
- Supports enterprise features such as online RAID level/stripe size migration, online capacity expansion, instant availability with background initialization, and automatic drive insertion/removal detection and rebuilding.
- Designed for datacentre environments with low-profile dimensions of 167.65(L) x 64.4(H) mm and operates from 0 °C to 60 °C at 10% to 85% non-condensing humidity.
Areca ARC-1886-8i Technical Specifications
| Product | Areca ARC-1886-8I |
| Ports | 8 x internal |
| Drive Connectors | 1 x SFF-8654 [x8] |
| Host Bus Interface | 8-Lane PCI Express® 4.0 |
| I/O Processor | Tri-Mode Dual Core ARM A15 1.6GHz ROC |
| Cache Memory | 8GB on-board DDR4-2666 SDRAM with ECC Protection |
| Data Transfer Rate | Up to 12Gb/s SAS/SATA/Gen 4.0 PCIe (NVMe) per port |
| Drive Support | Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs, using 12Gb/s SAS expanders; Up to 32 NVMe drives through the PCIe switches |
| Supported RAID Levels | 0, 1, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD |
| RAID Features | Multiple RAID 0 and RAID 10(1E) support; RAID 1 Multi Mirroring and Mirrored Pass-Through Disk; Configurable stripe size up to 1MB; Write-through or write-back cache support; Read/write cache allocation by policy; Online RAID level/stripe size migration; Online capacity expansion and RAID level migration simultaneously; Instant availability and background initialization; Global and dedicated hot spare; Automatic drive insertion/removal detection and rebuilding |
| Encryption | Controller level hardware encryption and self-encryption drive (SED) management |
| Enclosure Management | UBM, SES2, SMP and SGPIO enclosure management |
| Management & Utilities | McRAID Storage Manager; McRAID Utility; Command-line interface; API code support; CIM provider for VMware; McBIOS Configuration Utility; Flashable BIOS support; Firmware built-in EFI Shell |
| Monitoring & Notification | Global HDD activity/fault connector; individual fault connector; LCD/I²C connector and alarm buzzer; SNMP; SMTP |
| Connector Compliance | SFF-9402 compliant connector pin-out |
| Cache Protection | ARC-1886-CBM |
| Other Features | Redundant flash image for adapter availability; Support for SAS tape devices and transport layer retries (TLR); Support HDD firmware update; S.M.A.R.T. support; SSD automatic monitor clone (AMC) |
| Physical Dimensions | Low Profile: 167.65(L) x 64.4(H) mm |
| Power Consumption | Approximately 12 Watts |
| Operating Temperature | 0 °C to 60 °C |
| Operating Humidity | 10% to 85%, non-condensing |
Areca Technology Delivery Information
In general, next working day delivery services (UK Mainland) are available on Areca equipment orders placed before 2pm (subject to stock availability).
We kindly advise you let us preconfigure each Areca RAID (as RAID5, RAID6 etc), so they arrive properly setup, ready to “plug’n’play”.
This is a free service, and takes 1-2 days prior to shipping.
Non-timed deliveries should be delivered between the hours of 9am and 6pm.
Orders placed after 2pm on Fridays and on weekends will be processed as normal the following Monday.
Orders placed on Bank Holidays will be processed the next working day.
**If urgent, please call one of our helpful account managers so they may double check everything for you, enabling you to place your order with confidence.**
*Please note: these product details are for guide purposes only, and may contain errors.*
*We always recommend double-checking the product specs and features on the manufacturer website, or contact us if unsure before ordering.*
