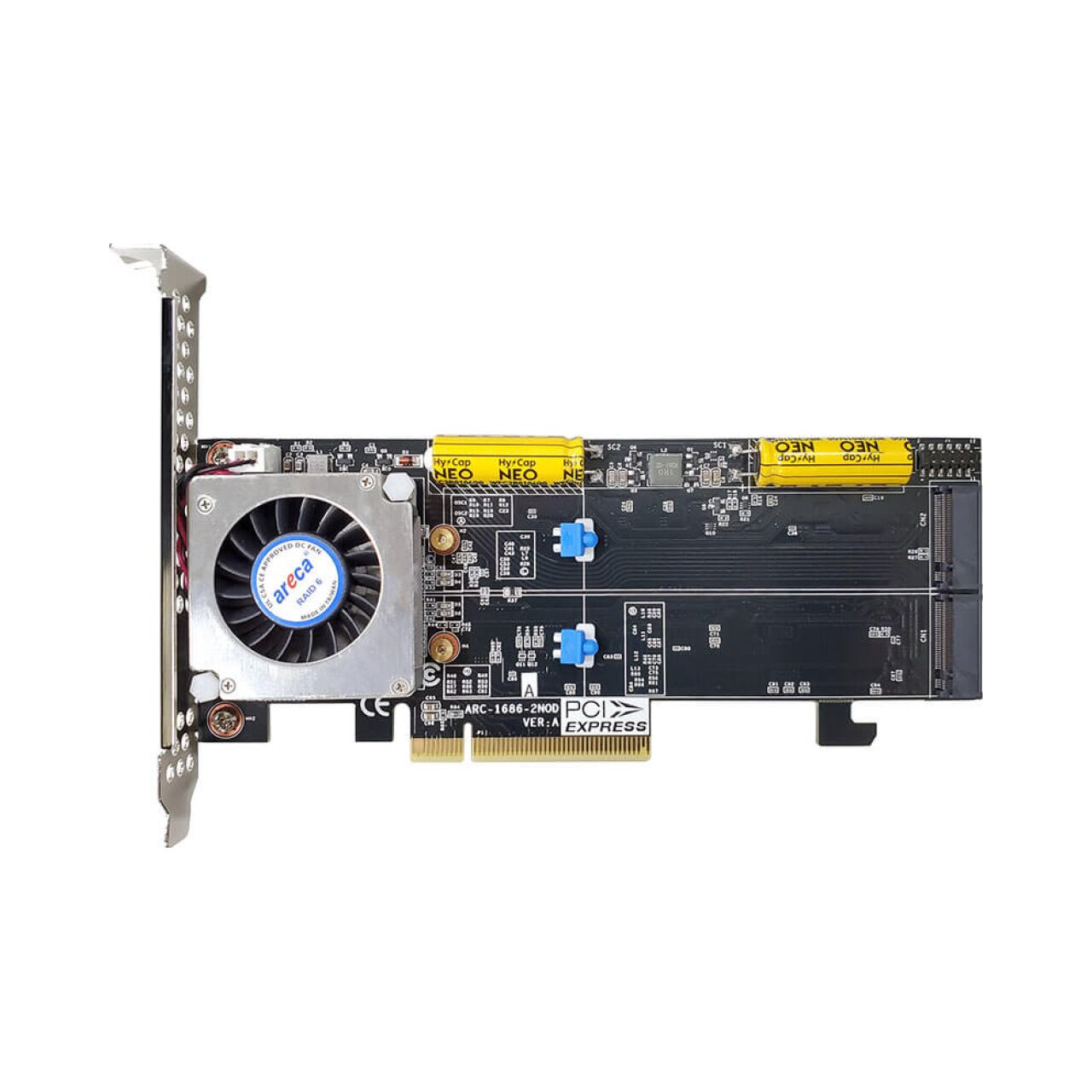

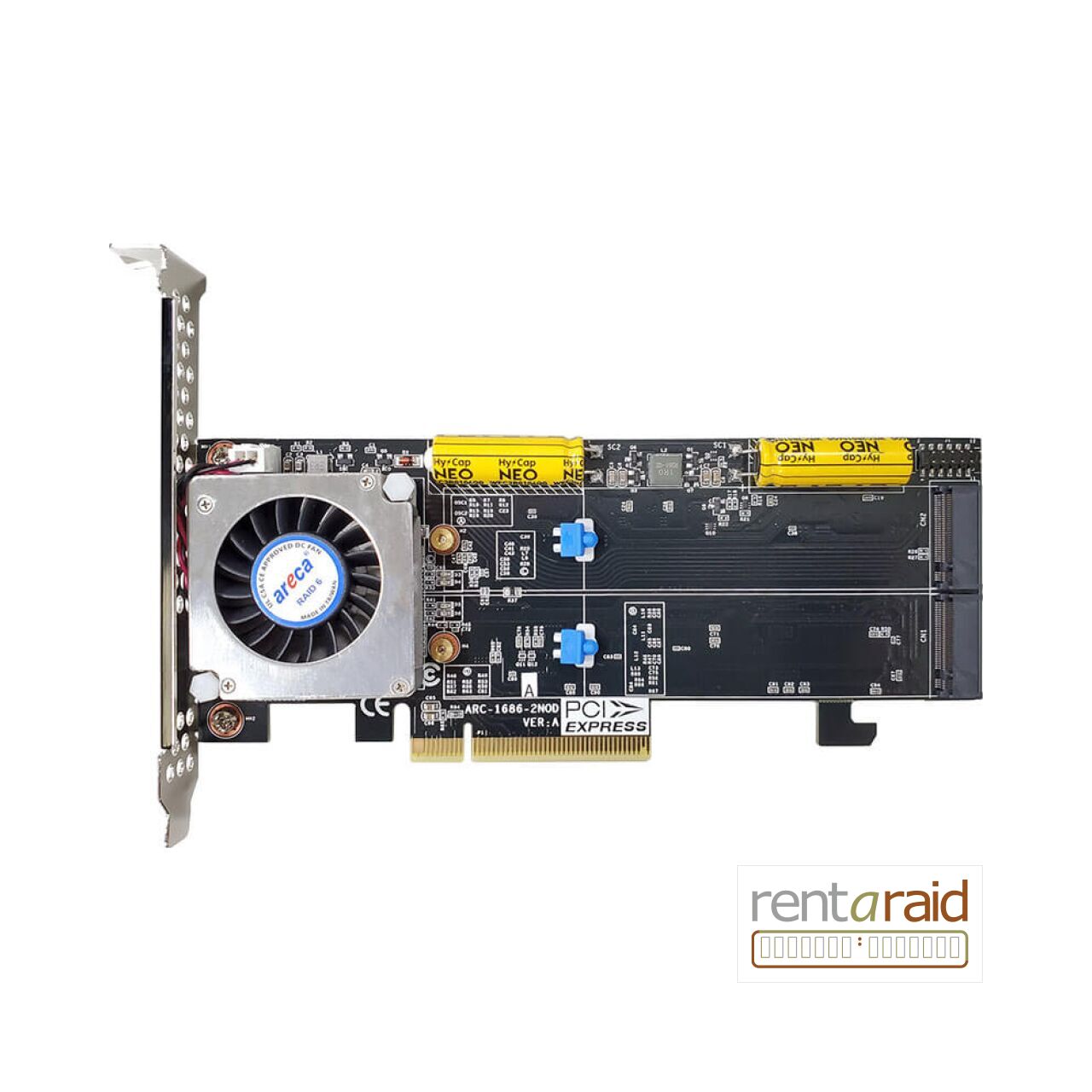

Areca ARC-1686-2NOD is a 2-bay M.2 NVMe hardware RAID adapter with x8 PCIe Gen 4.0 host connectivity.
It supports 2 x M.2 Connector and tri-mode interfaces that handle 12Gb/s SAS, 6Gb/s SATA and Gen 4.0 PCIe (NVMe) devices.
The adapter includes off module power loss protection using an on-board supercapacitor and support for individual NVMe PowerDisable for remote drive power cycling.
Original price was: £ 524.07.£ 419.95Current price is: £ 419.95. | £ 503.94 inc VAT
Please Call Us For Availability Of This Item
We pride ourselves on knowing, selling and supporting Areca RAIDs & Controllers better than anyone else in the UK!
All our Areca RAIDs ship pre-configured & tested (RAID5 or RAID6, for Mac or PC). Please allow us 1-2 days to do this for you for free.
Seen a better price elsewhere? Let us know & we’ll do our best so you also benefit from our Areca knowledge, expertise & totally free after-sales support.
– The UK’s Areca RAID Experts!Areca ARC-1686-2NOD is a 2-bay M.2 NVMe hardware RAID adapter that brings hardware RAID services and enterprise reliability to compact M.2 storage layouts.
The adapter uses a tri-mode ROC and PCIe Gen 4.0 host connectivity to support mixed NVMe and SATA M.2 devices with off-module power-loss protection and management tooling.
Tri-Mode Dual Core ARM A15 1.6GHz ROC handles RAID processing on-board to reduce host CPU load and deliver consistent parity and mirroring operations.
The adapter presents an x8 PCIe Gen 4.0 host interface for high-bandwidth connectivity to a compatible system.
Areca ARC-1686-2NOD provides 2 x M.2 Connector and supports 6Gb/s SATA and Gen 4.0 PCIe (NVMe) devices per slot.
Each M.2 bay offers a tri-mode interface supporting 12Gb/s SAS, 6Gb/s SATA and Gen 4.0 PCIe (NVMe) to accommodate a range of M.2 storage types.
The adapter supports off module power loss protection for Non PLP NVMe drive using on-board supercapacitor to maintain data integrity during power events.
Support individual NVMe PowerDisable feature allows the adapter to electrically power cycle a physical NVMe drive to assist with remote recovery or drive reset.
Hardware secure boot ready, redundant flash image for adapter availability and SED support for hardware NVMe encryption capable drives provide firmware resilience and drive-level encryption options.
Areca ARC-1686-2NOD operates from 0 °C to 55 °C at 10% to 85% non-condensing humidity, uses 12V operating voltage and consumes Approximately 12/14 Watts (without M.2 drive). The form factor measures 64.41(H) x 167.65(L) mm and includes an on-board hold-up supercapacitor.
| Model | Areca ARC-1686-2NOD |
| Form Factor | 64.41(H) x 167.65(L) mm |
| I/O Processor | Tri-Mode Dual Core ARM A15 1.6GHz ROC |
| Drive Connector | 2 x M.2 Connector |
| Drive Support | 6Gb/s SATA, Gen 4.0 PCIe (NVMe) |
| Device Interface | PCIe Gen4 NVMe / 6Gbps SATA per M.2 slot |
| Tri-Mode Interface | 12Gb/s SAS/SATA / Gen 4.0 PCIe (NVMe) at each M.2 bay |
| Host Interface | x8 PCIe Gen 4.0 |
| Power Disable | Support individual NVMe PowerDisable feature |
| Off Module Power Loss Protection | Support off module power loss protection for Non PLP NVMe drive using on-board supercapacitor |
| Hold-up Supercapacitor | On-board |
| Management Port | In-Band: PCIe |
| Management Software | McRAID storage manager (web browser-based) and ArcSAP quick manager |
| Security | Hardware secure boot ready; Redundant flash image for adapter availability; SED support for hardware NVMe encryption capable drives |
| Capacity & Migration | Capacity expansion, RAID level/stripe size migration |
| Operating Voltage | 12V |
| Power Consumption | Approximately 12/14 Watts (without M.2 drive) |
| Operating Temperature | 0 °C to 55 °C |
| Operating Humidity | 10% to 85%, non-condensing |
| Operating System Support | Windows, Linux (open source), FreeBSD (open source) and Mac |
